COMMENCAL SUPREME DH RACE METALLIC GREEN- S (22150101)

Price reduced from € 4.833,33 excl. VAT to € 2.916,66 excl. VAT -40%
id/sku : AN3763
Availability: This Item is currently not available. null
10% off the total price (tax included) for pick-up in our Andorran showroom.. - Contact us !
(valid for purchases of complete bikes and frames only)
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

This bike is equipped with a new frame, but reassembled with used components.

- THE WORKSHOP NOTE -

-NEW Frame
-NEW Wheels
-NEW Headset
-NEW Grips
-NEW Tyres
-Brakes bleed, pads changed
-Revised shock absorber and fork

Please note that this bike is guaranteed as new!
Enjoy!

Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique! Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4,6 kg / 10.14 lb

  • Rear travel

    200 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm / 30 x 10 mm

  • Recommended/max. fork height

    27 : 590mm / 595 mm - 29 : 601mm / 610 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    27.5’’: 65 mm - 29’’ : 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L = 176 mm, m12, p1.0 mm - moyeu : 150 x 12 mm standard maxle

- SPECIFICATIONS -
  • Frame

    SUPREME DH 29/27, 200 mm travel on S / M / L - 2022 Supreme DH 29, 200 mm travel on XL
    Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX DHX 2 Performance Elite
    250 x 75 mm, Rebound. Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL

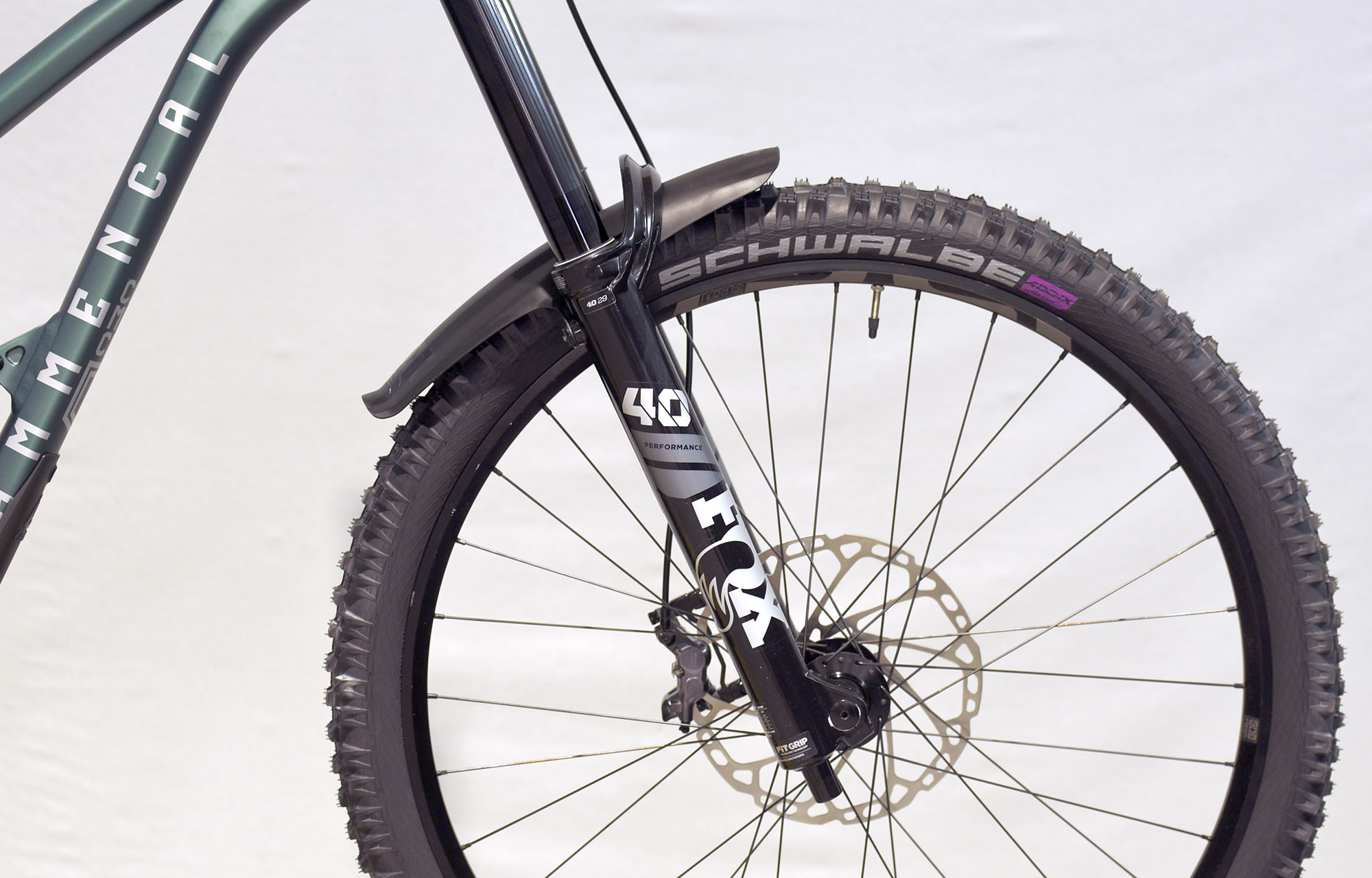

  • Fork

    FOX 40 Performance, 203 mm travel
    29", Grip damper, LSC, LSR, Float Evol. Boost (20 x 110 mm), 56 mm offset, 2 Tokens

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on  XL

  • Grips

    RIDE ALPHA

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 220 mm, 6-bolt

  • Shifters

    SRAM GX DH
    7sp

  • Chain guide

    E13 LG1 + Bottom Guide
    28-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    E13 LG1 + DH
    7s, 9-21t DM Cassette

  • Rims

    E13 LG1 + DH
    Rear: 27.5'', 32h, 30 mm inner width on S / M / L  - 29'', 32h, 30 mm inner width on XL - FRONT: 29'', 32h, 30 mm inner width on S/M/L/XL

  • Hubs

    Rear: E13 LG1 + DH - Front: E13 LG1 + DH
    Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    E13 LG1 + DH

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready on S / M / L - 29" x 2.4", WT, 3C MaxxGrip, DH casing, Tubeless Ready on XL - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless Ready on S / M / L / XL

  • Seat post

    TRUVATIV Descendant DH
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Allow rails

  • Weight

    17,3 kg / 38,13 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    METALLIC GREEN

  • Accessories

    Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, FOX 40 Fender

    *Please note that bike specs are subject to change without prior notice.
