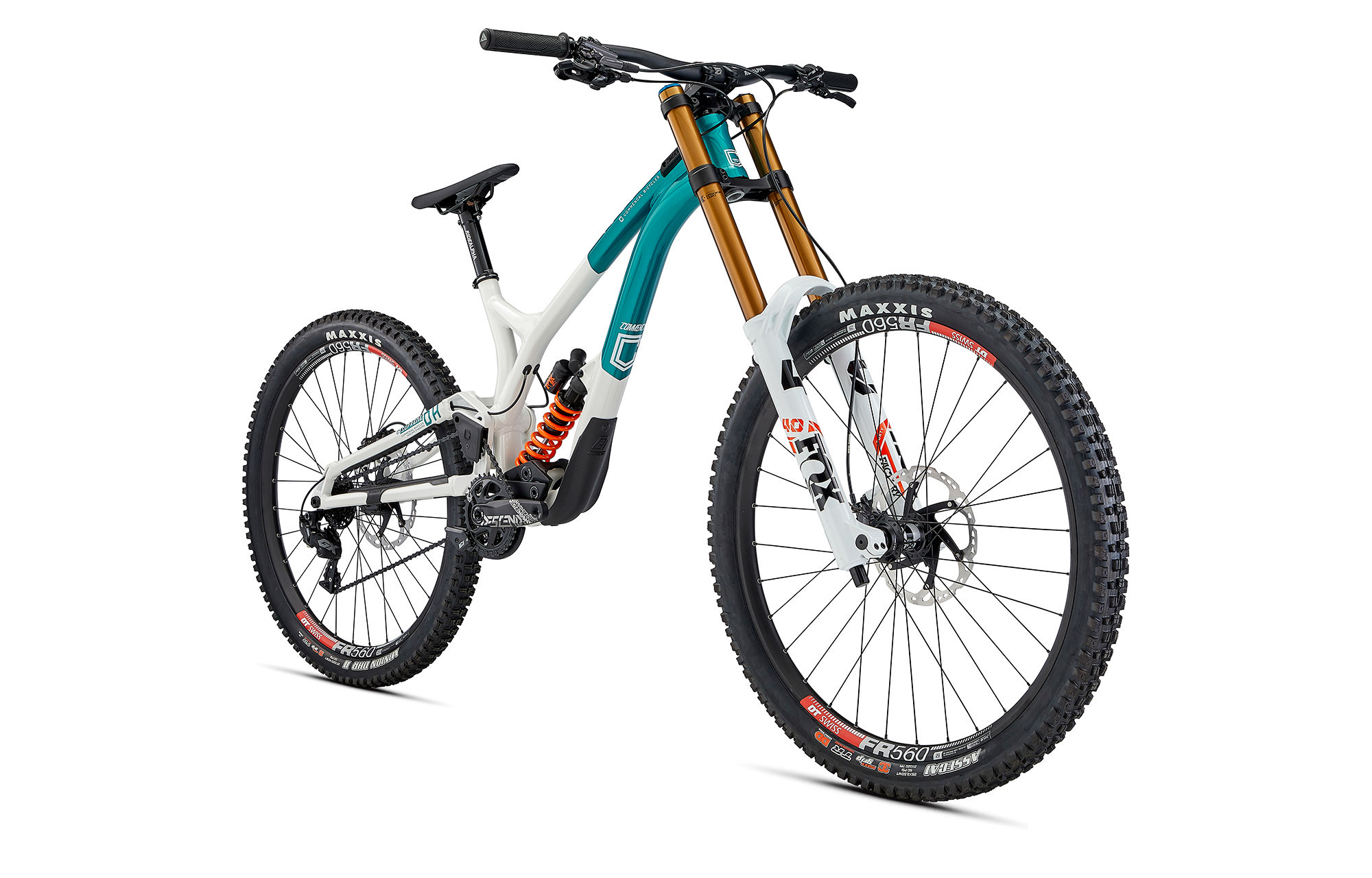

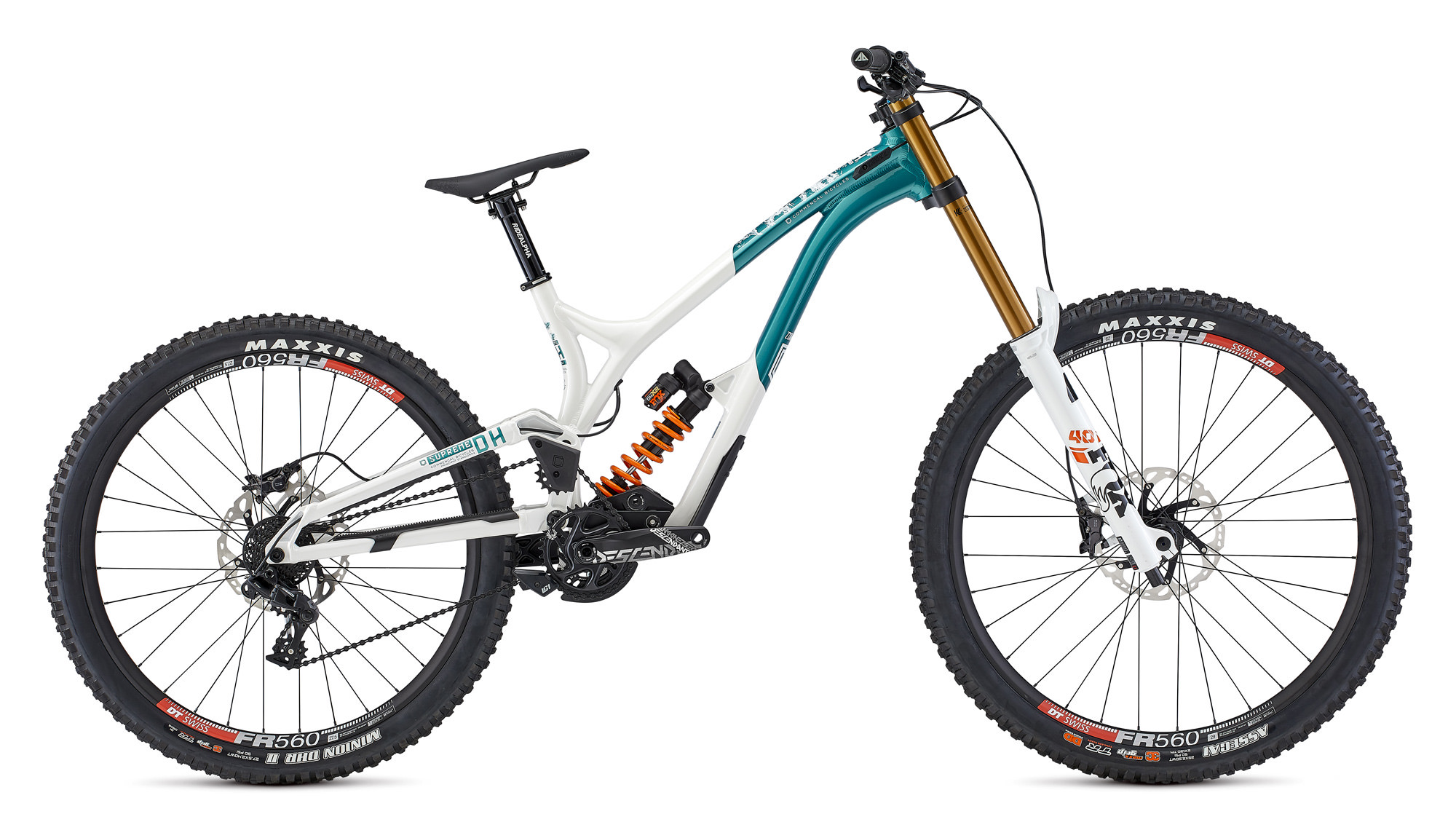

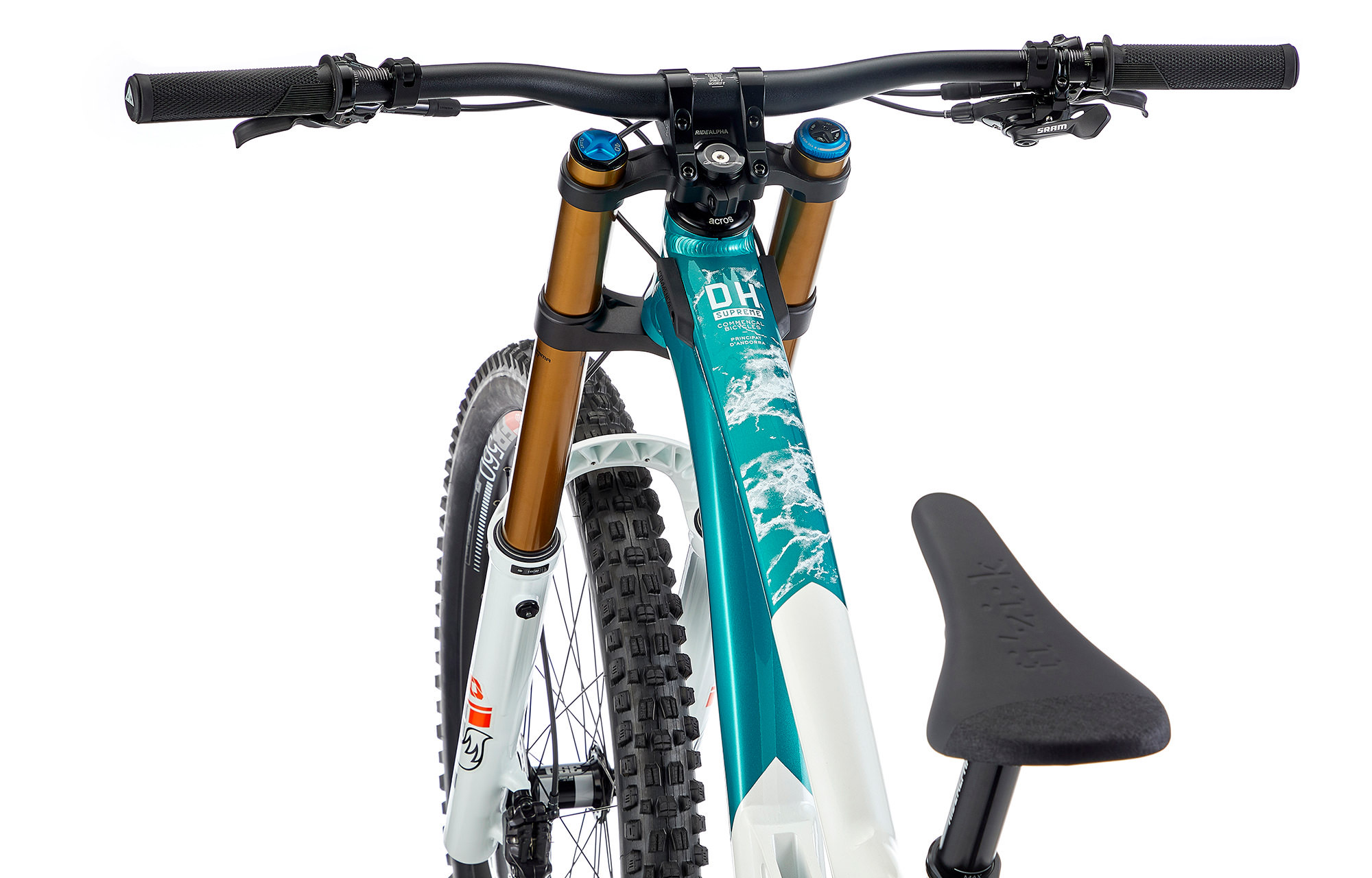

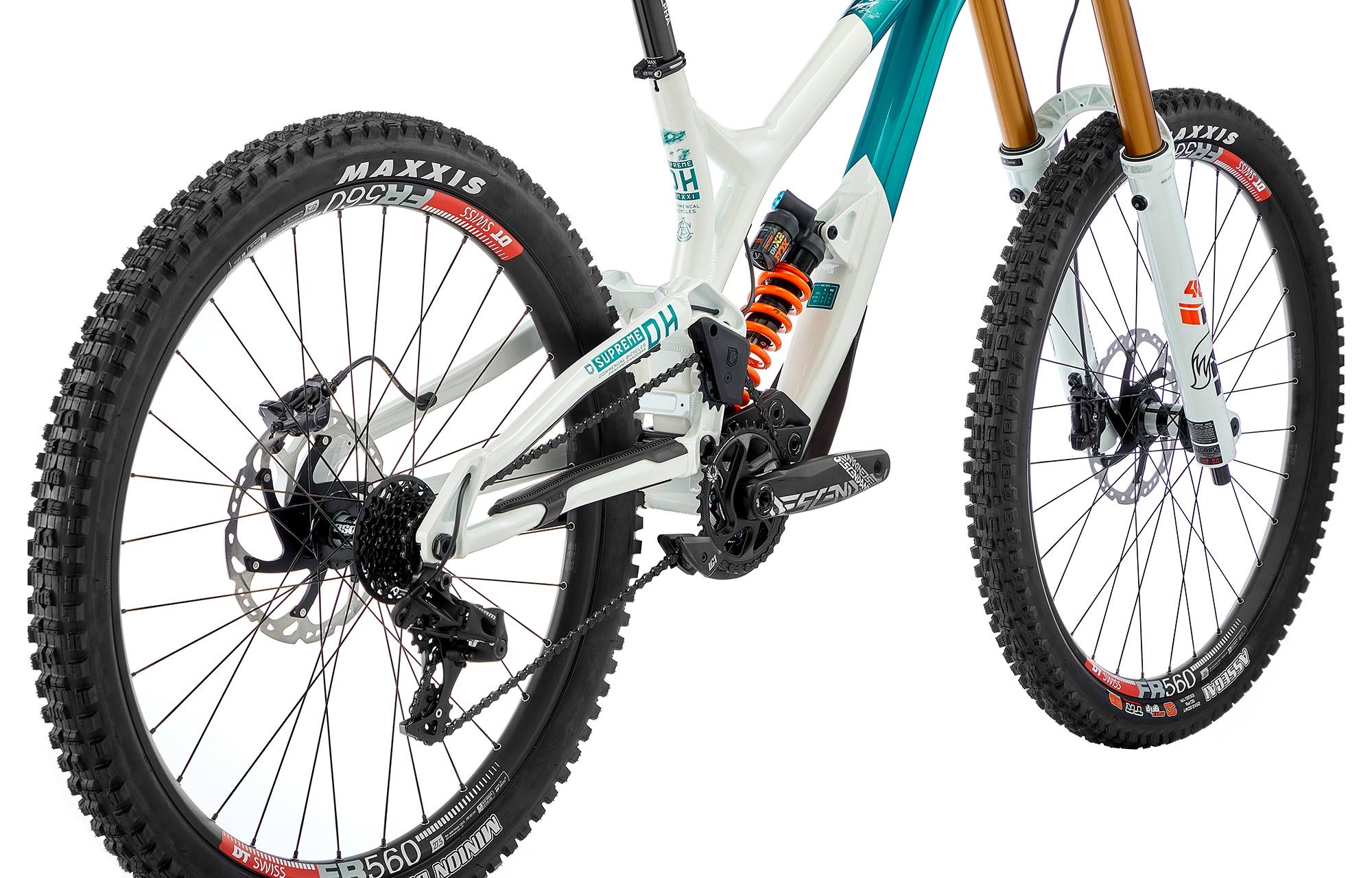

COMMENCAL SUPREME DH V4 29/27 SIGNATURE

Price reduced from € 5.000,00 excl. VAT to € 4.083,33 excl. VAT -18%
id/sku : 21SUPMULSG
Availability: Select the model for availability null
10% off the total price (tax included) for pick-up in our Andorran showroom.. - Contact us !
(valid for purchases of complete bikes and frames only)
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

Since 2015, the SUPREME DH V4 has been acclaimed for its efficiency. Not content with putting the high pivot point back into the spotlight, it is often considered one of the best downhill mountain bikes ever produced. As comfortable between DH race tape as on bike park trails, this version with a mullet wheel set-up is the most ultimate evolution we could ever have dreamt of.

Because of how easy it is to work and in addition to being a durable and recyclable material, the use of aluminium has allowed us to constantly improve the V4, year after year.

LEARN MORE ABOUT ALUMINIUM

SUPREME DH V4 29/27 SIGNATURE

The SUPREME DH V4 29/27 SIGNATURE is designed to please the most demanding riders.

This ultimate setup features a FOX 40 Factory fork. From the fork legs with valves to equalize pressure, to the GRIP 2 hydraulic cartridge with four adjustment settings, not forgetting the Float Evol air spring: expect nothing but impeccably working suspension.

The FOX DHX2 Factory shock provides incomparable sensitivity and consistency whatever the duration of the run or condition of the track.

Braking is handled by SHIMANO with a pair of 4-piston Deore XT M8120s. They are super effective with a true and aggressive bite.

A pair of custom DT SWISS wheels provide the roll on this SUPREME DH V4. The FR 560 downhill rims which are solid and dynamic are combined with heavy-duty 350 hubs.

The SRAM GX DH transmission offers ultra-precise gear changes thanks to DH-specific staging.

To offer maximum grip and performance, we have a MAXXIS Assegai and Minion DHRII tyre combo.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4,6 kg / 10.14 lb

  • Rear travel

    200 mm

  • Shock length/stroke

    250 mm /75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm / 30 x 10 mm

  • Recommended/max. fork height

    601 mm - 610 mm

  • Headset type

    ZS56/ZS56

  • Maximum tyre dimension (etrto)

    27.5’’: 65 mm - 29’’ : 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L = 176 mm, m12, p1.0 mm - moyeu : 150 x 12 mm standard maxle

- SPECIFICATIONS -
  • Frame

    SUPREME DH 29/27, 200 mm travel
    27 / 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX DHX2 Factory
    250 x 75 mm, HSC, LSC, HSR, LSR. Spring rates: 375 lbs on S, 425 lbs on M, 475 lbs on L, 525 lbs on XL

  • Fork

    FOX 40 Factory, 203 mm travel
    29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 56 mm offset

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061

  • Grips

    RIDE Alpha DH
    Soft compound, single clamp, black

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT86 203 mm, 6-bolt

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    28-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM PG-720
    7 sp, 11-25t

  • Rims

    DT SWISS FR560
    Rear: 27.5", 32h, 30 mm inner width - Front: 29", 32h, 30 mm, inner width

  • Hubs

    DT SWISS 350
    Rear: 32h, sealed bearings, 12 x 150 mm, black, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    DT SWISS Competition
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHRII - Front: MAXXIS Assegai
    Rear: 27.5" x 2.4" WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless Ready

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Alpaca Gravita X5
    130 mm width, S-Alloy rails

  • Weight

    17,5 kg / 38,5 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pearl White / Electroplate Lagoon
    Shiny finish

  • Accessories

    FOX 40, Fork mudguard, chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, tubeless valves

    *Please note that bike specs are subject to change without prior notice.
