COMMENCAL SUPREME DH V4 OHLINS EDITION KESWICK GREEN
Price reduced from
€ 5.166,66
excl. VAT
to
€ 4.166,66
excl. VAT
-19%
id/sku : 22SUPOH
Availability:
Select the model for availability
null
10% off the total price (tax included) for pick-up in our Andorran showroom..
-
Contact us
!
(valid for purchases of complete bikes and frames only)
(valid for purchases of complete bikes and frames only)
- Start
- DESCRIPTION
- TECHNICAL INFO
- SPECIFICATIONS
- SIZES
- GEOMETRY
- SPECS
- TECHNICAL SPECIFICATIONS
- Size Chart
- Video
- DESCRIPTION -
Since 2015, the SUPREME DH V4 has been acclaimed for its efficiency. Not content with putting the high pivot point back into the spotlight, it is often considered one of the best downhill mountain bikes ever produced. As comfortable between DH race tape as on bike park trails, this version with a mullet wheel set-up is the most ultimate evolution we could ever have dreamt of.
Because of how easy it is to work and in addition to being a durable and recyclable material, the use of aluminium has allowed us to constantly improve the V4, year after year.
LEARN MORE ABOUT ALUMINIUM

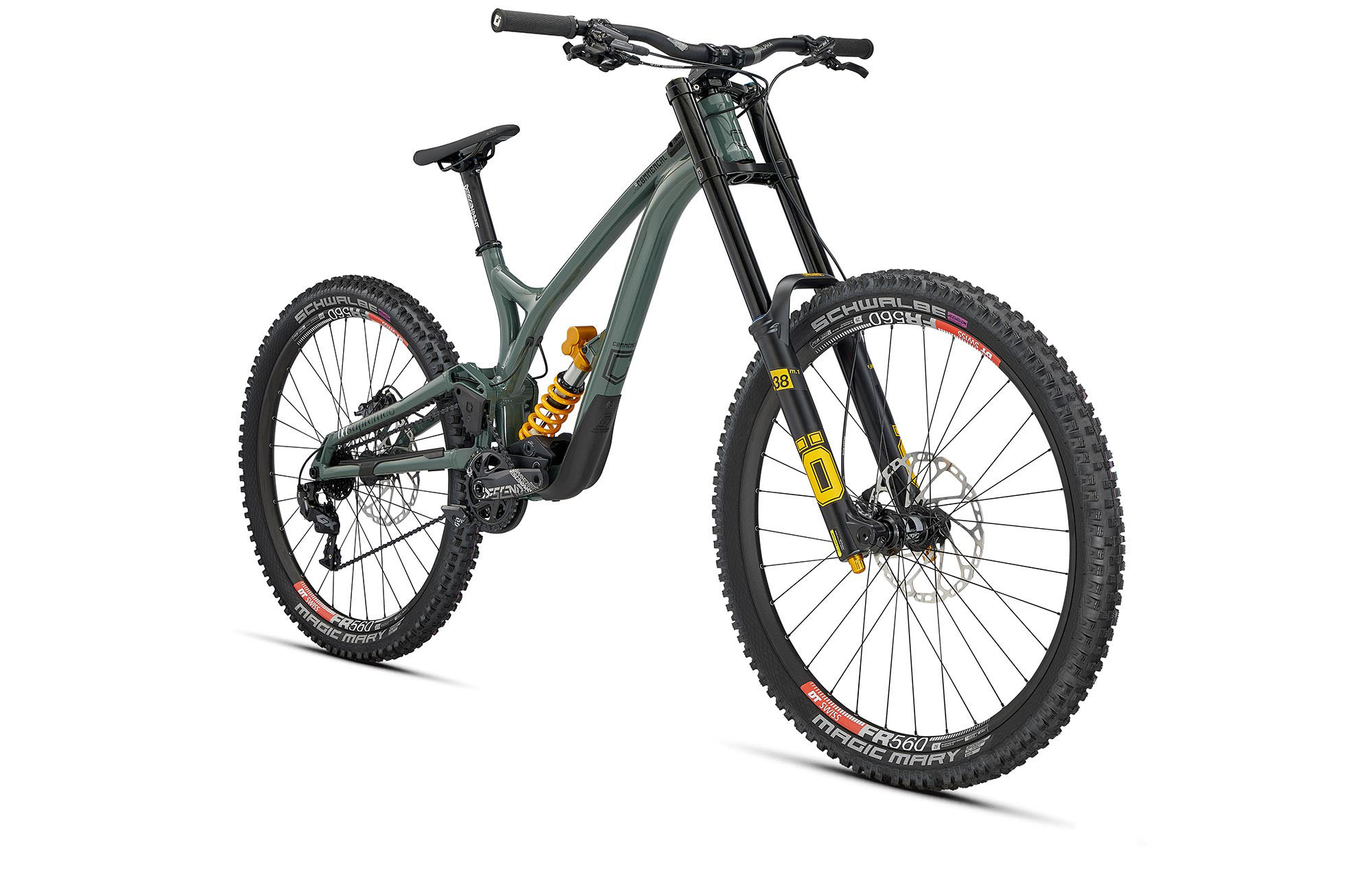

SUPREME DH V4 ÖHLINS EDITION KESWICK GREEN
The SUPREME DH V4 ÖHLINS EDITION features the best in suspension from the legendary Swedish brand.
The DH38 m.1 Air fork combines an ultra-precise chassis with an air spring that is equipped with a specific chamber to adjust progressiveness at the end of the stroke. Not forgetting the hydraulic cartridge with three adjustment settings.
The TTX22 m shock absorber is certainly one of the best products for downhill riding. Many pro riders love it for its unbeatable sensitivity and support.
Braking is handled by SHIMANO with a pair of 4-piston Deore XT M8120s. They are super effective with a true and aggressive bite.
A pair of custom DT SWISS wheels provide the roll on this SUPREME DH V4. The FR 560 downhill rims which are solid and dynamic are combined with heavy-duty 350 hubs.
The SRAM GX DH transmission offers ultra-precise gear changes thanks to DH-specific staging.
Finally, the SCHWALBE Magic Mary tyres offer phenomenal grip to this ÖHLINS edition.
*Please note that bike specs are subject to change without prior notice.
See more
See less
- TECHNICAL INFO -
Bicycle type
DH Racing
Frame material
AL 6066 T4, T6
Frame weight
4,6 kg / 10.14 lb
Rear travel
200 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm / 30 x 10 mm
Recommended/max. fork height
27: 590mm / 595 mm - 29 : 601mm / 610 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
27.5’’: 65 mm - 29’’ : 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L = 176 mm, m12, p1.0 mm - moyeu : 150 x 12 mm standard maxle
- SPECIFICATIONS -
Frame
SUPREME DH 29/27, 200 mm travel on S / M / L - 2022 SUPREME DH 29, 200 mm travel on XL
Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ÖHLINS TTX22M
250 x 75 mm, LSR, LSC, HSC 3 positions. Spring rates: 388 lbs on S, 434 lbs on M, 480 lbs on L, 525 lbs on XLFork
ÖHLINS DH38 Air, 200 mm travel
29", TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 54 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-boltShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
28-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7s, 11-25tRims
DT SWISS FR560
Rear: 27.5'', 32h, 30 mm inner width on S / M / L - 29'', 32h, 30 mm inner width on XL - Front: 29'', 32h, 30 mm inner width on S/M/L/XLHubs
DT SWISS 350
Rear: 32h, sealed bearings, 12 x 150 mm, black, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft on S / M / L - 29" x 2.4", Super DH, Addix Ultra Soft on XL - Front: 29" x 2.4", Super DH, Addix Ultra Soft on S / M / L / XLSeat post
TRUVATIV Descendant DH
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,4 kg / 38,36 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Keswick Green
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover
*Please note that bike specs are subject to change without prior notice.
