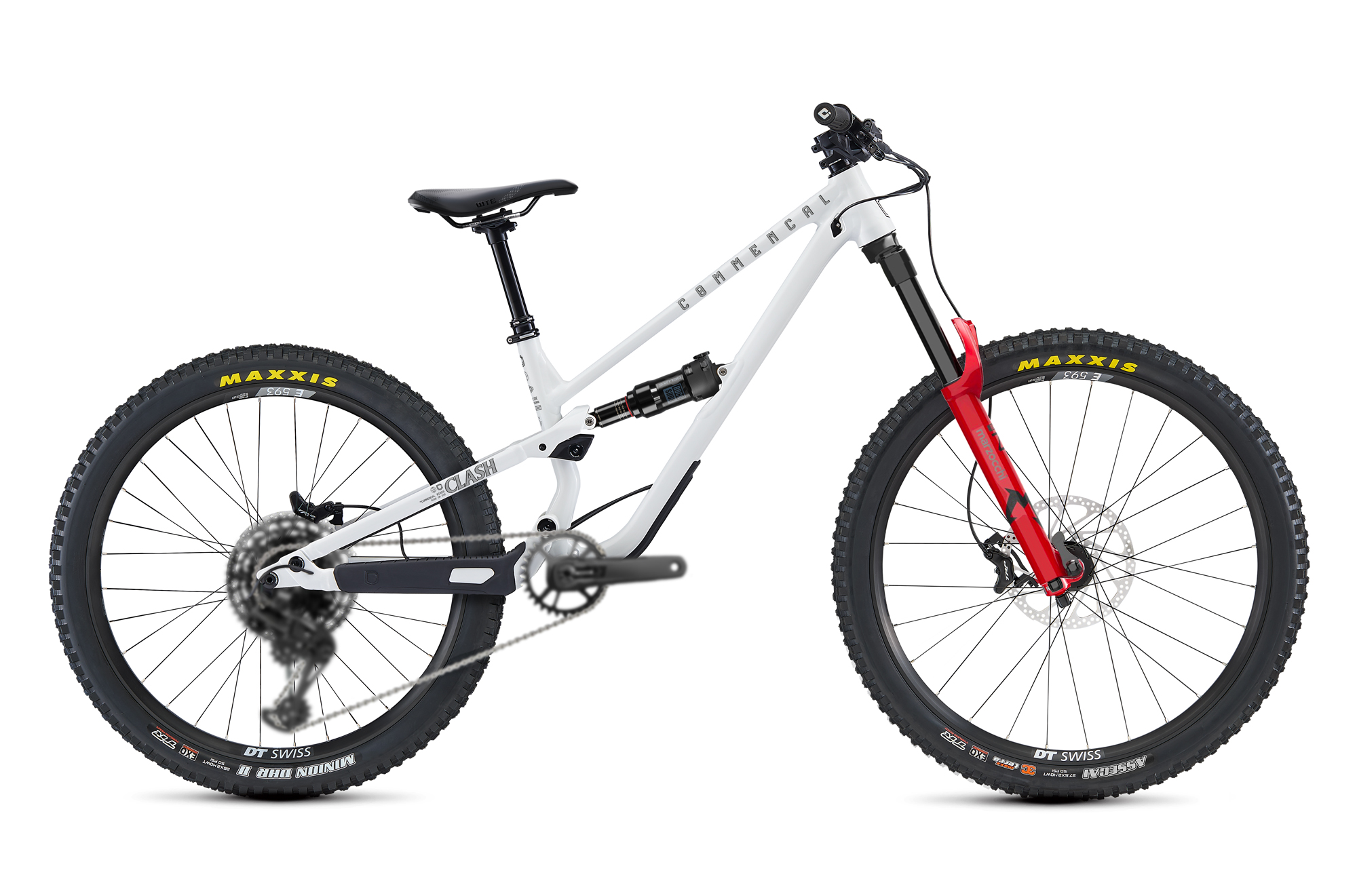

COMMENCAL CLASH XS PURE WHITE 2027 image number null

10/11 y/o

140-158cm

ENDURO

FREERIDE

160mm

160mm

27.5" / 26"

COMMENCAL CLASH XS PURE WHITE 2027

The CLASH XS is designed for technical terrain. Its 27.5/26-inch mullet wheels combined with a carefully studied geometry make it the ultimate weapon for having fun and tackling slopes without apprehension. The virtual pivot point kinematics, adapted for smaller frames, allows you to maintain all the grip and comfort necessary to face the most demanding trails.

10/11 y/o

140-158cm

ENDURO

FREERIDE

160mm

160mm

27.5" / 26"

LEARN MORE ABOUT THE CLASH KIDS
2.880,00 €
id/sku : BT7CLAXSEU1XS
  SIZE GUIDE
Customize your jersey!

Make your jersey unique by adding your name for an additional € 15.Simply indicate your name in the "Comments" section during the final step of your order. We will then contact you to finalize the personalization and its payment.

pick-up at COMMENCAL Village

Orders placed on this site are exclusively available for pickup in our COMMENCAL Village showroom, located in the Principality of Andorra. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.MORE INFORMATION

COMMENCAL CLASH XS PURE WHITE 2027 image cover number large 0

The CLASH XS offers a high-performance configuration adapted to smaller riders with 160 mm of travel.

  • The MARZOCCHI Bomber Z1 160 mm combined with the ROCKSHOX Deluxe Select shock absorber provides support and absorption capacity on demanding terrain.

  • TRP 4-piston braking with 203/203 mm discs guarantees power and consistency.

  • DT SWISS E593 wheels ensure robustness and reliability.

  • The SRAM 12-speed drivetrain with 11-50t cassette guarantees versatility and efficiency.

specifications

  • Frame

    CLASH XS
    27,5"/26", Alloy 6061, triple butted tubes, T4, T6.

  • Shock

    ROCKSHOX Deluxe Select
    210 x 55 mm, rebound, threshold adjustment, 1 token

  • Fork

    MARZOCCHI Bomber Z1, 160 mm travel
    27,5", RAIL 2.0, Sweep-Adj, rebound, Boost (15 x 110 mm), 40 mm offset, 2 tokens

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31.8 mm

  • Handlebar

    RIDE ALPHA R20 740
    31.8 mm, 740 mm width, 20 mm rise

  • Grips

    ODI Elite Motion
    Single clamp, black

  • Brakes

    TRP, hydraulic disc brake, 4 pistons, resin pads
    Rotors : TRP, 6-bolts, 203 mm

  • Shifters

    SRAM
    12s

  • Rear derailleur

    SRAM
    12s

  • Bottom bracket

    SRAM DUB
    BB92, pressfit

  • Crankset

    SRAM, 160 mm crank arms
    Chainring : SRAM, 32t

  • Chain

    SRAM
    12s

  • Cassette

    SRAM
    12s, 11-50t

  • Rims

    DT SWISS E593


    Rear : 26", 32h, 30 mm inner width - Front : 27,5'', 28h, 30 mm inner width

  • Hubs

    Rear : FORMULA FDC-548S - Front : FORMULA DC-611
    Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 28h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    SAPIM D-LIGHT
    Double butted, stainless, with Nylok, black

  • Tyres

    Rear : MAXXIS DHR II - Front : MAXXIS Assegai
    Rear : 26"x2.40", Dual compound, Exo,  Tubeless ready - Front : 27,5"x2.50", 3C MaxxTerra, Exo, Tubeless ready

  • Seat post

    KS 900i
    31.6 mm, 100 mm

  • Saddle

    WTB Solano SL
    Crmo rails, 142 x 240 mm

  • Weight

    - kg / - lb
    Without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Pure White
    Shiny Finish

  • Accessories

    Ride Alpha CNC small pedals, chainstay protector, seatstay protector

Bike specifications are subject to change without notice.

Technical informations

  • Bicycle type

    Kids bike - Enduro / Freeride

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,2 kg / 7.05 lb

  • Rear travel

    160mm

  • Shock length/stroke

    210x55mm

  • Recommended SAG

    26-30% / 14-17mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x8mm

  • Recommended/max. fork height

    552mm / 562mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    27.5’’ - 26’’

  • Max. rear tyre dimension - ETRTO

    64mm - Ø559mm

  • rear brake mounting type

    Postmount 180mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm - 34,9mm

  • Seatpost insertion max.

    205mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Recommended/max. chainring teeth

    32T / 34T

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    UDH standard, 183mm, M12, P1.0mm

  • UDH hanger

    Yes

WHICH BIKE TO CHOOSE FOR YOUR CHILD?

Whatever your child's age or build, with our KIDS range, you're guaranteed to choose a mountain bike specifically designed for them. Here, the geometries, equipment and wheel sizes are conceived as a whole, to enable children to become experienced riders.

LEARN MORE

Geometry

SIZE
20
24
XS
1 - SEAT TUBE LENGTH
260
320
360
2 - SEAT TUBE ANGLE
74°
75,5°
77,5°
3 - HEAD TUBE ANGLE
65°
64,5°
64°
4 - HEAD TUBE LENGTH
100
100
110
5 - WHEELBASE
927
1036
1159
6 - TOP TUBE LENGTH
434
488
527
7 - CHAIN STAY LENGTH
345
390
434
8 - BOTTOM BRACKET HEIGHT
16
-6
0
9 - FORK LENGTH
430
500
552
10 - FORK OFFSET
40
40
42
11 - REACH
320
350
395
12 - STACK
451
534
593

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Adjust your suspension

commencal care

We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

Warranty

Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.

learn more

Registration

The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.

Register your bike

Technical documents

Here you will find all the technical and practical information concerning your COMMENCAL.

Detailed Technical Sheet
User Manual
