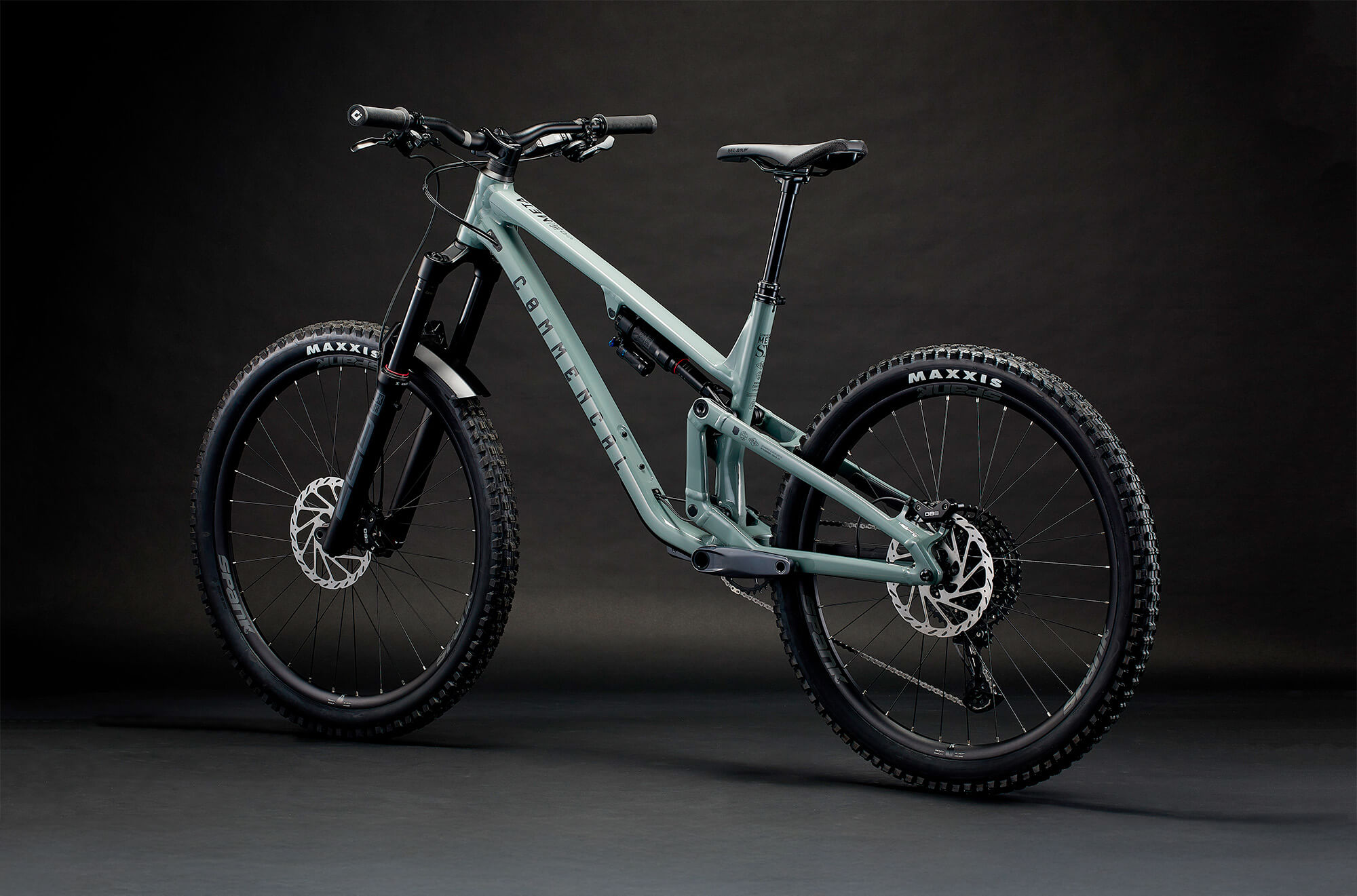

COMMENCAL META SX V5 RIDE PYRITE GREY
The META SX V5 is driven before its ridden. The 165mm of travel is combined with our VCS kinematics with virtual pivot point. Ready to be pinned and with monstrous grip, it is the ideal tool for riders looking for a mountain bike that feels like a mini-downhill rig in the bike park or on steep trails.
ENDURO
FREERIDE
ENDURO
FREERIDE
170mm
170mm
165mm
165mm
29" / 27.5"
29" / 27.5"
The META SX V5 RIDE is built around ROCKSHOX suspension and SRAM components.
• A 170mm Zeb fork offers a terrain-proof chassis with its 38mm stanchions. It inherits the new DebonAir + spring and the new Rush RC hydraulic cartridge. On the back, the Super Deluxe Select+ shock. Its end of stroke is better managed, and the additional cylinder increases oil volume for greater consistency.
• Braking comes in the form of the SRAM DB8s. They are reliable and easy to use.
• SPANK Spike Race 33 rims coupled with FORMULA hubs make up a robust and comfortable wheelset.
• A SRAM NX Eagle 12-speed drivetrain will allow you to shift gears smoothly.
La META POWER SX DJI Podium es un montaje exclusivo equipado con una horquilla FOX Podium Factory y una transmisión electrónica SRAM XO Eagle T-Type.
• La horquilla invertida FOX Podium Factory de 160 mm ofrece una rigidez estructural comparable a la de una FOX Factory 40. Aunque no cuenta con puente, sus botellas de 47 mm de diámetro y su eje de acero de 20 mm aseguran una relación peso/rigidez optimizada. El amortiguador trasero es un FOX Float X2 Factory, que proporciona el equilibrio perfecto entre agarre y confort.
• El sistema de frenado está confiado a SHIMANO con pinzas Deore XT de 4 pistones. El tacto es firme y el rendimiento constante, gracias a los discos de 203 mm.
• Las ruedas son DT SWISS HX 1700, combinadas con bujes DT SWISS 370, un conjunto preparado para soportar los terrenos más exigentes.
• Fiable y reactiva, la transmisión electrónica SRAM XO Eagle T-Type de 12 velocidades es ideal para la práctica del e-MTB, capaz de afrontar cualquier situación.
specifications
specifications
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select +
230 x 65 mm, RT damper, DebonAir, rebound, 2 position compression adjustment, 0 Token neg. 3 Tokens pos.Fork
ROCKSHOX Zeb Base, 170 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters
SRAM NX Eagle
12sChain guide
RIDE ALPHA
32t-34tREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB WIDE
PressfitCrankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK SPIKE RACE 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless ReadySeat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remoteSaddle
SDG Bel Air V3
140 mm width, steel railsWeight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pyrite Grey
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,6 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
55 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle
-
Bicycle type
Enduro / Freeride
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,08 kg / 8,99 lb
-
Rear travel
165mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
27-30% / 18-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
586mm / 598mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Chain Line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
No
WHICH META V5 TO CHOOSE?
WHICH META V5 TO CHOOSE?
Our META V5 and META SX V5 share the same playing field but have their own style and behaviour. Whether racing or adventuring, the META V5 loves long rides and wild trails. The META SX V5 prefers the slope, jumps or secret trail features, and the bike park. Their common denominator: Enduro
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
