COMMENCAL FRS OHLINS EDITION AQUA BLUE

Price reduced from C$ 7,000.00 to C$ 5,500.00 -21%
id/sku : 23FRSOHL
Availability: In stock null
  • Any questions?

    store.ca@commencal.com
    +1 604 390 2225
    from Monday to Saturday - 10am to 5pm (PT)

  • Shipping Options

    Home Delivery
    Showroom Pickup :
    COMMENCAL CANADA
    1121 Commercial Pl Unit 101
    Squamish, BC V8B 0S5

  • Payment options

    Credit card
    PayPal
    Interac e-Transfer® Autodeposit
    Bank transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

The FRS is our vision of freeride! It's a DH bike capable of lapping the bike park, throwing huge whips or secret runs in the steeps. With its 27.5" wheels, the FRS offers true feeling ground contact while being comfortable and predictable at the start of the suspension travel. This bike allowed our athlete Brett Rheeder to win at Red Bull Rampage 2022.

The FRS can be adapted to your riding style thanks to a specific insert. You have the choice between optimising grip with the Sensitive position or the liveliness of the bike with the Responsive position.
LEARN MORE

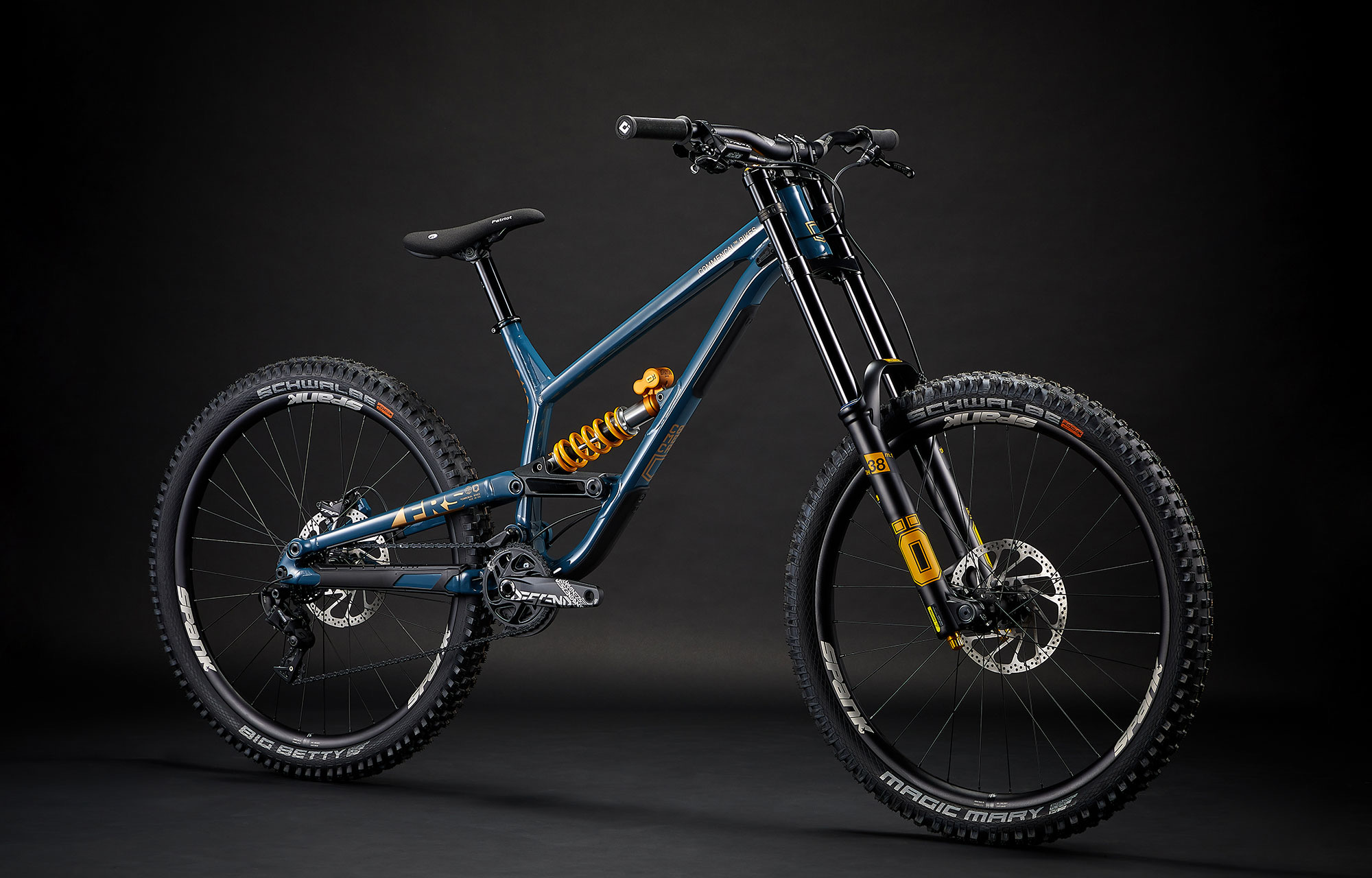

FRS ÖHLINS EDITION

The FRS ÖHLINS pays homage to its high-end components and suspension with a shiny refined and classy Aqua blue paint.

It is indeed equipped with the best ÖHLINS suspension:
- A TTX22M shock is known for its sensitivity to small impacts.
- The DH38 Air fork is best for the FRS thanks to its great precision through big impacts, plus it's efficient and easy to adjust.

On the braking side, the TRP DH-R Evo 4-piston brakes are THE Gravity benchmark thanks to their power, reliability and clean feel. The same goes for the SPANK wheels which are strong and robust. Combined with the tyre combo of a SCHWALBE Magic Marry and a Big Betty and their SuperGravity casing, this FRS is a reliable and lively bike.

A collector's item, designed for performance.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    DH / Freeride

  • Frame material

    Al 6066 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb

  • Rear travel

    200 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm / 30 x 10 mm

  • Recommended/max. fork height

    581 mm / 595 mm

  • Headset dimension

    Tapered 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27.5’' - 65 MM

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    203 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 150 x 12 mm standard maxle

- SPECIFICATIONS -
  • Frame

    FRS, 200 mm travel
    27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    OHLINS TTX22M Coil
    250 x 75 mm, HSC, LSC, rebound. Spring rates: 343 lbs on S, 388 lbs on M, 434 lbs on L, 480 lbs on XL

  • Fork

    OHLINS DH38 Air, 200 mm travel
    27.5", TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 46 mm offset

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck
    Soft compound, single clamp, black

  • Brakes

    TRP DH-R EVO, 4 pistons
    Rotors: TRP R1 203 mm, 2,3 mm, 6-bolt

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 Vario
    34-36t

  • Rear mech

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM PG-720
    7 sp, 11-25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, Tubeless Ready

  • Hubs

    Rear: SPANK HEX J-TYPE - Front: SPANK HEX J-TYPE
    Rear: 32h, sealed bearings, 12 x 150 mm, SHIMANO Hyperglide, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SPANK
    J-Hook, tripple butted 2.2/1.8/2.0

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 27.5" x 2.4", Super Gravity, Addix Soft, Tubeless Easy - Front: 27.5" x 2.4", Super Gravity, Addix Soft, Tubeless Easy

  • Seat post

    SDG Micro I-Beam
    31.6 mm, 250 mm length

  • Saddle

    SDG Patriot I-Beam
    129 mm width, Kevlar reinforced

  • Weight

    16,4 kg / 36.15 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Aqua Blue
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers

- SIZES -
- GEOMETRY -
