ALL ABOUT META POWER BOSCH

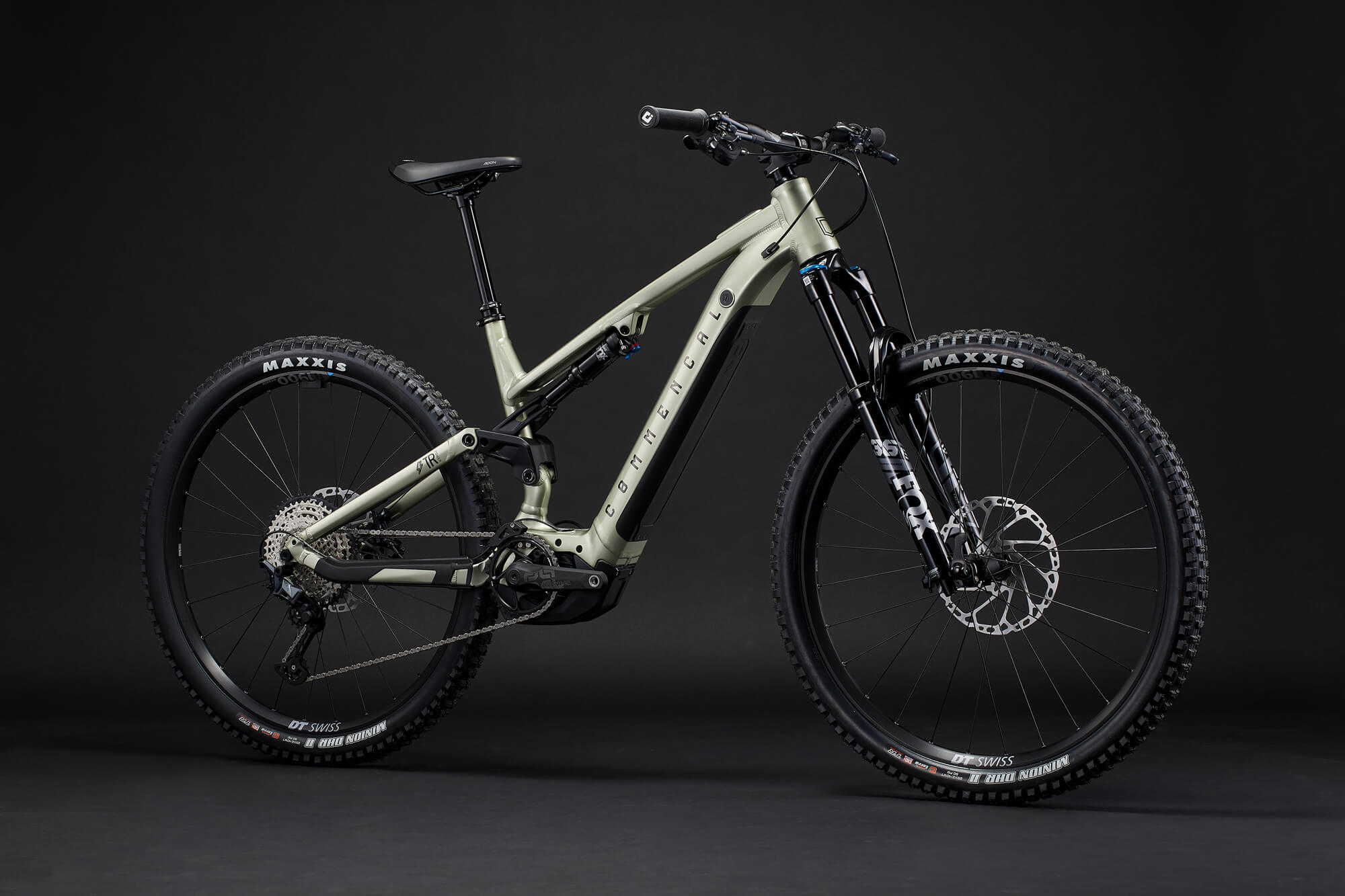

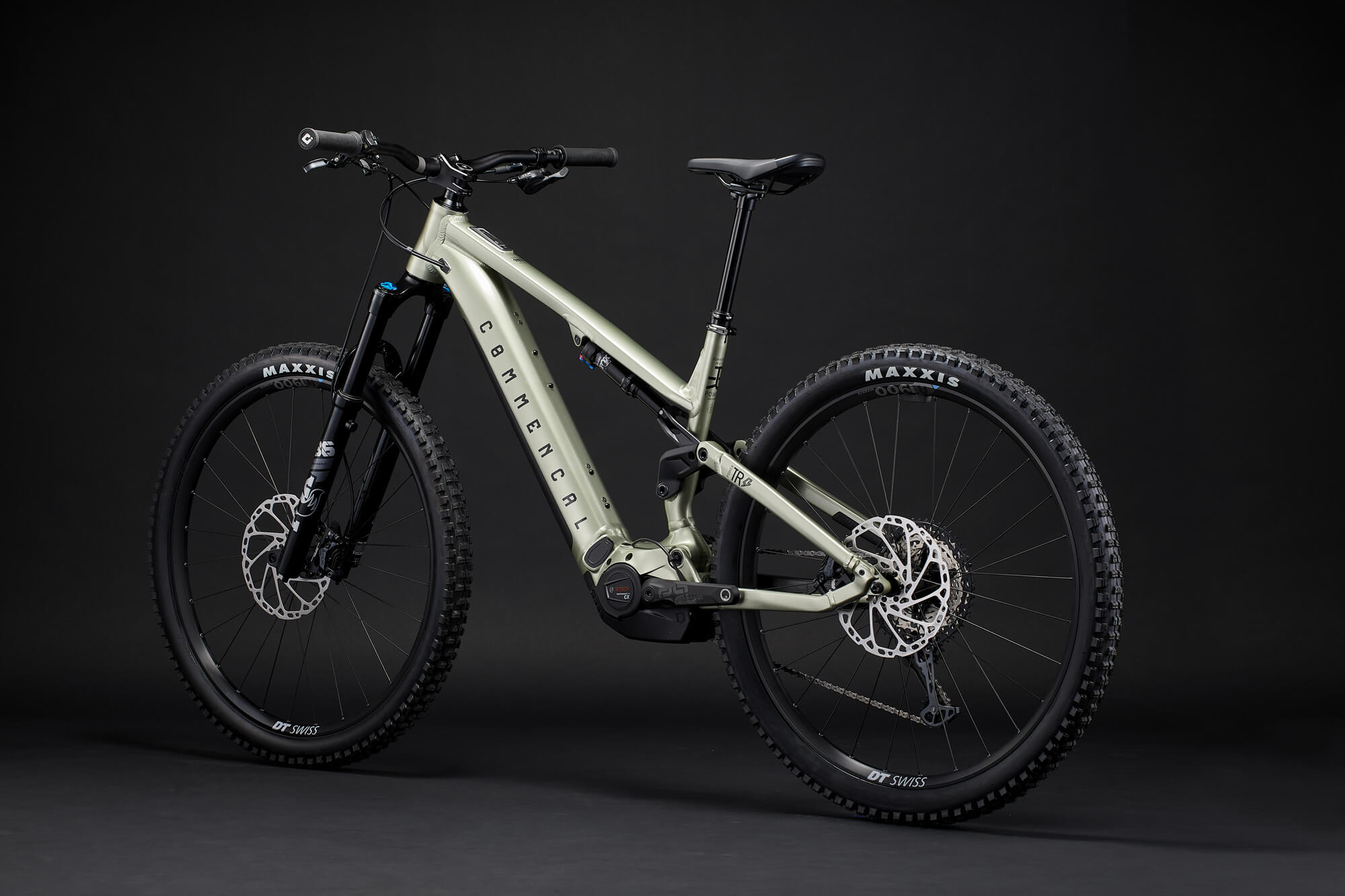

The META POWER TR is designed for the ride. With 140mm of travel it's easy to tame and is forgiving to the rider. Dynamic and playful, it ensures effective pedalling thanks to excellent geometry. The straightened seat tube and long front-end ideally positions the rider between the two wheel axles. The 29-inch wheels allow you to tackle the most technical climbs. This is the bike for those who like long rides and enjoying letting go of the brakes on the downhill.
META POWER TR BOSCH ESSENTIAL
Like the other models in our range, this ESSENTIAL model features the BOSCH Performance Line CX system and its Smart System. This system is one of the most advanced thanks to the power it delivers and the way it delivers it. The eBike Flow App means you can update the system in the blink of an eye and customise the assistance modes easily.
FOX is responsible for the suspension with the 36 Performance fork that has a stiffer chassis specifically for e-MTB use, plus the 3-position Grip cartridge. On the back, we have the FOX Float which soak up bumps thanks to its dual piston damper.
Everyone knows the importance of solid and reliable wheels, especially for e-bikes. That's the reason we've chosen the DT SWISS H1900, with reinforced components and a hand-built assembly by DT SWISS.
The 12-speed drivetrain and brakes (4-piston) come from SHIMANO with the SLX groupset for performance and reliability that's second to none.
*Please note that bike specs are subject to change without prior notice.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL-6061 + AL-6066
Frame weight
- kg / - lb - With plastic accessories.
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BOSCH
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsSystem
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay

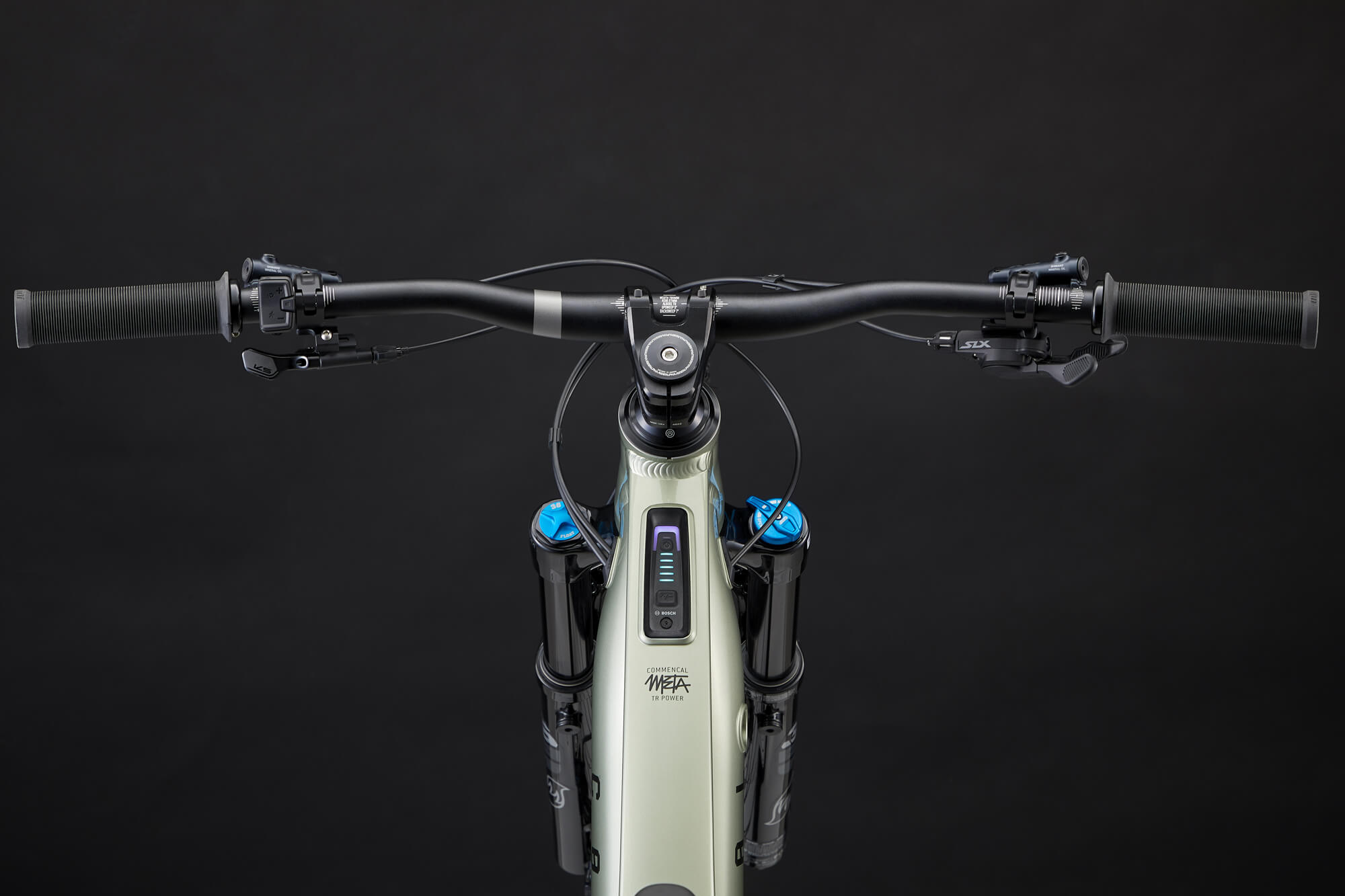

BOSCH System Controller
BOSCH Mini RemoteShock
FOX Float Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance E-Bike, 150 mm travel
29", Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem

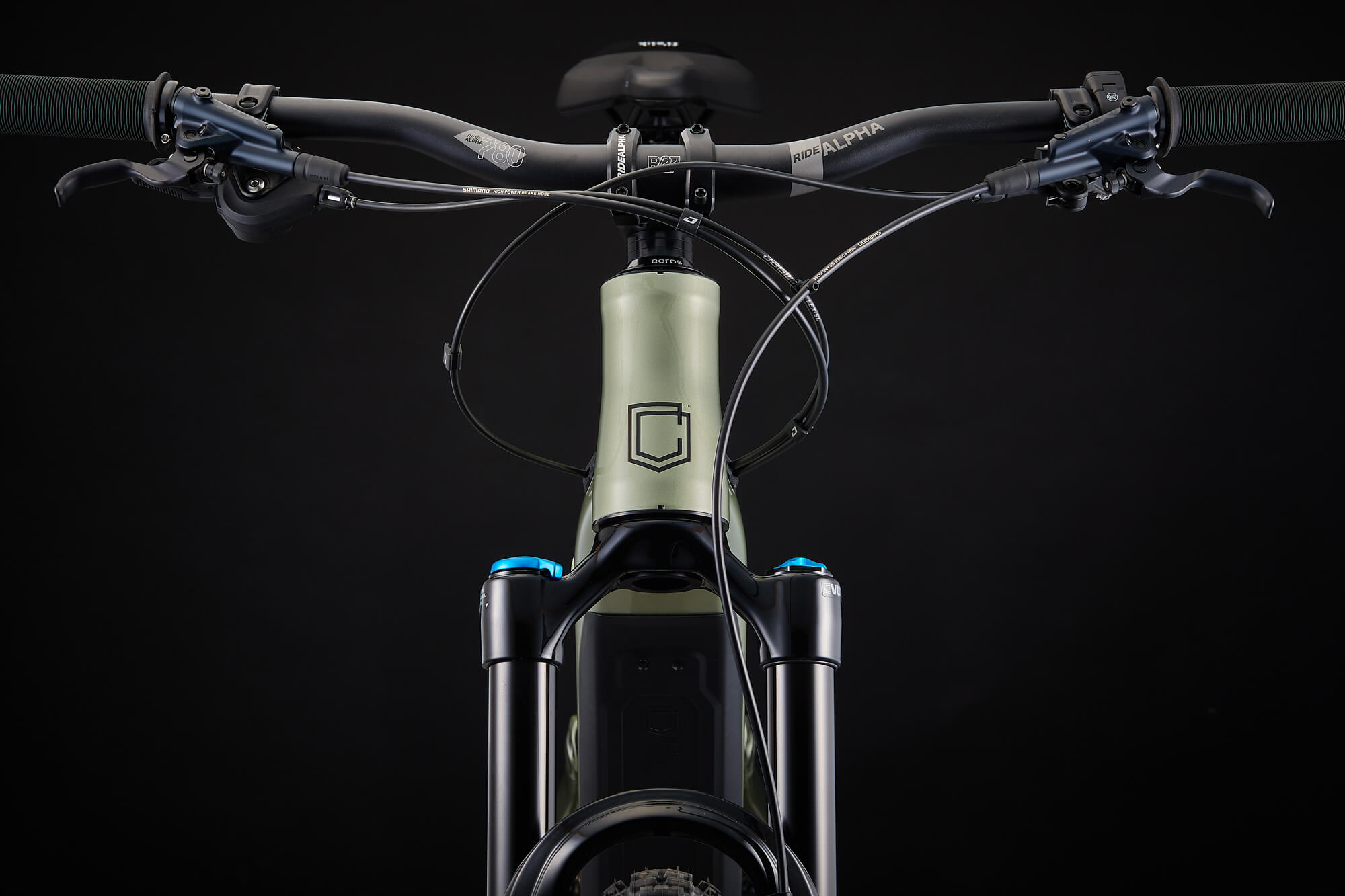

RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotor: SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnetShifters
SHIMANO SLX
12s, RapidFire PlusChain guide
RIDE ALPHA Upper Guide
32-34tRear mech
SHIMANO SLX
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
Rear: 29'', 28h, sleeved, 30 mm inner width - Front: 29'', 28h, sleeved, 30 mm inner widthHubs
Rear: DT SWISS 370 - Front: DT SWISS 370
Rear: 28h, sealed bearings, 18t, e-bike specific - Front: 28h, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.4" WT, 3C Maxx Terra, Exo+ casing, TR - Front: 29"x2.4" WT, 3C Maxx Terra, Exo+ casing, TRSeat post
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
24,2 kg / 53.35 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
70’S Green
Shiny FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
