COMMENCAL META POWER TR SHIMANO RACE BRUSHED

Frame

2022 META POWER TR, 140 mm

29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

System

SHIMANO DU-EP800

Max. torque: 85N.m, 250W

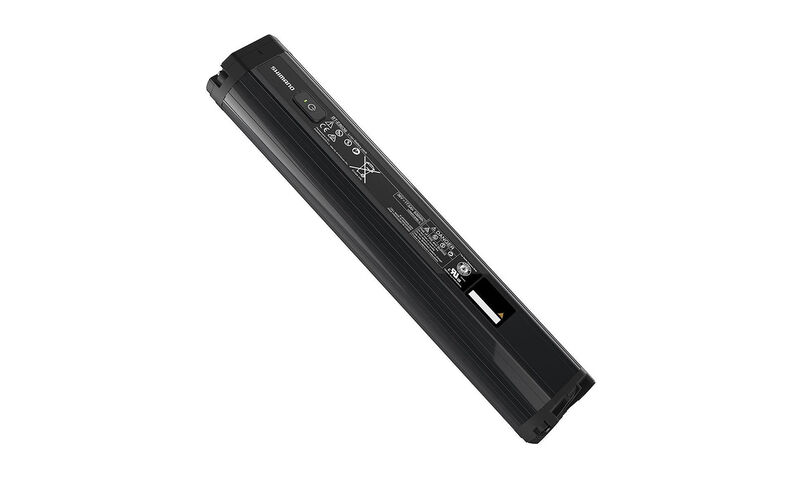

Battery

SHIMANO BT-E8036

630Wh

Display

SHIMANO SC-EM800

LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)

Shock

ROCKSHOX Super Deluxe Coil Ultimate

210 x 55 mm, LSC, rebound, 2-position adjustment. 210 x 55 mm, LSC, rebound, 2-position adjustment. Spring rate 350 LBS on S and M / 400 LBS on L / 450 LBS on XL

Fork

ROCKSHOX Lyrik Ultimate, 150 mm travel

29", Charger 2.1 damper, Debonair, LSC, HSC, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens

Headset

ACROS ZS56 / ZS66

Alloy cups, sealed bearings

Stem

RIDE ALPHA Freeride 40

40 mm extension, 31,8 mm

Handlebar

RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL

Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips

ODI Elite Motion

Soft pro compound, single clamp, black

Brakes

TRP DH-R Evo

4 pistons

Shifters

SRAM GX Eagle

12s, Single Click

Chain guide

RIDE ALPHA EP8

32-34t

Rear mech

SRAM GX Eagle

12s

Bottom bracket

SHIMANO

Crankset

E13 E*Spec Plus EP

32t, Narrow-Wide, direct mount

Chain

SRAM GX Eagle

12s

Cassette

SRAM GX Eagle

12s, 10-52t

Rims

Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline

Rear: 29'', 28h, welded, 30 mm inner width - Front: 29'', 28h, sleeved, 30 mm inner width

Hubs

Rear: DT SWISS 350 - Front: DT SWISS 350

Rear: 28h, sealed bearings, e-bike specific - Front: 28h, sealed bearings

Spokes/nipples

DT SWISS Hybrid 1

Straightpull, 2.34/2.0mm, double butted, stainless, with Nylok, black

Tyres

Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary

Rear: 29"x2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy

Seat post

KS Lev Integra

31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote

Saddle

FIZIK Terra Aidon X3

Kium Mobius rails

Weight

24,8 kg / 54.67 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included

Yes

Colour

Brushed

Shiny Finish

Accessories

RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual

META POWER bikes are delivered with Shimano Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standards.

Battery recycling

Partnership with SHIMANO

In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling.
