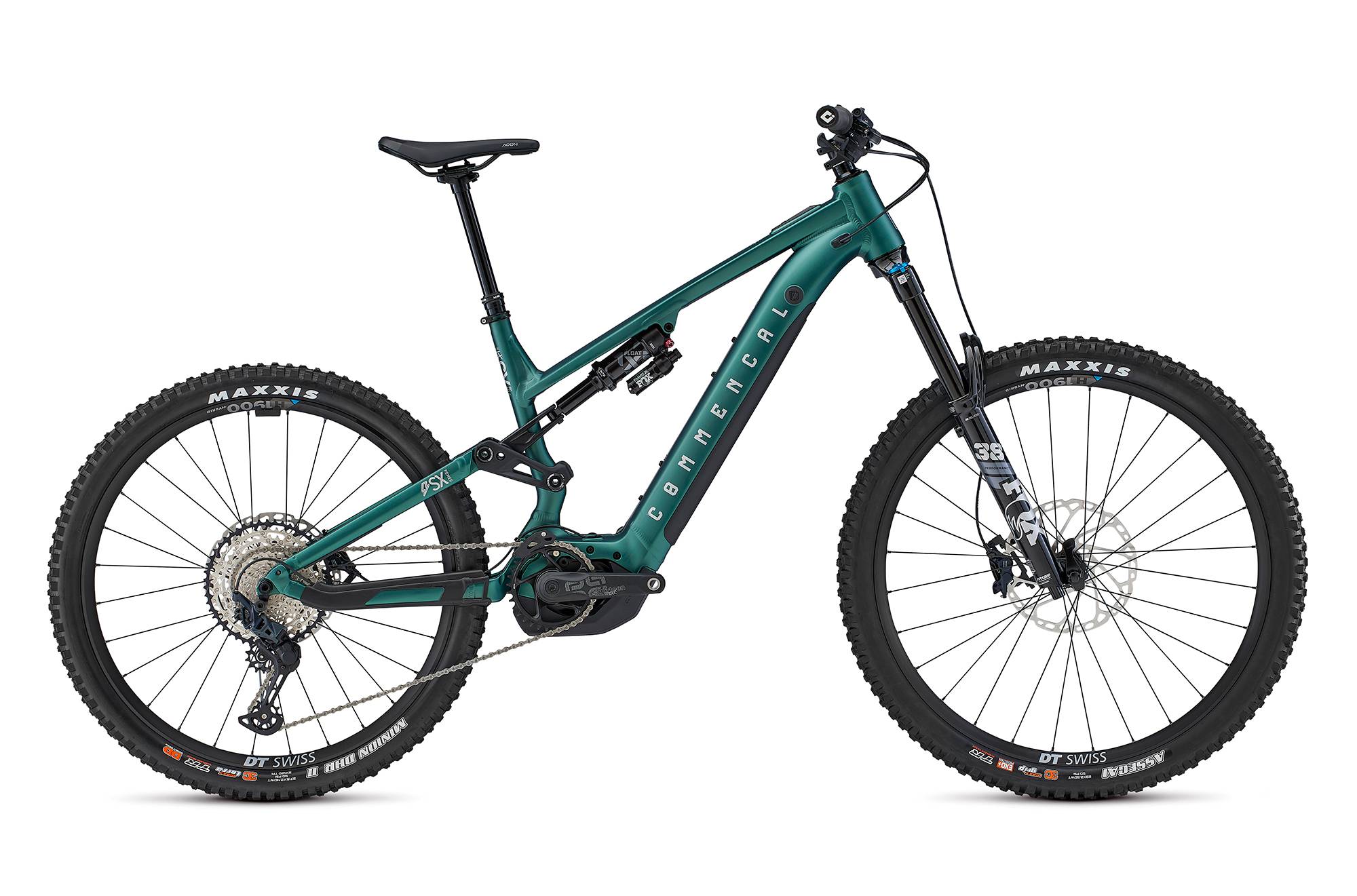

COMMENCAL META POWER SX BOSCH ESSENTIAL METALLIC GREEN

NZ$ 10,347.82 excl. GST
id/sku : BT3MSXPWE4
Availability: Select the model for availability null
  • Any questions?

    store.nz@commencal.com
    Showroom Christchurch
    +64 3 925 9075
    from Monday to Friday - 9am to 5:30pm (NZDT)
    Showroom Queenstown
    +64 3 428 2690
    from Monday to Friday - 10am to 6pm (NZDT)

  • Shipping Options

    Home Delivery
    Showroom Delivery
    COMMENCAL NEW ZEALAND - Christchurch
    16 Nazareth Avenue, Middleton
    Christchurch 8024 COMMENCAL NEW ZEALAND - Queenstown
    7 Shotover Street
    Queenstown 9300

  • Payment options

    Credit card
    PayPal
    Bank transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META POWER BOSCH

The META POWER SX is made to engage. With 165mm of rear travel and 170mm at the front, this is our take on a shuttle bike. With the mullet build (29"/27.5"), it is perfect for riding enduro and much more. This META is grippy and precise. It loves a slope and is predictable once in the air. From your local spot to alpine sessions, the META POWER SX is designed to be ridden aggressively.

META POWER SX BOSCH ESSENTIAL METALLIC GREEN

Like the other models in the range, this ESSENTIAL model features the BOSCH Performance Line CX system with its smart system. This system is one of the most advanced thanks to the power it delivers and the way it delivers it. The eBike Flow App means you can update the system in the blink of an eye and customise the assistance modes easily.

FOX is responsible for the suspension with the 38 Performance fork that has a stiffer chassis specifically for e-MTB use plus the 3-position Grip cartridge. On the back, we have the FOX Float X which offers excellent liveliness and easy to use adjustment settings.

Everyone knows the importance of solid and reliable wheels, especially for e-bikes. That's the reason that we've chosen the DT SWISS H1900, with reinforced components and a hand-built assembly by DT SWISS.

The 12-speed drivetrain and brakes (4-piston, 220mm discs) come from SHIMANO with the SLX groupset for performance and reliability that's second to none.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-BIKE ENDURO 29''/27''

  • Frame material

    AL-6061 + AL-6066

  • Frame weight

    - kg / - lb - With plastic accessories.

  • Rear travel

    165 mm

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm front

  • Recommended/max. fork height

    583 mm / 593 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 - 584 mm

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH E-BIKE

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    META POWER SX BOSCH, 165 mm travel
    29"-27.5", Alloy 6066, triple butted tubes, T4, T6.

  • Motor

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    Switch: BOSCH Mini Remote

  • Shock

    FOX Float X Performance
    230 x 65 mm, LSC, rebound, 2-position open / firm lever, 0.6 spacer

  • Fork

    FOX 38 Performance E-Bike, 170 mm travel
    29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacers

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 220 mm, 6-bolt

  • Shifters

    SHIMANO SLX
    12s, RapidFire Plus

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

  • REAR DERAILLEUR

    SHIMANO SLX
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus BOSCH CX,160 mm crank arms
    Ring: E13 E*Spec Plus BOSCH CX, 34t, direct mount

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO SLX
    12s, 10-51t

  • Rims

    Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
    Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 370 - Front: DT SWISS 370
    Rear: 28h, 12 x 148 mm, sealed bearings, 18t, e-bike specific - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5" x 2.4" WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Exo+, Tubeless Ready

  • Seat post

    KS Rage I
    31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X5
    145 mm width, S-Alloy Mobius rails

  • Weight

    25 kg / 55.11 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Metallic Green
    Matte Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual

    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
