- DESCRIPTION -

The CLASH continues its revolution! 27.5-inch wheels, long travel, aggressive geometry and kinematics... The CLASH is the 'do everything' bike - bike parks, enduro, big jump lines or outings pedal missions... It is exceedingly versatile!

As with our entire range, the geometry is the subject of our greatest attention:
- The uphill position is optimised thanks to an elongated top tube and a straighter seat angle.
- Its long front-end provides stability when everything is accelerating downhill. The short stem keeps a manoeuvrable and playful bike during slower parts of the ride.
- From the XS (27.5/26 wheels) to our adult models (S, M, L, XL) with 27.5-inch wheels, the CLASH is a very serious option for small and medium sized riders.

As 'Gravity' specialists, we know the importance of good kinematics that are suitable for the intended purpose of each of our bikes. An essential element for this year, the frame features a kinematic adjustment, just like on the FRS! This setting allows priority to either sensitivity (Sensitive) or dynamism (Dynamic):
- Sensitive mode for DH/Freeride use when you need comfort and grip
- Dynamic mode is ideal for smoother tracks, jump sessions with friends when you are looking for liveliness and play.

The CLASH - pure lines and a concentrate of technology. No compromises.

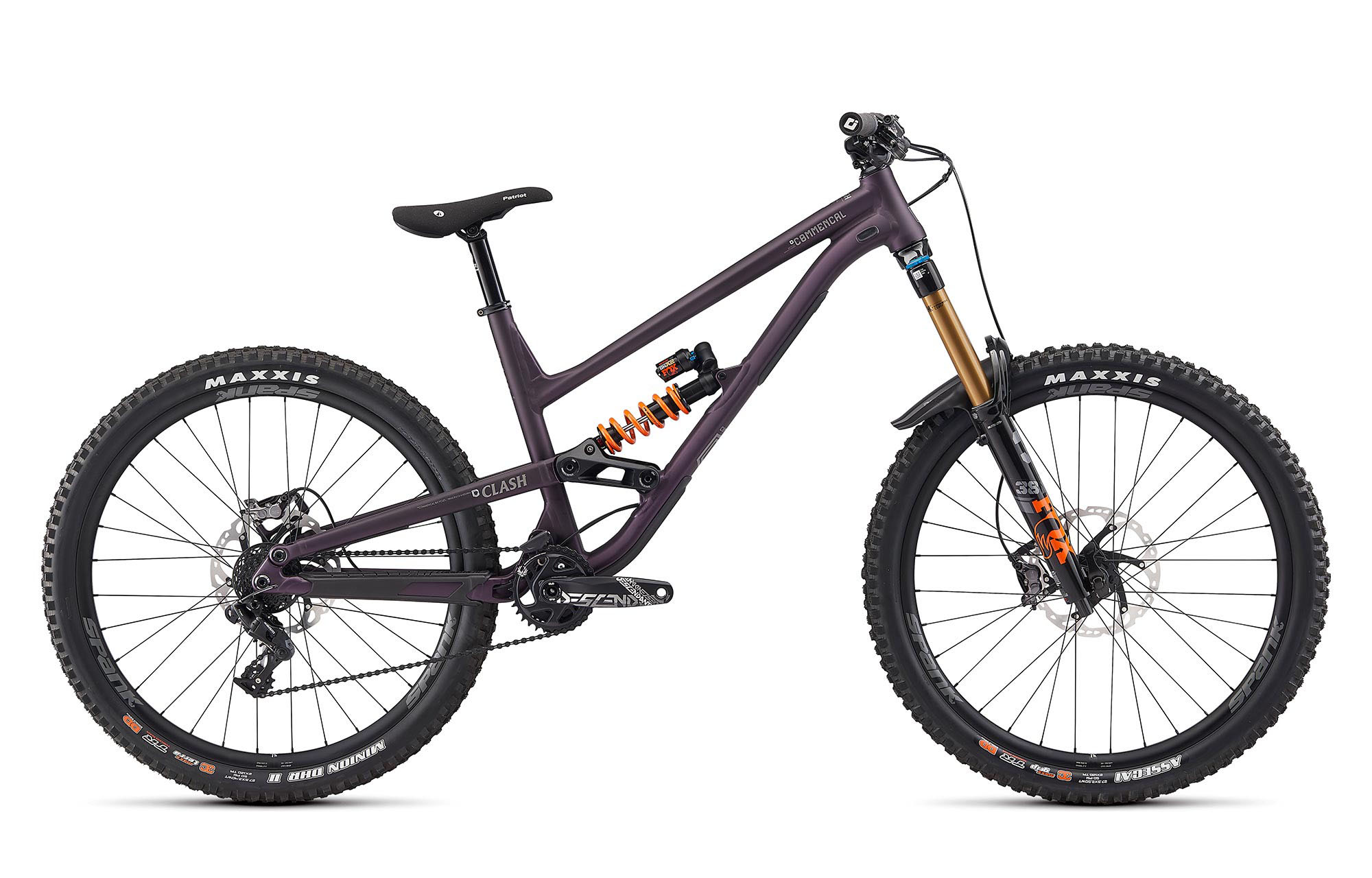

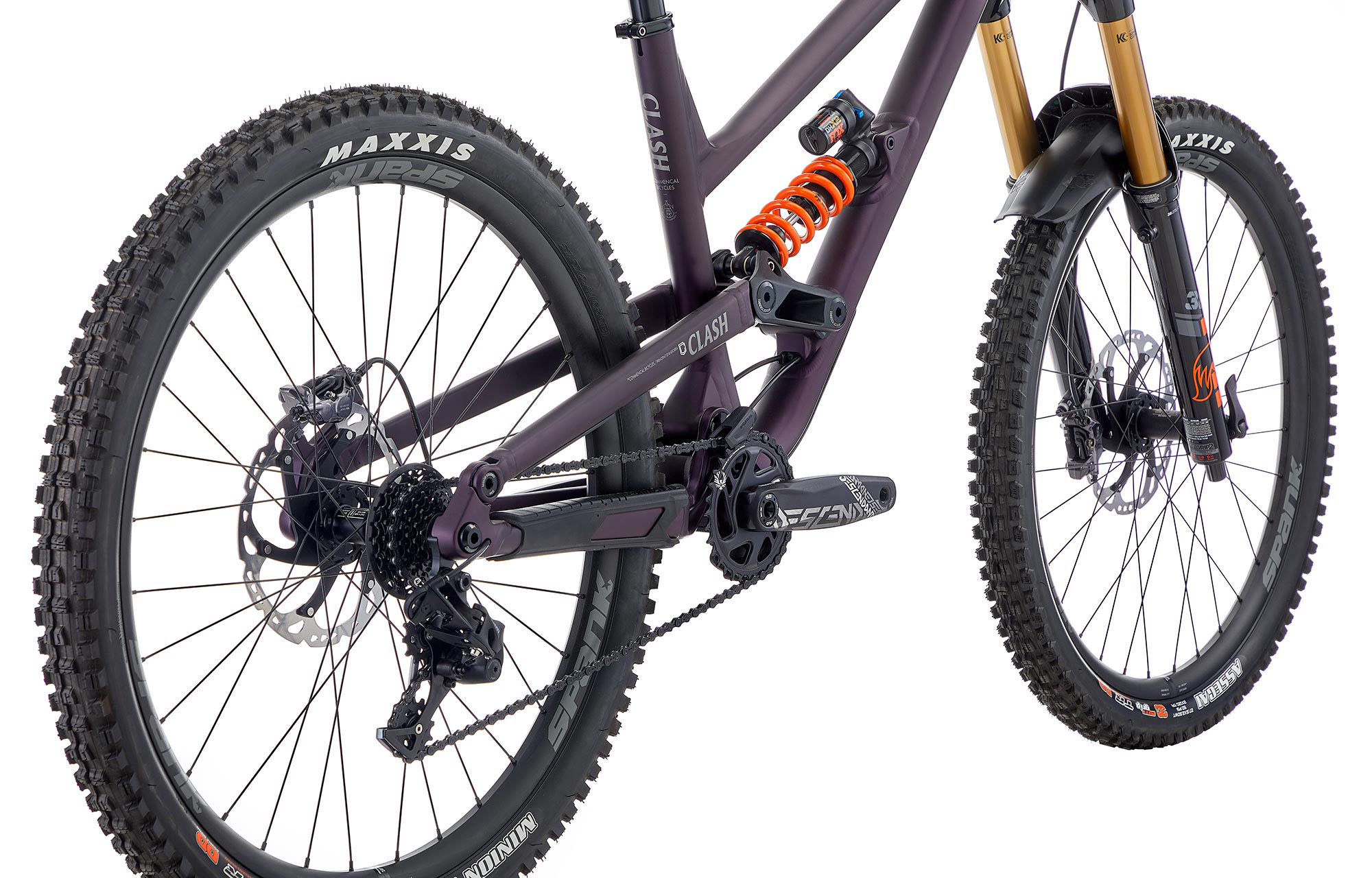

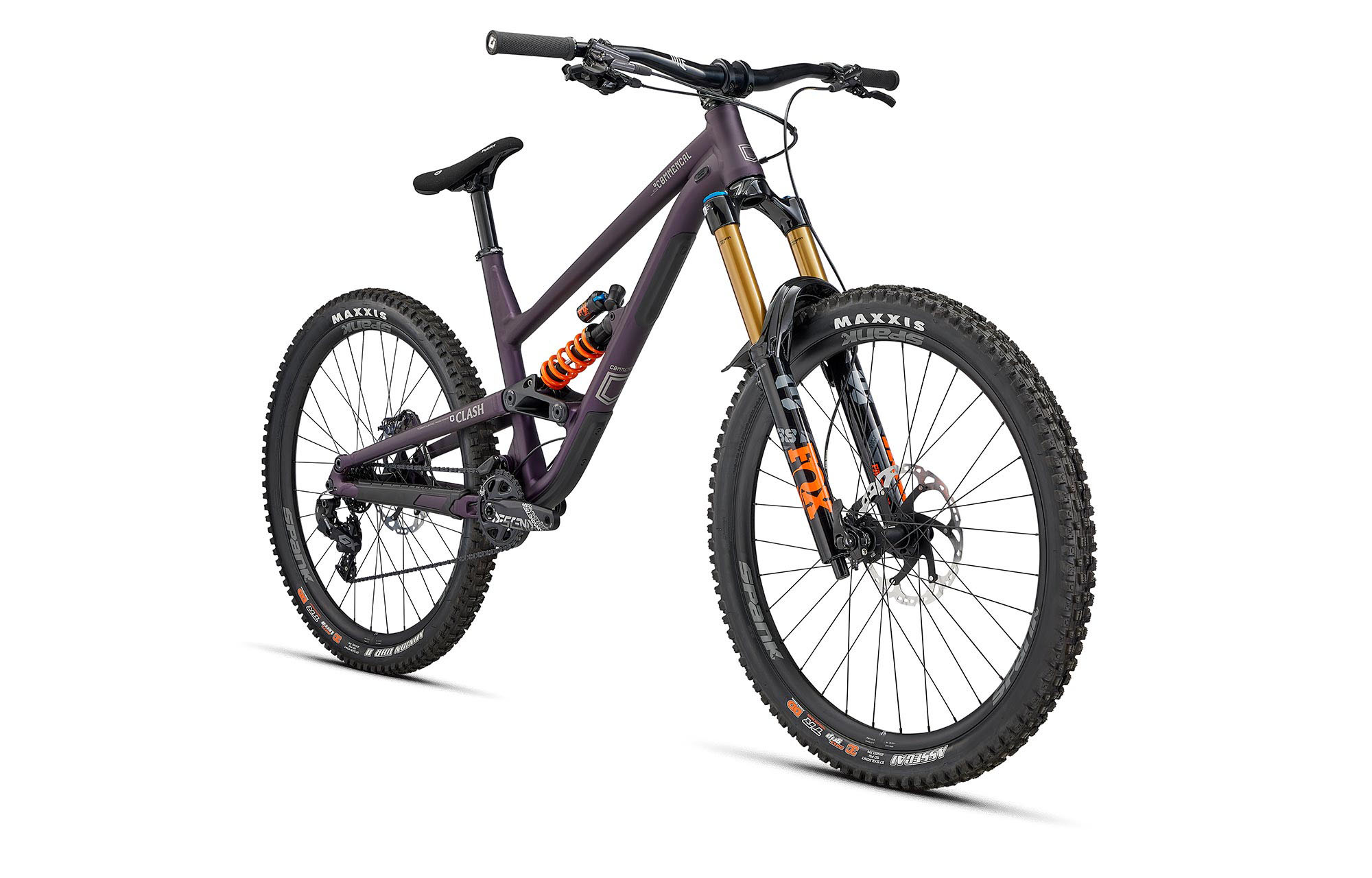

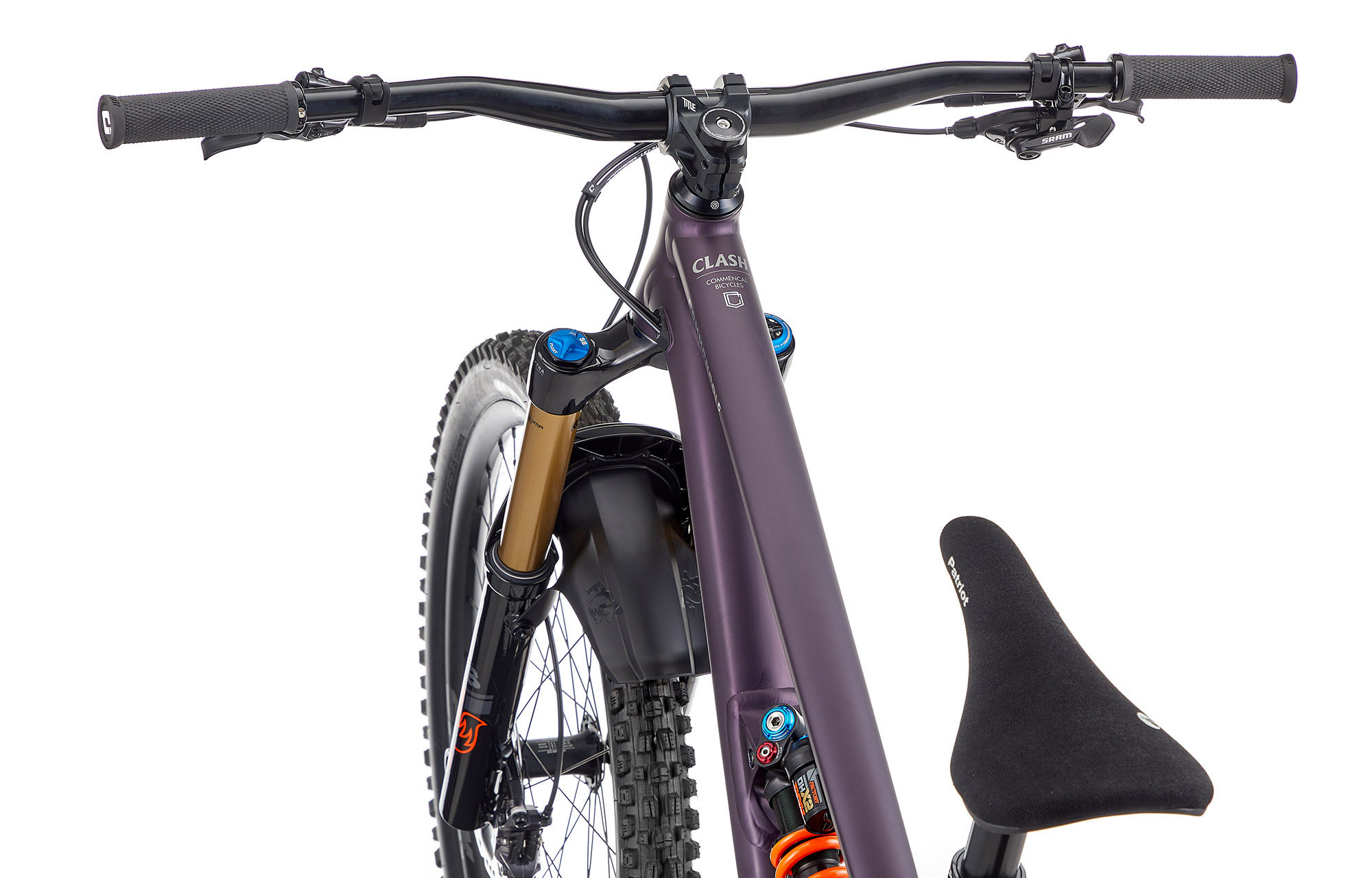

CLASH PARK EDITION

The Park Edition is the big new news from this 2022 CLASH range!

It has been designed for the many riders who consider the CLASH to be a pure toy for the bike park. Those for whom style and creativity comes first. Or perhaps for those who just like to have a unique bike. The Metallic Purple paint epitomises the lively fun and ???out there' spirit that we wanted this Park Edition to represent.

Beware of appearances, this version of the CLASH has nothing to do with the FRS! The choice of suspension is very specific:
- A FOX 38 Factory single crown fork offers more freedom and flexibility.
- A DHX2 Factory shock brings sensitivity on small impacts.

As for the rest of the components, they have been carefully selected specifically for this new bike:
- A reliable and easy-to-maintain SRAM GX DH 7-speed drivetrain that improves suspension efficiency thanks to the reduced weight. There is also less risk of damage due to the smaller cassette etc.
- Powerful and durable SHIMANO XT 4-piston 203mm brakes are perfect for the bike park.
- The MAXXIS Assegai and DHR II combo perfectly matches this bike and features an excellent compromise between lateral grip and roll. The Double Down casing makes them perfect for DH/bike park.
- A SDG I-Beam seat post is lightweight and simple to maintain.

Bike park, jumps, tricks, berms and big downforce, anything goes with this CLASH Park Edition!

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO / FREERIDE

  • Frame material

    Al 6066T6

  • Frame weight

    4 kg / 8.81 lb

  • Rear travel

    Adjustable via flip chip: 170 mm on Grip position / 155 mm on Dynamic position

  • Shock length/stroke

    230 mm x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm - 30 x 10 mm

  • Recommended/max. fork height

    572 mm / 586 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG05

  • Rear hub compatibility

    148 x 12 mm

- SPECIFICATIONS -
  • Frame

    2022 CLASH, 170 mm travel

    27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX DHX2 Factory

    230 x 65 mm, HSC, LSC, HSR, LSR. Spring rates : 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL, 2-position adjustment

  • Fork

    FOX 38 Factory, 180 mm travel

    27.5", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 37 mm offset, 0 Token

  • Headset

    ACROS ZS44/ZS56

    Alloy cups, sealed bearings

  • Stem

    TITLE ST1 35

    40 mm extension, 35 mm, Alloy 6061 T6, oil slick stainless steel bolts

  • Handlebar

    TITLE AH1 35

    35 mm, 810 mm width, 20 mm rise, Alloy 7050 T74

  • Grips

    ODI Elite Motion

    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible

    Rotor: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology Freeza

  • Shifters

    SRAM GX DH

    7s

  • Chain guide

    E13 TRS

    30-32t

  • Rear mech

    SRAM GX DH

    7s

  • Bottom bracket

    SRAM DUB

    Pressfit

  • Crankset

    TRUVATIV Descendant, 165 mm crank arms, DUB

    Chainring: TRUVATIV Descendant  X-Sync, 32t

  • Chain

    KMC X11EL

    Black

  • Cassette

    SRAM GX DH

    7s, 11-25t

  • Rims

    SPANK Spike Race 33

    27.5'', 32h, 28 mm inner width, Tubeless Ready

  • Hubs

    Rear: SPANK Spike - Front: SPANK Spike

    Rear: HEX J-Type, 32h, 2 sealed bearings, 12 x 148 mm, XD, black - Front: HEX J-Type, 32h, 2 sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    SPANK J-Hook

    J-Bend, tripple butted 2.2/1.8/2.0, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai

    Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, EXO+, Tubeless Ready

  • Seat post

    SDG Micro I-Beam

    31.6 mm, 250 mm length

  • Saddle

    SDG Patriot I-Beam

    Kevlar reinforced

  • Weight

    15,6 kg / 34.39 lb

    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    METALLIC PURPLE

    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, Mudguard
