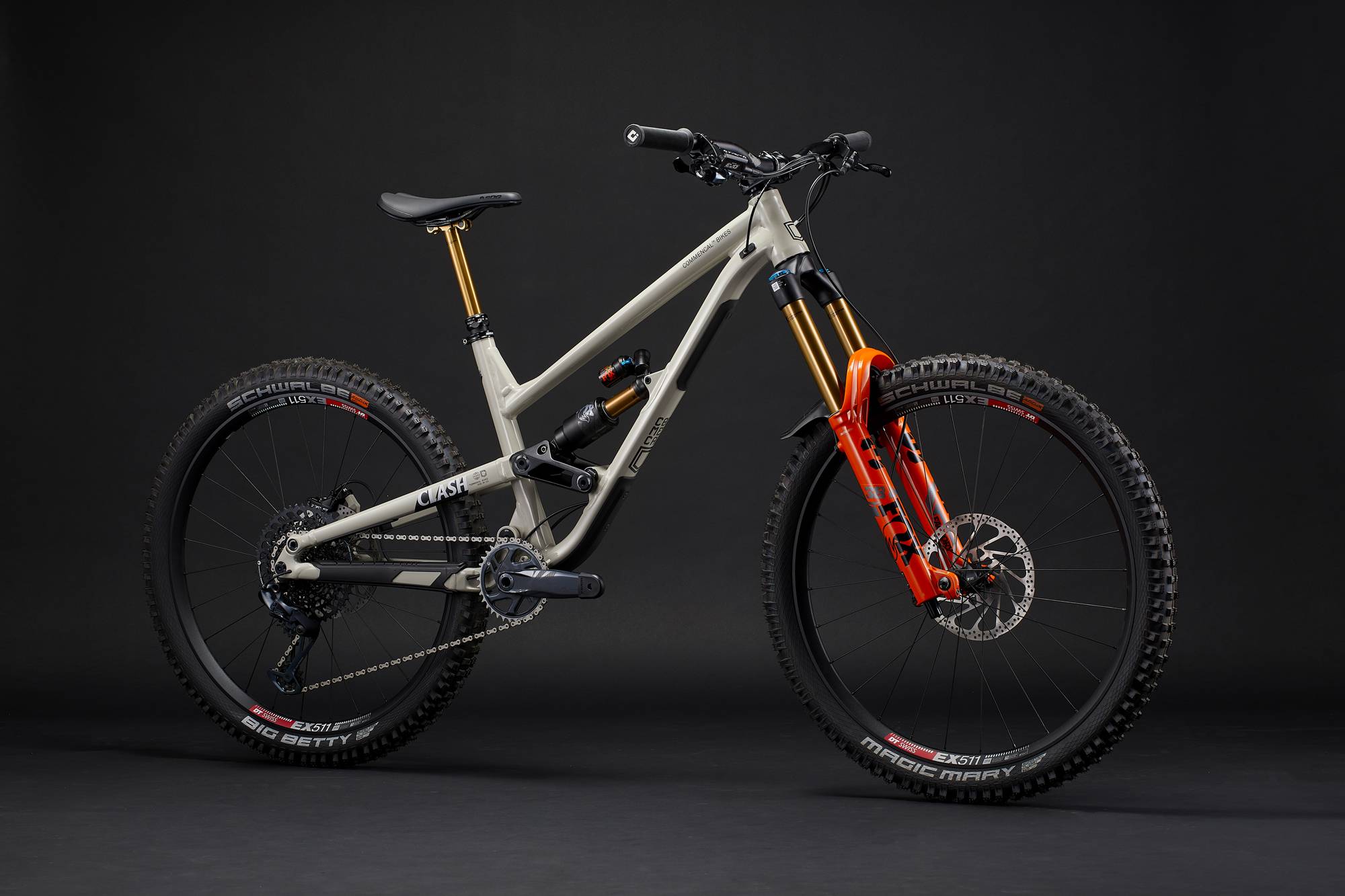

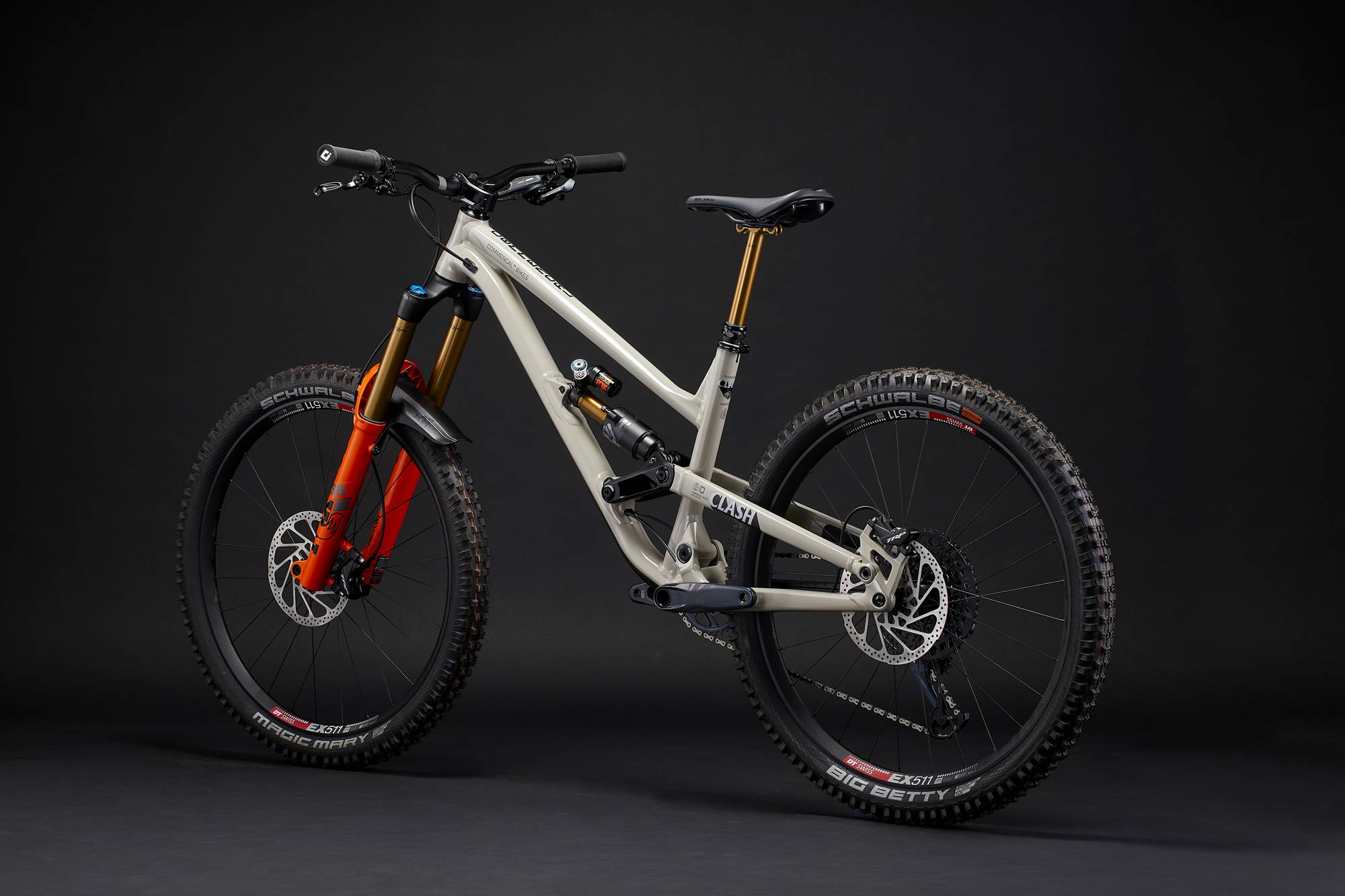

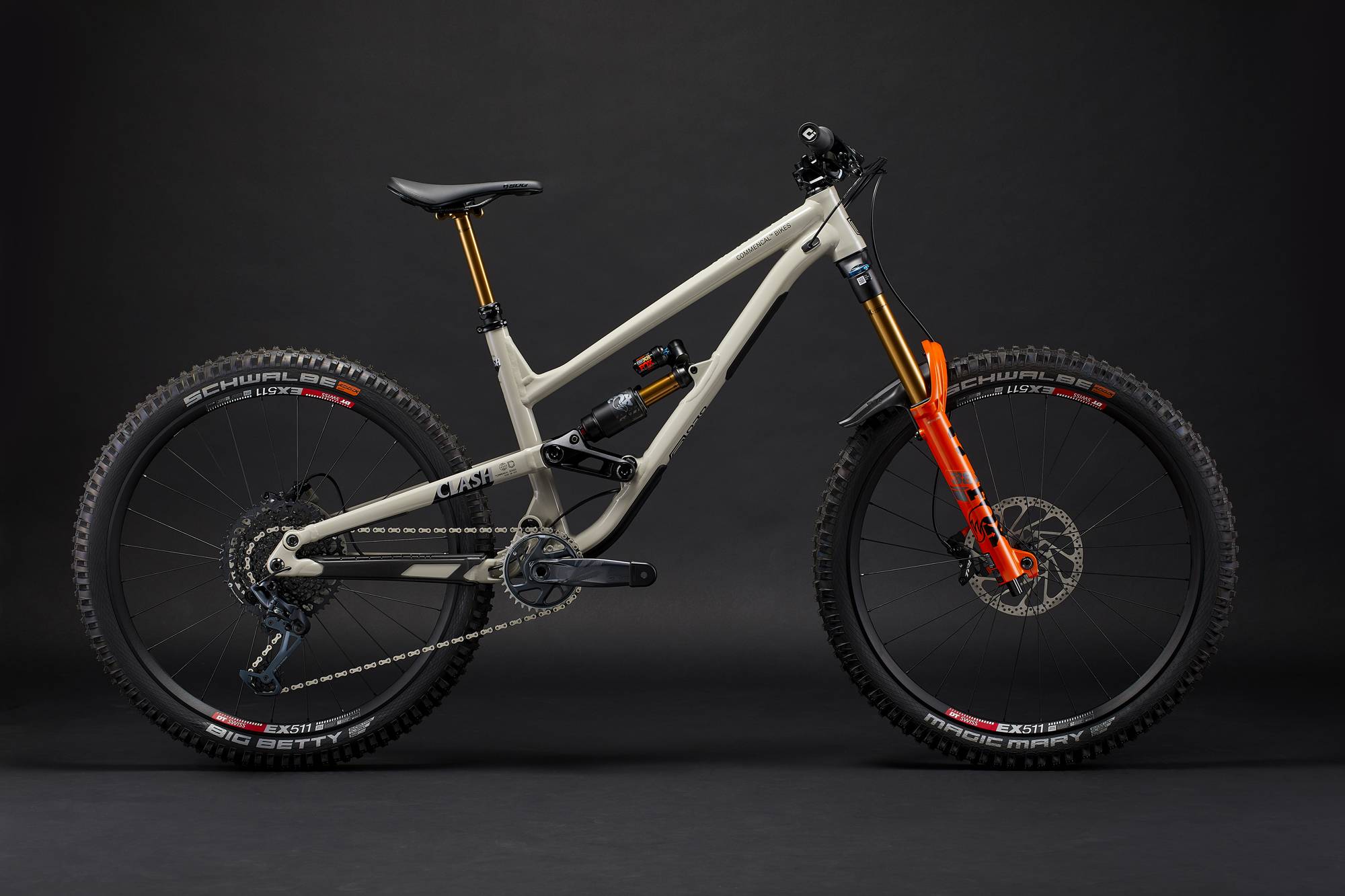

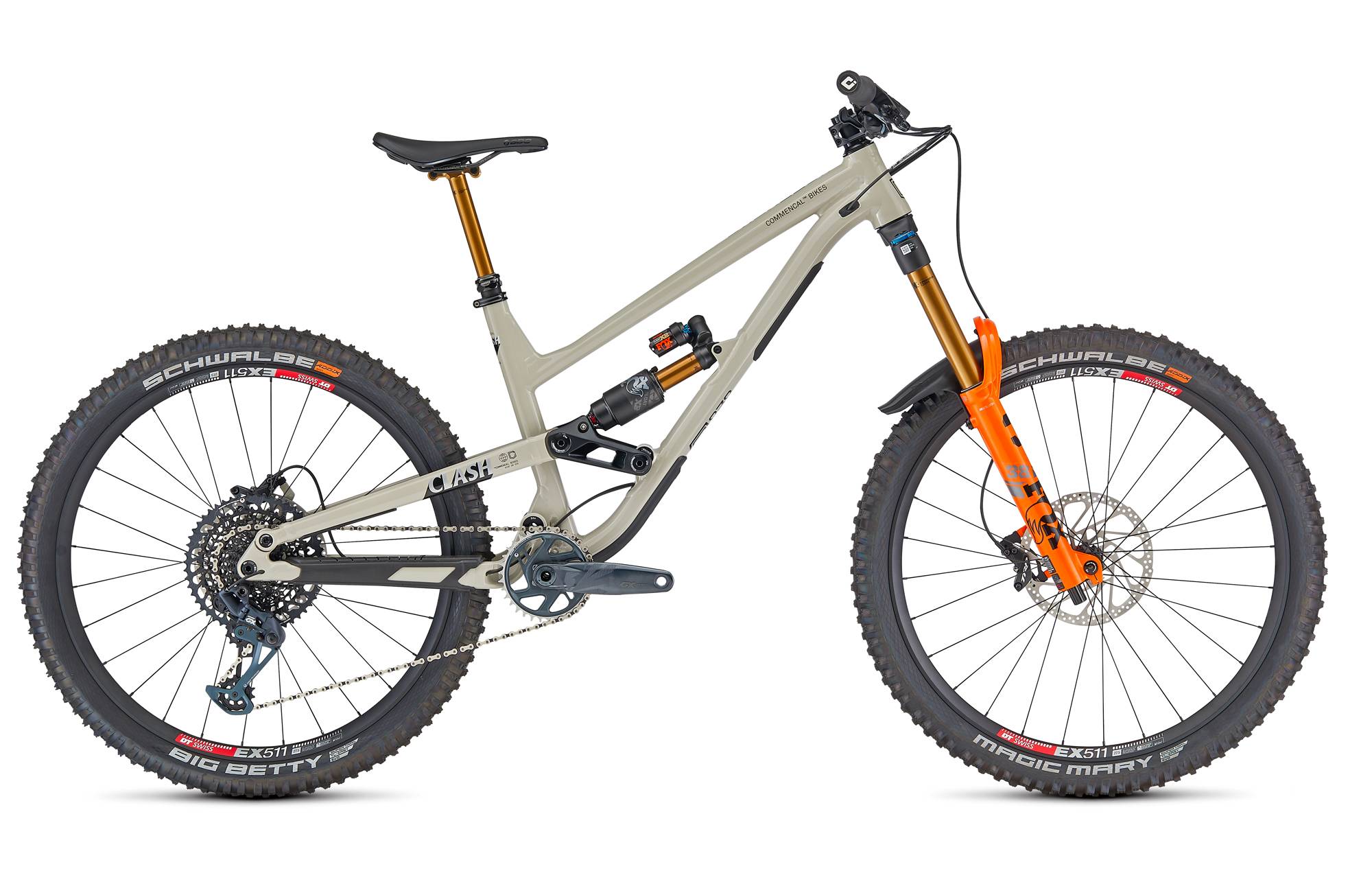

COMMENCAL CLASH SIGNATURE CHALK

Price reduced from NZ$ 8,900.00 to NZ$ 7,500.00 -16%
id/sku : 23CLASHSG
Availability: Select the model for availability null
  • Any questions?

    store.nz@commencal.com
    +64 3 925 9075
    from Monday to Friday - 9am to 5:30pm

  • Shipping Options

    Home Delivery
    Showroom Delivery:
    COMMENCAL NEW ZEALAND
    16 Nazareth Avenue
    Middleton
    Christchurch 8024

  • Payment options

    Credit Card
    Paypal
    Wire Transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • Specs
  • Geometry
- DESCRIPTION -

The CLASH continues its revolution! 27.5-inch wheels, long travel, aggressive geometry and kinematics... The CLASH is the 'do everything' bike - bike parks, enduro, big jump lines or outings pedal missions... It is exceedingly versatile!

As with our entire range, the geometry is the subject of our greatest attention:
- The uphill position is optimised thanks to an elongated top tube and a straighter seat angle.
- Its long front-end provides stability when everything is accelerating downhill. The short stem keeps a manoeuvrable and playful bike during slower parts of the ride.
- From the XS (27.5/26 wheels) to our adult models (S, M, L, XL) with 27.5-inch wheels, the CLASH is a very serious option for small and medium sized riders.

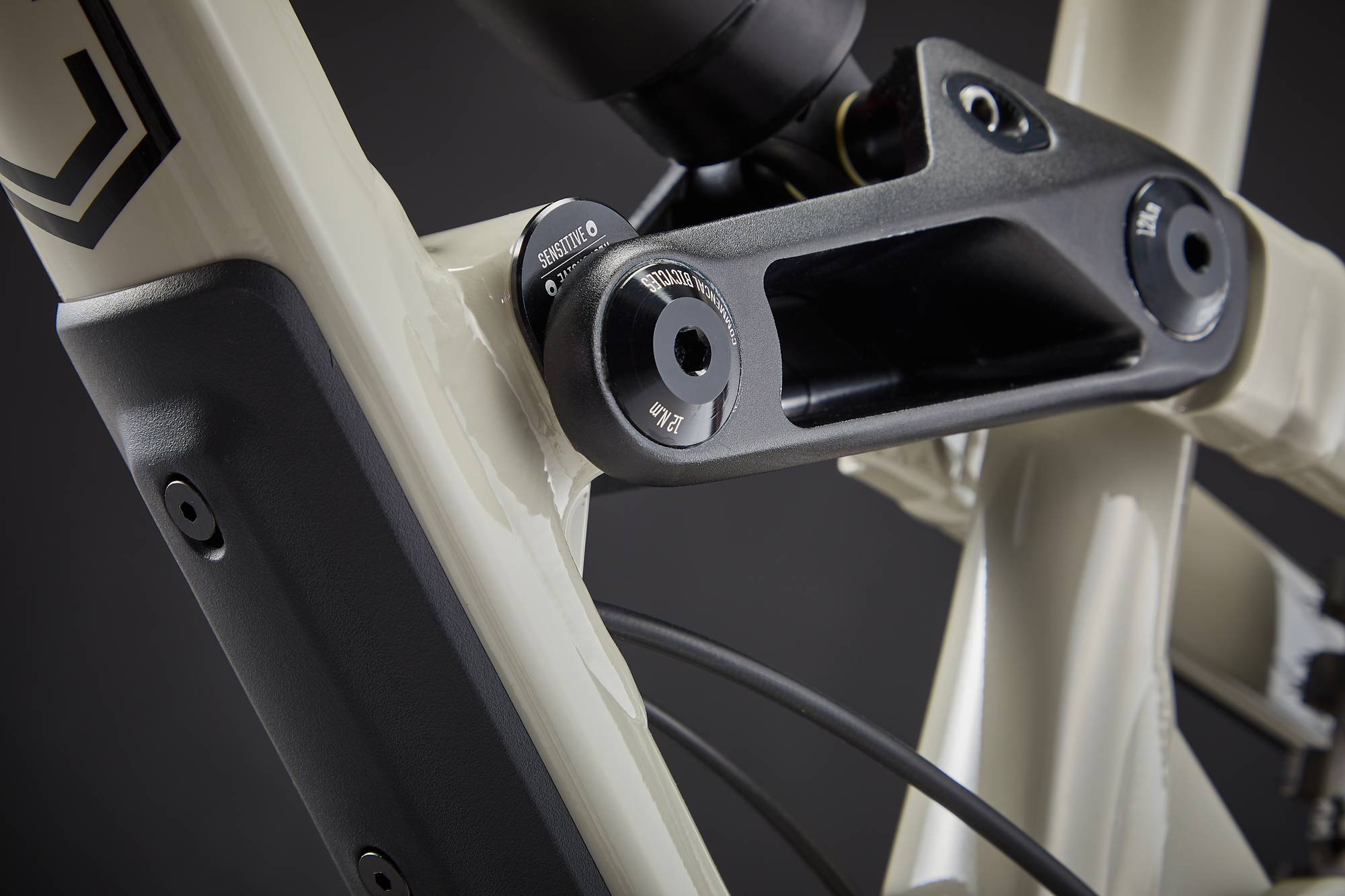

As 'Gravity' specialists, we know the importance of good kinematics that are suitable for the intended purpose of each of our bikes. An essential element for this year, the frame features a kinematic adjustment, just like on the FRS! This setting allows priority to either sensitivity (Sensitive) or dynamism (Dynamic):
- Sensitive mode for DH/Freeride use when you need comfort and grip
- Dynamic mode is ideal for smoother tracks, jump sessions with friends when you are looking for liveliness and play.

The CLASH - pure lines and a concentrate of technology. No compromises.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Enduro / Freeride

  • Frame material

    Al 6069T6

  • Frame weight

    4,1 kg / 9.03 lb with accessories

  • Rear travel

    Adjustable via flip chip: 170 mm on Grip position / 155 mm on Dynamic position

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 10 mm / 20 x 8 mm

  • Recommended/max. fork height

    572 mm / 586 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44/ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG05

  • Rear hub compatibility

    148 x 12 mm

- SPECIFICATIONS -
  • Frame

    CLASH, 170 mm travel
    27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

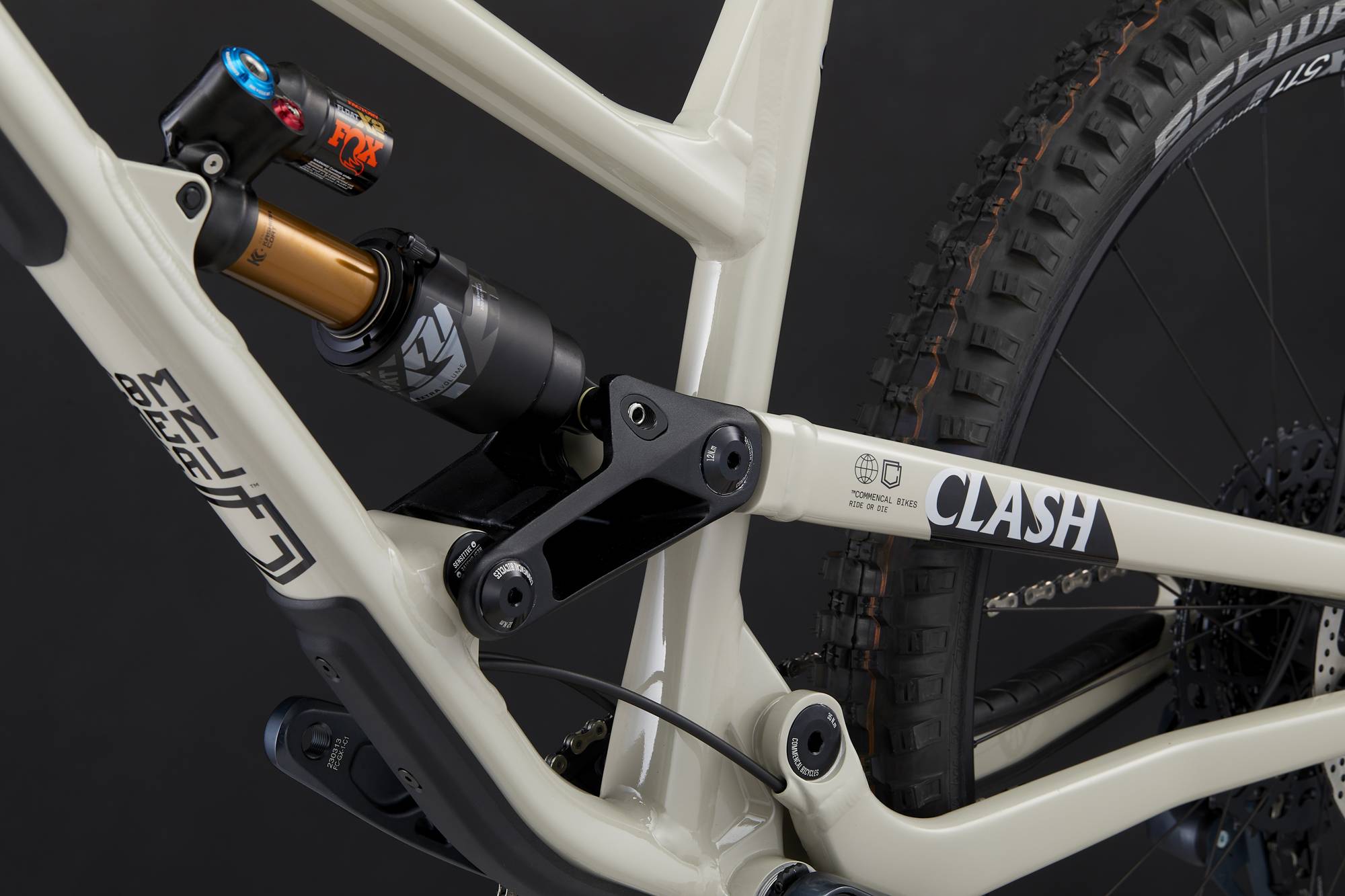

  • Shock

    FOX Float X2 Factory
    230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment

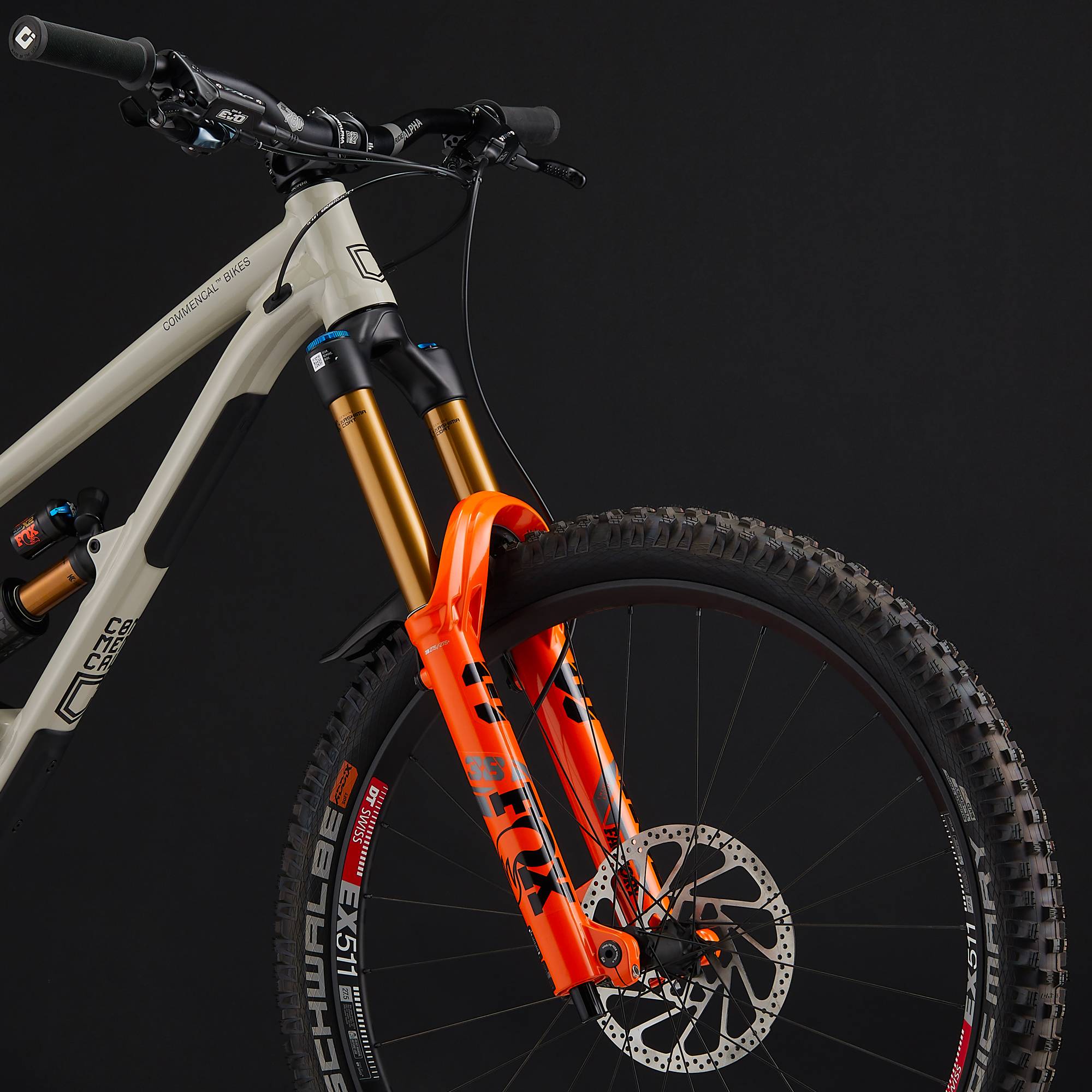

  • Fork

    FOX 38 Factory, 180 mm travel
    27.5", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 37 mm offset, 1 Token

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31.8 mm

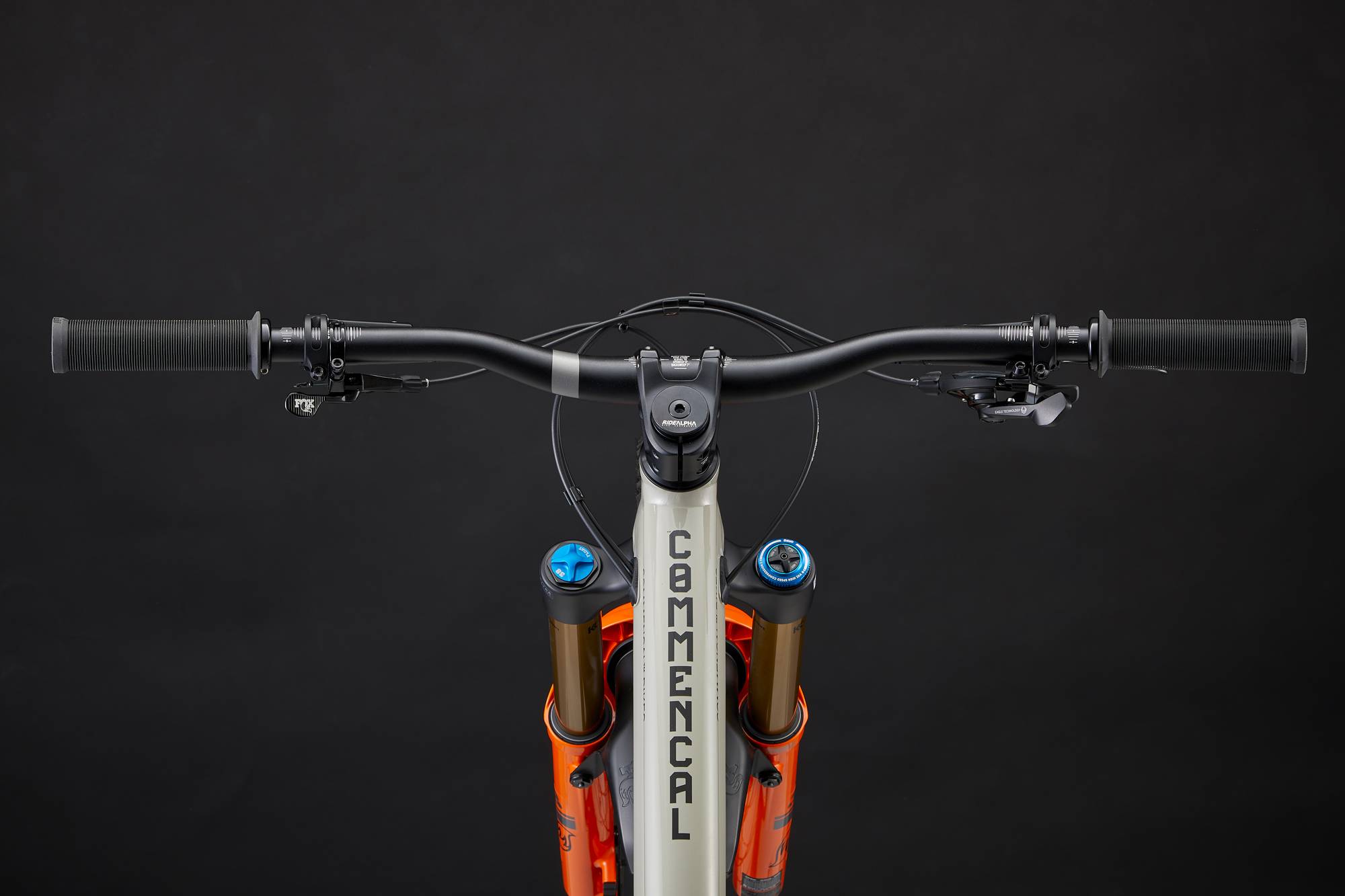

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck
    Soft compound, single clamp, black

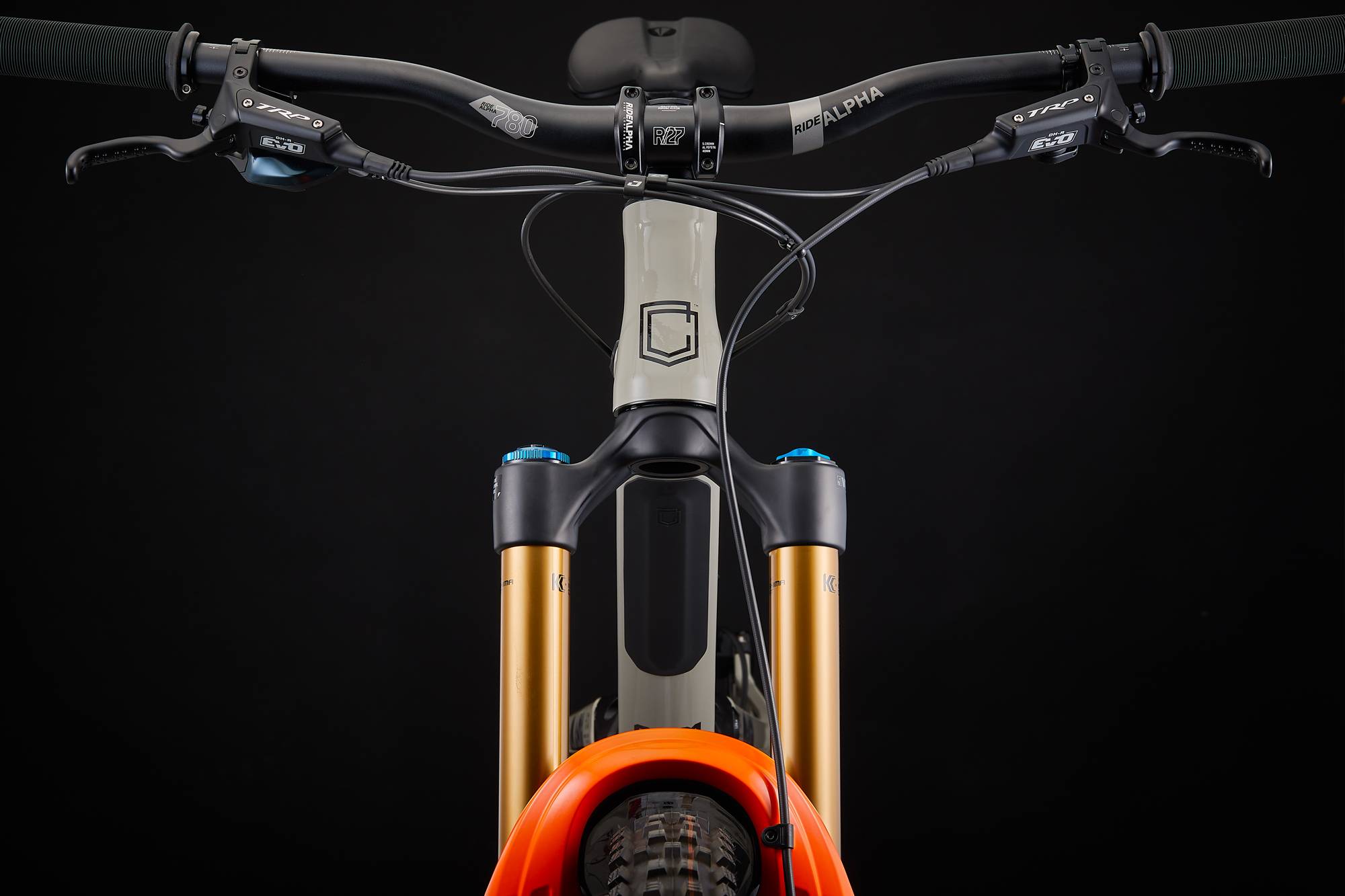

  • Brakes

    TRP DH-R EVO, 4 pistons, resin pads
    Rotor: TRP R1 203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX Eagle
    12s

  • Rear mech

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

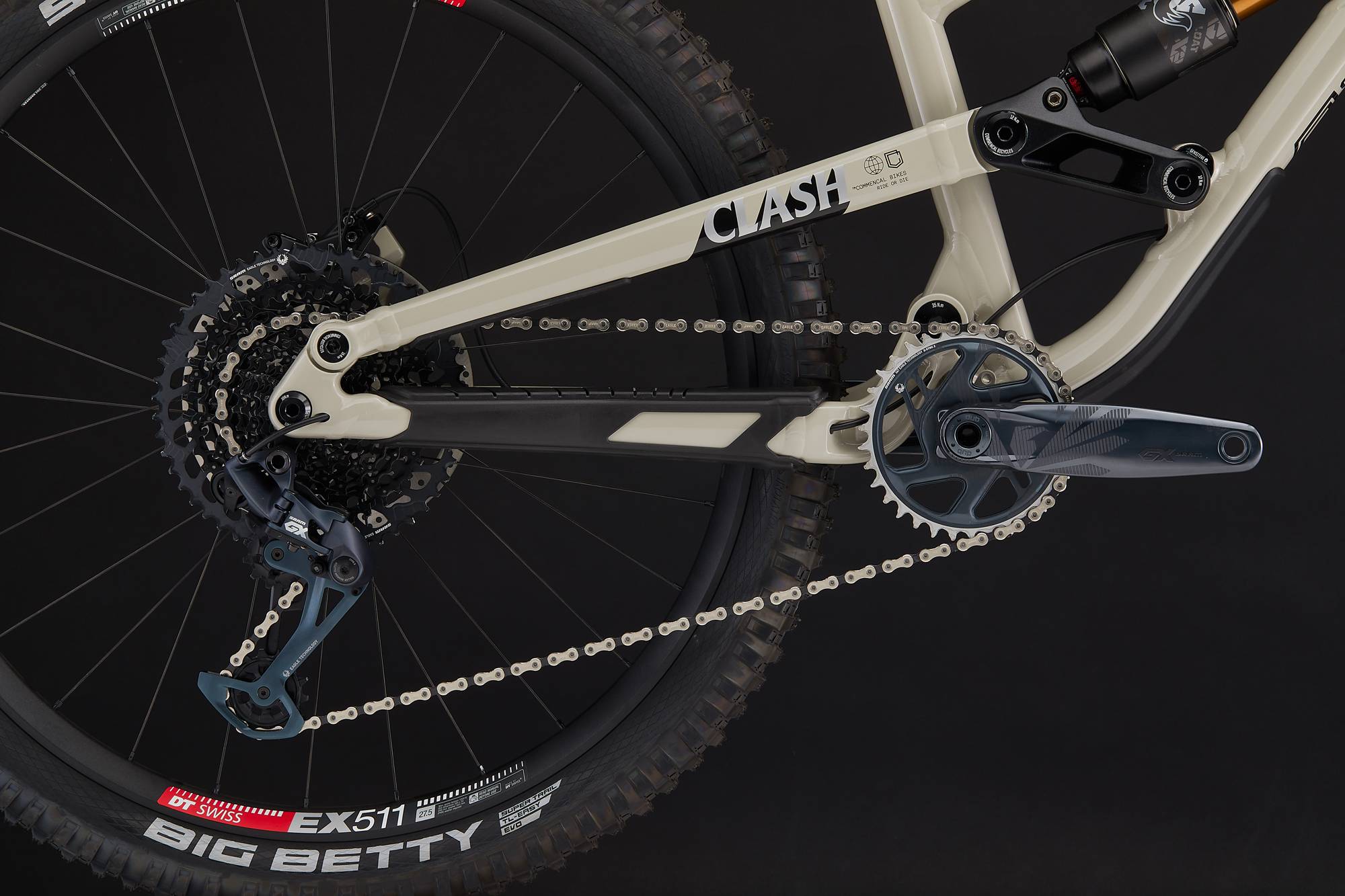

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 34t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275
    12s, 10-52t

  • Rims

    DT SWISS EX 511
    27.5'', 28h, 30 mm inner width, Tubeless Ready

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD, 54t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 27.5" x 2.4", Super Trail, Addix Soft - Front: 27.5" x 2.4", Super Trail, Addix Soft

  • Seat post

    FOX Transfer Factory
    31.6 mm, 125 mm on S, 175 mm on M / L, 200 mm on XL, seatpost reducer

  • Saddle

    SDG Bel Air V3 Atmos
    Lux-Alloy Rails

  • Weight

    - kg / - lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Chalk
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork fender Fox 38 specific
    *Please note that bike specs are subject to change without prior notice.
