COMMENCAL META POWER TR BOSCH RACE DARK SLATE

Price reduced from NZ$ 11,043.47 excl. GST to NZ$ 8,869.56 excl. GST -20%
id/sku : 23METAPWTRTMBSS
Availability: This Item is currently not available. null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META POWER BOSCH

The META POWER TR is designed for the ride. With 140mm of travel it's easy to tame and is forgiving to the rider. Dynamic and playful, it ensures effective pedalling thanks to excellent geometry. The straightened seat tube and long front-end ideally positions the rider between the two wheel axles. The 29-inch wheels allow you to tackle the most technical climbs. This is the bike for those who like long rides and enjoying letting go of the brakes on the downhill.

ALL ABOUT BOSCH EBIKE FLOW APP

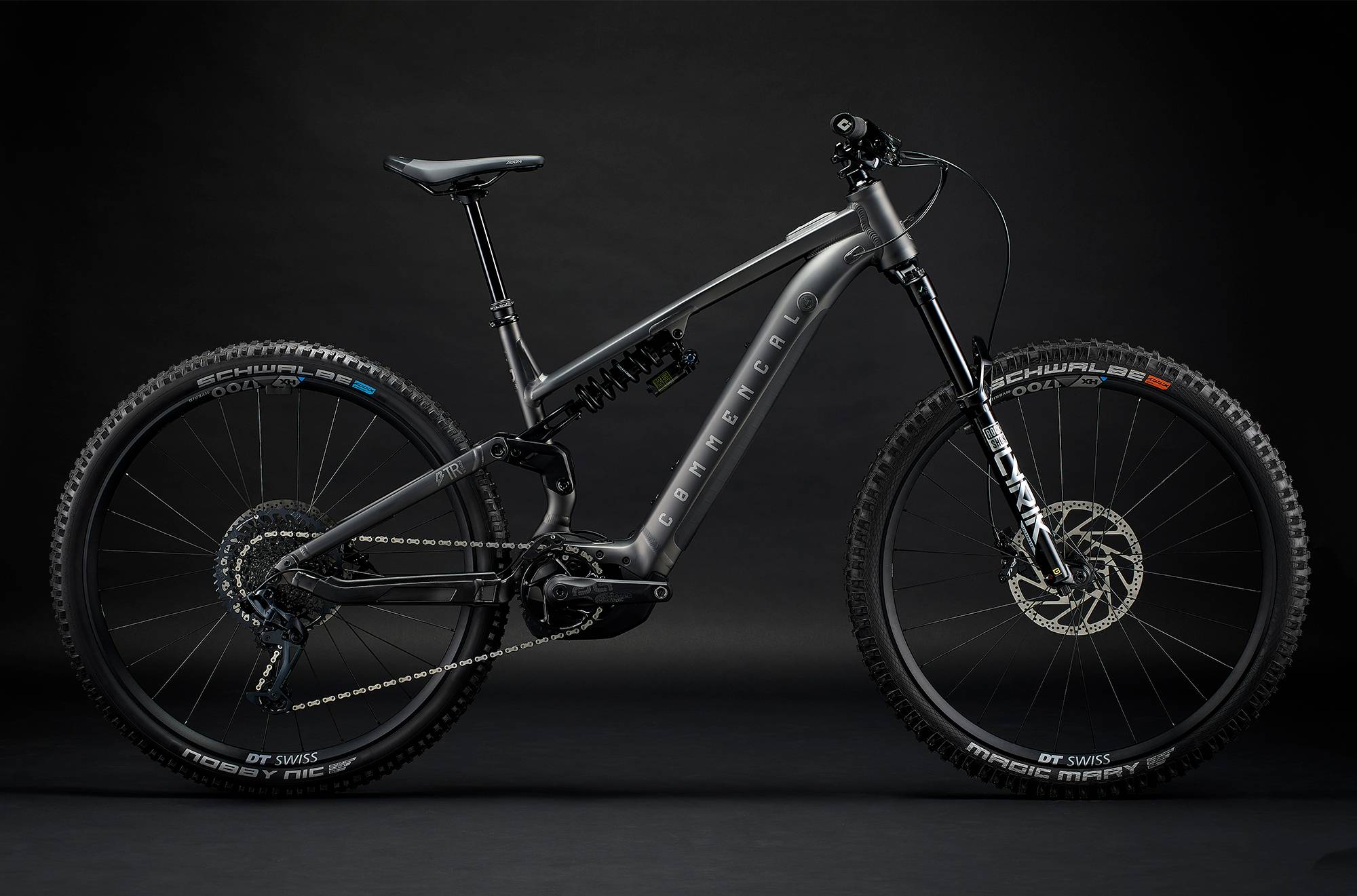

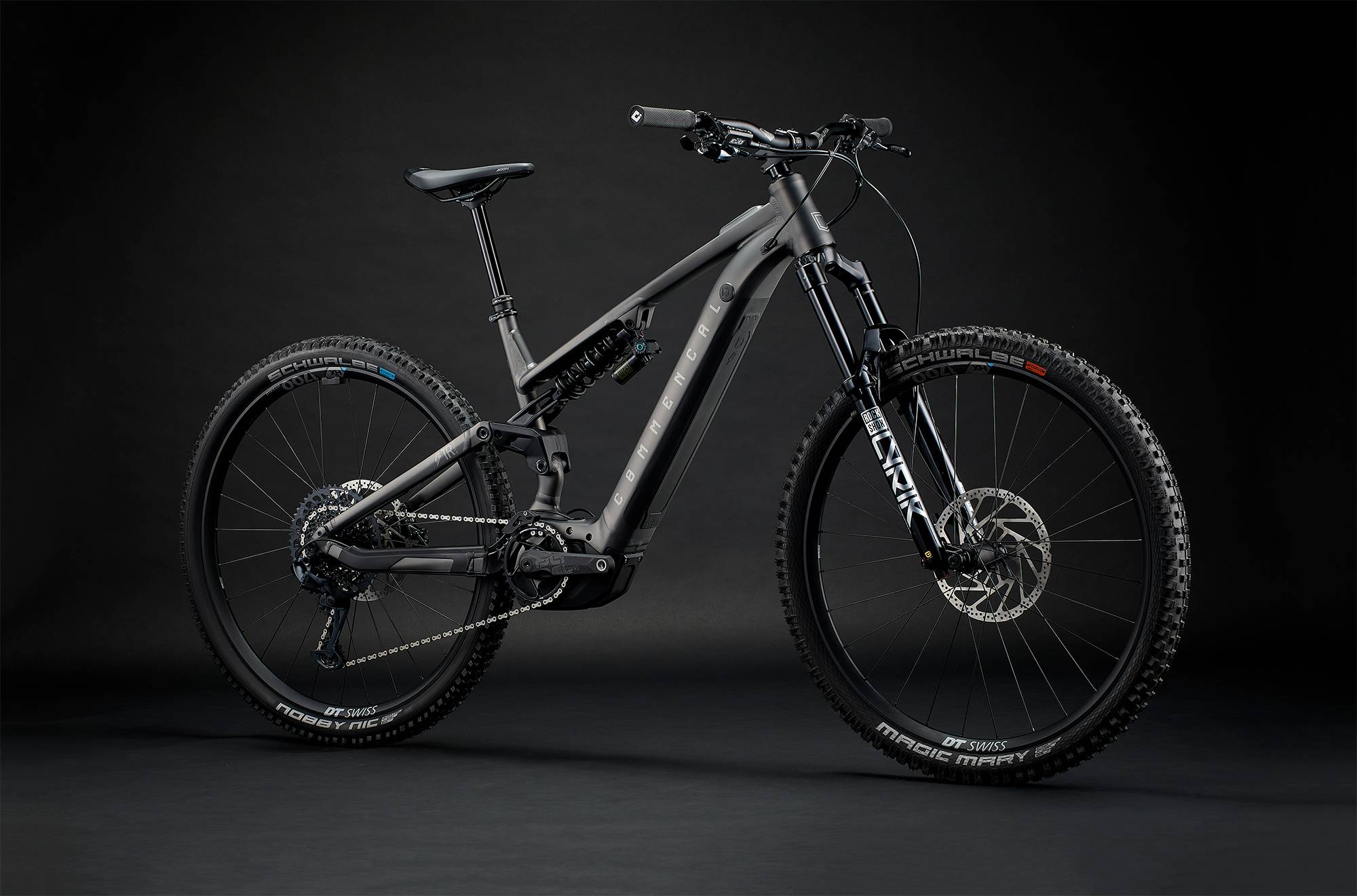

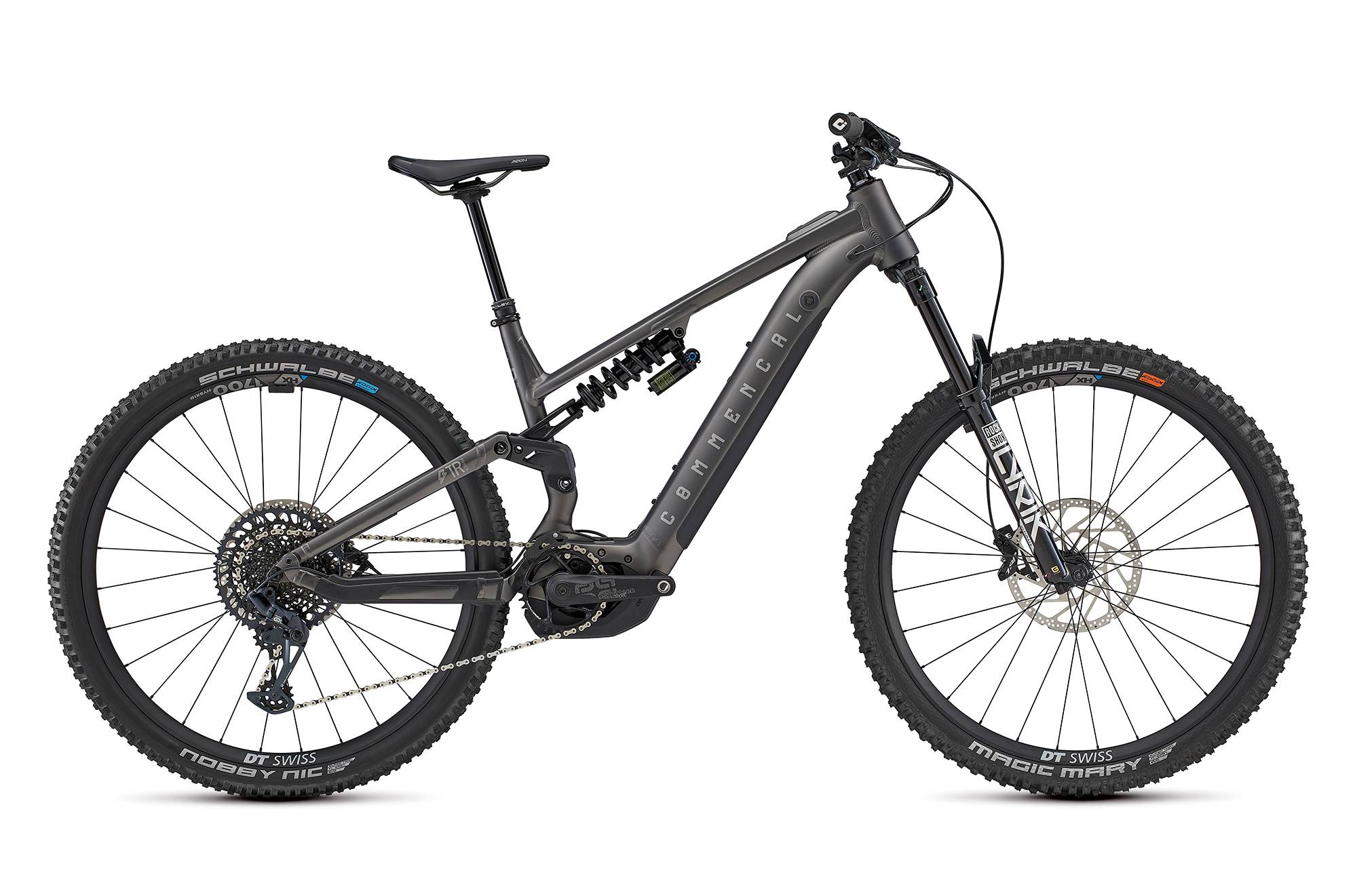

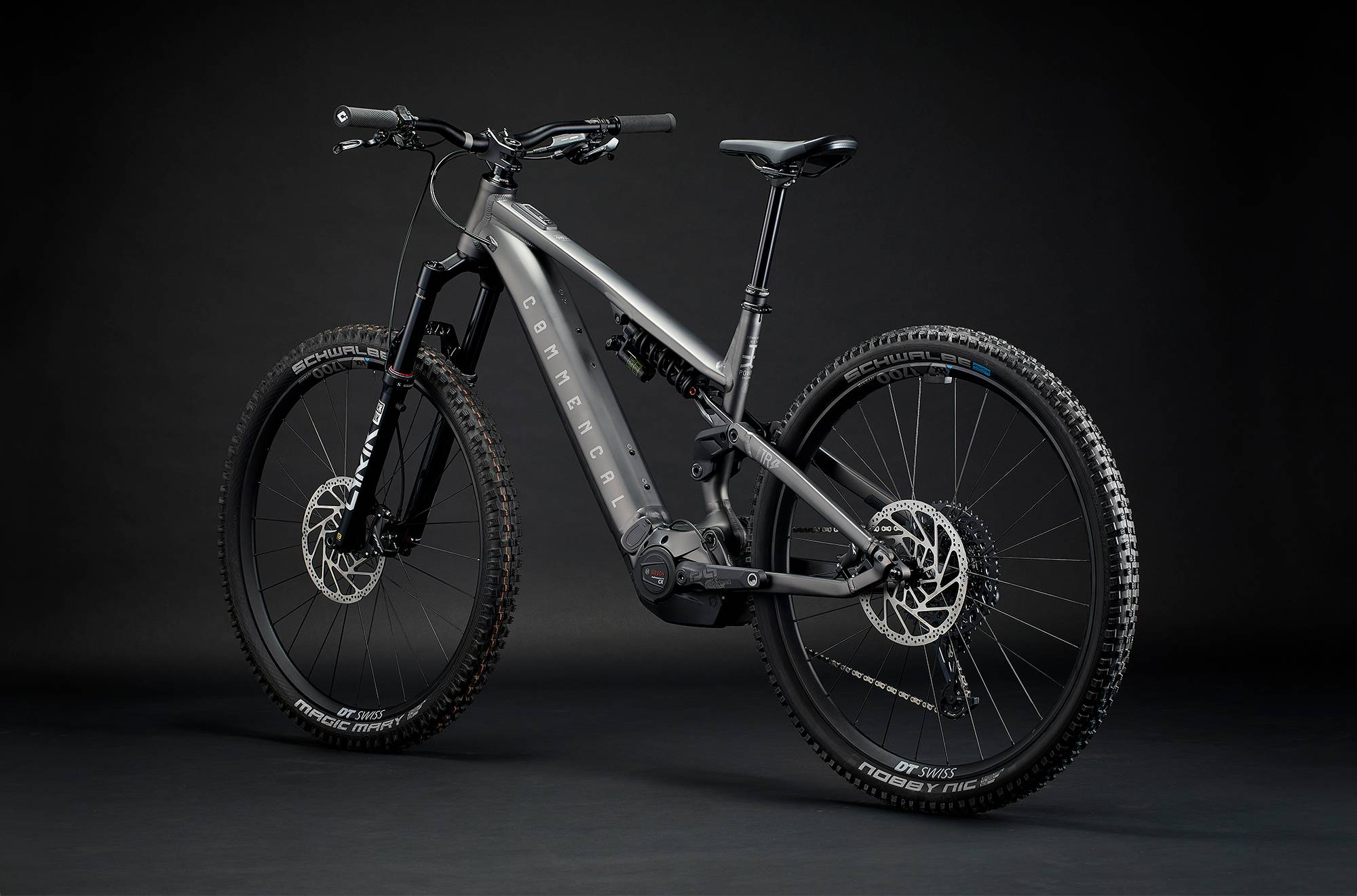

META POWER TR BOSCH RACE DARK SLATE

Like the other models in our range, this RACE version features the BOSCH Performance Line CX system and its Smart System. This system is one of the most advanced thanks to the power it delivers and the way it delivers it. The eBike Flow App means you can update the system in the blink of an eye and customise the assistance modes.

This RACE model will really satisfy RockShox fans. We have the latest Lyrik Ultimate which brings the best from the American brand: DebonAir+ air spring, ButterCups technology, pressure relief valves, and the simplicity of adjustment that they are renowned for. No compromise on the back either, where we have the Super Deluxe Ultimate Coil shock with high and low speed compression adjustments plus the new Adjustable Hydraulic Bottom Out to ensure smooth end of stroke travel.

For the wheels, we've chosen the DT SWISS HX1700, designed for e-MTB use and hand-built by DT SWISS.

Finally, we feature TRP DH-R Evo brakes, the same used at World Cup races by the likes of Amaury Pierron. The 220mm diameter and 2.3mm thick TRP discs will do the stopping. Say no more.

*Please note that bike specs are subject to change without prior notice.
*Actual product may differ from pictures.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-BIKE TRAIL 29''

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    - kg / - lb - With plastic accessories.

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm / NOTHING

  • Recommended/max. fork height

    566 mm / 576 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 mm - 622

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META POWER TR BOSCH, 140 mm
    29", Alloy 6066, triple butted tubes, T4, T6.

  • Motor

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    BOSCH Mini Remote currently not available in the USA

  • Shock

    ROCKSHOX Super Deluxe Coil Ultimate
    210 x 55 mm, RC2T Adj. Hydraulic Bottom Out, HSC, LSC, rebound, 2-position compression (open/firm). Spring rates : 350lbs on S, 350 on M, 400lbs on L, 450lbs on XL

  • Fork

    ROCKSHOX Lyrik Ultimate, 160 mm travel
    29", DebonAir+ W/ButterCups, Charger 3 RC2 W/ButterCups damper, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors: TRP R1 220 mm, 6-bolt

  • Shifters

    SRAM GX Eagle
    12s

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus Bosch CX, 160 mm crank arms
    Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
    Rear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, Sram XD - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
    Rear: 29" x 2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

  • Seat post

    KS Lev Integra
    31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X3
    145 mm width, Kium Mobius rails

  • Weight

    24.3 kg / 53.57 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Dark Slate
    Matte Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
    *Actual product may differ from pictures.
    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.

    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
