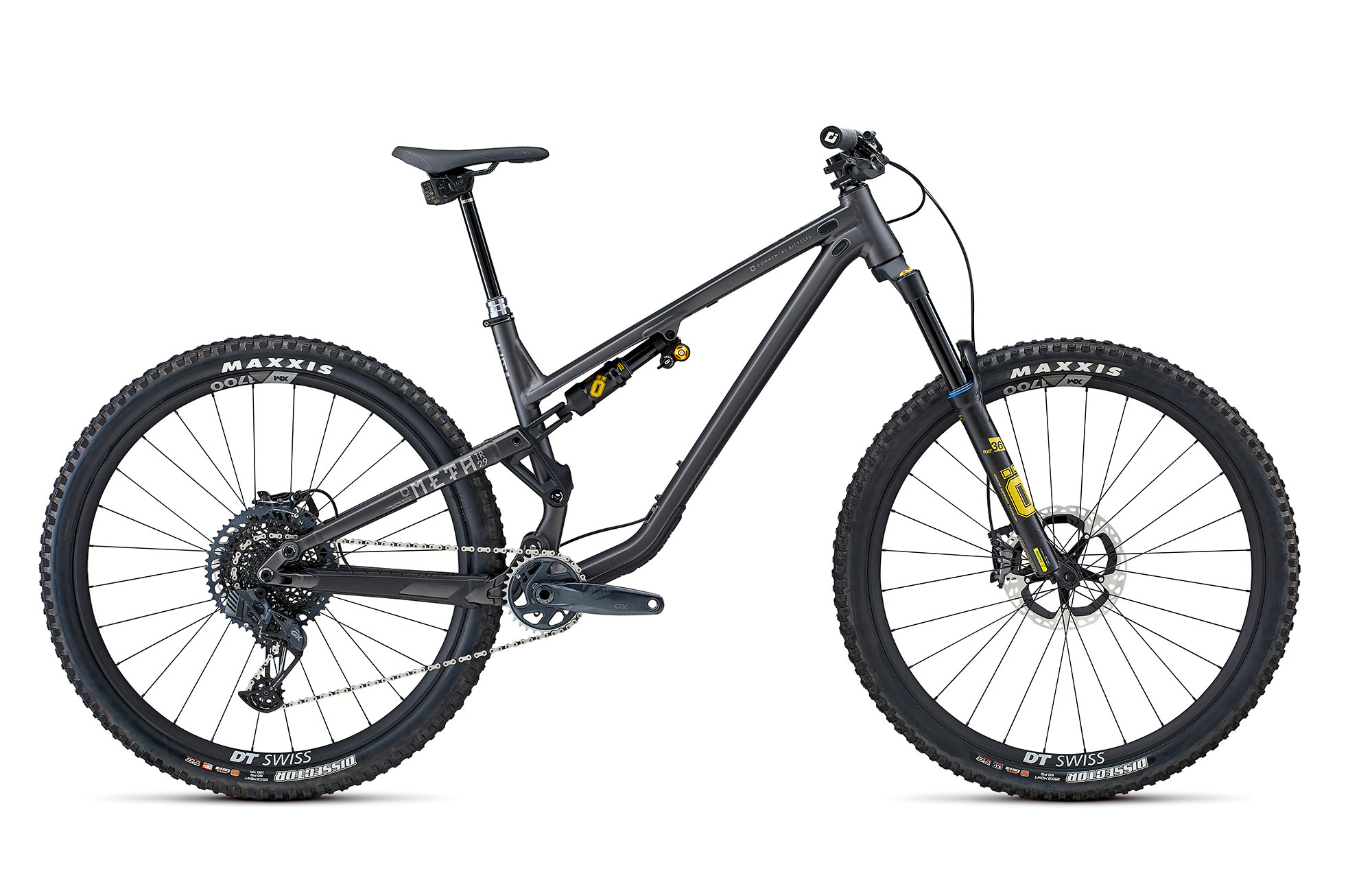

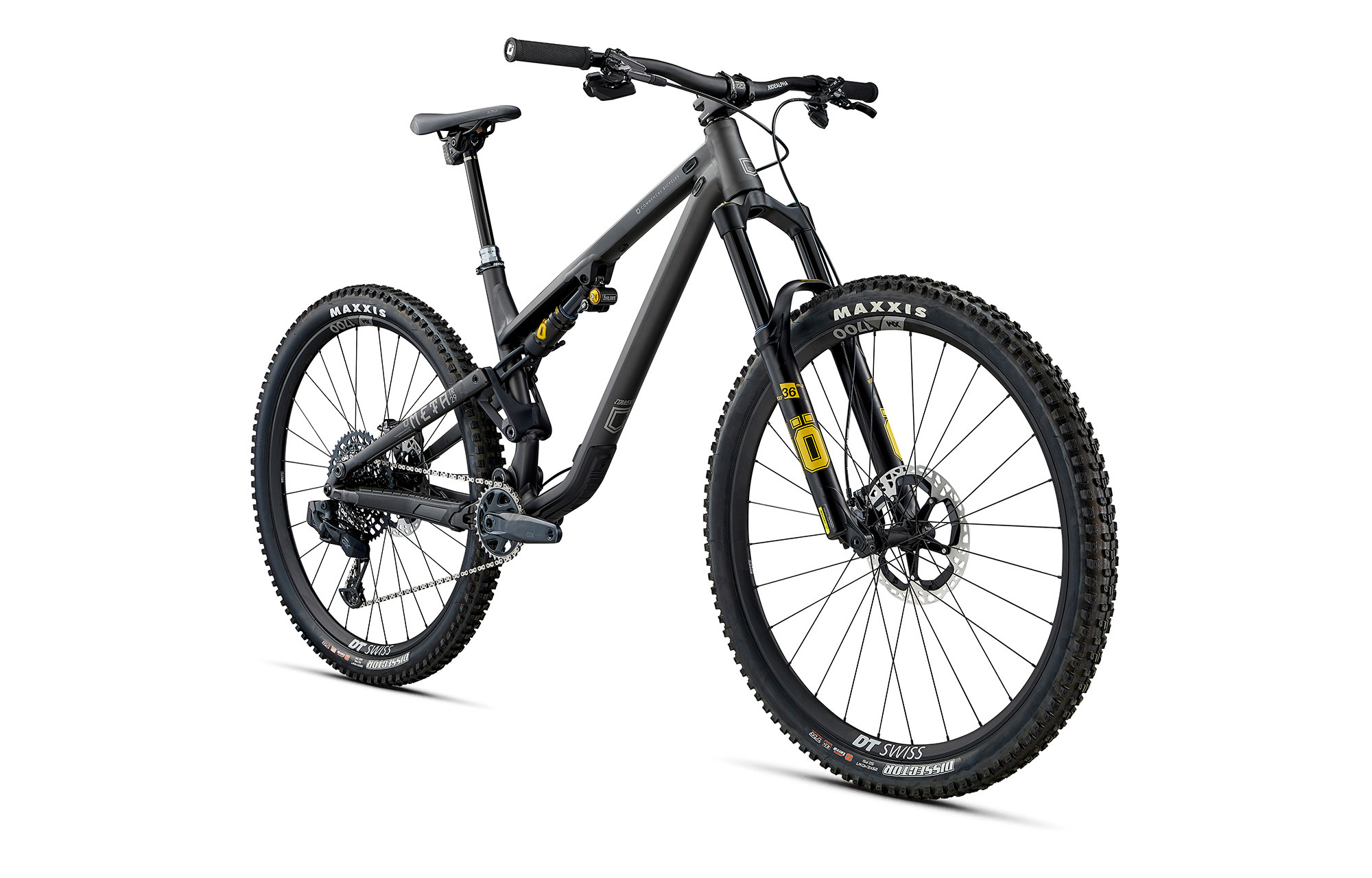

COMMENCAL META TR 29 OHLINS AXS

COMMENCAL META TR 29 OHLINS AXS image number null
Price reduced from £5,650.00 to £5,150.00
Sku : 21METATR29OHAL
Availability:
  • In stock null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
- DESCRIPTION -

This bike is intended for very physical and demanding riders. It is a true performance model. Indeed, there is the best enduro suspension from the Swedish brand, a TTX1 air shock which offers excellent feeling and reactivity as well as numerous adjustment possibilities. Performance is also key on the front with the RXF36 fork. It is super precise and handles excellently on steeper slopes. And there's no better way to stop this machine than with SHIMANO XT 4-piston brakes and RT-MT900 rotors which offer unrivalled heat management. To finish in style, there's DT SWISS XM 1700 Spline wheels. Their excellent weight/reactivity/reliability ratio sealed it for us.

This META TR 29 has arrived with the all new SRAM GX AXS 12 speed drivetrain! Wireless technology between the control and the derailleur offers many advantages over a conventional transmission:

- Easy assembly and disassembly of the system

- Clean and quiet cockpit thanks no cables

- A more ergonomic shifter

- Ultra fast and precise system when changing gear

- No performance and maintenance problems associated with the wear of a traditional cable

- Derailleur clutch system allowing it to disengage on impact and prevent possible breakage

- Possible to configure and customize the operation of the shifter

- Possible to analyze the data of the day's output through to the AXS website

- Weight similar to conventional transmission

The perfect drivetrain for a rider who doesn't like getting their hands dirty or spending time in the shop tuning before setting off! It's also the ideal tool for this bike, a cocktail of precision, simplicity and efficiency for the trail and longer rides

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL-6066

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm / NOTHING

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    TAPERED

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Front derailleur type

    No

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    2021 Meta TR 29, 140 mm travel

    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ÖHLINS TTX1 Air

    210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping

  • Fork

    ÖHLINS RXF 36 M.2 Air, 150 mm

    29", TTX18 cartridge, HSC 3 positions, LSC, rebound Boost (15 x 110 mm), 44 mm offset

  • Headset

    ACROS ZS44 / ZS56

    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 50

    50 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R27

  • Grips

    Yes

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible

    Rotors: SHIMANO RT-MT900 203 mm, Centerlock, Ice Technology Freeza, integrated magnet

  • Shifters

    SRAM GX Eagle AXS, 12sp

    Electrical, with battery

  • Chain guide

    -

  • Rear mech

    SRAM GX Eagle AXS, 12sp

    Electrical, with battery

  • Bottom bracket

    SRAM DUB

    Pressfit

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost

    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle

    12s

  • Cassette

    SRAM GX Eagle

    12s, 10-52t

  • Rims

    DT SWISS XM1700 Spline

    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350

    Rear: 28h, 36t ratchet, sealed bearings - Front: 28h, sealed bearings

  • Spokes/nipples

    DT SWISS Competition

    Straightpull, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DISSECTOR, 29 x 2.40 WT - Front: MAXXIS DISSECTOR, 29 x 2.40 WT

    Rear: 3C MaxxTerra EXO+ TR - Front: 3C MaxxTerra EXO+ TR

  • Seat post

    ROCKSHOX reverb AXS

    31.6 mm 125 mm on S, 150 mm on M, 170 mm on L/XL, Electrical, with battery

  • Saddle

    FIZIK Terre Alpaca X5

    Wingflex rails

  • Weight

    15 kg / 33.06 lb

    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dark Slate

    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, AXS battery charger

- SIZES -
- GEOMETRY -
SIZES
