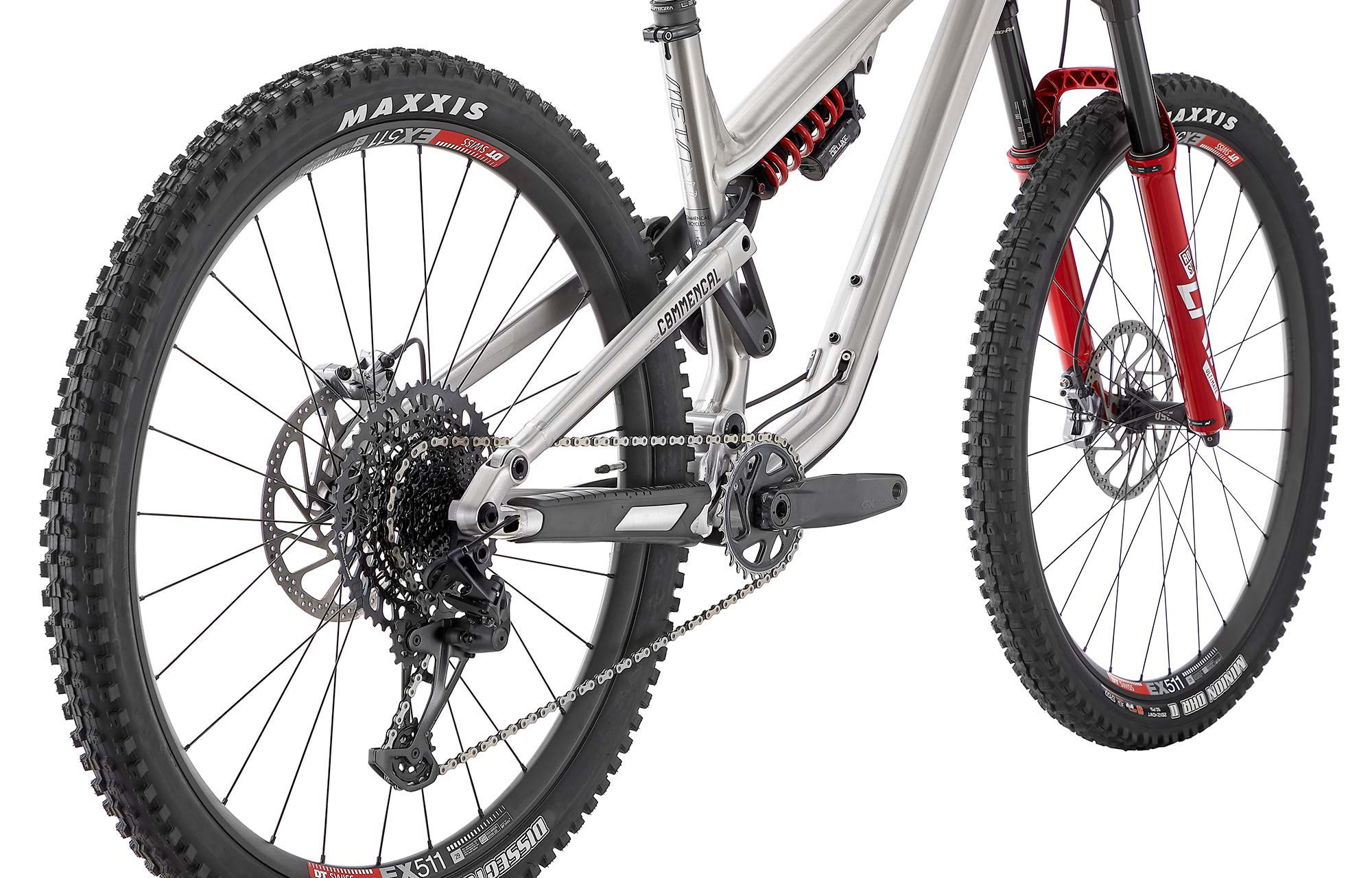

COMMENCAL META TR V4 RACE BRUSHED

Price reduced from £4,500.00 to £3,600.00 -20%
id/sku : 22METATRRS
Availability: In stock null
Your size is not available? visit www.commencal-store.co.uk
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META TR V4

The META TR V4 is our vision of trail riding. It is designed to make you really want to ride. Most at home when pedalling, it is even more at home when you let go of the brakes downhill, where it turns into a real mini-enduro. Well balanced, it excels during technical fast descents thanks to the aggressive kinematic/geometry combo. Rider positioning when climbing is ideal for long adventures. Flow trails, enduro, bike park, climbing, descents: nothing stands in its way.

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

META TR V4 RACE

Our shiny Brushed colourway is loved by many at COMMENCAL. The META TR V4 RACE was immediately a favourite with this finish and all the components. What about ROCKSHOX red?

The META TR V4 RACE has a 160mm fork which pushes its capabilities even further!
- The famous ROCKSHOX Lyrik Ultimate has demonstrated its prowess in the Enduro World Series in recent years.
- The Super Deluxe Ultimate Coil will delight the most demanding riders thanks to its sensitivity and flawless behaviour no matter what

Ultra-efficient whether you're at the top, middle or bottom of a mountain, this META TR RACE features TRP DH-R Evo 4-piston brakes. We chose them to ensure powerful and consistent braking in all circumstances. The SRAM GX Eagle 10-52t drivetrain no longer needs to prove its reliability, it will take you anywhere. Finally, the DT SWISS EX511 wheels complete this high-end build.

Ready to conquer the mountain.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Super Deluxe Coil Ultimate
    210 x 55 mm, RC2T damper,  HSC,  LSC, rebound, 2-position adjustment, Hydraulic Bottom Out. Spring rates: 350lbs on S/M, 400lbs on L, 450lbs on XL

  • Fork

    ROCKSHOX Lyrik Ultimate, 160 mm travel
    29", Charger 2.1 damper, DebonAir, LSC, HSC, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    TRP DH-R Evo, 4 pistons
    Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX Eagle
    12s

  • Chain guide

    -

  • Rear mech

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    DT SWISS EX511
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO+, 3C MaxxTerra, Tubeless Ready - Front: 29" x 2.40", WT, EXO, 3C MaxxGrip, Tubeless Ready

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3 Atmos
    140 mm width, Lux-Alloy Rails

  • Weight

    15,9 kg / 35.05 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Brushed
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.
