Price reduced from £3,400.00 to £2,800.00
Sku : 22METATRRIL
Availability:
  • In stock null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
- DESCRIPTION -

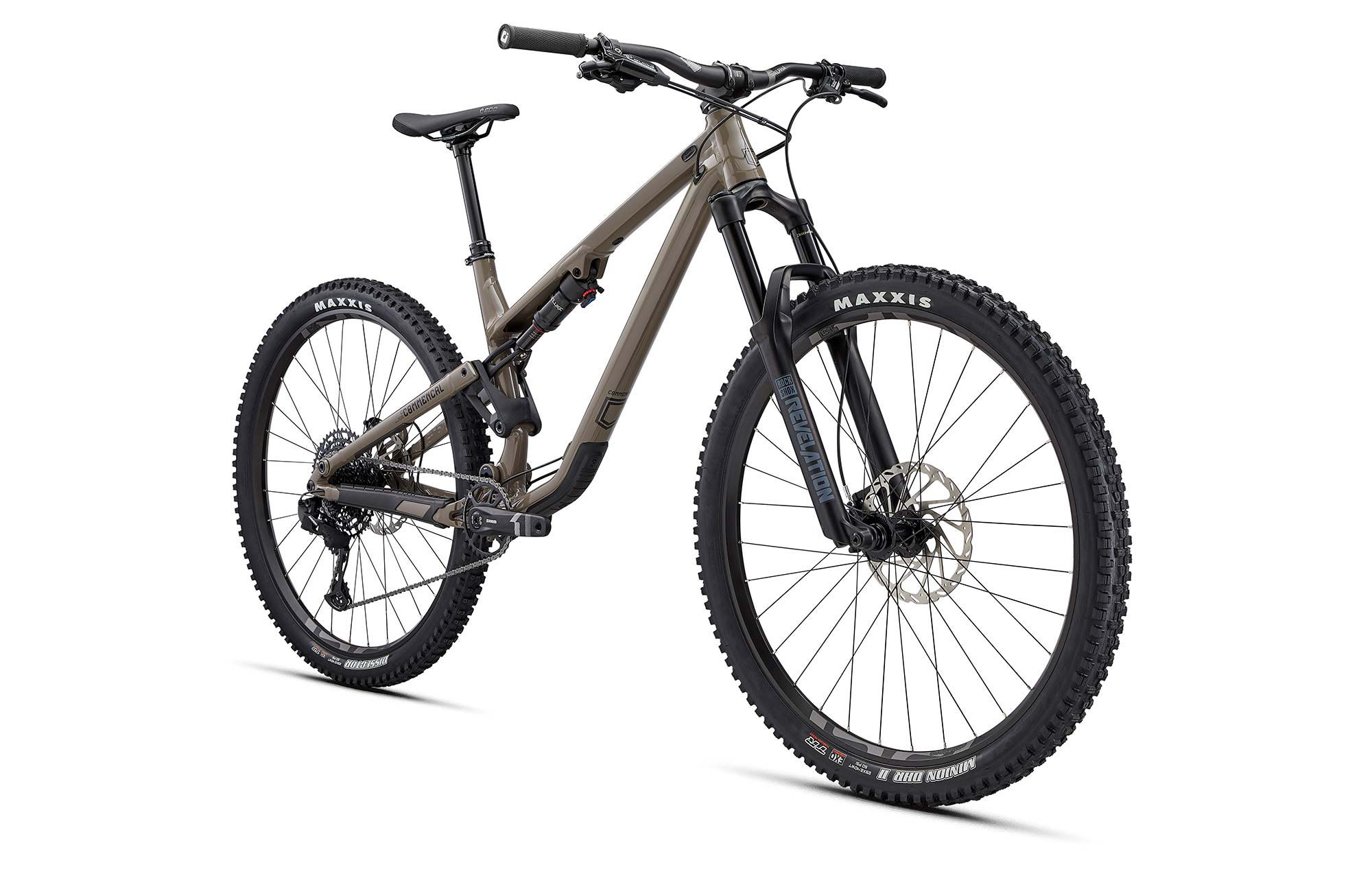

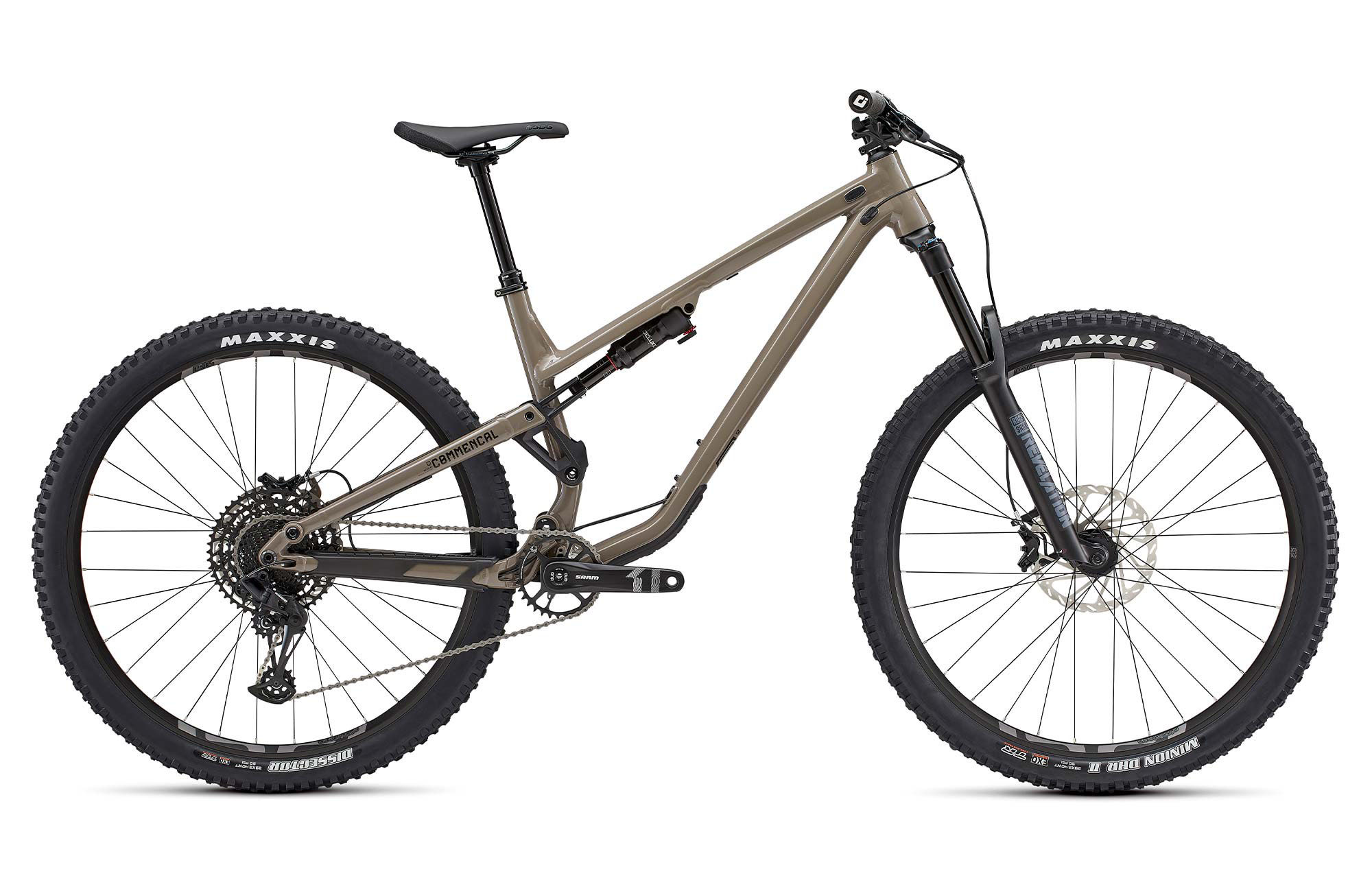

New META TR 29: The best of both worlds!

When we developed the META TR 29, our intentions were clear - to make a bike that performs very well uphill but that also retains the COMMENCAL downhill DNA. We got the result we wanted thanks to a few key points:

- Large 29-inch wheels.

- Reworked and modifiable kinematics making the bike more dynamic.

- A straighter seat angle (and reduced offset).

The result is a particularly harmonious bike, a formidable pedaller and ideal companion for long active rides. The TR is seamlessly capable of transcending from uphill to downhill and soaking up all types of lumps and bumps in between. Thanks to 140mm of rear travel and the 150mm or 160mm fork, it tackles most obstacles without hesitation. Plus, the TR shows liveness and is playful when it comes to the terrain and pumping for speed etc. Mike Kazimer, reporter at Pinkbike, describes the META TR 29 as one of the funnest bikes he's ridden!

The stiffness of the frame is always the subject of much attention.

The use of double-row Enduro Bearings allows a more homogeneous deformation of the frame without the loss of stiffness via the bearings.

In addition to all this in-depth work, like on our META POWER TR, META SX and CLASH bikes, we now offer a Flip Chip on the shock absorber extension in order to more acutely adjust the geometry, and therefore fit your personal style! This system means you can influence the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on what you want, effectively, you can choose between a lively bike perfect for big pedalling missions, or more progressive bike ideal for days in bike park or on more committed lines.

About the META TR RIDE

In this timeless Dirt colour with a matte finish, our META TR RIDE blends into any environment.

with the RIDE model adventures are definitely on the cards, whether you've out for a couple of hours or several days:

- The ROCKSHOX Revelation RC fork has 35mm diameter stanchions which are stiff and precise, plus they're easy to adjust.

- The Deluxe Select + shock absorber allows you to quickly and easily adapt the behaviour of the bike depending on various factors.

- A SRAM SX Eagle 12-speed drivetrain will help you overcome the toughest obstacles.

- On the way downhill, the clean feel and reliability of the SRAM Guide T 4-piston brakes are guaranteed to stop you effectively.

- The KS Rage-I telescopic seat post provides real comfort and significant freedom of movement.

- The MAXXIS DHR II and Dissector tyres perfectly match this META TR 29 and give an excellent compromise between lateral grip and roll.

Everything you need.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    TRAIL 29"

  • Frame material

    AL-6066

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    TAPERED

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Front derailleur type

    -

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    Meta TR 29, 140 mm travel

    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select +

    210 x 55 mm, rebound, threshold adjustment, 2 tokens

  • Fork

    ROCKSHOX Revelation RC, 150 mm travel

    29", Motion Control RC damper, rebound, Boost (15 x 110 mm), 42 mm offset, 1 Token

  • Headset

    ACROS ZS44 / ZS56

    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40

    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL

    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion

    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible

    Rotor: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle

    12s

  • Chain guide

    -

  • Rear mech

    SRAM SX Eagle

    12s

  • Bottom bracket

    SRAM DUB

    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost

    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle

    12s

  • Cassette

    SRAM PG-1210

    12s, 11-50t

  • Rims

    E13 LG1 EN Base 29''

    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711

  • Spokes/nipples

    SAPIM Race

    J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II

    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

  • Seat post

    KS Rage-I

    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3

    Steel Rails

  • Weight

    15 KG / 33.06 LB

    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dirt

    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector
