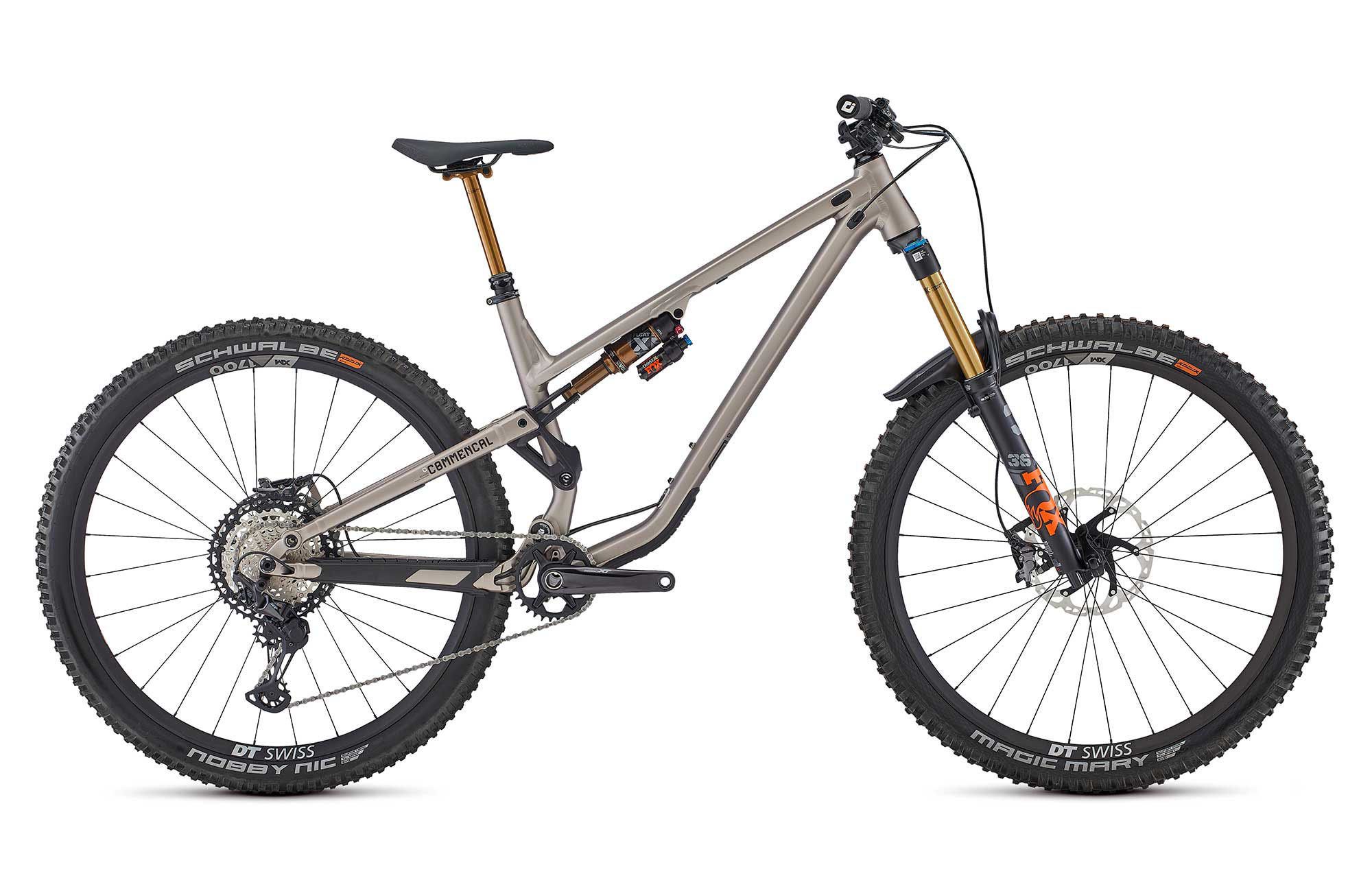

COMMENCAL META TR V4 SIGNATURE CHAMPAGNE

£4,200.00
id/sku : 22METATRSGS
Availability: In stock null
Your size is not available? visit www.commencal-store.co.uk
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META TR V4

The META TR V4 is our vision of trail riding. It is designed to make you really want to ride. Most at home when pedalling, it is even more at home when you let go of the brakes downhill, where it turns into a real mini-enduro. Well balanced, it excels during technical fast descents thanks to the aggressive kinematic/geometry combo. Rider positioning when climbing is ideal for long adventures. Flow trails, enduro, bike park, climbing, descents: nothing stands in its way.

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

META TR V4 SIGNATURE

The META TR V4 SIGNATURE has been designed to highlight the high-end components that adorn it. Could the matte Champagne paint inspire champagne showers?

Beyond just looks, this TR is a top-end build. Just take a look at:
- The FOX 36 Factory fork with Kashima treatment. It's a must thanks to its stiffness, unparalleled reactivity and the adjustment possibilities.
- The FOX Float X2 Factory shock is one of the best in terms of quality and performance thanks to its many adjustments and oversized air spring.
- You can't ask for much better than the SHIMANO XT groupset, a benchmark today for its reliability and consistency.
- The choice of wheels is important on a bike in this category, so we chose the DT SWISS XM1700 Spline for their excellent weight/liveliness/reliability ratio.

An exceptional bike, perfect for hilly and mountainous enduro stages.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX Float X Factory
    210 x 55 mm, LSC, LSR, 2-position adjustment

  • Fork

    FOX 36 Factory, 160 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT86, 203 mm, 6-bolt

  • Shifters

    SHIMANO XT
    12s

  • Chain guide

    -

  • Rear mech

    SHIMANO XT
    12s

  • Bottom bracket

    SHIMANO BBMT800
    Pressfit

  • Crankset

    SHIMANO XT, 170 mm crank arms, Boost
    Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology

  • Chain

    SHIMANO XT
    12s

  • Cassette

    SHIMANO XT
    12s, 10-51t

  • Rims

    DT SWISS XM 1700
    29'', 28h, 30mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
    Rear: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

  • Seat post

    FOX Transfer Factory
    31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    15 kg / 33.06 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Champagne
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, FOX 35 Specific Fender

    *Please note that bike specs are subject to change without prior notice.
