COMMENCAL META TR V4 STAFF EDITION

Price reduced from £8,100.00 to £5,700.00 -30%
id/sku : 22METATRSTFM
Availability: In stock null
Your size is not available? visit our european warehouse
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META TR V4

The META TR V4 is our vision of trail riding. It is designed to make you really want to ride. Most at home when pedalling, it is even more at home when you let go of the brakes downhill, where it turns into a real mini-enduro. Well balanced, it excels during technical fast descents thanks to the aggressive kinematic/geometry combo. Rider positioning when climbing is ideal for long adventures. Flow trails, enduro, bike park, climbing, descents: nothing stands in its way.

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

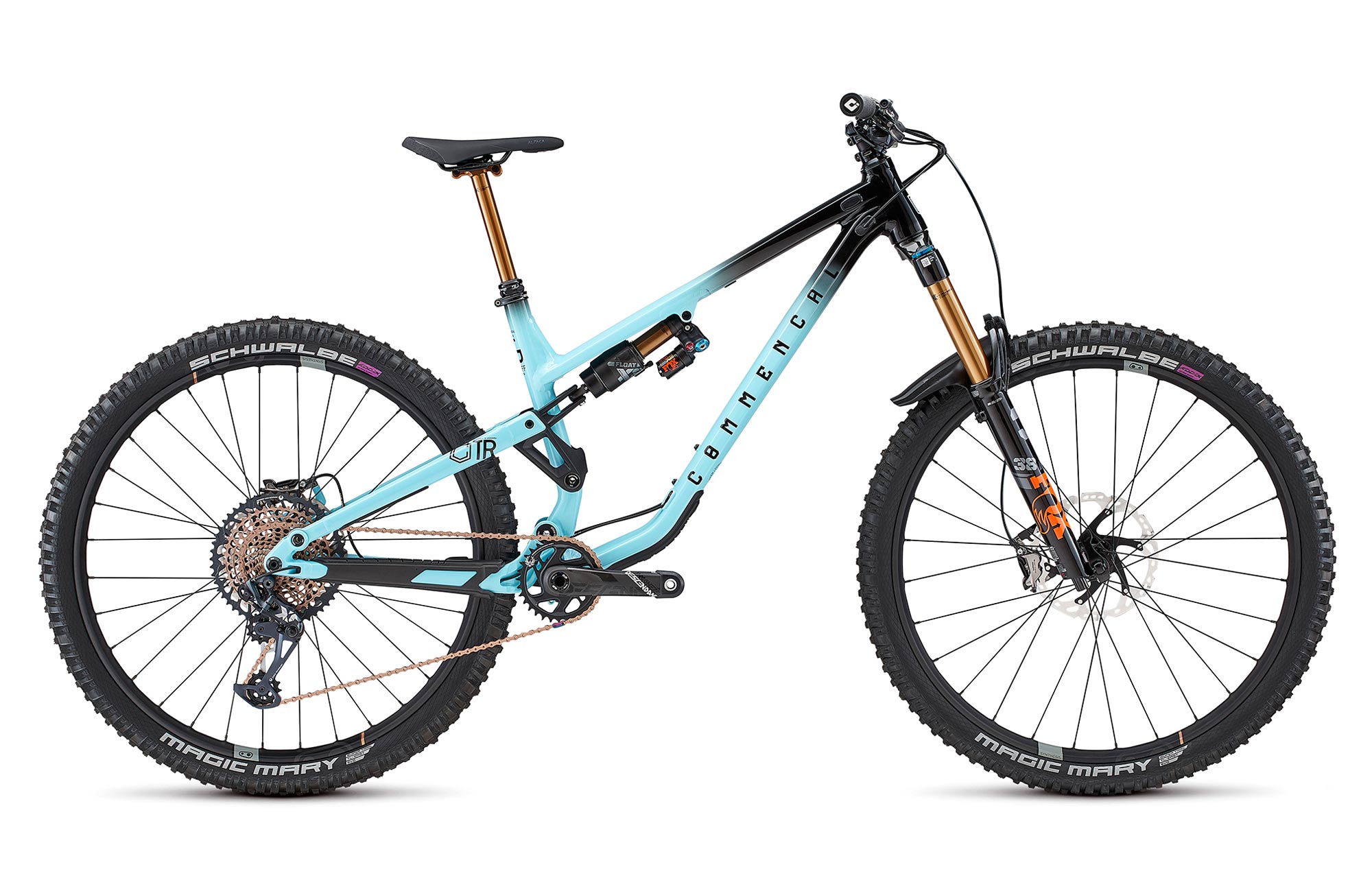

META TR V4 STAFF EDITION

With 160mm travel at the front, 140mm on the back, plus its 29'' wheels, the META TR STAFF EDITION is fun on technical trails close to home, in the bike park for a few laps, or at the start of an enduro race. The "Sunset" colourway is inspired by Hugo Frixtalon's SUPREME DH V5 from the 2022 Lourdes World Cup.

For many of our staff, the FOX 38 Factory is the best enduro fork right now. It is sensitive, offers precise control and the GRIP 2 hydraulic cartridge is easy to adjust. Without forgetting the fork leg decompression valves which ensure optimal operation at all times.

The FOX Float X2 Factory is the shock used by our downhill race teams. Its large air volume gives it the linearity and feel of a coil spring. It can be locked out using a dial to make pedalling more efficient.

SHIMANO take care of braking with the sumptuous XTR set. The four-piston calipers with 203mm discs provide maximum power.

The SRAM X01 Eagle transmission is reliable, precise, and quiet. The 10-52t cassette makes for easier climbing everywhere.

In addition to being understated classy, the RENTHAL cockpit is the best in terms of shape.

The CRANKBROTHERS Synthesis Enduro 11 Carbon wheels benefit from carbon rims with differentiated stiffness to optimize grip and handling at the front and performance and stability on the back. INDUSTRY NINE HYDRA hubs are a benchmark. They offer the best performance/lifespan/comfort ratio and are raced by the COMMENCAL Enduro Project team.

To provide maximum grip for this META TR we chose a pair of SCHWALBE Magic Mary tyres with Super Trail casing and ultra-soft rubber.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 X 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings on  M / L / XL

  • Shock

    FOX Float X2 Factory
    210 x 55 mm, HSC, LSC, HSR, LSR, 2-postion adjustment

  • Fork

    FOX 38 Factory, 160 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 3 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RENTHAL Apex
    40 mm extension, 31.8 mm

  • Handlebar

    RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL
    31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL

  • Grips

    ODI Elite Motion
    Single clamp, black

  • Brakes

    SHIMANO XTR, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology Freeza

  • Shifters

    SRAM X01 Eagle
    12s, Black

  • Chain guide

    -

  • REAR DERAILLEUR

    SRAM X01 Eagle
    12s, Black

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM Descendant Carbon Eagle, 170 mm crank arms, Boost
    Chainring: SRAM Descendant  X-Sync, 32t

  • Chain

    SRAM XX1 Eagle
    Copper finish, 12s

  • Cassette

    SRAM XG-1299
    Copper finish, 12s, 10-52t

  • Rims

    CRANKBROTHERS Synthesis Enduro Carbon
    Rear: 29", 32 holes, 29.5 mm inner width - Front: 29", 28 holes, 31.5mm inner width

  • Hubs

    INDUSTRY NINE 11
    Rear: 32 holes, 12 x 148 mm, 0.52° ultra fast engagement, 6 pawls - Front: 28 holes, 15 x 110 mm

  • Spokes/nipples

    SAPIM
    Sapim CX-Ray front / Sapim CX-Sprint rear

  • Tyres

    Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
    Rear: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless Ready - Front: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless Ready

  • Seat post

    FOX Transfer Factory
    31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-Alloy rails

  • Weight

    15,8 kg / 34.83 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Sunset
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, fork fender FOX 36 specific

    *Please note that bike specs are subject to change without prior notice.

- SIZES -
- GEOMETRY -
SIZES
