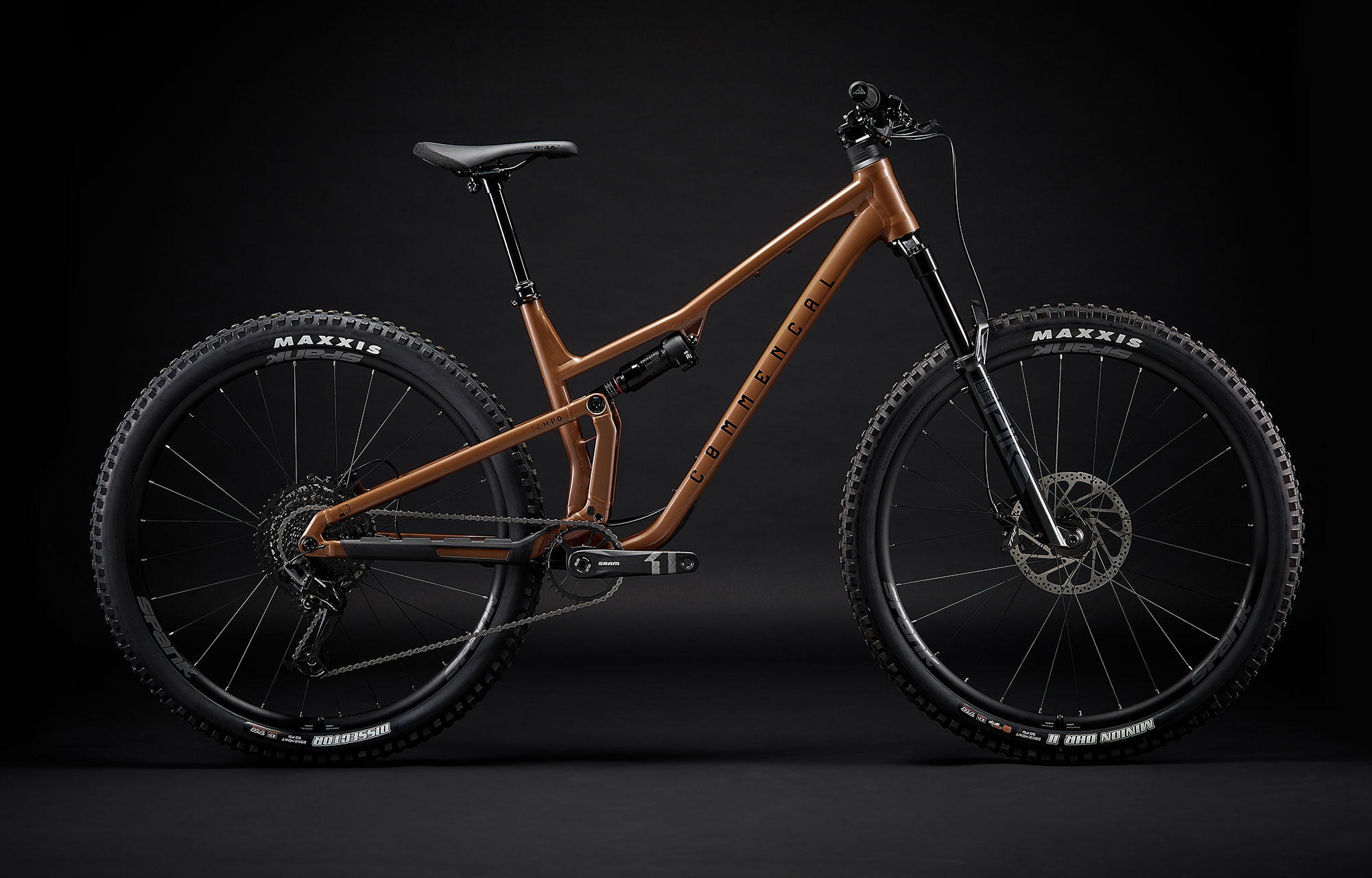

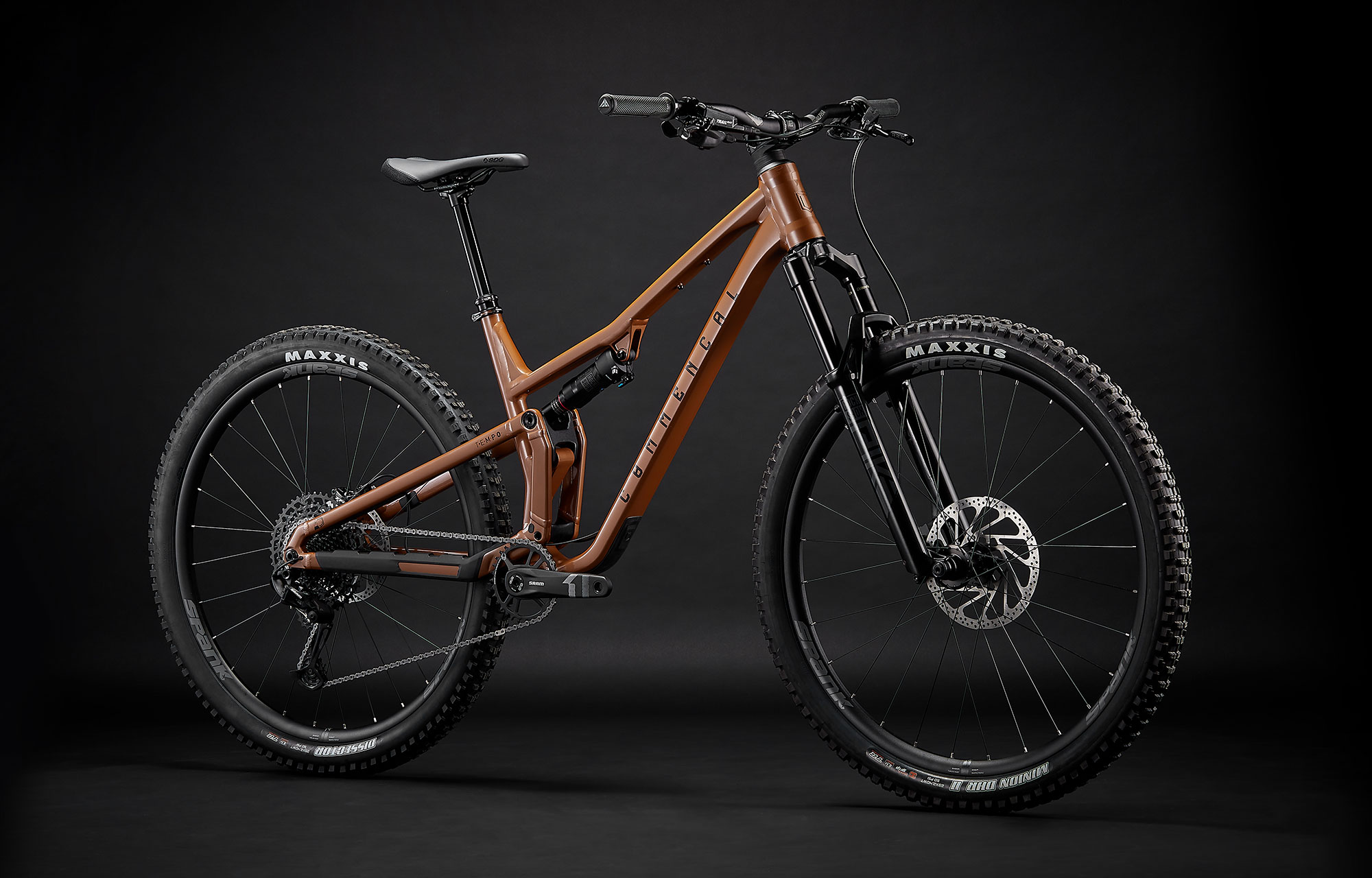

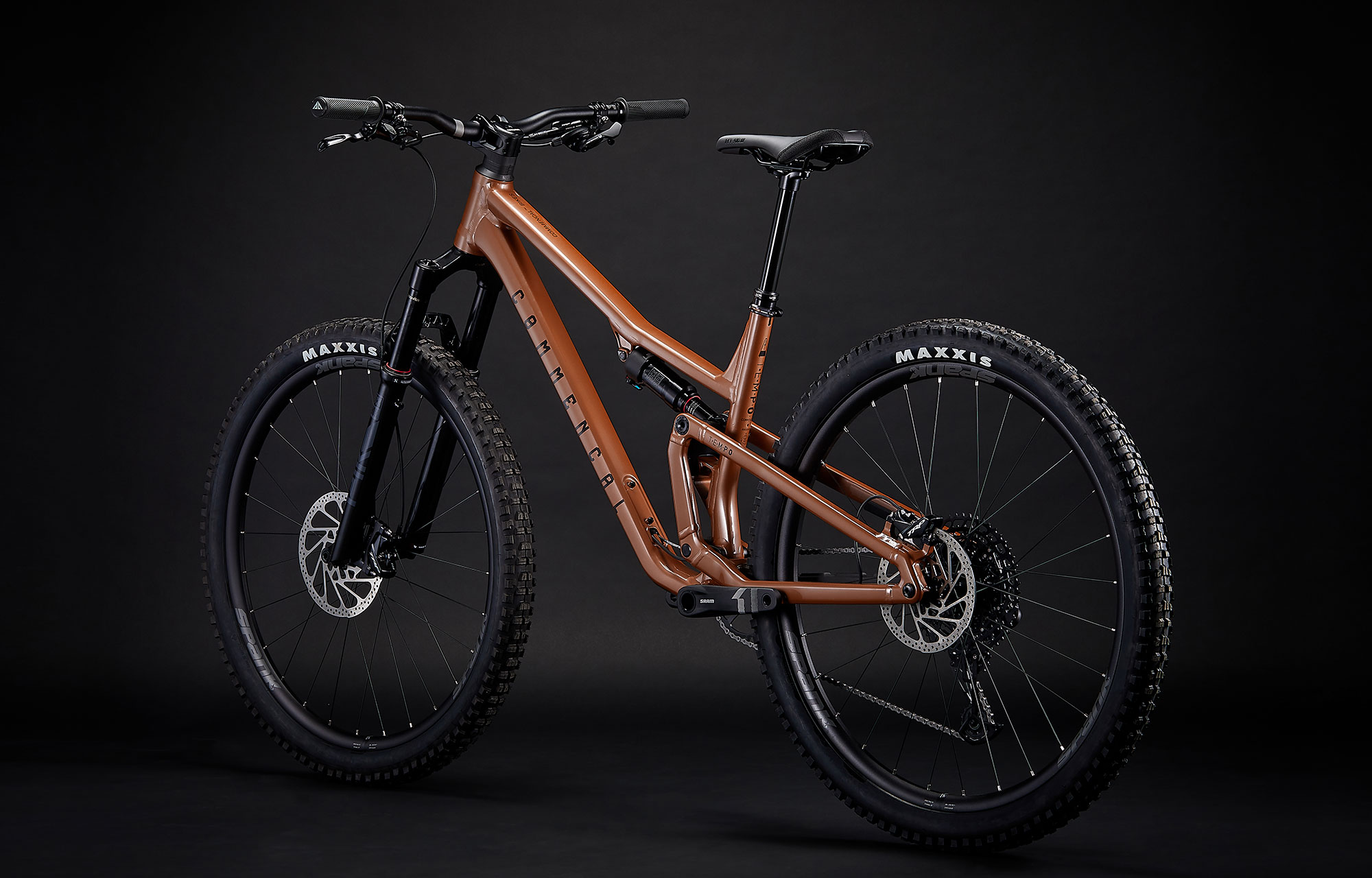

COMMENCAL T.E.M.P.O. RIDE UTAH DIRT

COMMENCAL T.E.M.P.O. RIDE UTAH DIRT image number null
£3,000.00
Ref : 22TEMPRI2L
Availability: Pre-order Fri Apr 14 2023
Your size is not available? visit www.commencal-store.co.uk
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • Specs
  • Geometry
- DESCRIPTION -

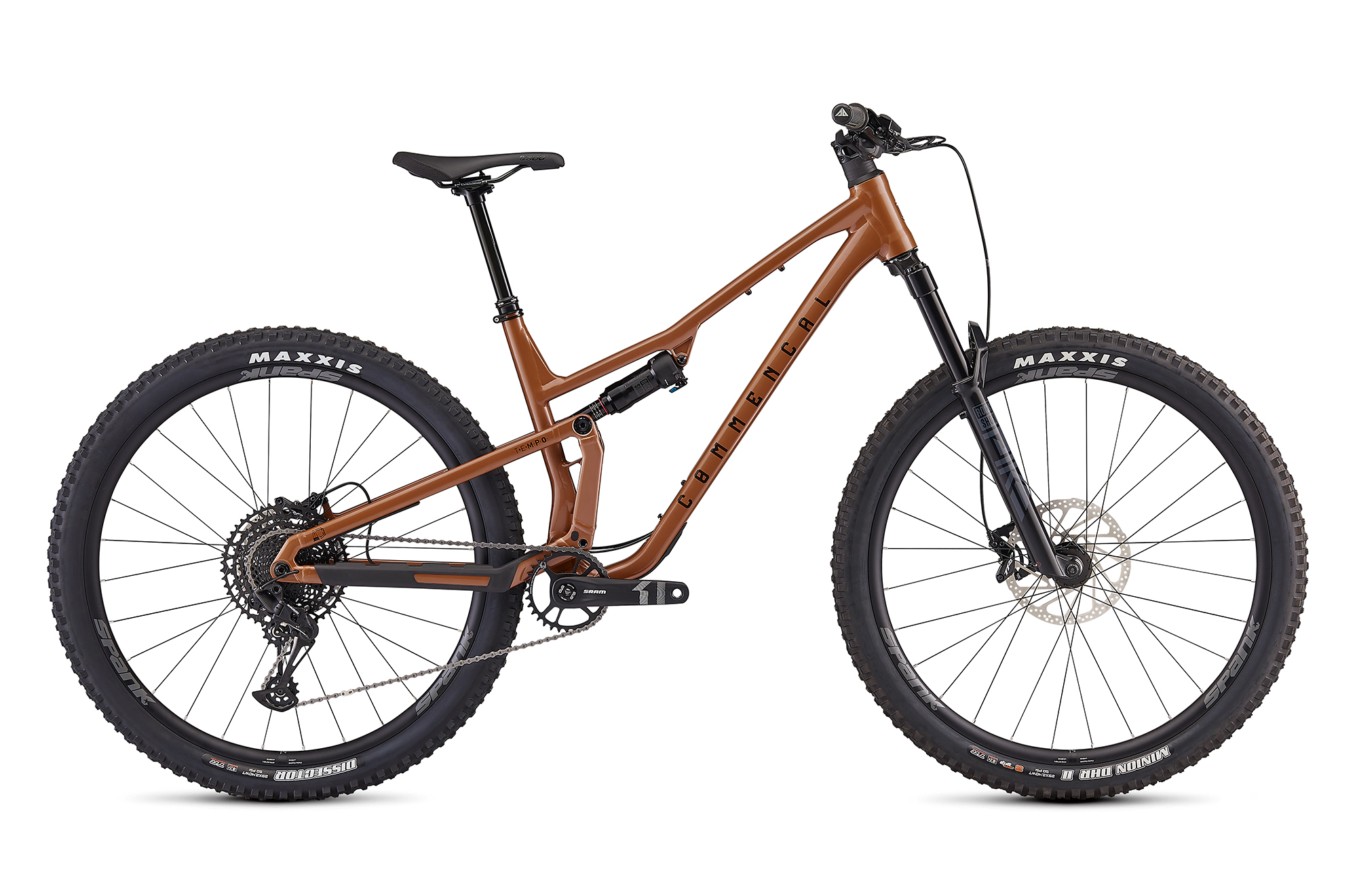

The image of this model is not a photo but in fact a 3D representation. The studio photos with the specs listed below will be available very shortly.

T.EM.P.O. - A Real Playful Powerhouse

With the T.E.M.P.O. we are rediscovering the joys of pedalling. Whatever the trail or the conditions, we always give a little more. And when it’s downhill time, we know we can count on it to be there, even through the most difficult sections. The terrain is our playground, each compression becomes an incentive to go a little faster or jump a little higher. Pure riding, on the edge, we’ve reached the perfect T.E.M.P.O.

Full 29-inch.
125mm rear travel and 140mm front travel.

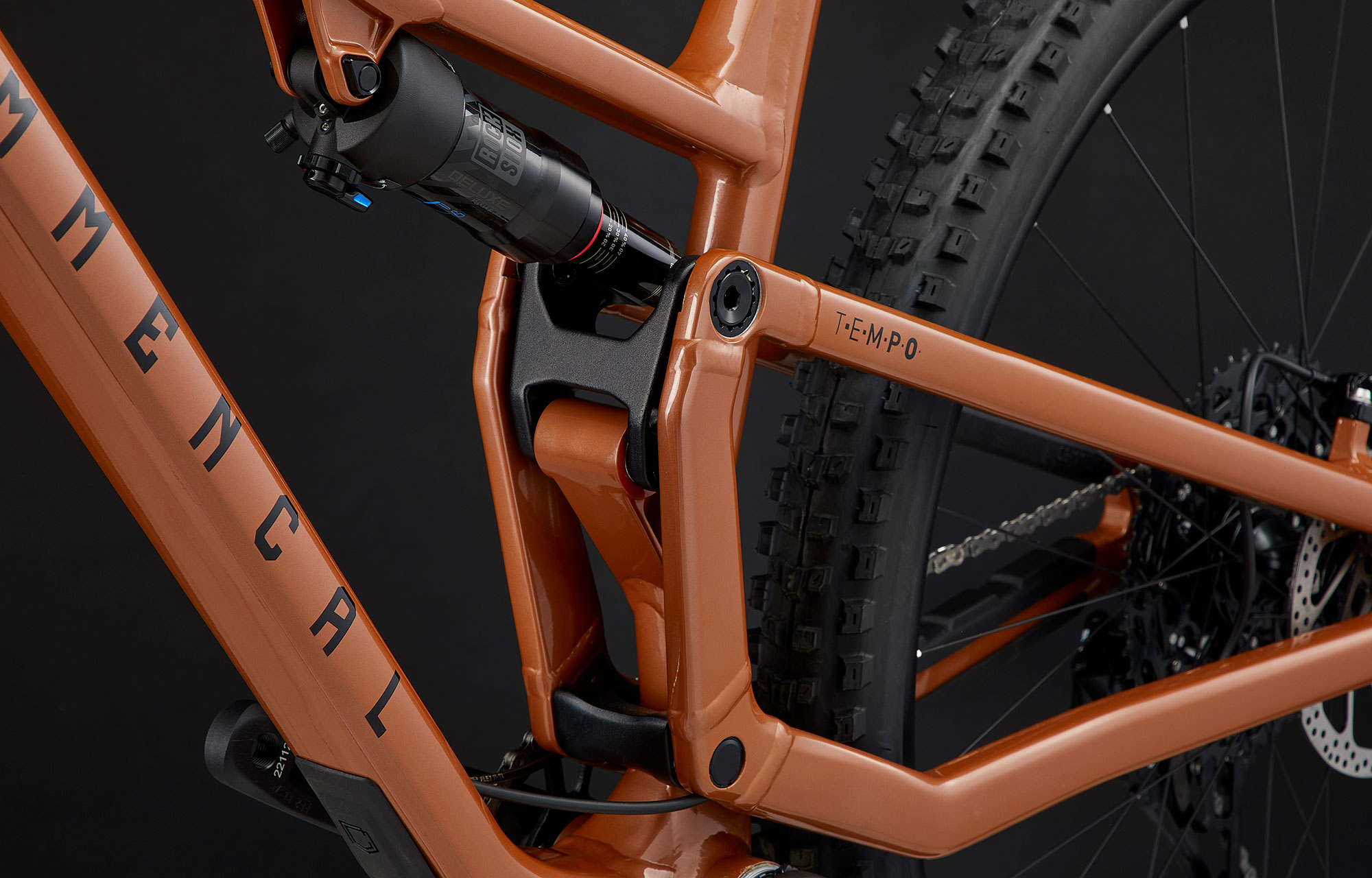

New "Virtual Contact System" kinematics using a virtual pivot point to combine liveliness and comfort.
Geometry designed for pedalling performance without sacrificing downhill performance.
100% aluminium, of course!

T.E.M.P.O. RIDE

The RIDE version of our T.E.M.P.O. is equipped with reliable RockShox suspension: the Pike and the Deluxe. The Pike Select stands out with an excellent weight/stiffness ratio plus simple and effective adjustments for low-speed compression and rebound. It is also compatible with the brand's integrated mudguard.

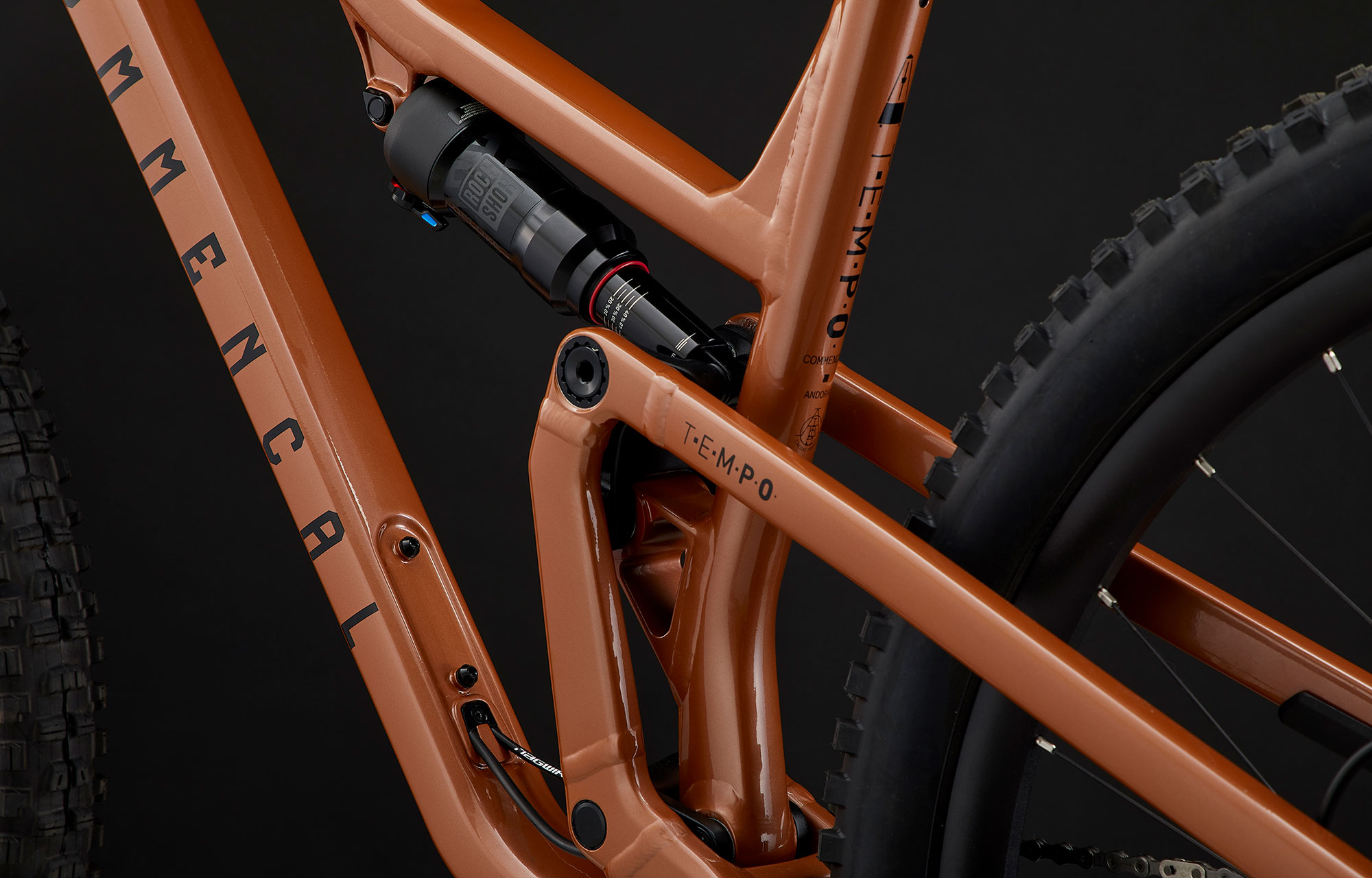

The Deluxe Select+ shock surprises with its ability to absorb impacts without brutally bottoming out. The settings have been specifically adapted to the kinematics of the T.E.M.P.O. Rebound is also adjustable and the lock-out lever is easily accessible.

Spank Race 33 rims are usually found on enduro and even DH bikes because they are among the most reliable and solid aluminium rims on the market. The icing on the cake, they offer great dynamism thanks to their high profile and low weight.

For the brakes, the TRP Trail Evo are distinguished by their power and constant feel. Braking power is immediate with minimal lever pull, and continually consistent throughout a long descent.

With a 12-speed gearset and a KS telescopic seat post, this model is made to rack up the miles.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    TRAIL 29"

  • Frame material

    AL-6066

  • Frame weight

    3,125 kg / 6,88 lb, raw without accessories

  • Rear travel

    125 mm

  • Shock length/stroke

    210 x 50 mm

  • Recommended SAG

    30% = 15mm stroke

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm / 30 x 10 mm

  • Recommended/max. fork height

    551 mm / 561 mm

  • Headset type

    ZS56 / ZS56, Integrated cable routing

  • Maximum tyre dimension (etrto)

    63mm / dim. 756

  • Disc brake standard

    POSTMOUNT 180 mm

  • Rear rotor max. size

    200 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BB92 Press Fit

  • ISCG

    ONLY ON THE TOP / CUSTOM, NO ISCG

  • Rear hub compatibility

    12 x 148 mm / Maxle stealth 180 mm M12x1,0

- SPECIFICATIONS -
  • Frame

    T.E.M.P.O., 125 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select+
    210 x 50 mm, rebound, 2 positions, 2 tokens

  • Fork

    ROCKSHOX Pike, 140 mm travel
    29", Rush RC damper, DebonAir, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings, Integrated cable routing

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31,8 mm

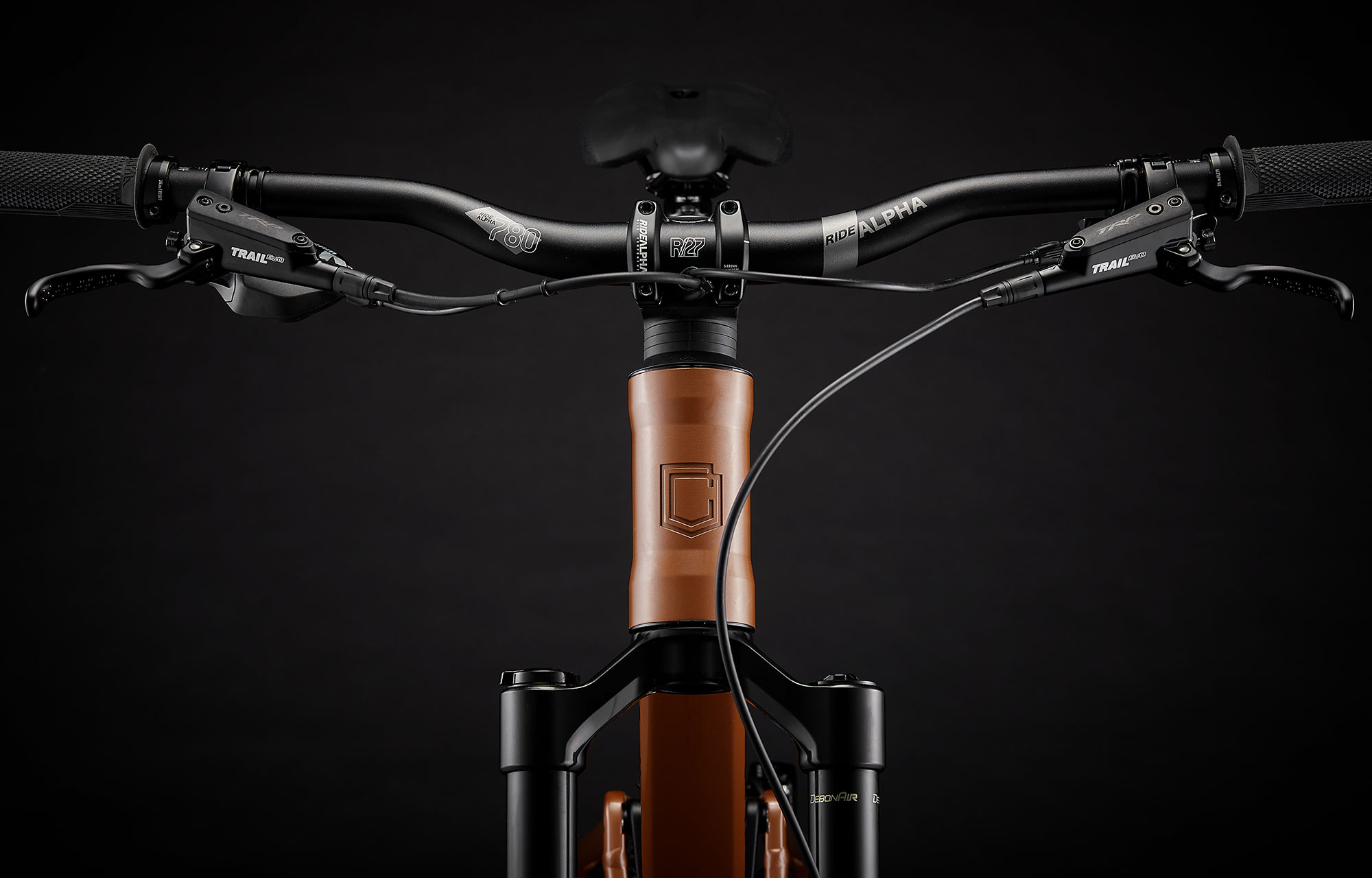

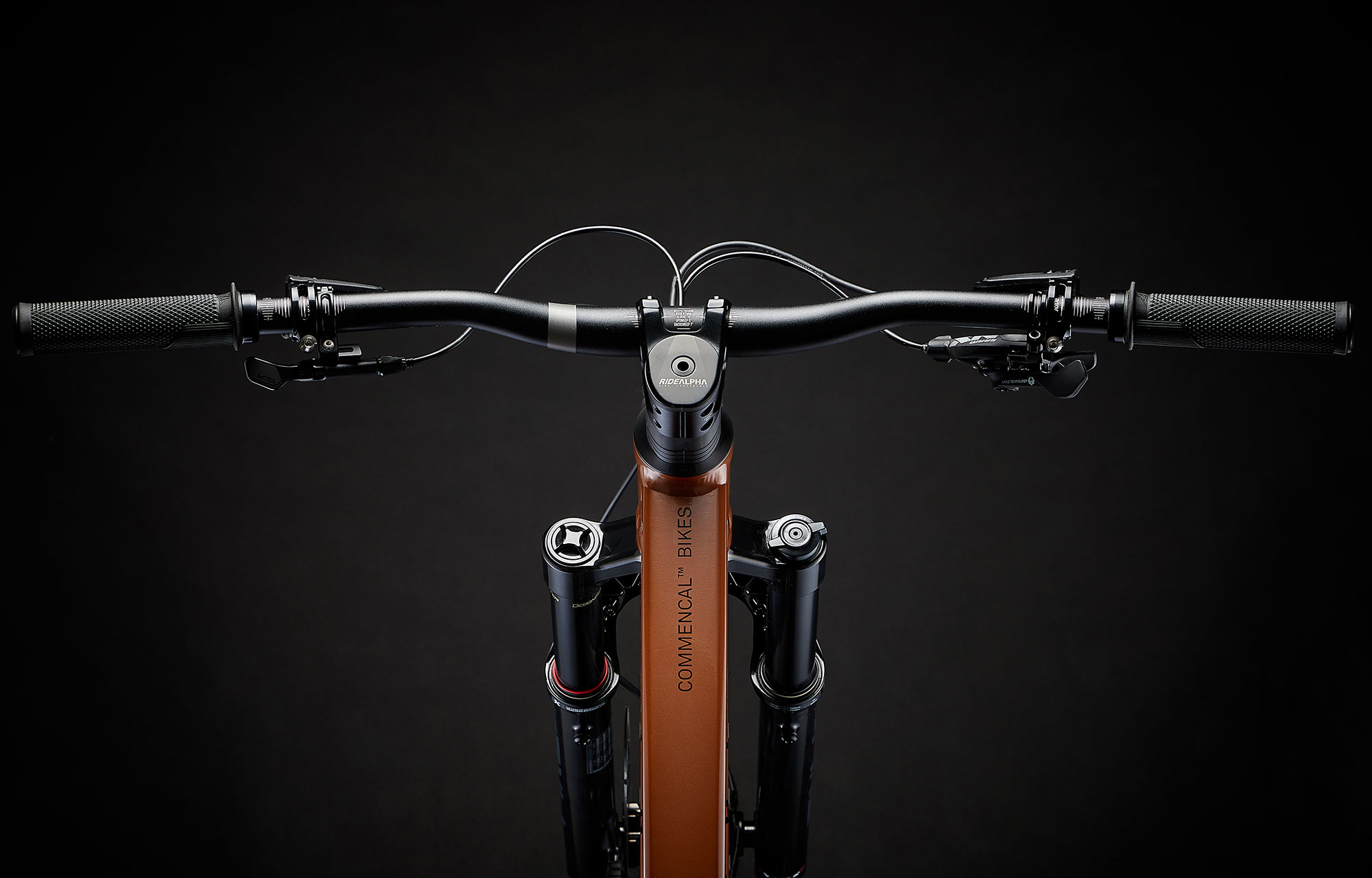

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RIDE ALPHA DH
    Ultra-soft compound, single clamp, black

  • Brakes

    TRP Trail Evo, 4 pistons, resin pads
    Rotor: TRP R1 203 / 180 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • Rear mech

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

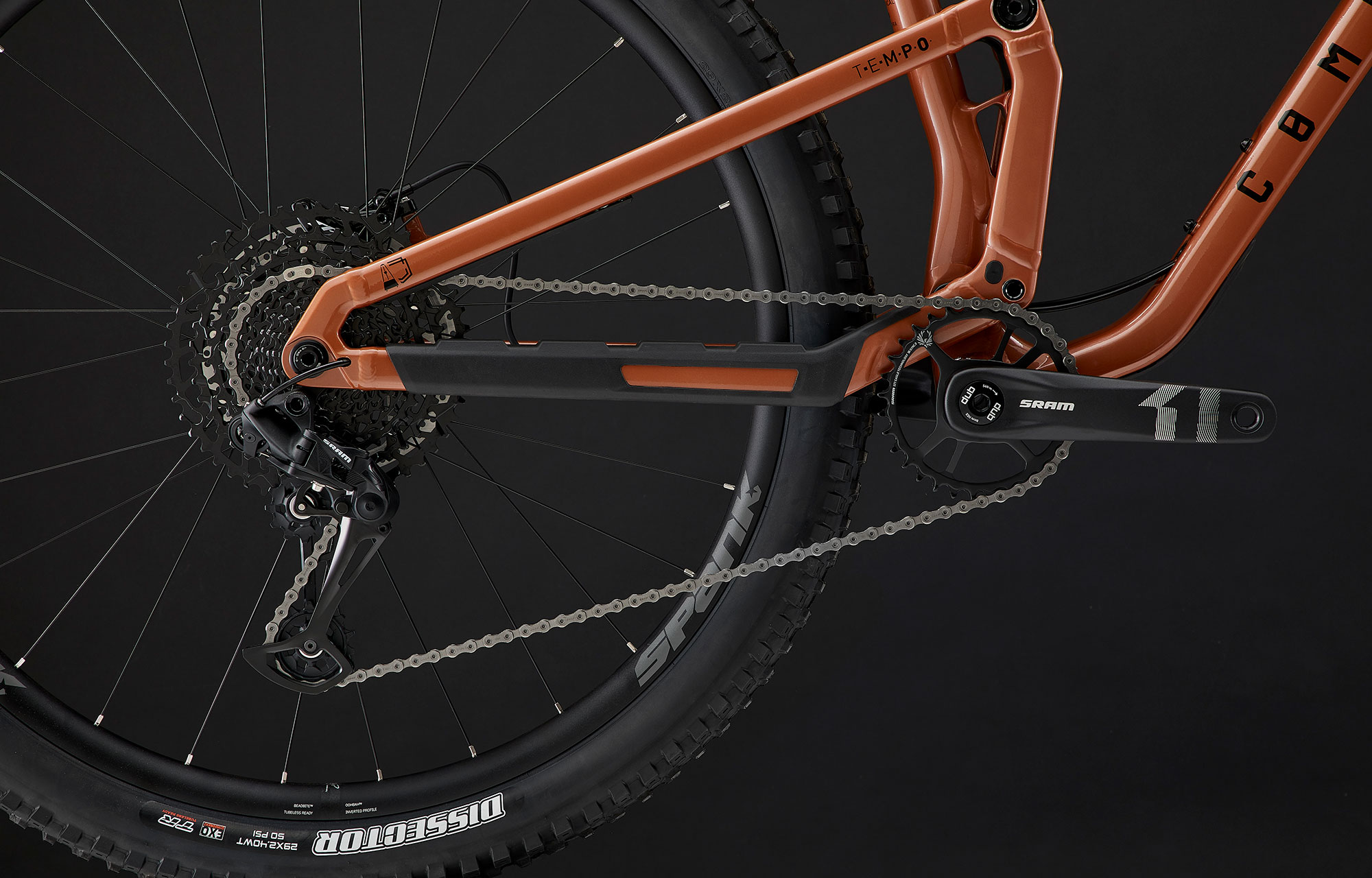

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    SPANK Spike Race 33
    29'', 28h, 28 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 28h, sealed bearings - Front: 28h, sealed bearings

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

  • Seat post

    KINDHSOCK Ragei
    31.6 mm, 150 mm on S, 170 mm on M, 190 mm on L/XL

  • Saddle

    SDG Bel Air V3
    Steel Rails

  • Weight

    - kg / - lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    UTAH Dirt
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector
