- DESCRIPTION -

Find out more: META POWER SX BOSCH

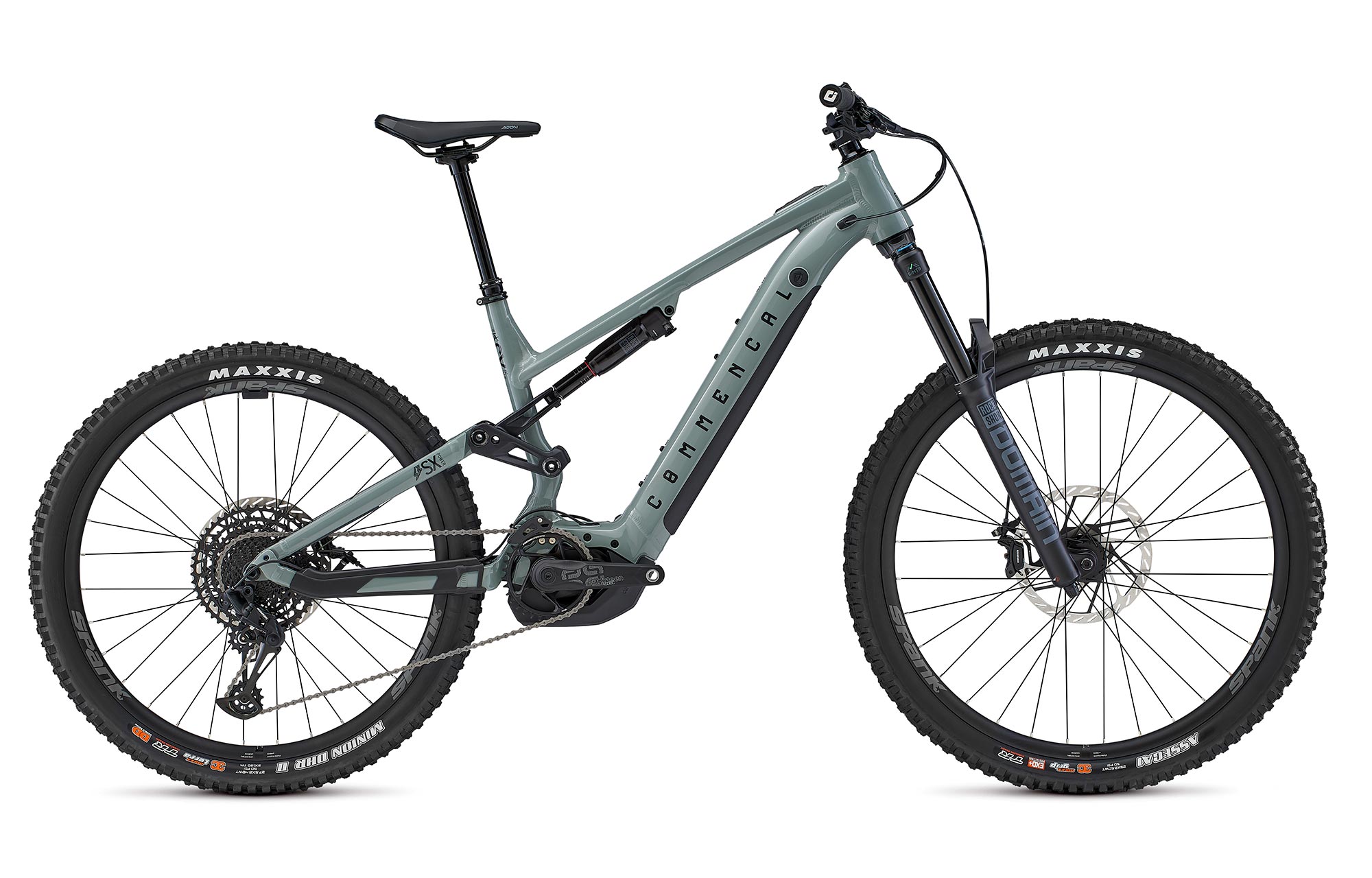

The META POWER SX BOSCH loves the rough stuff! It features 165mm of rear travel and 170mm up front along with mullet wheels (29"/27.5"), and with an aluminium frame and revised rear triangle, it's an ultra-precise and comfortable bike to ride. The rear-end provides ideal balance between stiffness and forgiveness.

The META POWER SX BOSCH will encourage you to head to the slopes. It has the support and grip to ensure bike park laps as much as secret freeride runs. Geometry has been revised to bring the rider back to the centre of the bike to offer a more aggressive riding position.

META POWER SX BOSCH RIDE

This RIDE META POWER SX model is equipped with the BOSCH Performance Line CX system and smart system, like our other models in this range. This system is one of the most advanced thanks to the power it delivers and the way it delivers it. The eBike Flow App means you can update the system in the blink of an eye and customise the assistance modes easily.

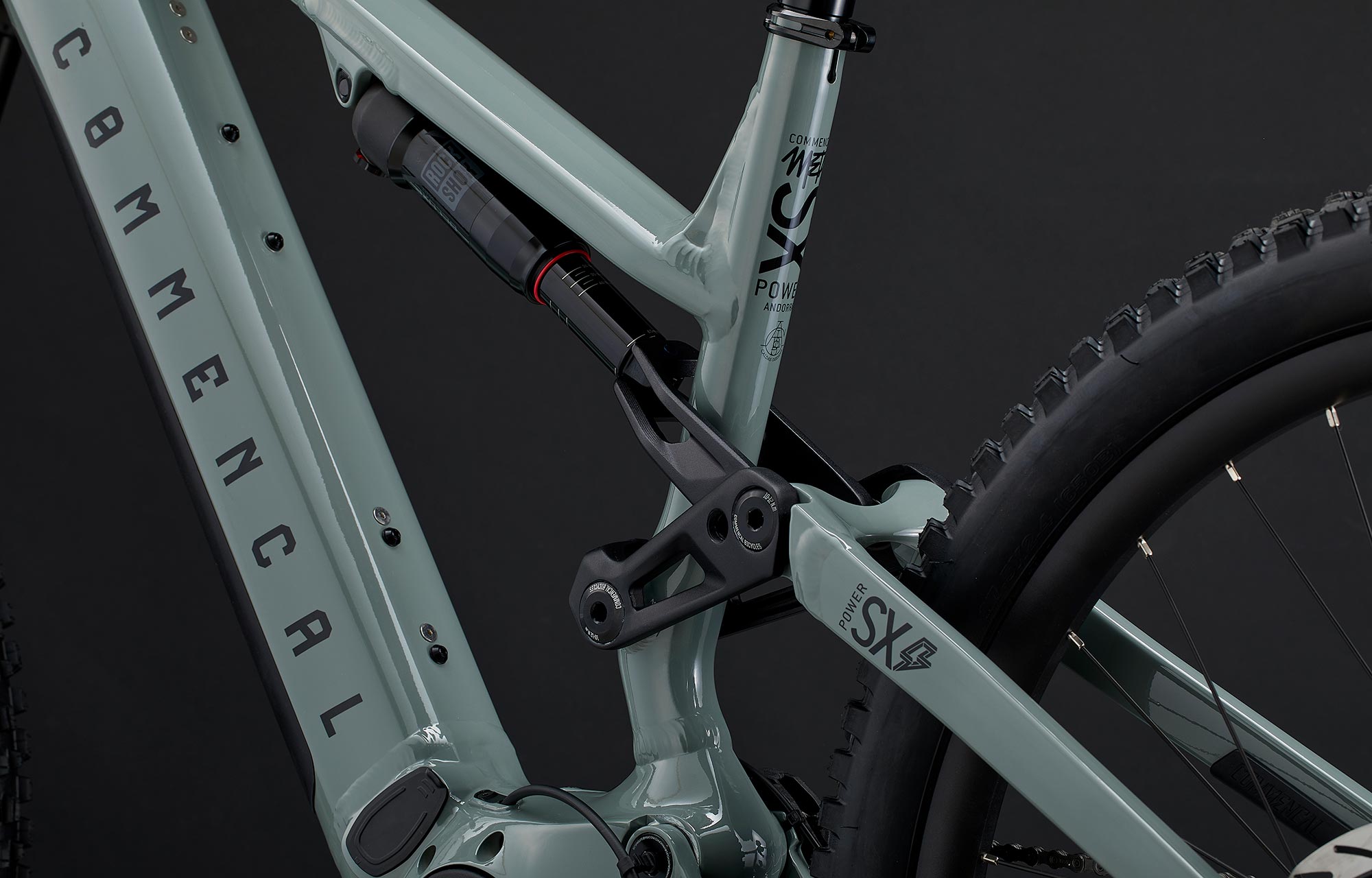

This RIDE model features the RockShox Domain RC with 170mm travel. It shines through with perfect stiffness plus an air spring that can be adjusted to any rider's weight. We put a RockShox Deluxe Select shock on the back which has settings adapted to the kinematics of the frame.

The wheels are made up with SPANK Spike Race 33 rims (proven solidity), together with Formula hubs that are specially reinforced for e-bikes. This combination is finished off nicely with a MAXXIS Minion DHRII and Assegai tyre with EXO+ and Double Down casing that provides great grip.

With have trusted SRAM with the brakes in the Guide RE (4-piston) which have been developed for e-MTB use. Together with 220mm discs, braking is powerful and efficient.

Finally, featuring a 12-speed drivetrain and KS telescopic seat post, this model is made to rack up the miles.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-BIKE ENDURO 29''/27''

  • Frame material

    AL-6061 + AL-6066

  • Frame weight

    - kg / - lb - With plastic accessories.

  • Rear travel

    165 mm

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm front

  • Recommended/max. fork height

    583 mm / 593 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 - 584 mm

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH E-BIKE

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    META POWER BOSCH, 165 mm travel
    29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

  • System

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    BOSCH Mini Remote

  • Shock

    ROCKSHOX Deluxe Select R
    230 x 65 mm, R damper, DebonAir, rebound

  • Fork

    ROCKSHOX Domain RC, 170 mm travel
    29'', Motion Control damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide RE, 4 pistons
    Rotor: SRAM HS2 220 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

  • Rear mech

    SRAM SX Eagle
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus BOSCH CX, 160 mm crank arms
    Chainring: E13 E*Spec Plus BOSCH CX, 34t, direct mount

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    Rear: SPANK Spike Race 33 - Front: SPANK Spike Race 33
    Rear: 27.5'', 32h, 28 mm inner width rear - Front: 29'', 32h, 28 mm inner width front

  • Hubs

    Rear: FORMULA eHL-148S - Front: FORMULA DC-711
    Rear: 32h, sealed bearings, e-bike specific - Front: 32h, sealed bearings

  • Spokes/nipples

    SAPIM Strong
    J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5" x 2.4" WT, 3C Maxx Terra, Double Down, 3C, TR - Front: 29" x 2.5" WT, 3C Maxx Grip, Exo+, TR

  • Seat post

    KS Rage I
    31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X5
    145 mm width, S-Alloy Mobius rails

  • Weight

    - kg / - lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Pyrite Grey
    Shiny Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual

    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.

    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
