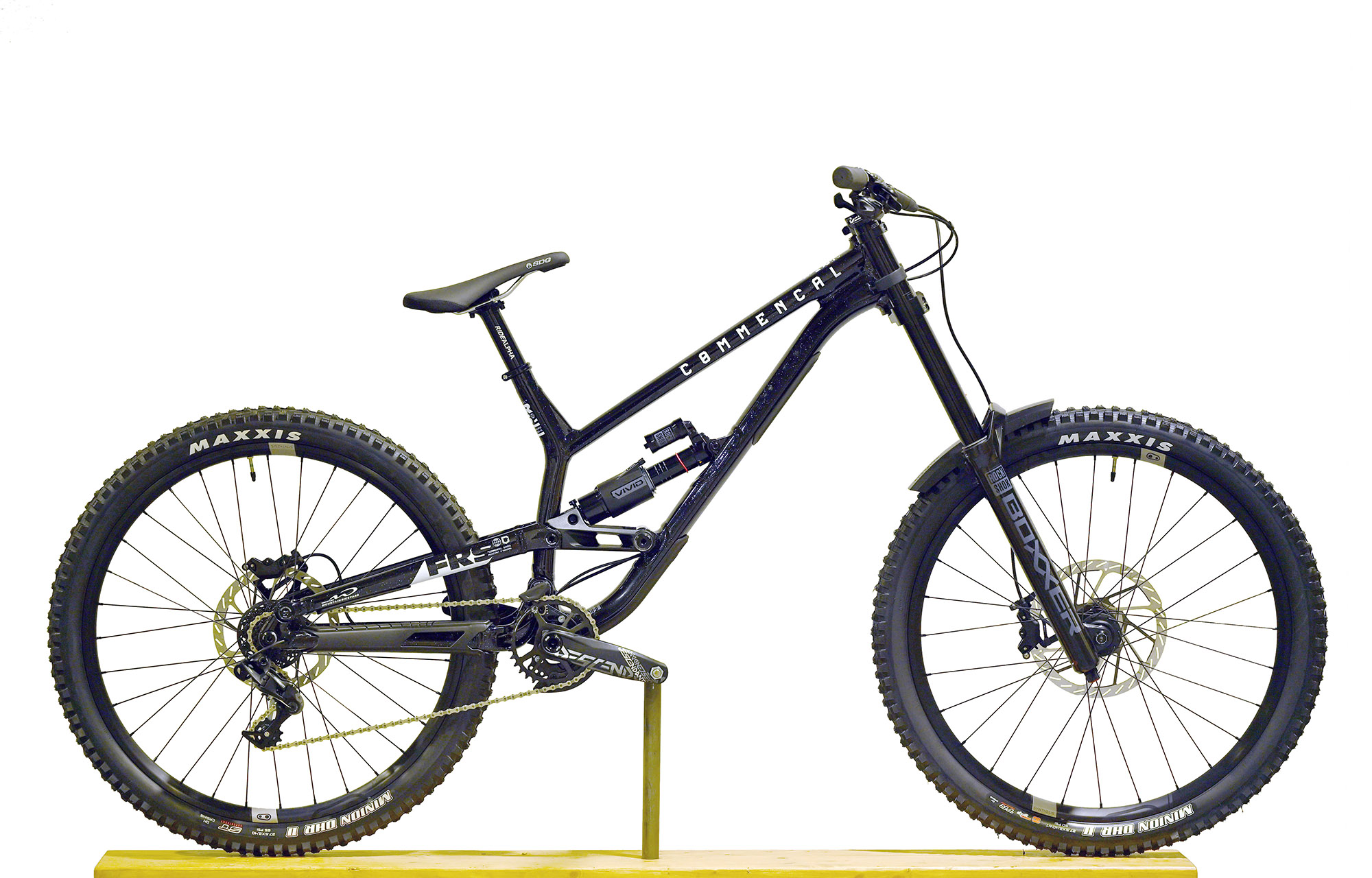

COMMENCAL FRS WHISTLER EDITION - L (24156103) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL FRS WHISTLER EDITION - L (24156103)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from € 3.950,00 to € 3.550,00 -10%
id/sku : AN4283
Availability: In stock null

workshop note

- GENERAL -
Ex-exhibition bike as good as new, never been ridden, ready for a new start.
Unique mount and design thanks to our partnership with the legendary Whistler resort!

- AESTHETIC -
As good as new.

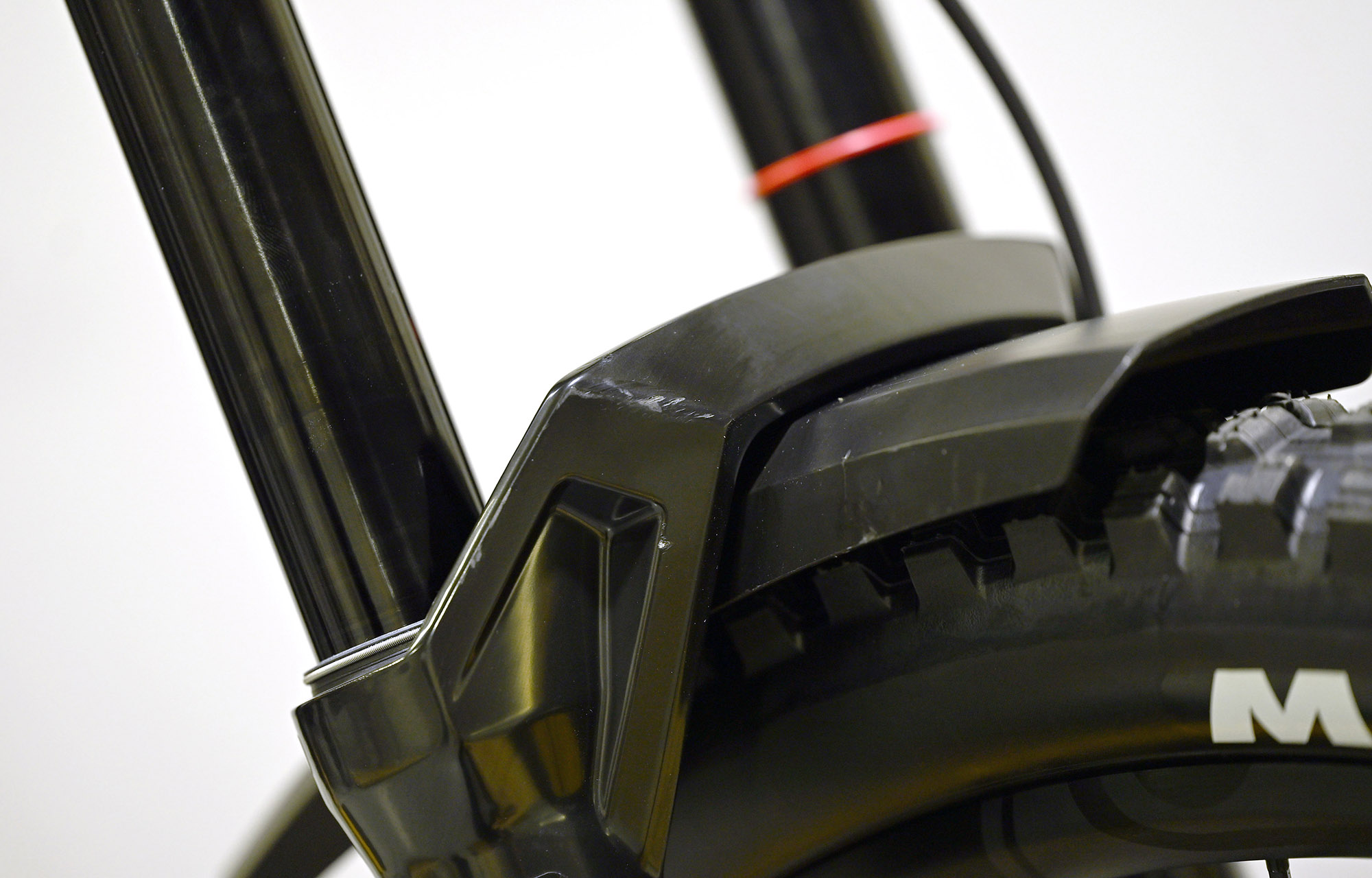

Very slight scratches on the fork and rear rim due to storage.

- MECHANICAL -
Fully controlled.

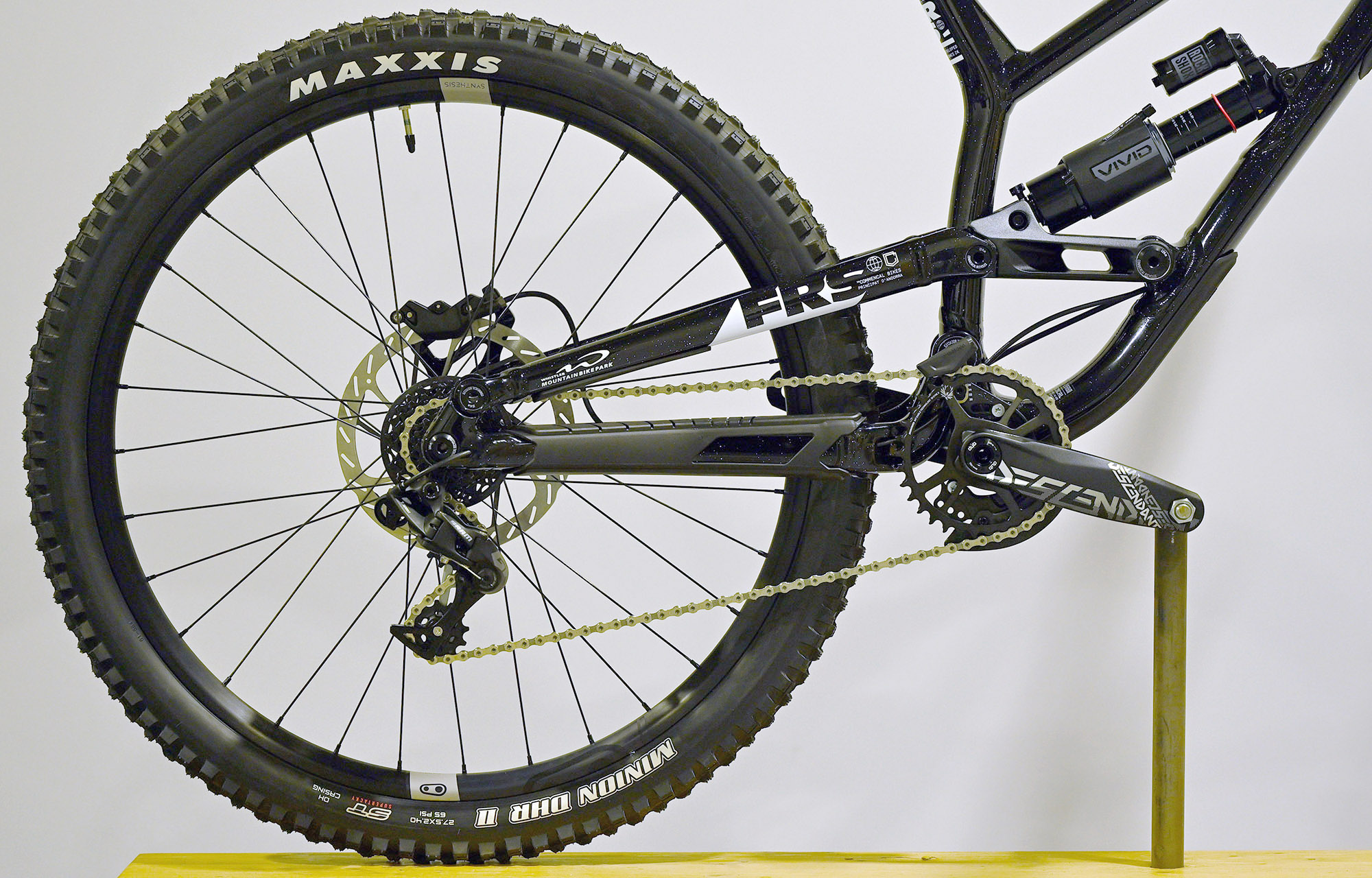

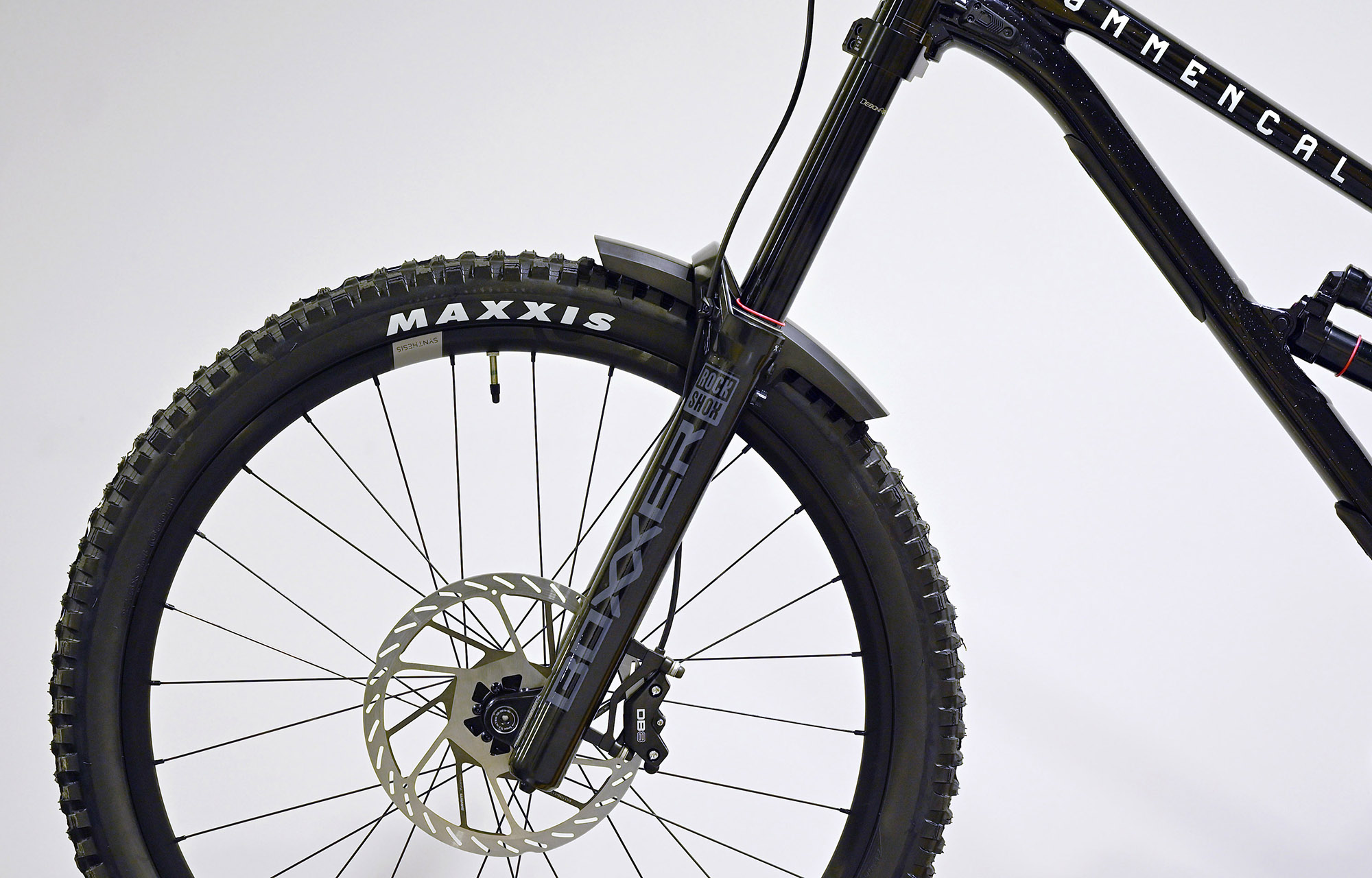

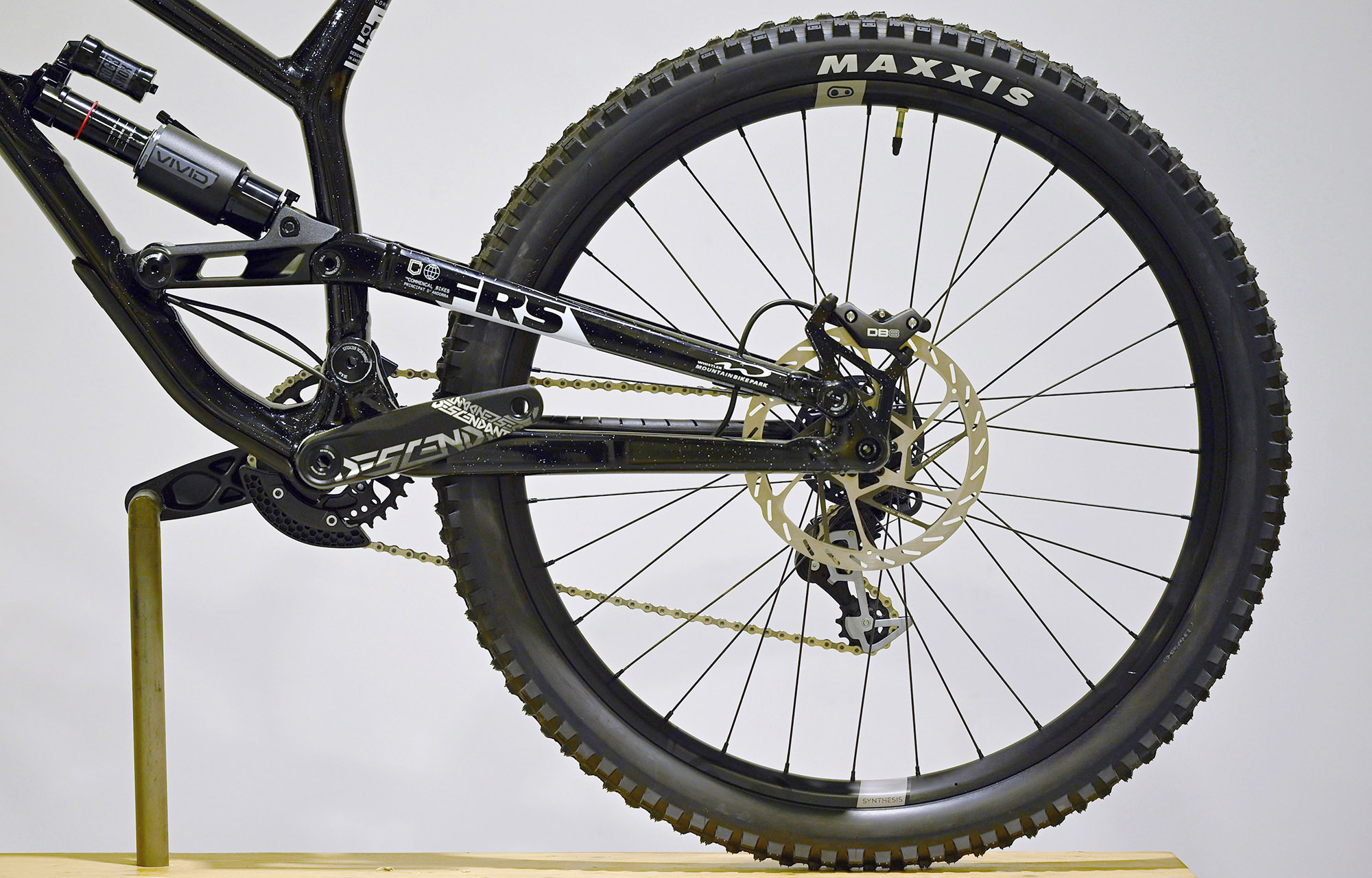

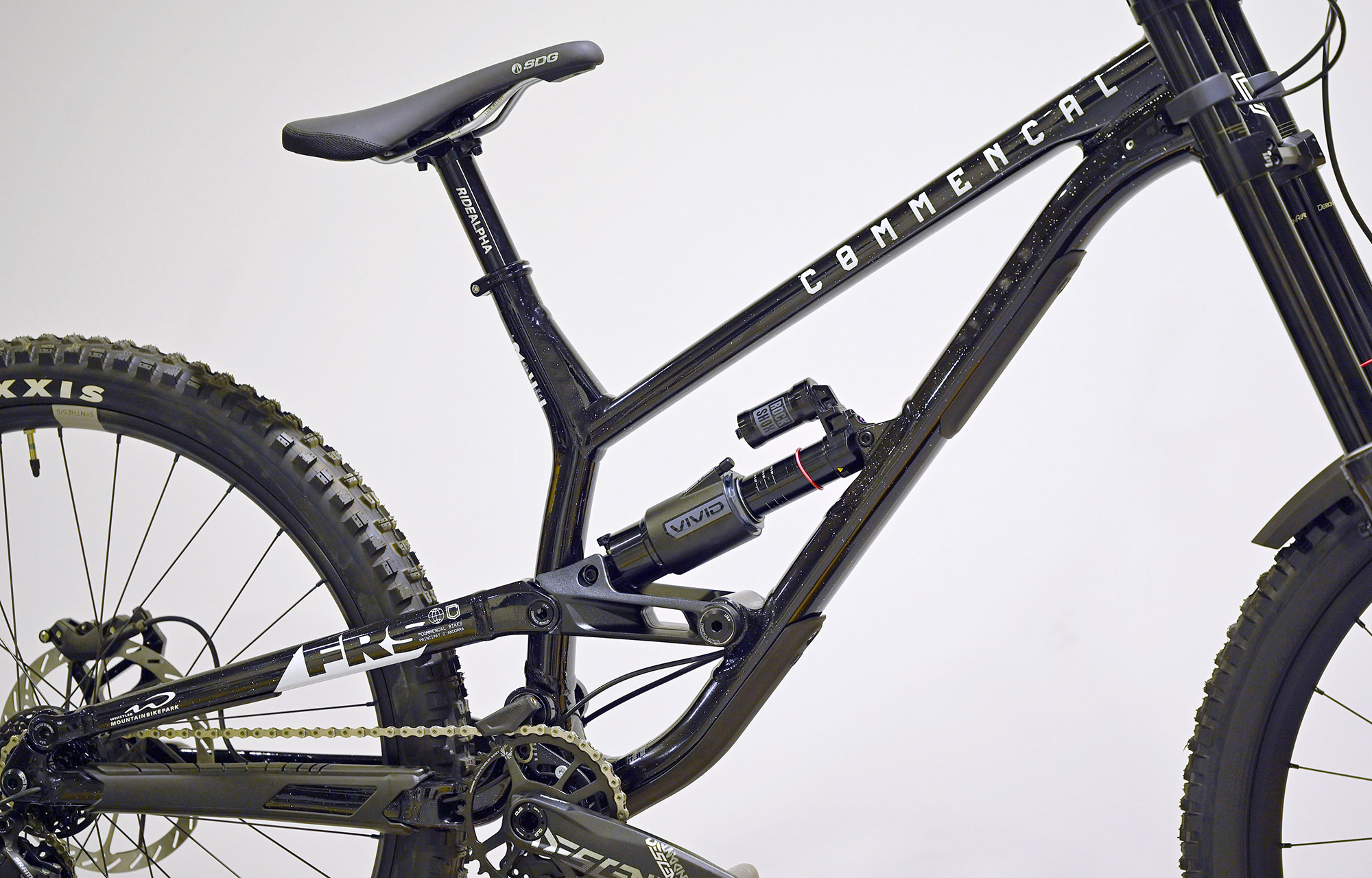

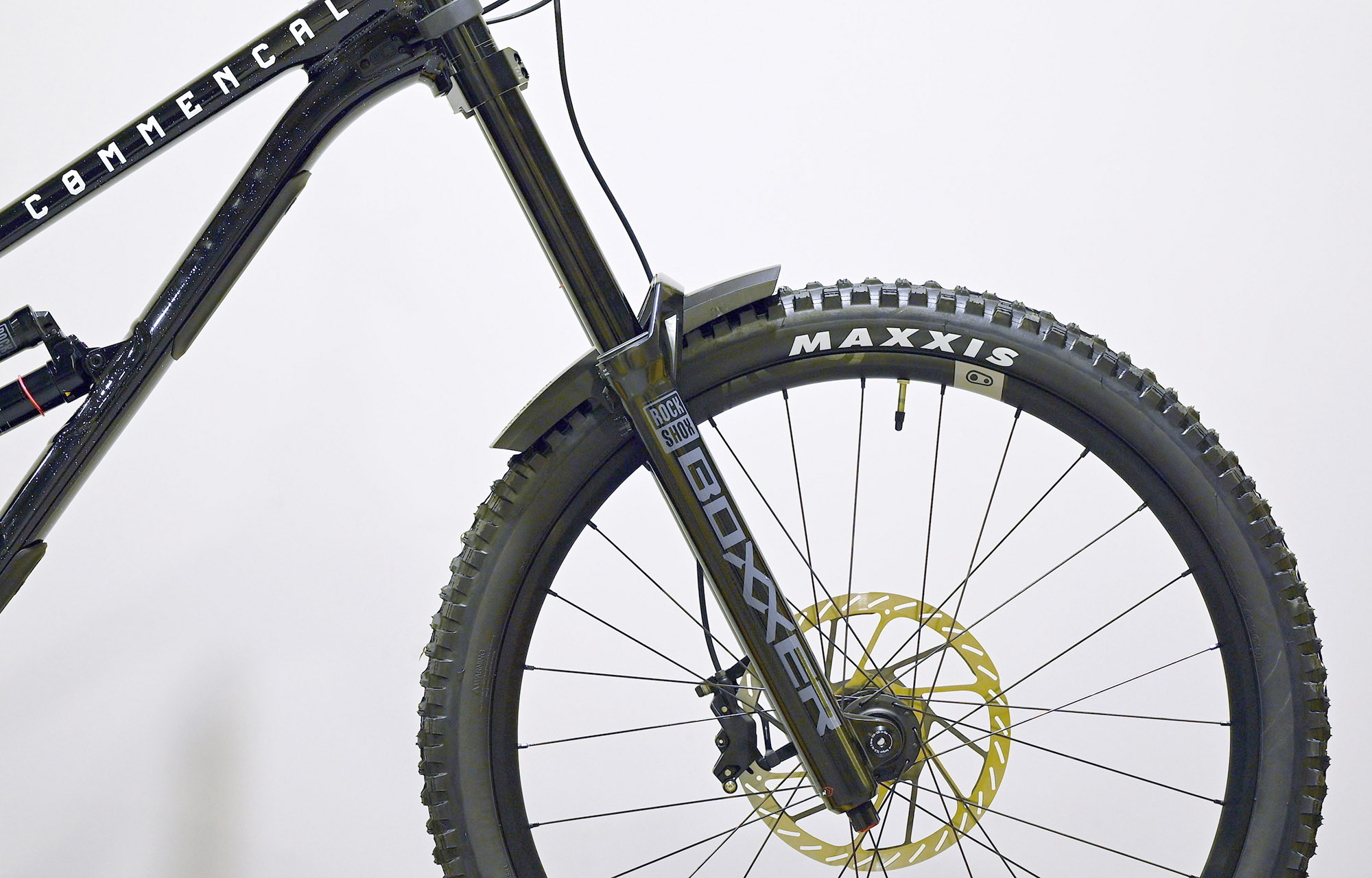

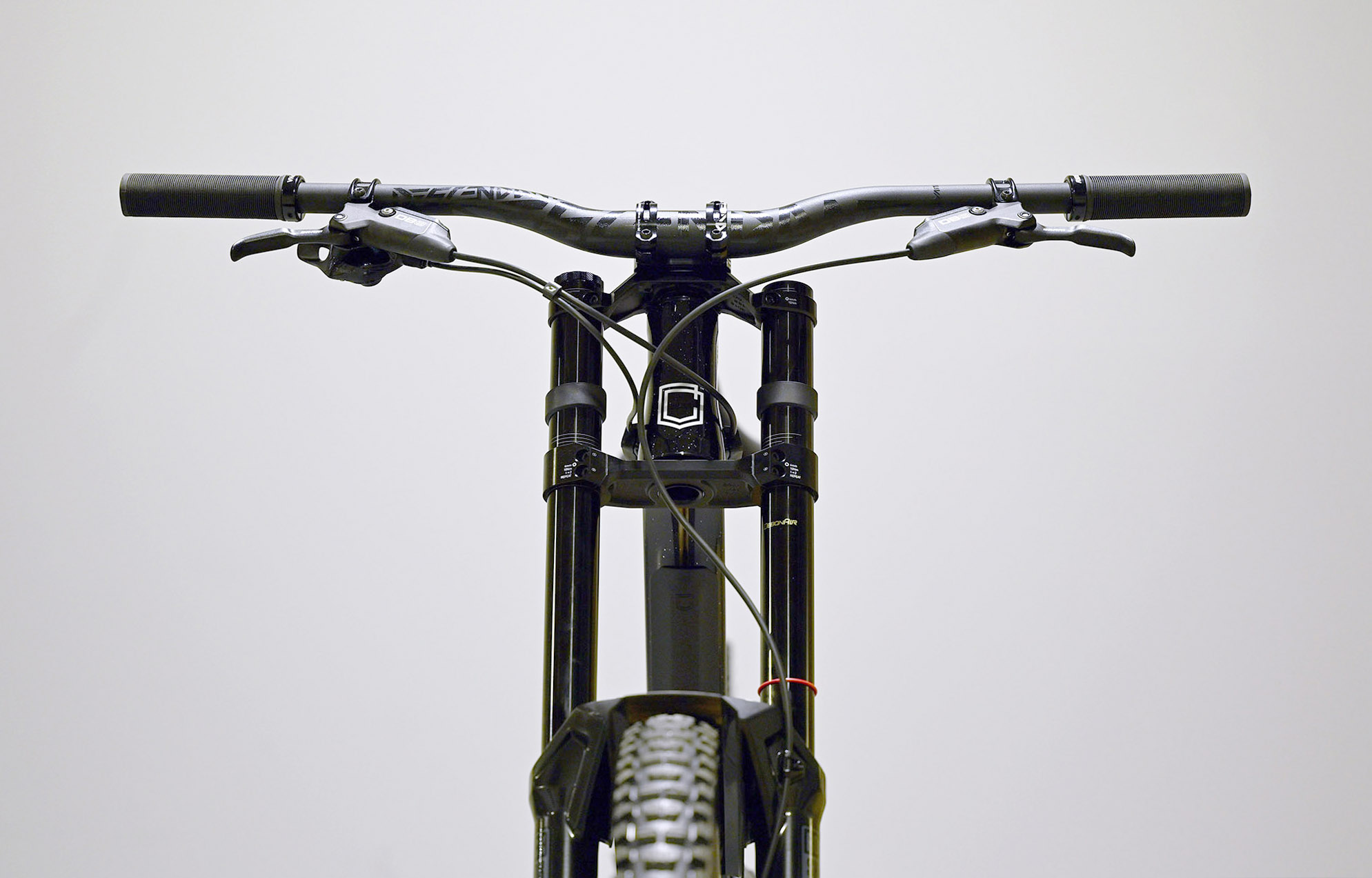

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

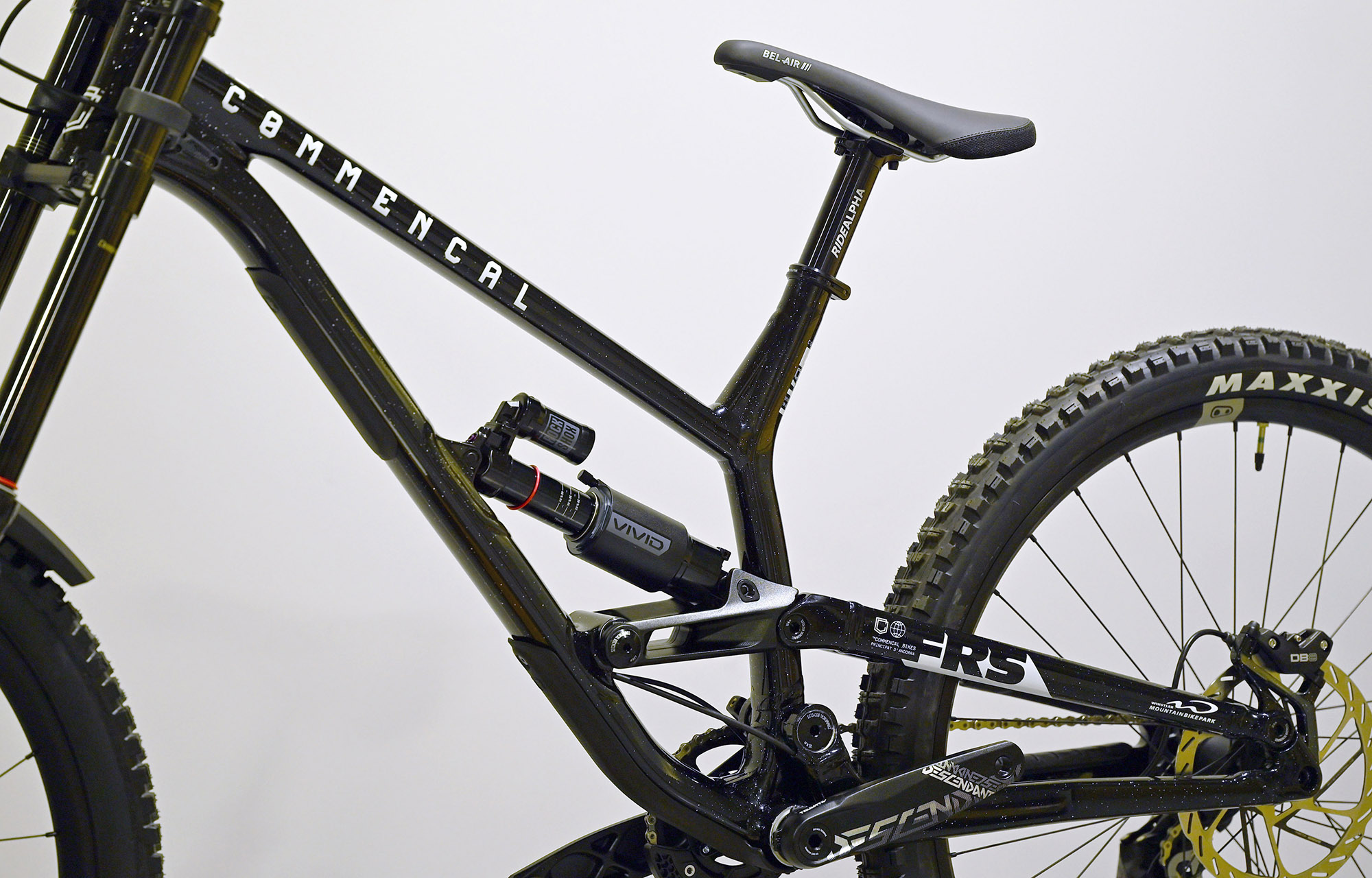

  • Frame

    FRS, 200mm travel
    27.5'', Alloy 6066, triple butted tubes, T4, T6

  • Shock

    ROCKSHOX VIVID Base
    250x75mm, R damper, rebound
    Spring rates: 300 lbs on S, 350 lbs on M, 400 lbs on L, 450 lbs on XL

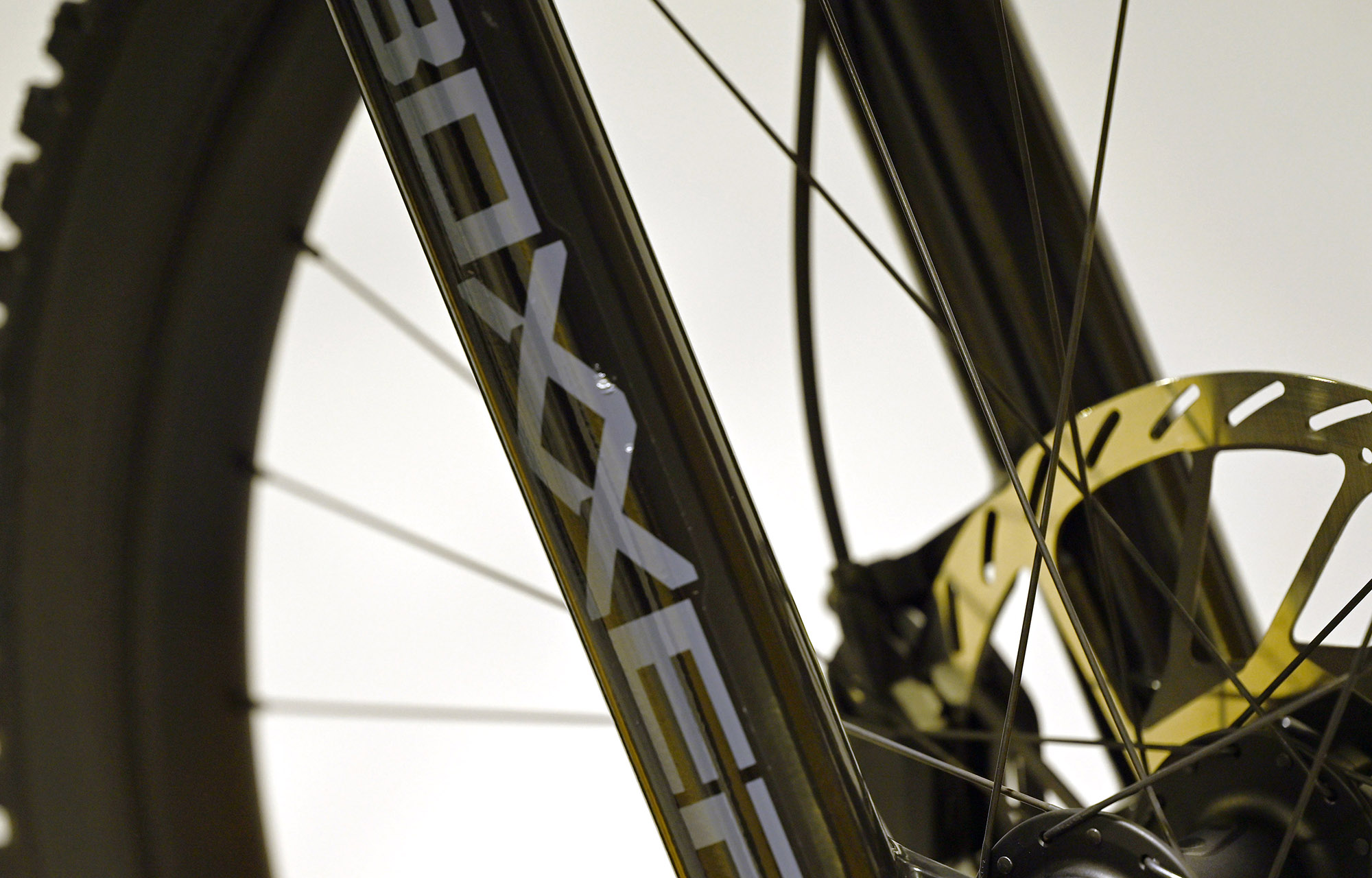

  • Fork

    ROCKSHOX BOXXER Base
    27.5", Charger 3 RC damper, DebonAir +, rebound, LSC, Boost (20x110mm), 48mm offset, 0 Token

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    SRAM Descendant DH
    50mm extension, direct mount, 35mm

  • Handlebar

    SRAM Descendant DH
    35mm, 800mm width, 25mm rise

  • Grips

    RIDE ALPHA Mushroom
    132mm,Single clamp, black

  • Brakes

    SRAM DB8
    4 pistons, resin pads
    SRAM HS2: 6-bolts, 200mm, 2.0mm width

  • Shifters

    SRAM GX DH
    7s

  • Chain guide

    E13 Vario
    34-36t

  • REAR DERAILLEUR

    SRAM GX DH
    7s

  • Bottom bracket

    SRAM DUB
    BB DUB 107, Pressfit

  • Crankset

    SRAM GX DH
    165mm crank arms 34t

  • Chain

    SRAM PC1170
    11s, Black

  • Cassette

    SRAM GX DH
    7s, 11-25t

  • Rims

    CRANKBROTHERS Synthesis Alloy DH CB
    Front:
    27.5'', 32h, 30mm inner width, 20x110mm
    Rear: 27.5'', 32h, 30mm inner width, 12x150mm Shimano HG

  • Hubs

    Included with wheelset

  • Spokes/nipples

    Included with wheelset

  • Tyres

    Rear: MAXXIS Minion DHR II - Front: MAXXIS Minion DHR II
    27.5"x2.5", 3C MaxxGrip, DH Casing,

  • Seat post

    RIDE ALPHA
    31.6mm, 250mm length

  • Saddle

    SDG Bel Air V3
    130mm width, CRMO rails, Whistler edition

  • Pedals included

    No

  • Colour

    Glittery black
    Shiny finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers

    *Please note that bike specs are subject to change without prior notice

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    Downhill / Freeride

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    4,22 kg / 9,3 lb

  • Rear travel

    200mm

  • Shock length/stroke

    250x75mm

  • Recommended SAG

    28-32% / 21-24mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x10mm

  • Recommended/max. fork height

    581mm / 595mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    27.5’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    203mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    125mm

  • Bottom bracket type

    Press Fit BB 107mm

  • Chain guide

    ISCG 05

  • Chain line

    56,5

  • Rear Hub dimension

    150x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
420
420
420
420
2 - SEAT TUBE ANGLE
63°
63°
63°
63°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
120
120
125
125
5 - WHEELBASE
1223
1248
1273
1293
6 - TOP TUBE LENGTH
589
614
638
660
7 - CHAIN STAY LENGTH
435
435
435
435
8 - BOTTOM BRACKET HEIGHT
-7
-7
-7
-7
9 - FORK LENGTH
581
581
581
581
10 - REACH
440
465
490
510
11 - STACK
613
613
613
613

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
