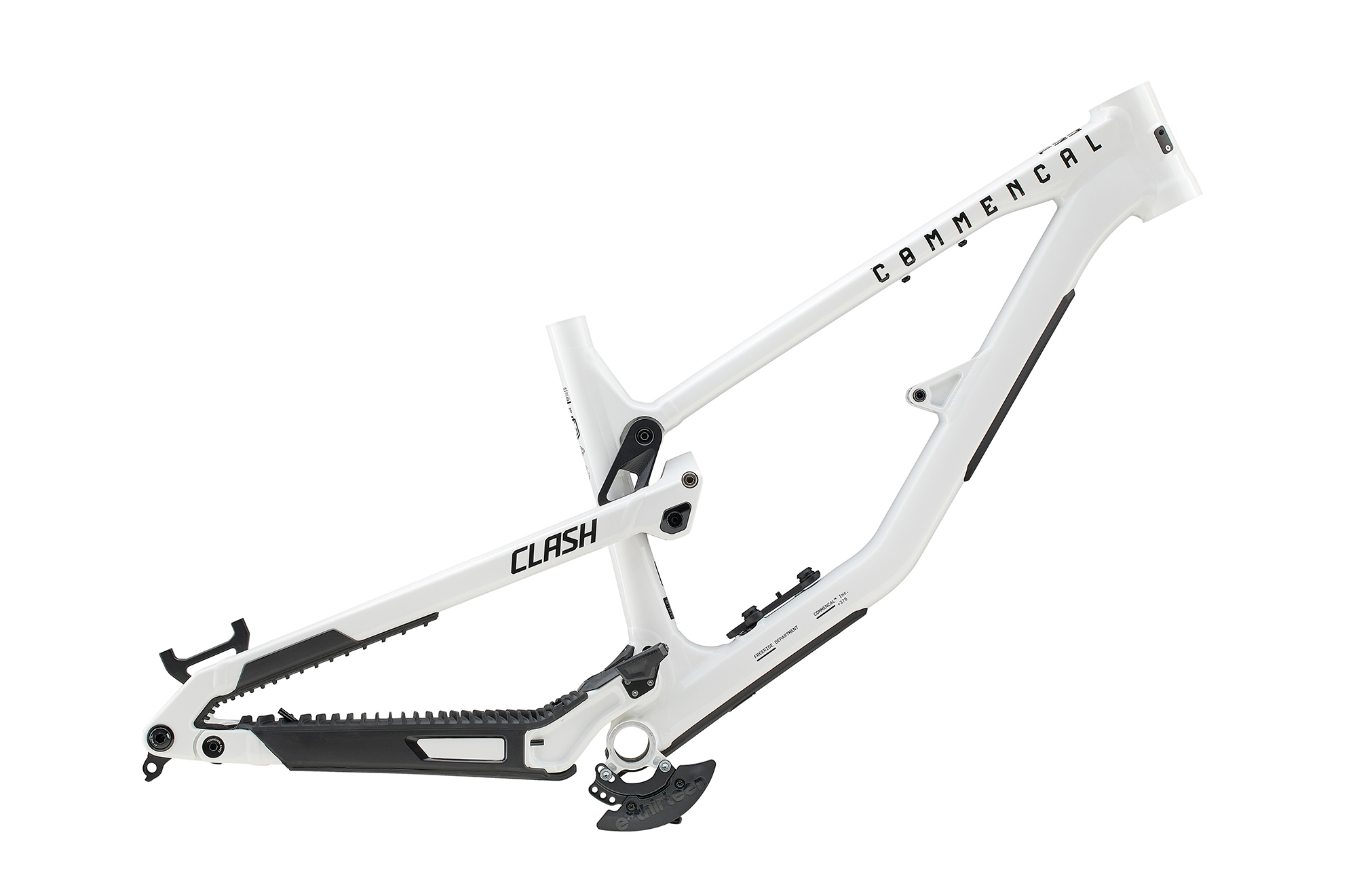

FRAME COMMENCAL CLASH V3 PURE WHITE 2027 image number null

FREERIDE

BIKE PARK

180mm

170mm

27.5" / 27.5"

FRAME COMMENCAL CLASH V3 PURE WHITE 2027

Riding a CLASH is never insignificant. Reimagine bike park trails, carve lines no one has ever dared to envision, pedal all the way to the top of your favorite spot. Its progressive kinematics smooth out small and mid-sized impacts while delivering more responsiveness. The result: a playful, precise and instinctive bike. Built tougher than ever.

ENDURO

FREERIDE

170/180mm

170mm

27.5" / 27.5"

LEARN MORE ABOUT THE CLASH V3
1.710,00 €
id/sku : FT7CLAV31
  SIZE GUIDE
Customize your jersey!

Make your jersey unique by adding your name for an additional € 15.Simply indicate your name in the "Comments" section during the final step of your order. We will then contact you to finalize the personalization and its payment.

pick-up at COMMENCAL Village

Orders placed on this site are exclusively available for pickup in our COMMENCAL Village showroom, located in the Principality of Andorra. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.MORE INFORMATION

Technical informations

  • Bicycle type

    Freeride / Bikepark

  • Frame material

    AL 6069 + AL 6061

  • Frame weight

    TBC

  • Rear travel

    170mm

  • Shock length/stroke

    230x65mm

  • Recommended SAG

    Freeride : 24-26 % / 15,5-17mm
    Jump : 20-22 % / 13-14,5mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x10mm

  • Recommended/max. fork height

    577mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    27.5’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 250mm / M : 280mm / L : 300mm

  • Bottom bracket type

    BSA 73mm

  • Chain guide

    ISCG 05 lower - Custom upper guide

  • Recommended/max. chainring teeth

    34T / 34T

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    UDH standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

  • shock anchor adjustment

    No

Geometry

SIZE
S
M
L
1 - SEAT TUBE LENGTH
380
400
420
2 - SEAT TUBE ANGLE
77,5°
77,5°
77,5°
3 - HEAD TUBE ANGLE
63,8°
63,8°
63,8°
4 - HEAD TUBE LENGTH
115
120
125
5 - WHEELBASE
1211
1233
1260
6 - TOP TUBE LENGTH
572
593
619
7 - CHAIN STAY LENGTH
434
434
434
8 - BOTTOM BRACKET HEIGHT
-10
-10
-10
9 - FORK LENGTH
577
577
577
10 - FORK OFFSET
44
44
44
11 - REACH
435
455
480
12 - STACK
618
623
627

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
