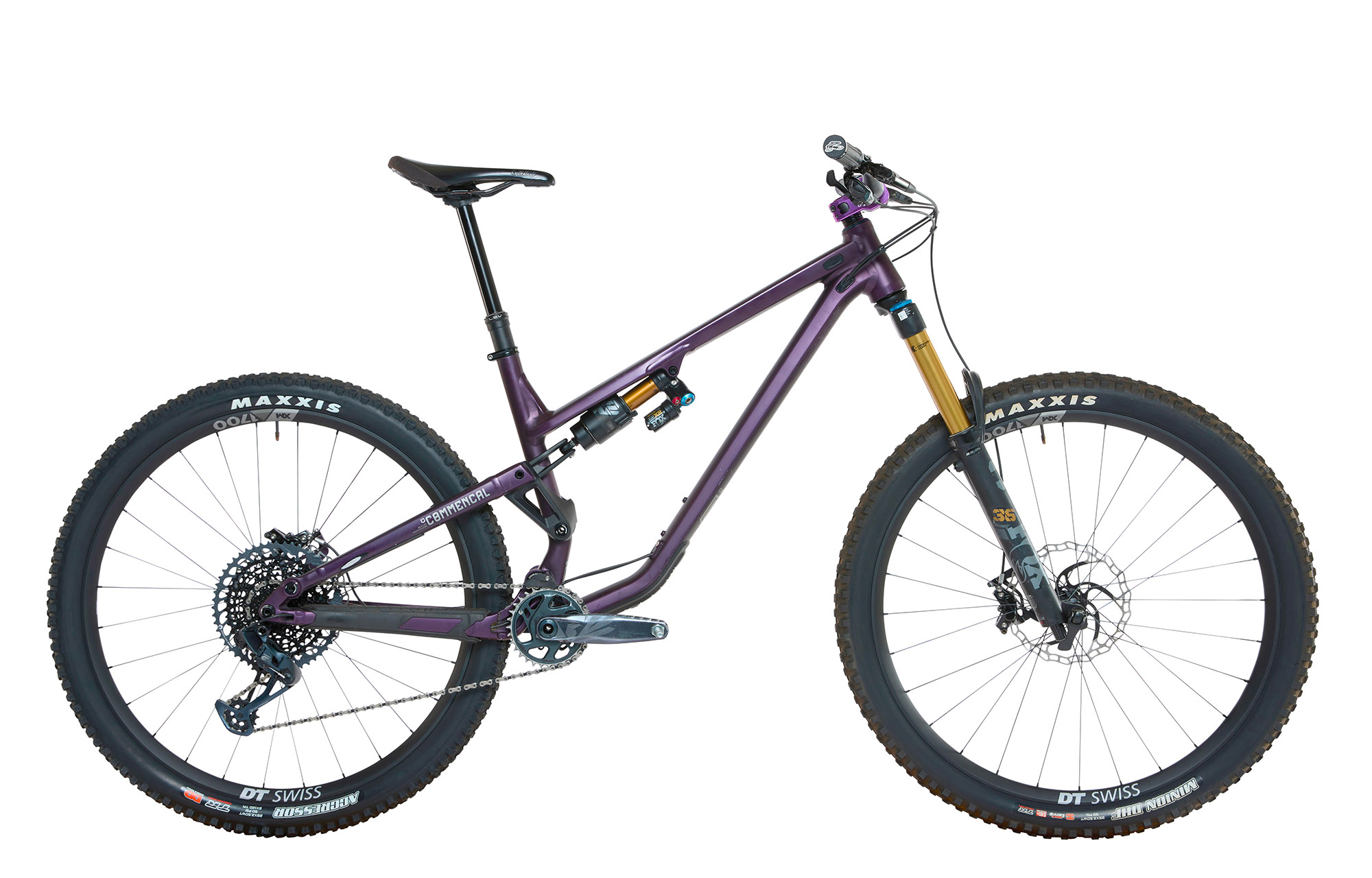

COMMENCAL META TR PURPLE ALC - L (22105001) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL META TR PURPLE ALC - L (22105001)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from A$ 7,545.45 excl. GST to A$ 4,600.00 excl. GST -39%
id/sku : OCAUS0054
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike in good shape ready for a new start.
Unique A La Carte mount!

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on crank arms, ring, brakes, handlebars and fork.

- MECHANICAL -

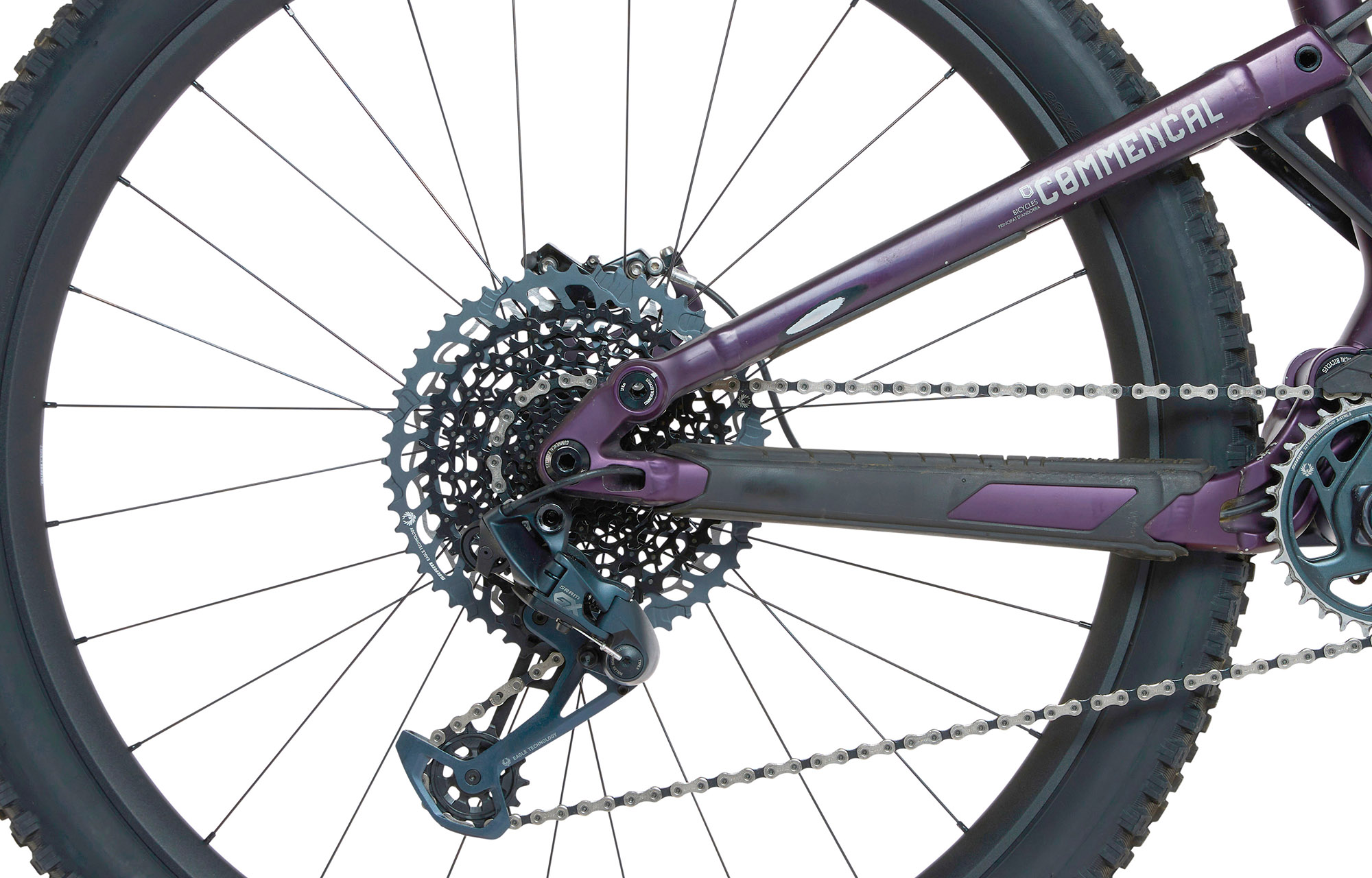

New rear derailleur.
New cassette.
New chain.
Serviced shock absorber and fork.
Brakes bleed, pads changed.

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

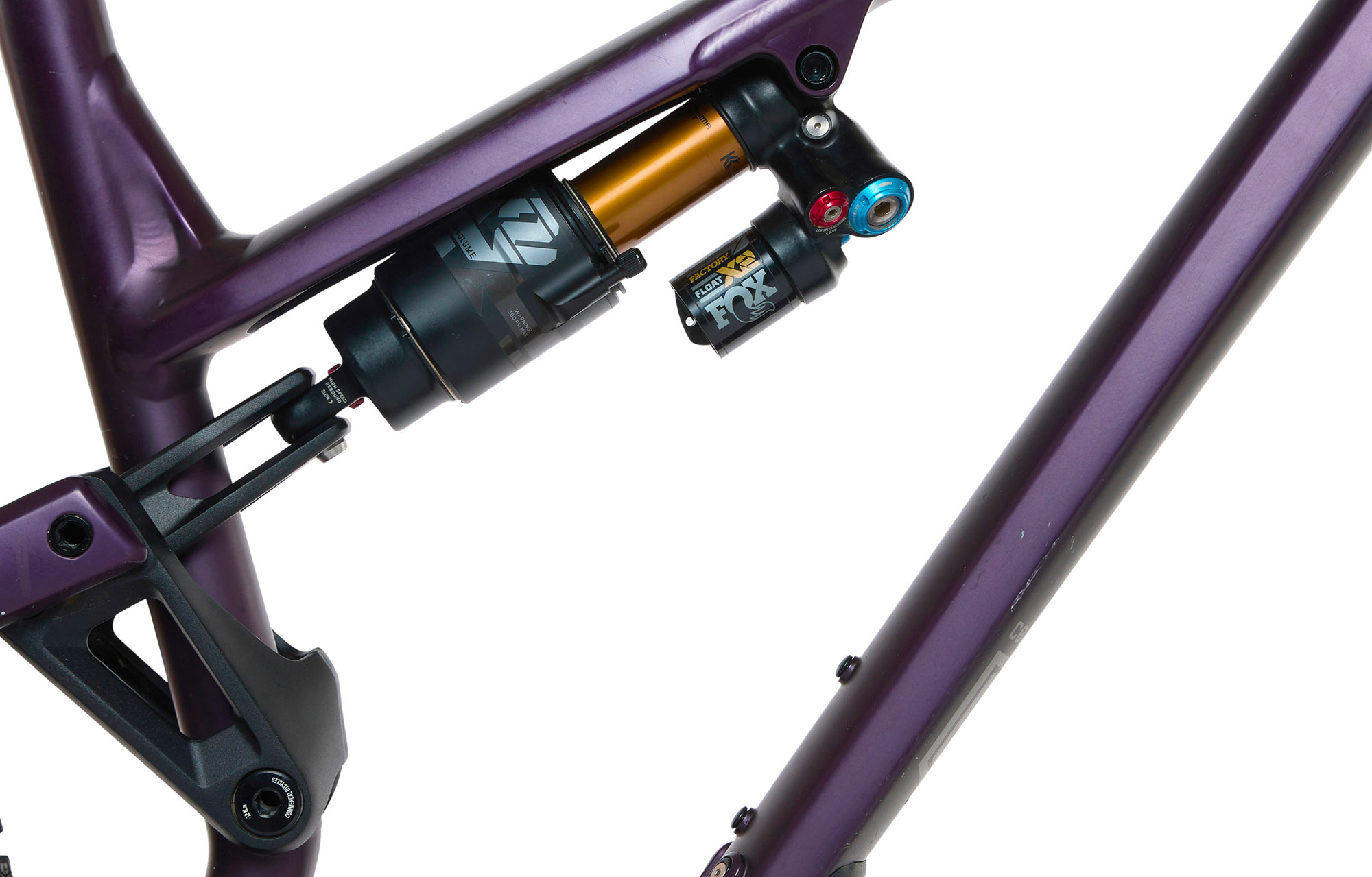

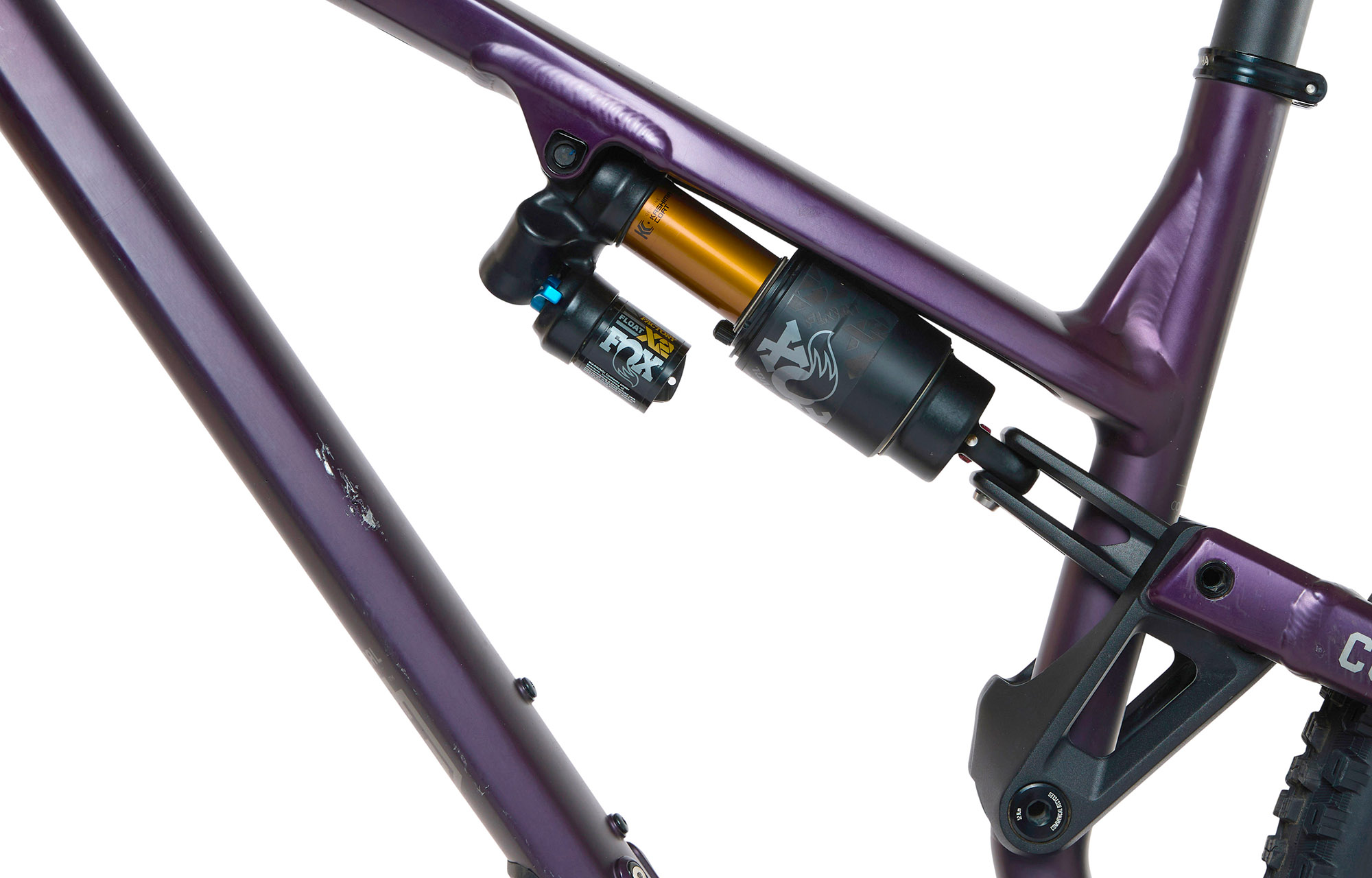

  • Shock

    FOX Float X Factory
    210 x 55 mm, LSC, LSR, 2-position adjustment

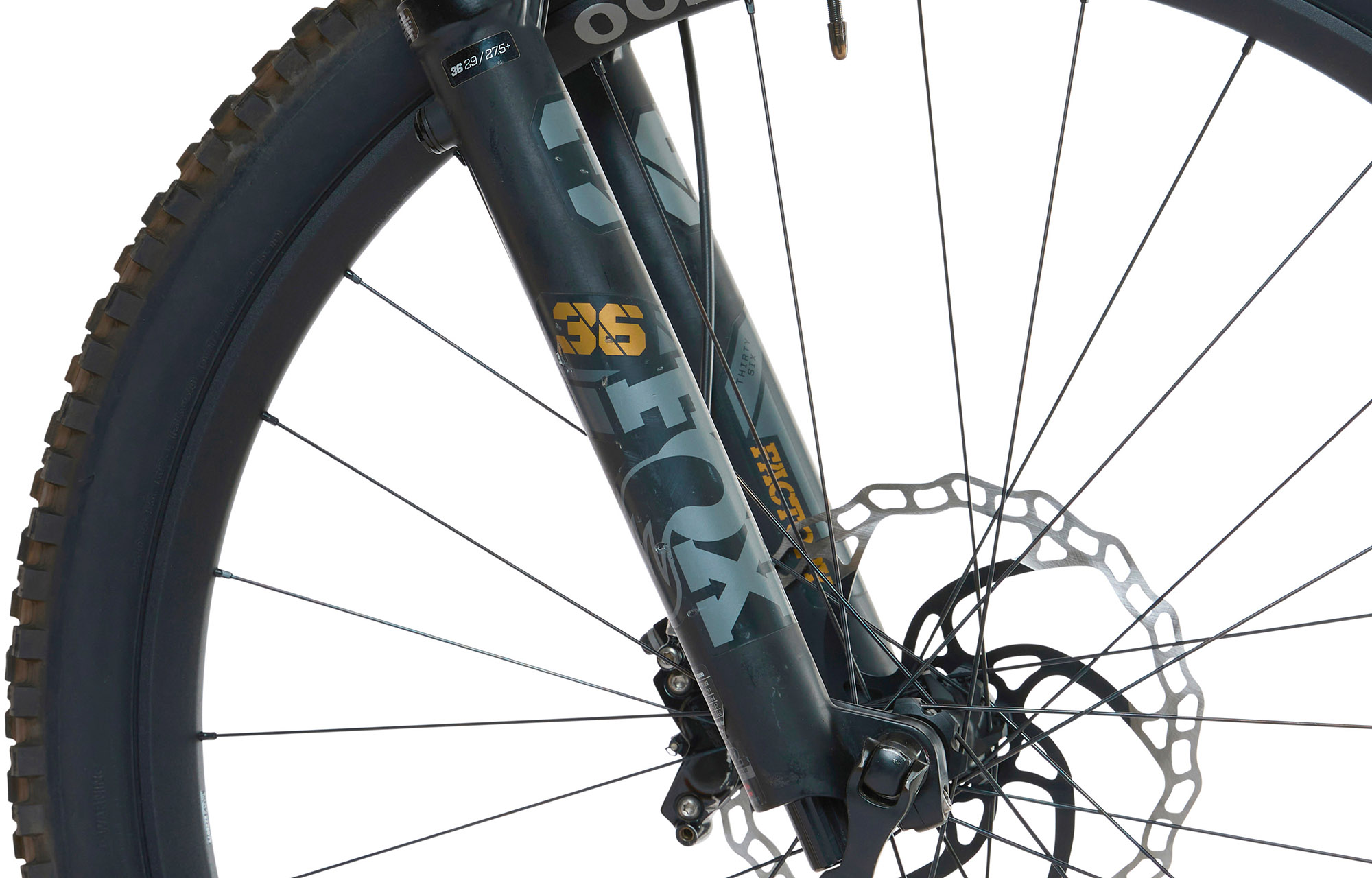

  • Fork

    FOX 36 Factory, 160 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

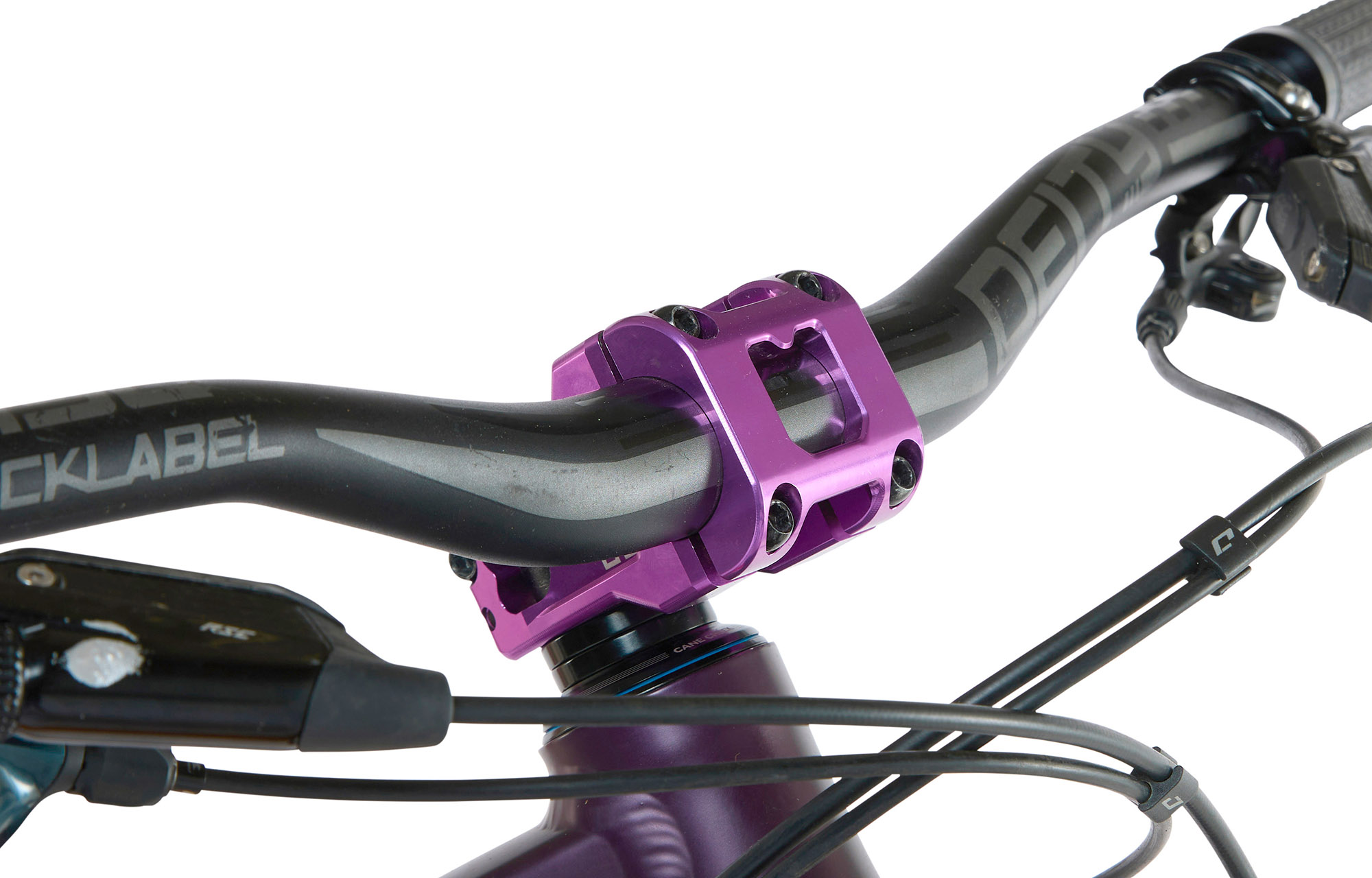

  • Stem

    DEITY STEM CAVITY

  • Handlebar

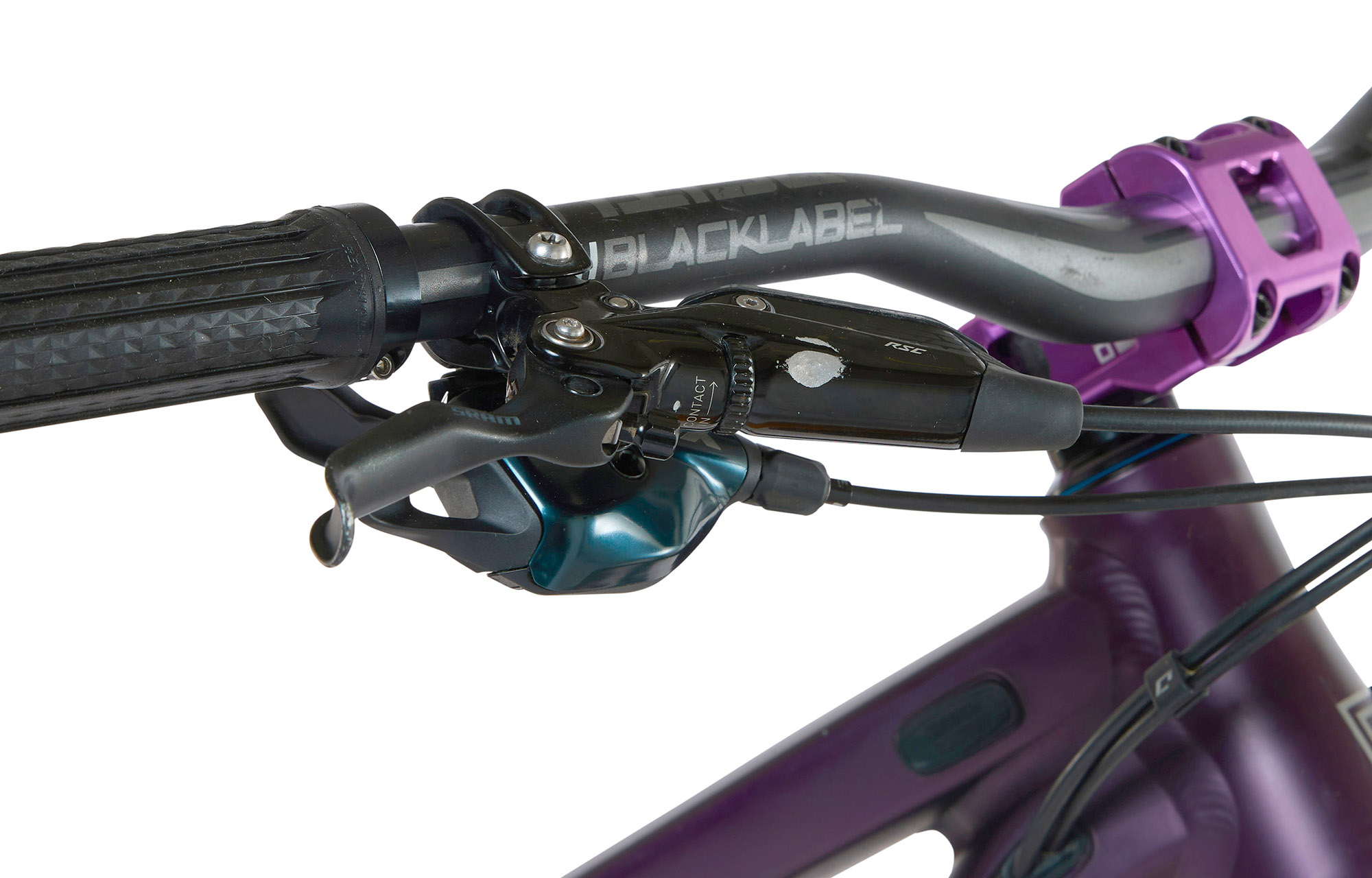

    DEITY BLACKLABEL

  • Grips

    RENTHAL

  • Brakes

    SRAM CODE RSC

  • Shifters

    SRAM GX

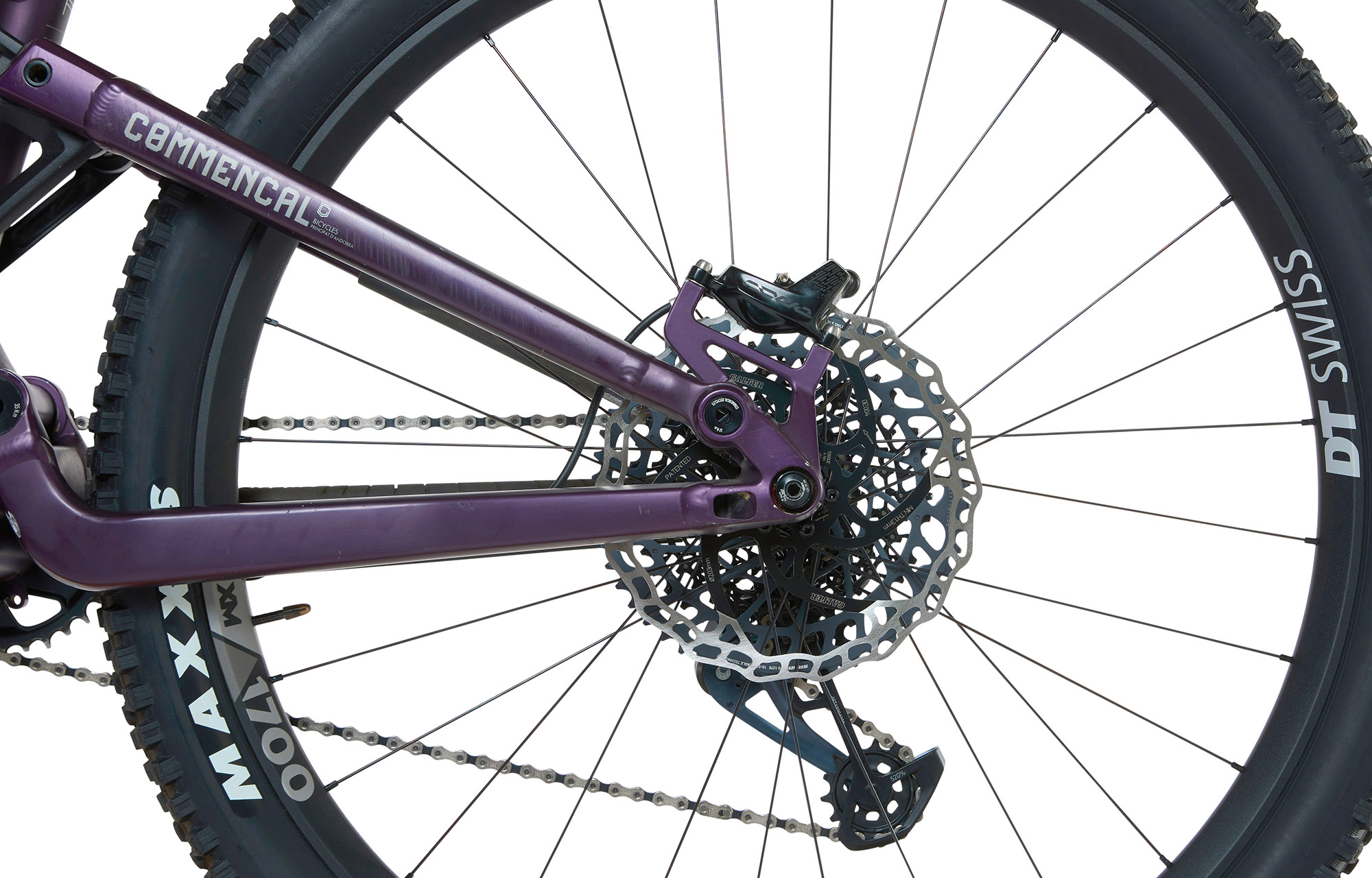

  • REAR DERAILLEUR

    SRAM GX

  • Bottom bracket

    SRAM DUB

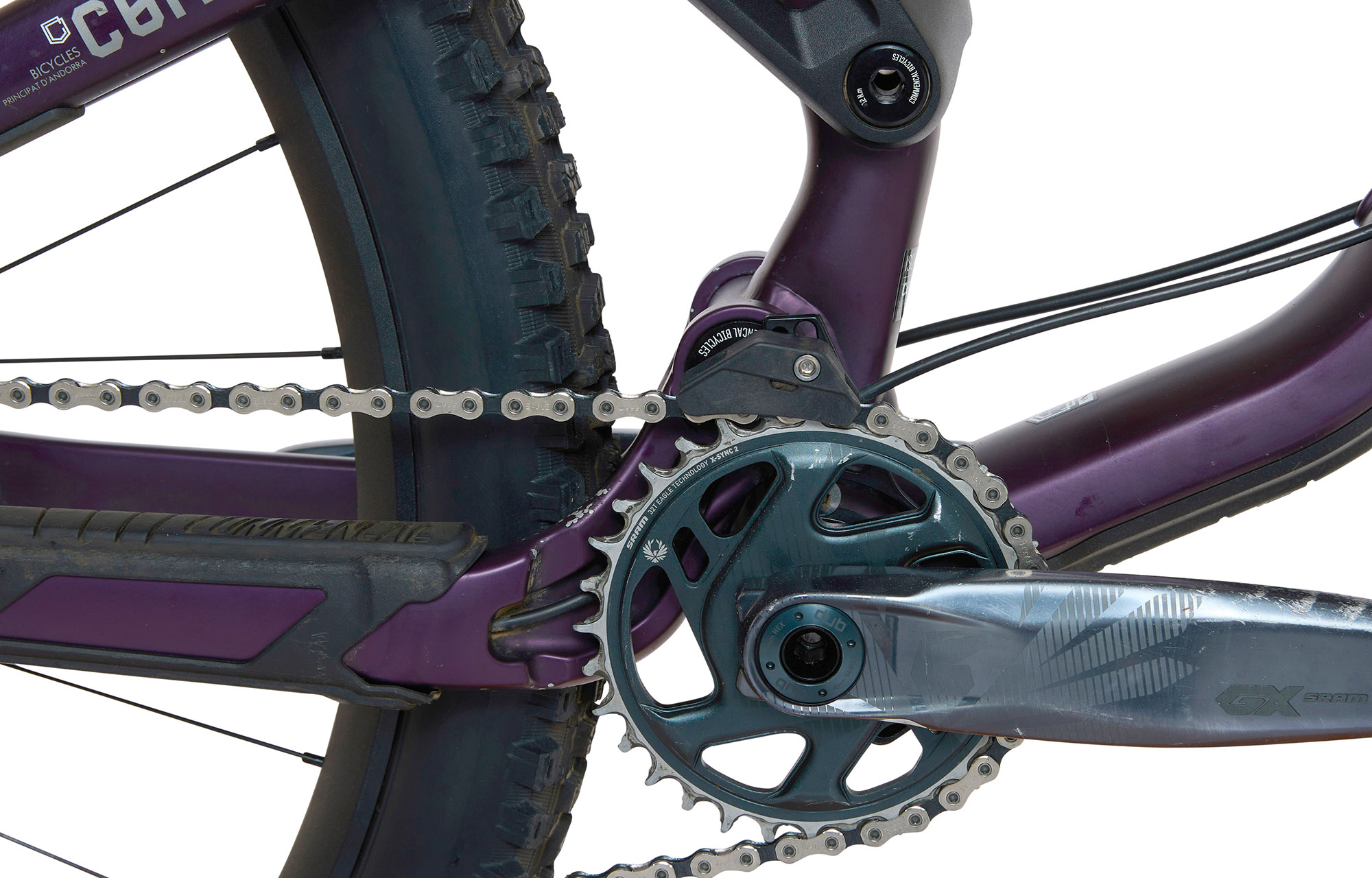

  • Crankset

    SRAM GX

  • Chain

    SRAM GX

  • Cassette

    SRAM GX

  • Rims

    DT SWISS XM 1700
    29'', 28h, 30mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Aggressor - Front: MAXXIS MINION DHF

  • Seat post

    KS LEV INTEGRA

  • Saddle

    SDG

  • Weight

    15 kg / 33.06 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    PURPLE

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, FOX 35 Specific Fender

    *Please note that bike specs are subject to change without prior notice.

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

  • Bicycle type

    All Mountain

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140mm

  • Shock length/stroke

    210x55mm

  • Recommended SAG

    26-30% / 14-17mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Included - 20x10mm

  • Recommended/max. fork height

    551mm / 571mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    29’’ - 29’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø622mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    220mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 240mm / M : 280mm / L : 300mm / XL : 320mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

Geometry

SIZE
SLow / High
MLow / High
LLow / High
XLLow / High
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
78,6° / 79°
78,6° / 79°
78,6° / 79°
78,6° / 79°
3 - HEAD TUBE ANGLE
64,5° / 65°
64,5° / 65°
64,5° / 65°
64,5° / 65°
4 - HEAD TUBE LENGTH
110
115
120
125
5 - WHEELBASE
1203 / 1202
1230 / 1229
1257 / 1256
1284 / 1283
6 - TOP TUBE LENGTH
566 / 565
592 / 591
618 / 617
644 / 643
7 - CHAIN STAY LENGTH
435 / 434
435 / 434
435 / 434
435 / 434
8 - BOTTOM BRACKET HEIGHT
-33 / -29
-33 / -29
-33 / -29
-33 / -29
9 - FORK LENGTH
561
561
561
561
10 - REACH
440 / 444
465 / 469
490 / 494
515 / 519
11 - STACK
626 / 623
630 / 627
634 / 631
638 / 635

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
