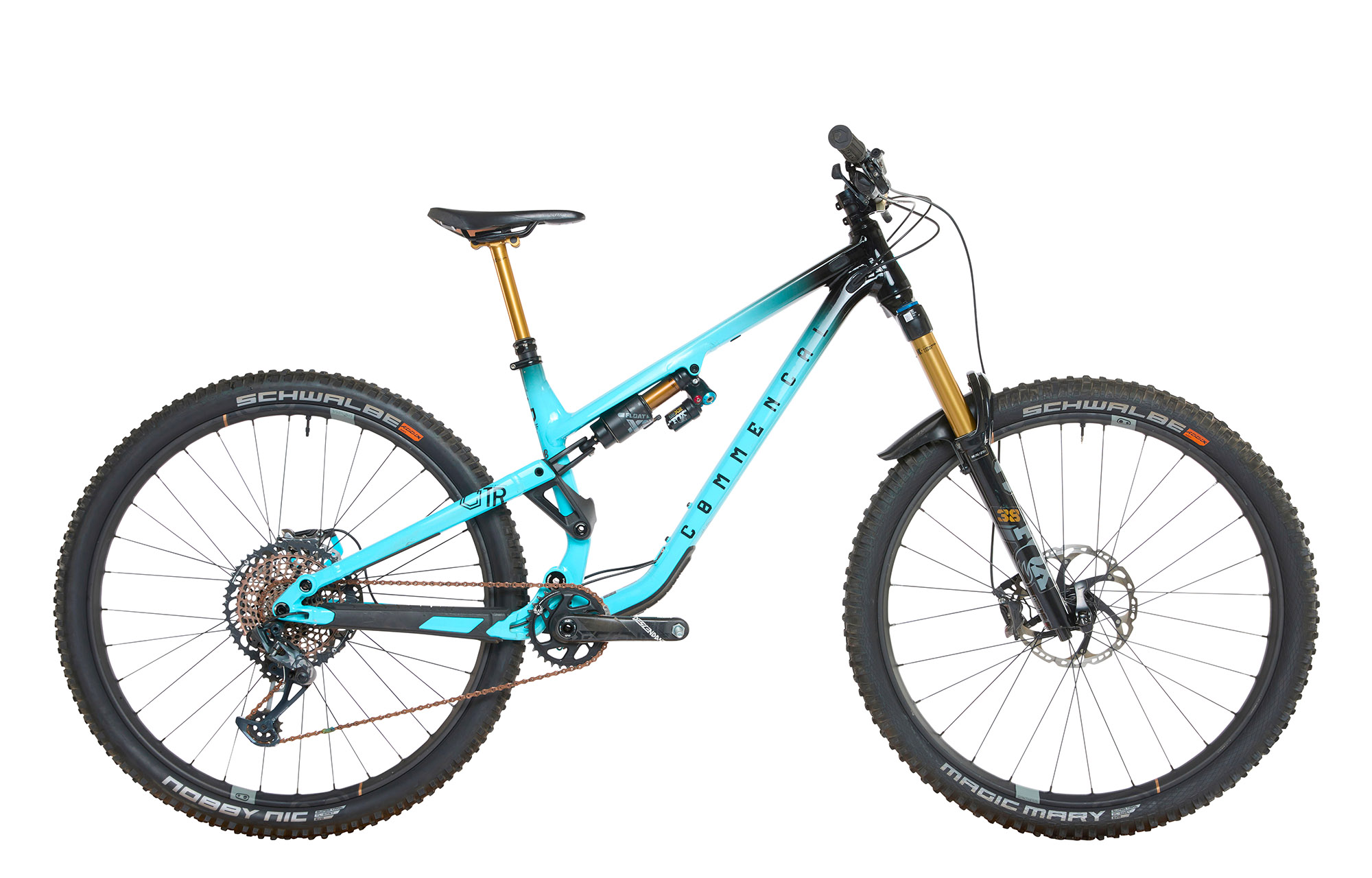

COMMENCAL META TR V4 STAFF EDITION - M (22120702)

Price reduced from A$ 9,909.09 excl. GST to A$ 6,227.27 excl. GST -37%
id/sku : OCAUS0055
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

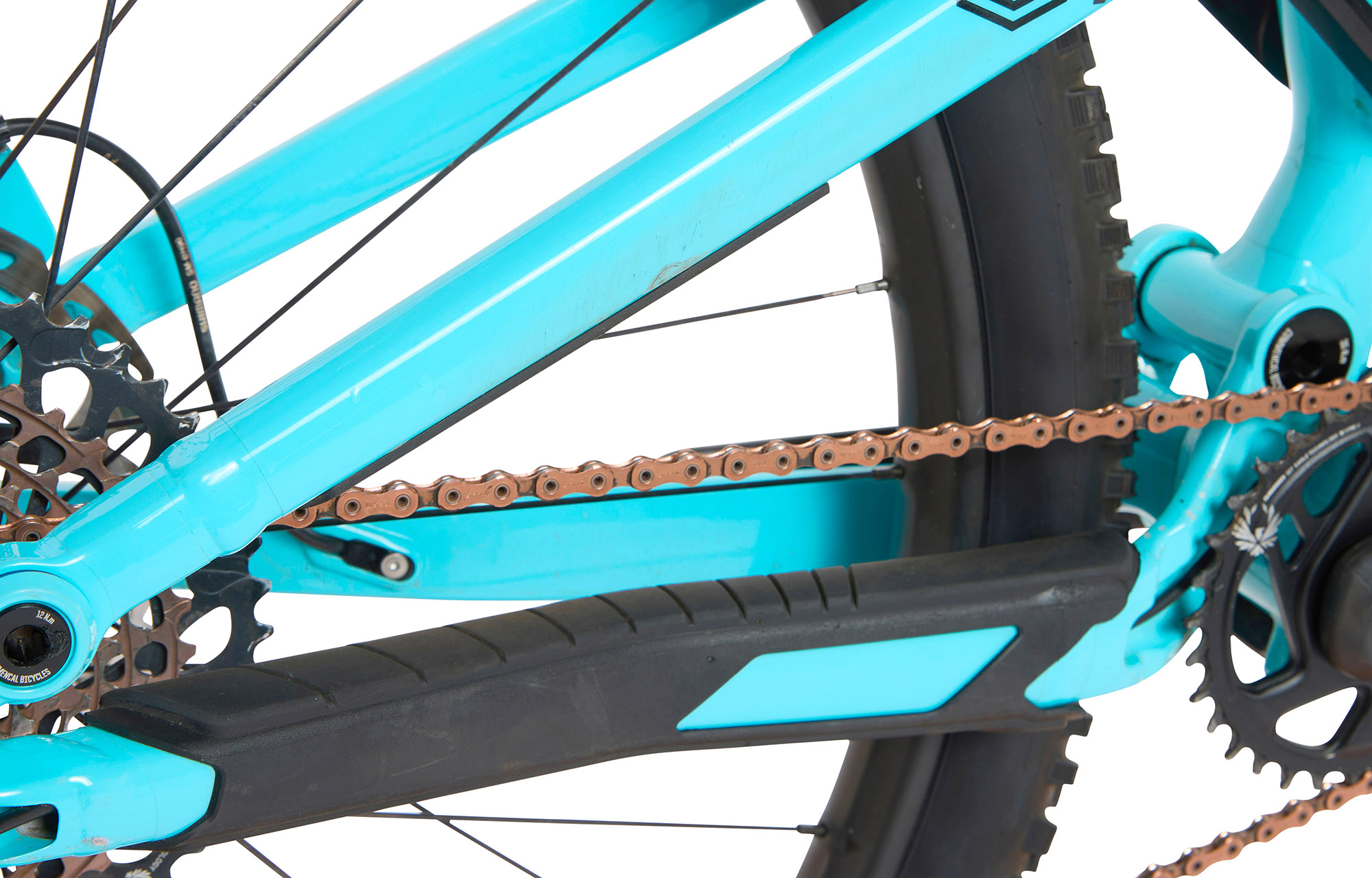

The bike has been ridden and shows signs of wear, scratches and paint chips, mainly on the chainstay, top tube and derailleur.
However, it should be noted that these cosmetic defects in no way affect its performance or smooth operation.

- THE WORKSHOP NOTE -

-Revised shock absorber and fork
-Brakes bleed, pads changed

Please note that this bike is guaranteed as new!
Enjoy!

Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.

Don't hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 X 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings on  M / L / XL

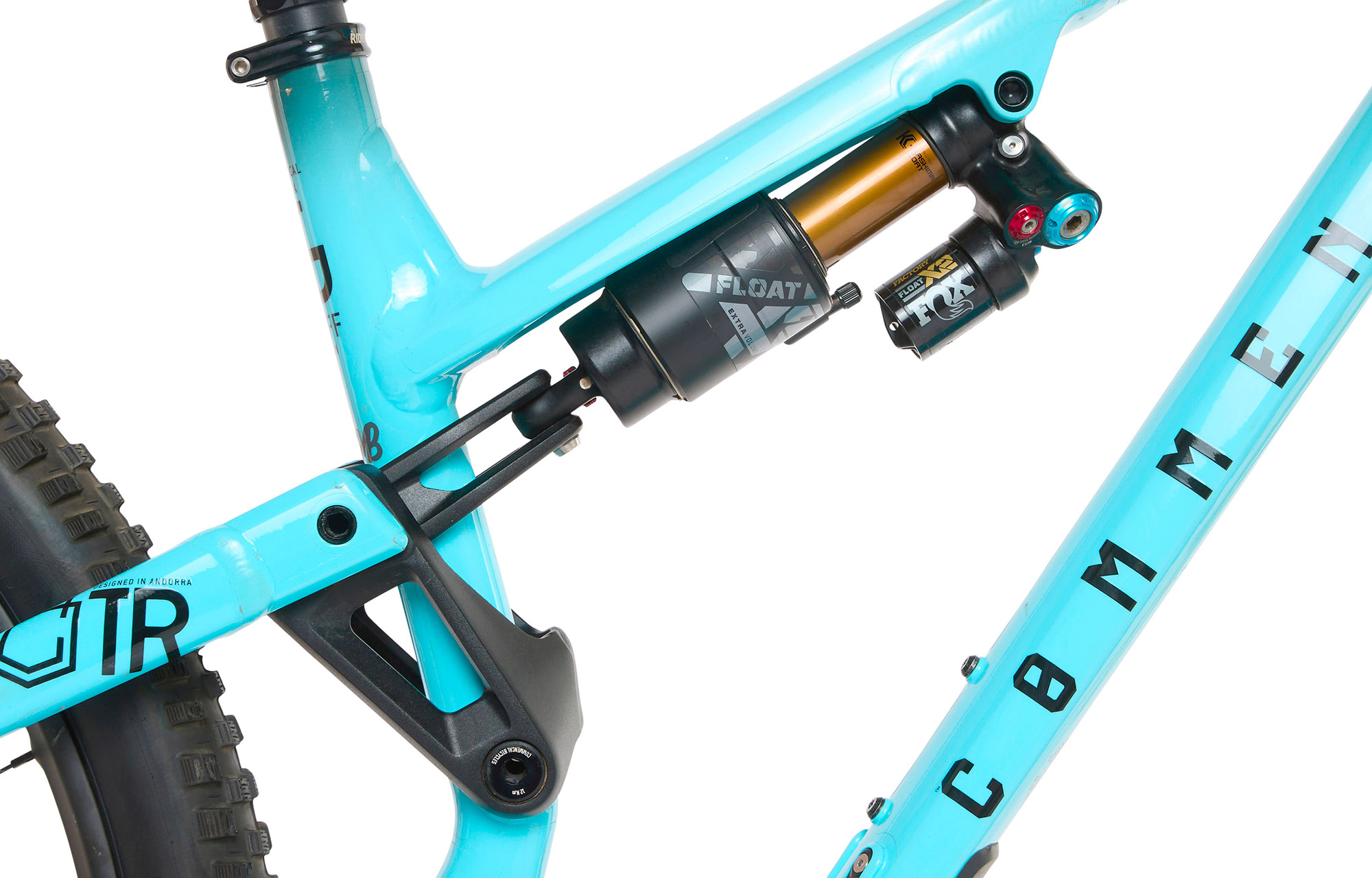

  • Shock

    FOX Float X2 Factory
    210 x 55 mm, HSC, LSC, HSR, LSR, 2-postion adjustment

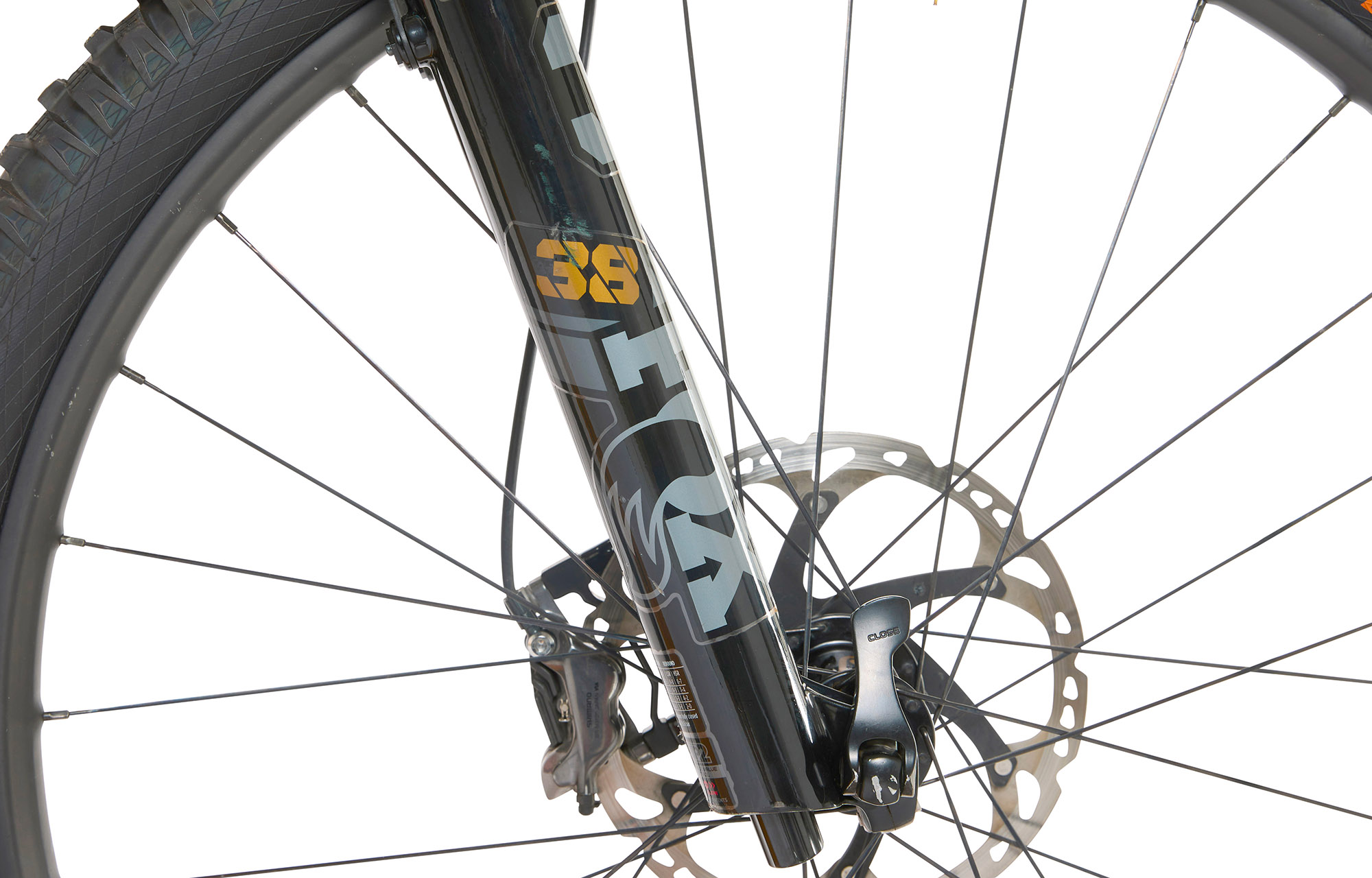

  • Fork

    FOX 38 Factory, 160 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 3 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RENTHAL Apex
    40 mm extension, 31.8 mm

  • Handlebar

    RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL
    31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL

  • Grips

    ODI Elite Motion
    Single clamp, black

  • Brakes

    SHIMANO XTR, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology Freeza

  • Shifters

    ODI Elite Motion
    Single clamp, black

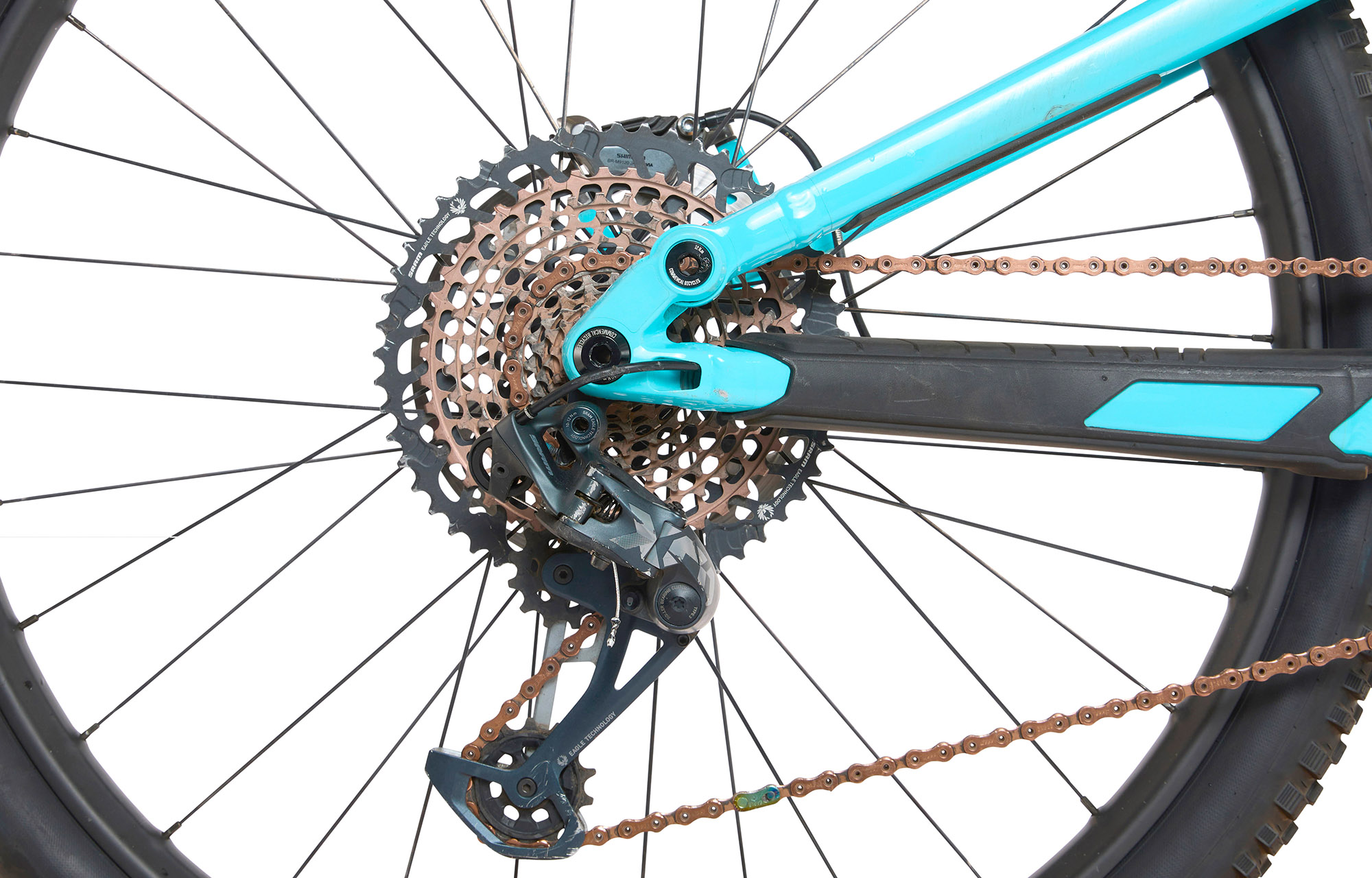

  • REAR DERAILLEUR

    SRAM X01 Eagle
    12s, Black

  • Bottom bracket

    SRAM DUB
    Pressfit

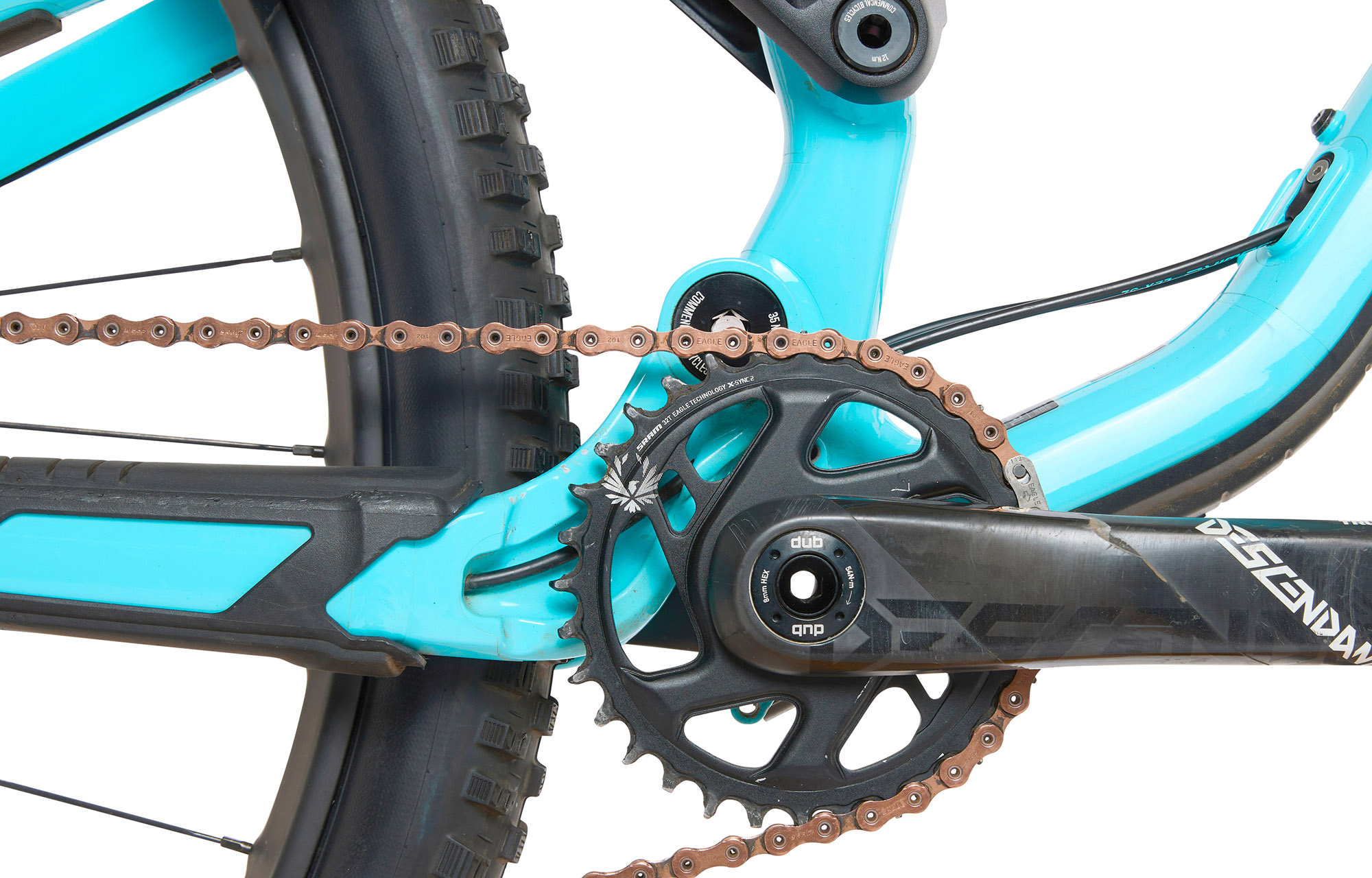

  • Crankset

    SRAM Descendant Carbon Eagle, 170 mm crank arms, Boost
    Chainring: SRAM Descendant  X-Sync, 32t

  • Chain

    SRAM XX1 Eagle
    Copper finish, 12s

  • Cassette

    SRAM XG-1299
    Copper finish, 12s, 10-52t

  • Rims

    CRANKBROTHERS Synthesis Enduro Carbon
    Rear: 29", 32 holes, 29.5 mm inner width - Front: 29", 28 holes, 31.5mm inner width

  • Hubs

    INDUSTRY NINE 11
    Rear: 32 holes, 12 x 148 mm, 0.52° ultra fast engagement, 6 pawls - Front: 28 holes, 15 x 110 mm

  • Spokes/nipples

    SAPIM
    Sapim CX-Ray front / Sapim CX-Sprint rear

  • Tyres

    Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
    Rear: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless Ready - Front: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless Ready

  • Seat post

    FOX Transfer Factory
    31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-Alloy rails

  • Weight

    15,8 kg / 34.83 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Sunset
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, fork fender FOX 36 specific

    *Please note that bike specs are subject to change without prior notice.
