Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

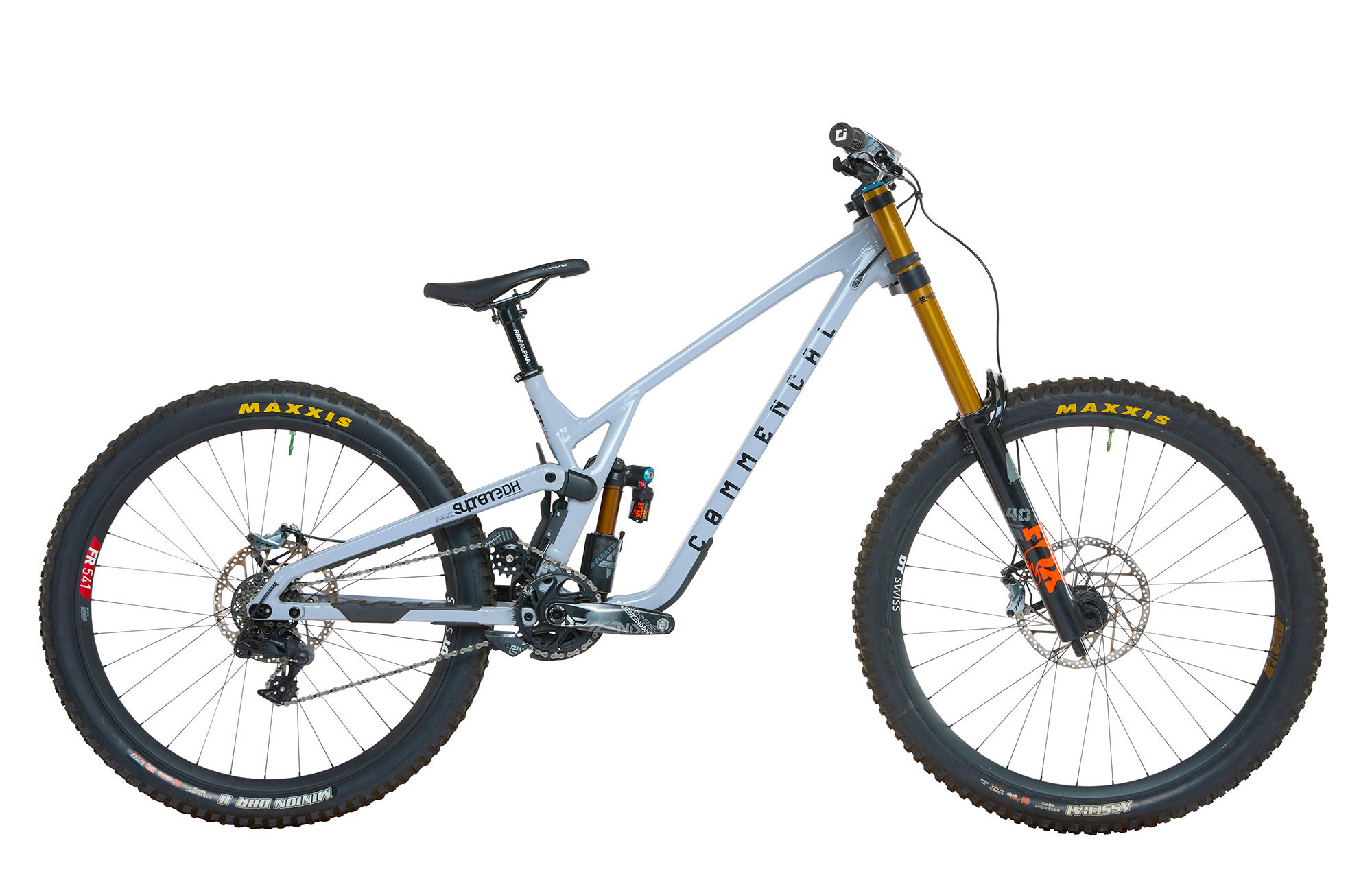

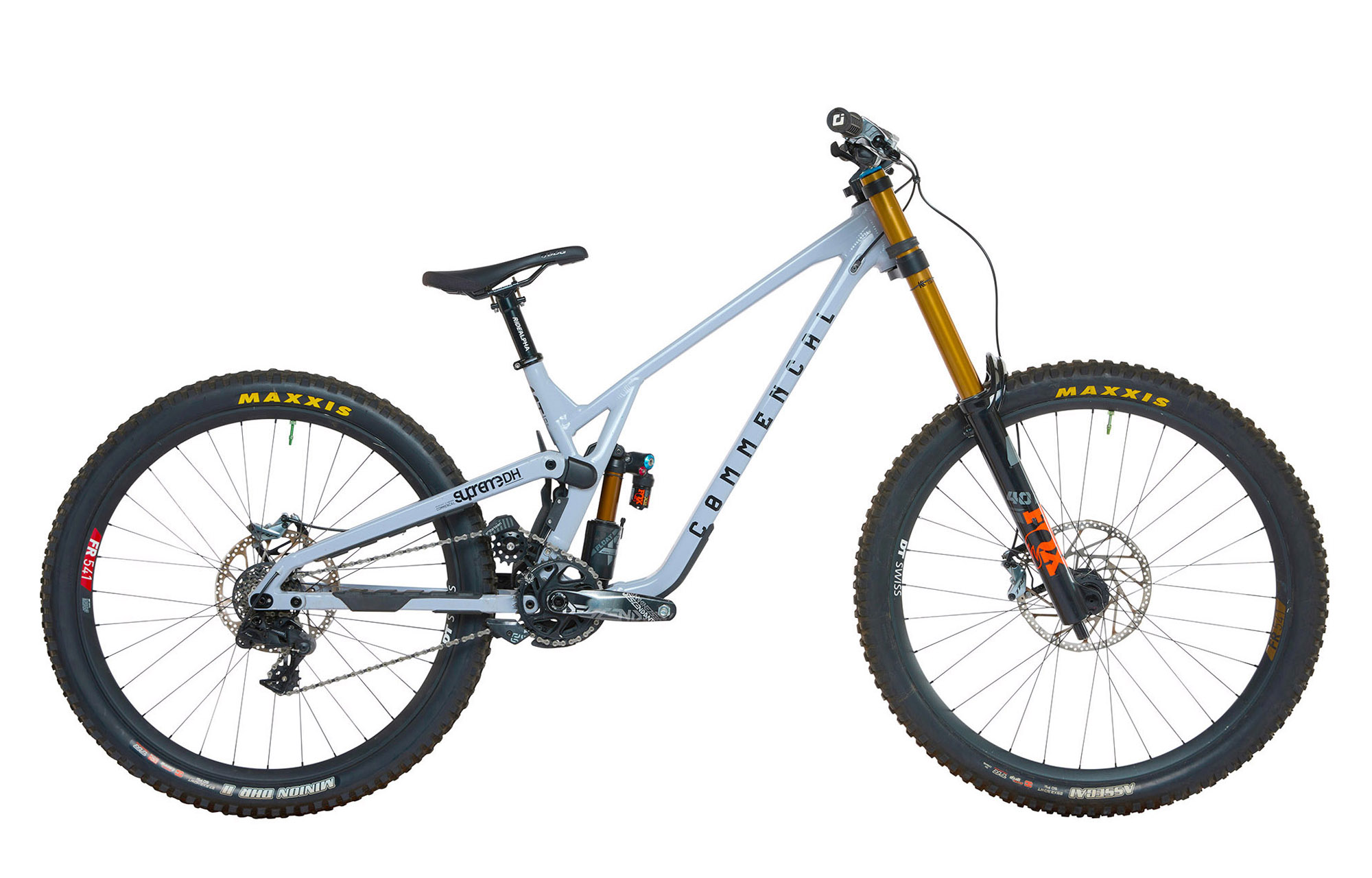

COMMENCAL SUPREME DH V5 CLOUD ALC - L (22105018)
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike in good shape ready for a new start.
Unique A La Carte bike mount!
- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rims, crank arms, fork and brakes and rear derailleur.
- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsShock
FOX Float X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, reboundFork
FOX 40 Factory, 200 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offsetHeadset
CANE CREEK ZS56/ZS56 SERIE 40
Alloy cups, sealed bearingsStem
RENTHAL
Handlebar
RENTHAL
Grips
ODI
Brakes
TRP DH-R EVO SILVER, 4 pistons, resin pads
Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX Eagle
7sBottom bracket
SRAM DUB
PressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM
12 SpCassette
SRAM PG-720 DH
7s, 11-25tRims
DT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm BoostSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Seat post
Ride Alpha
31.6 mm, 250 mmSaddle
SDG
Weight
17,7 kg / 39,02 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Cloud
Shinny finishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, fork fender
*Please note that bike specs are subject to change without prior notice.
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
Bicycle type
Frame DH Racing
Frame material
Al 6066 T6
Frame weight
4,2 kg / 9,25 lb (without accessories)
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
157 x 12 mm
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick
-
Bicycle type
Downhill Racing
-
Frame material
AL 6066 T4, T6
-
Frame weight
5,3 kg / 11.68 lb
-
Rear travel
220mm
-
Shock length/stroke
250x75mm
-
Recommended SAG
20-25% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
30x8mm / 30x8mm
-
Recommended/max. fork height
612mm / 620mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
133mm
-
Bottom bracket type
Press Fit BB 107mm
-
Chain guide
ISCG 05 lower - Custom upper idler guide
-
Chain line
56,5
-
Rear Hub dimension
15 x12mm
-
Rear Axle dimension
Maxle standard, 200mm, M12, P1.0mm
-
UDH hanger
No
-
shock anchor adjustment
4 positions
-
Rear Wheel Base Length adjustment
3 positions
-
Rear triangle stiffness adjustment
3 thickness
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
