COMMENCAL T.E.M.P.O CLOUD ALC - M (22TEMPALC) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL T.E.M.P.O CLOUD ALC - M (22TEMPALC)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from A$ 8,545.45 excl. GST to A$ 5,645.45 excl. GST -34%
id/sku : OCAUS0057
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike in good shape ready for a new start.
Unique A La Carte bike mount!

- AESTHETIC -

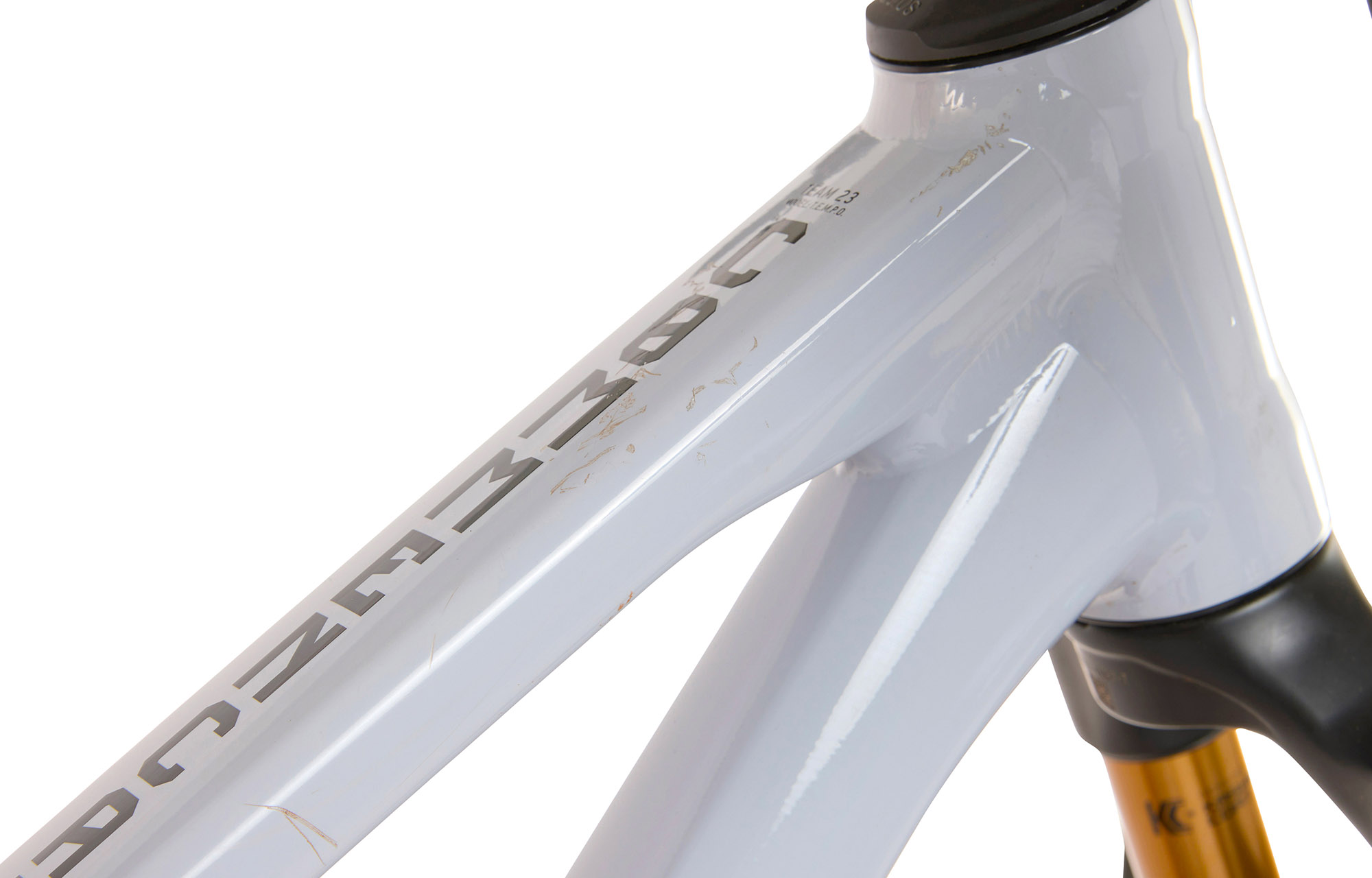

Scratches and paint chips on frame.
Scratches on rear derailleur, rims, brakes and crank arms.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

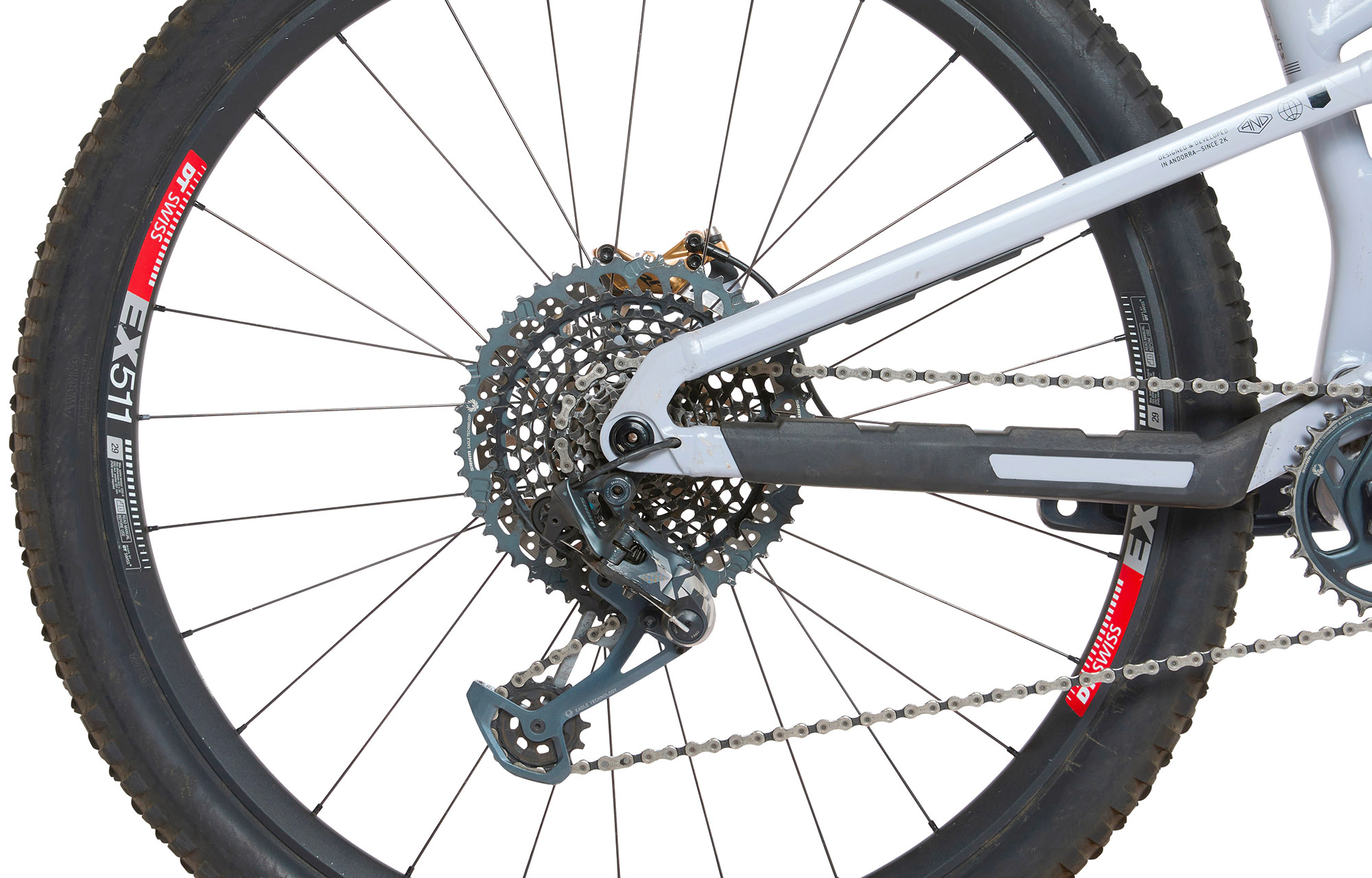

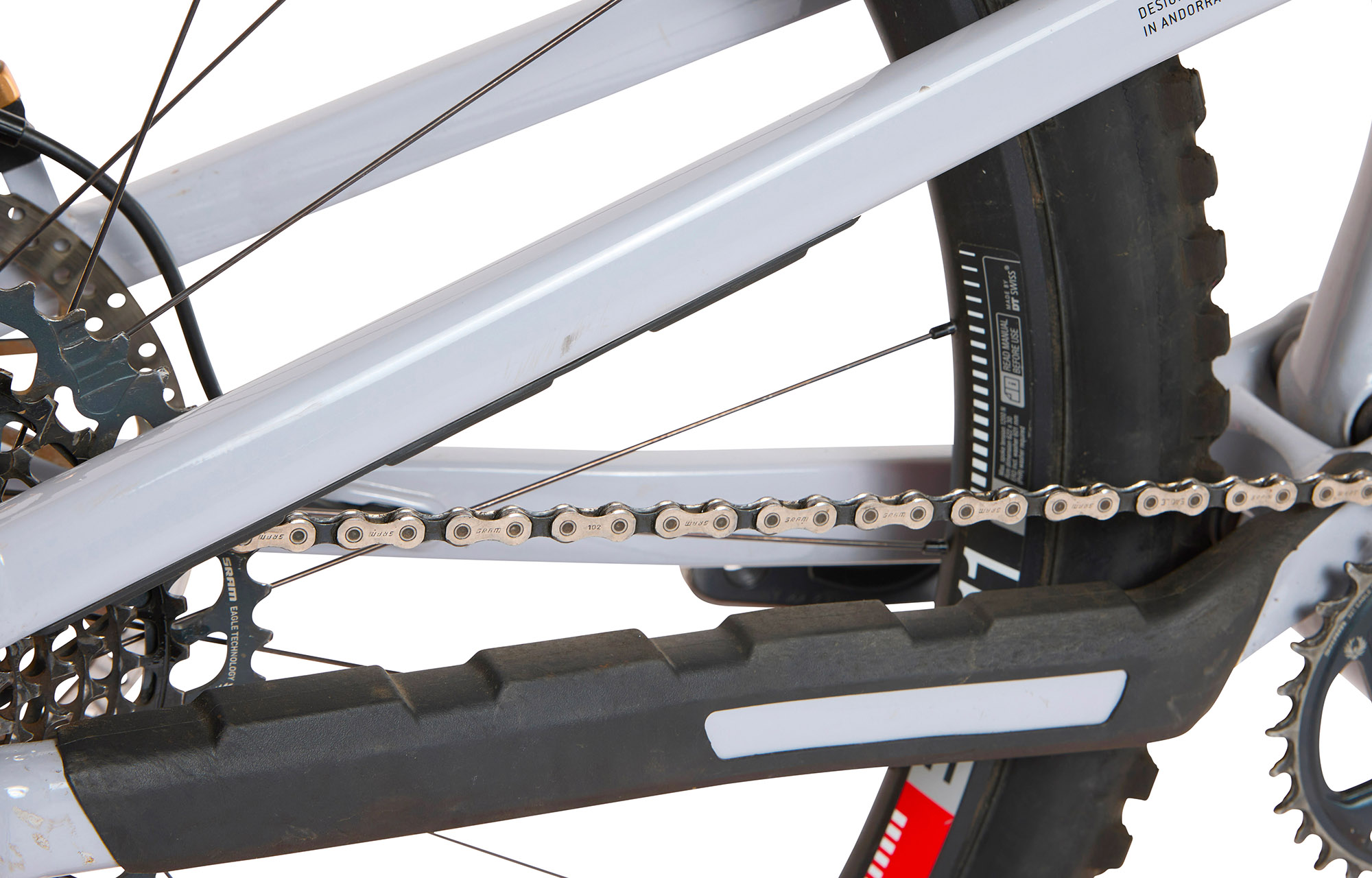

Please feel free to check the photos below for more details.

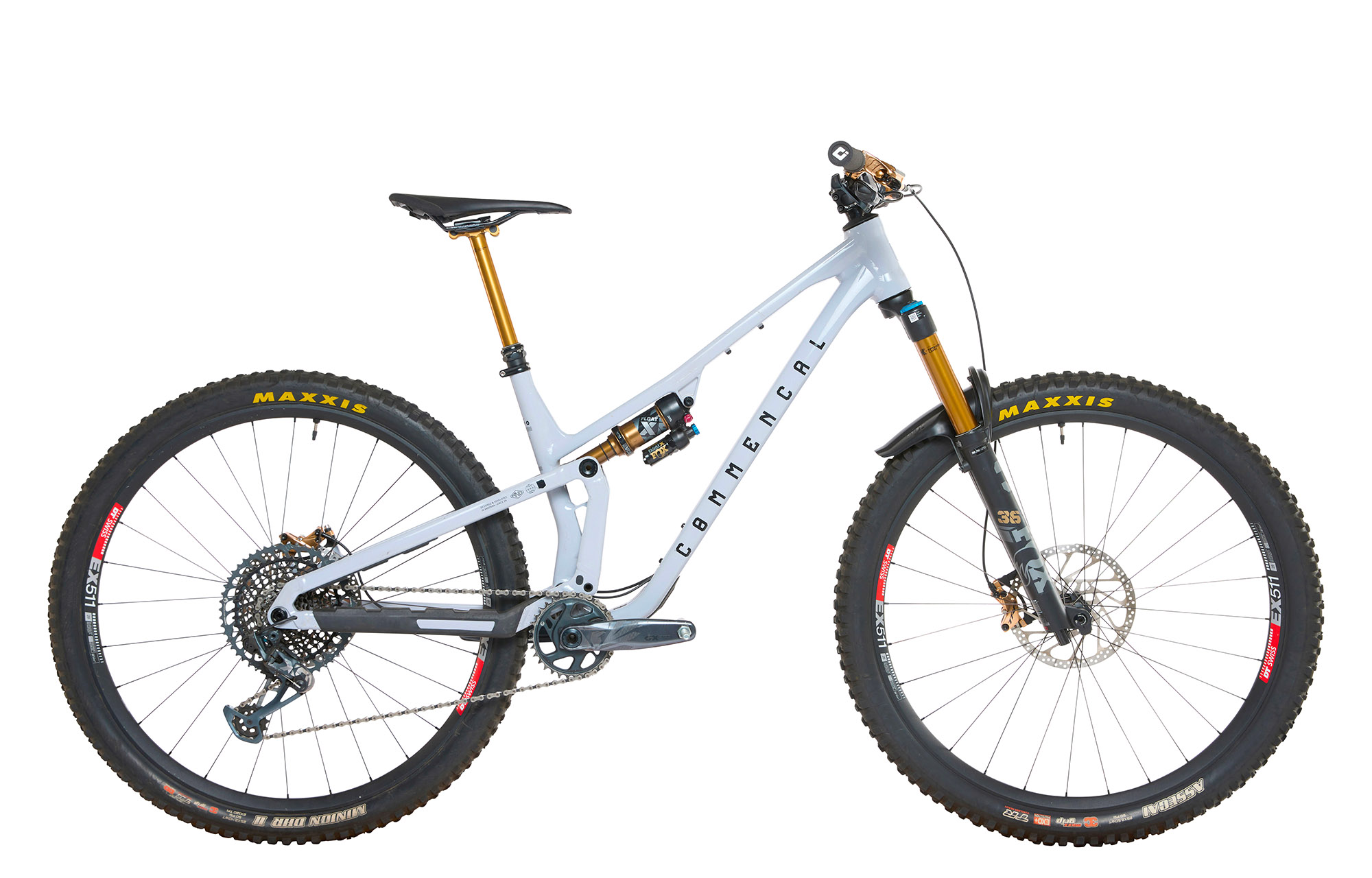

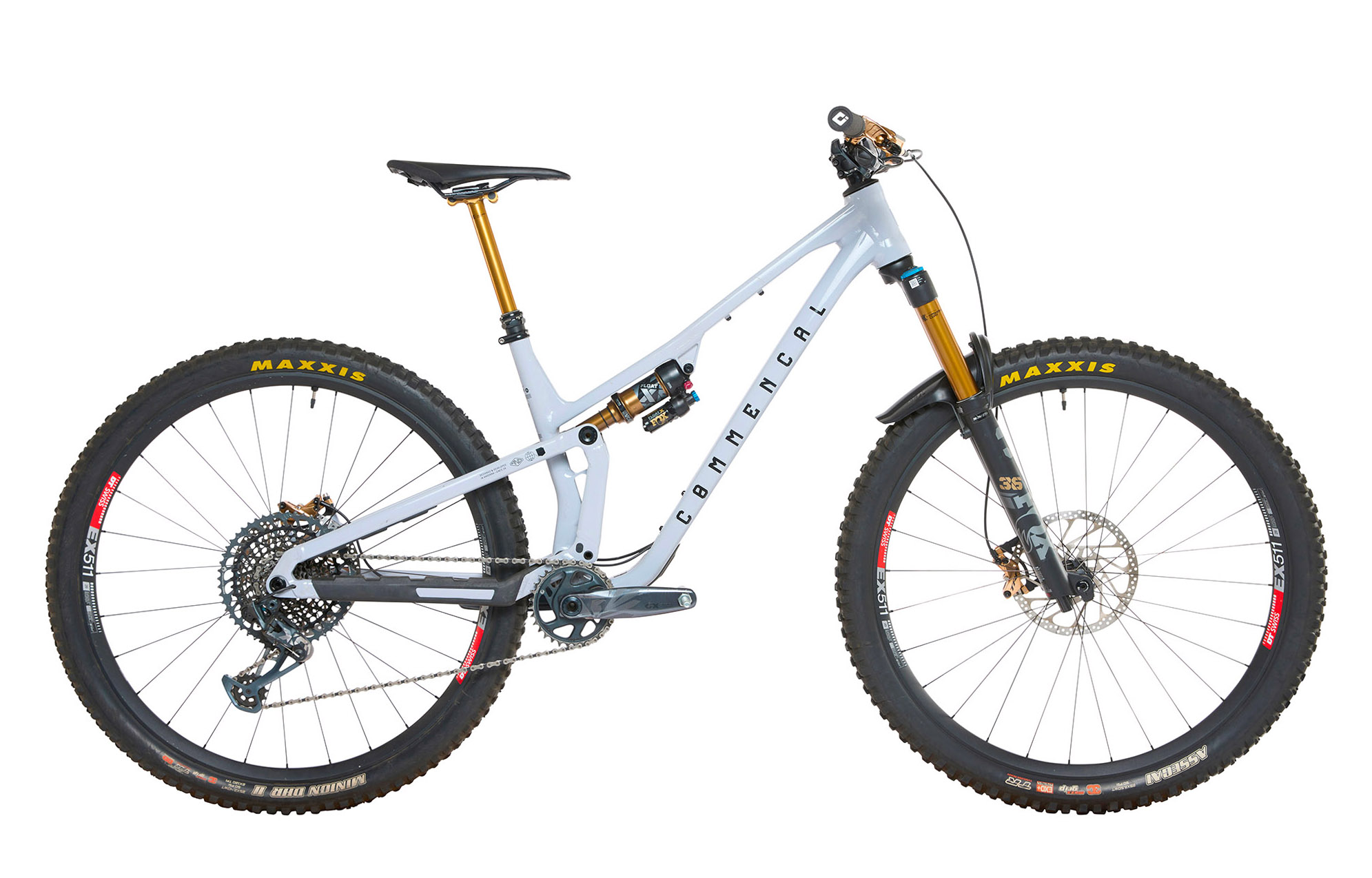

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

  • Frame

    T.E.M.P.O., 125 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6.

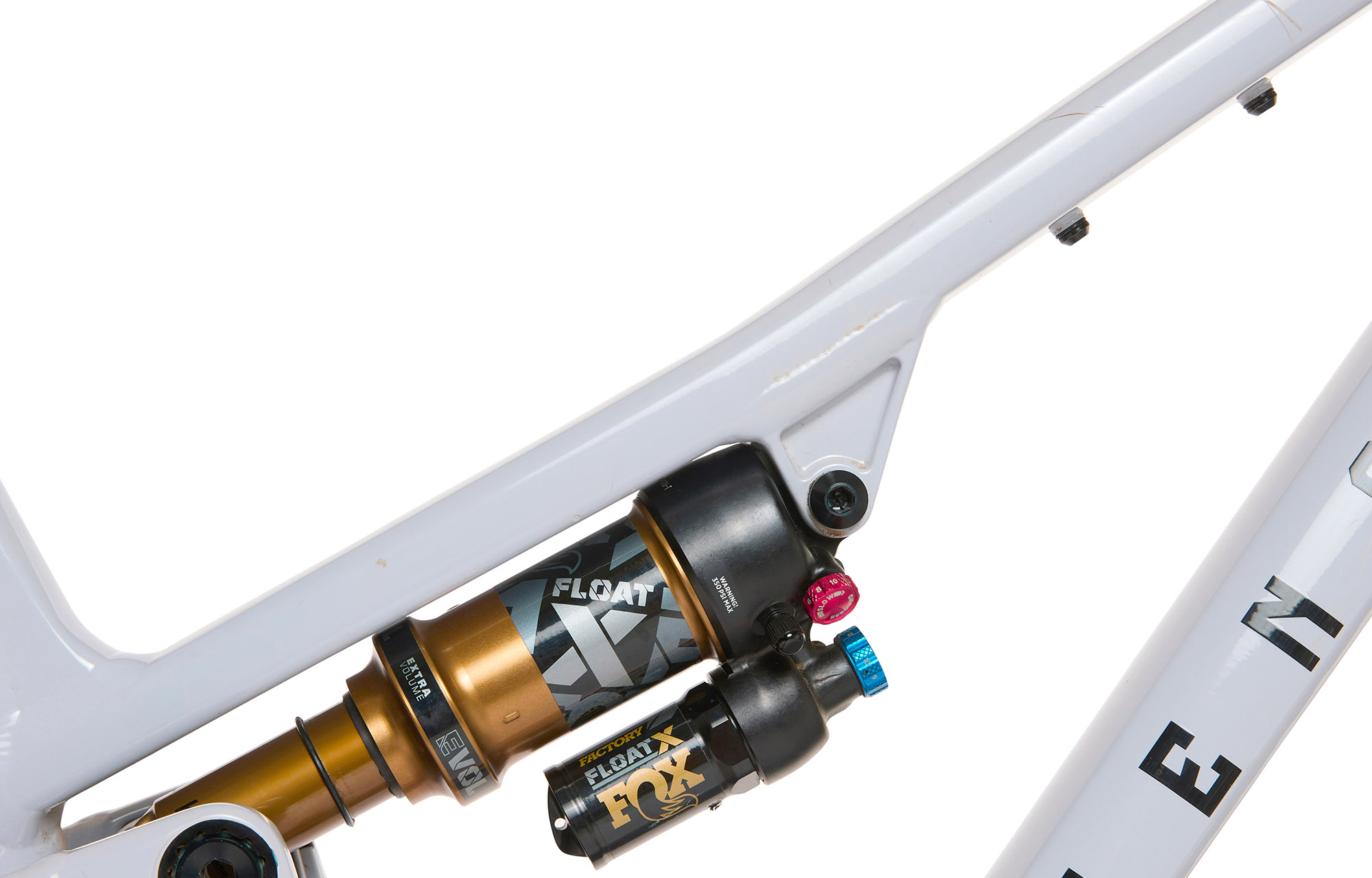

  • Shock

    FOX Float X Factory
    210 x 50, LSC,LSR, 2-postion adjustment, 0.2 spacer

  • Fork

    FOX 36 Factory, 150 mm travel
    29", Float, Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 51 mm offset, 2 spacers

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings, Integrated cable routing

  • Stem

    TITLE

  • Handlebar

    TITLE

  • Grips

    ODI

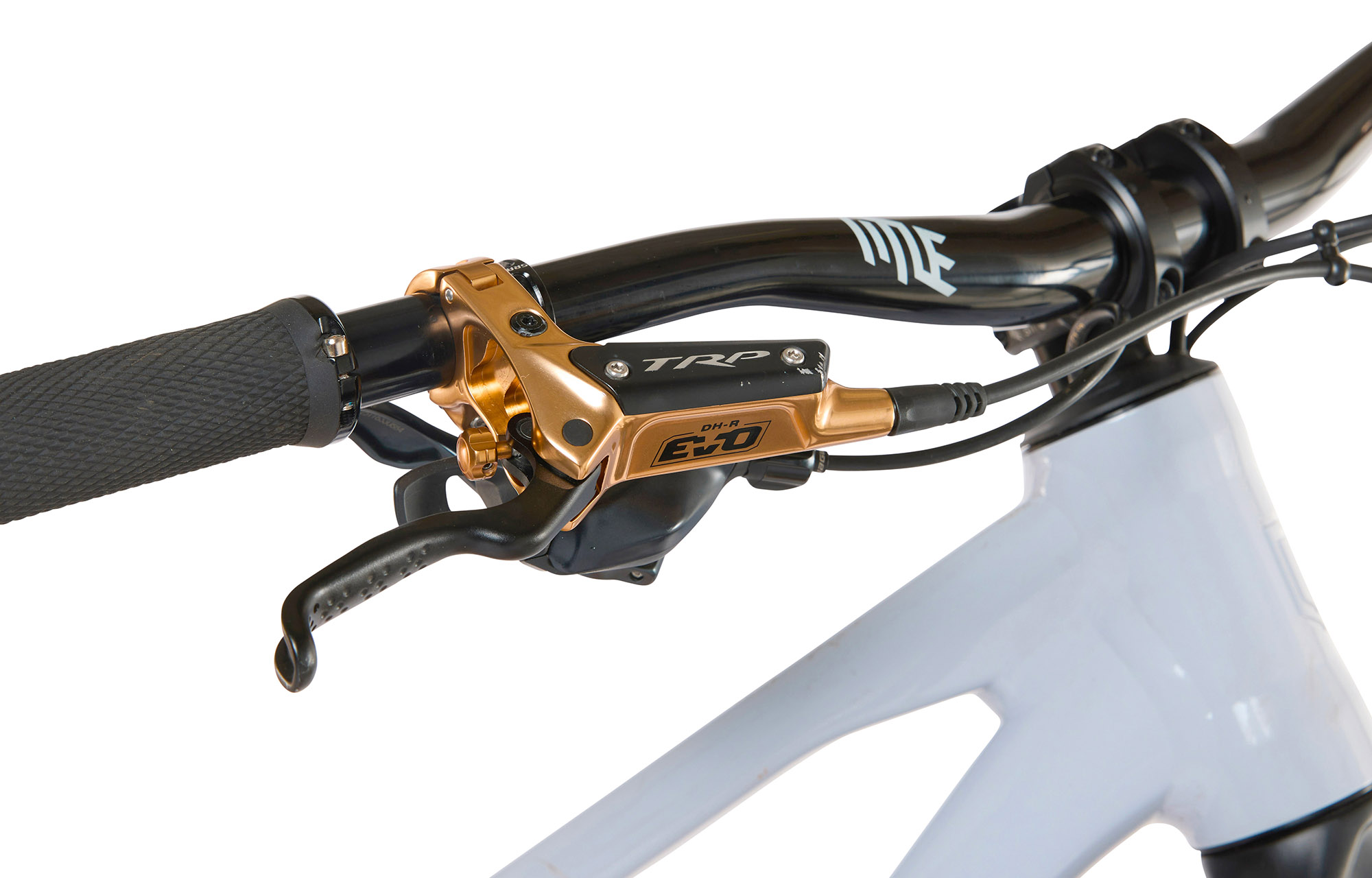

  • Brakes

    TRP

  • Shifters

    SRAM GX Eagle
    12s

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

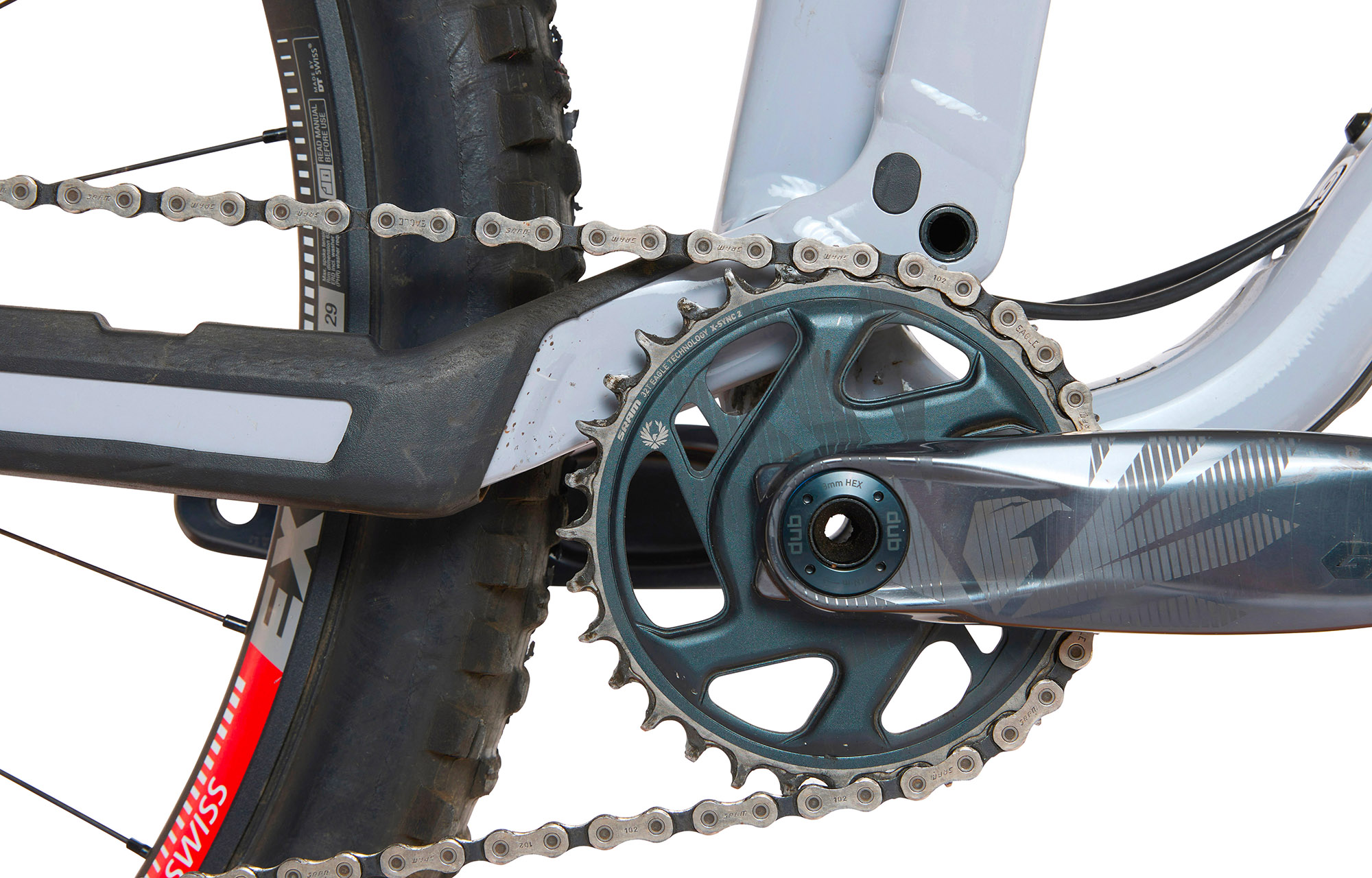

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    DT SWISS EX-511

  • Hubs

    DT SWISS

  • Spokes/nipples

    DT SWISS Competition Race
    Straightpull, 2.0 1.6-2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS Minion DHR II - Front: MAXXIS ASSEGAI
    Rear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

  • Seat post

    FOX Transfer Factory
    31.6 mm, 150 mm on S, 175 mm on M/L, 200 mm on XL

  • Saddle

    FIZIK Terra Ridon X5
    145 mm width, S-alloy rails

  • Weight

    14.1 kg / 31.08 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Cloud
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    TRAIL 29"

  • Frame material

    AL-6066 T4, T6

  • Frame weight

    3,125 kg / 6,88 lb, raw without accessories

  • Rear travel

    125 mm

  • Shock length/stroke

    210 x 50 mm

  • Piggy back shock compatible

    Yes

  • Recommended SAG

    30% = 15mm stroke

  • Shock bushings

    20 x 10 mm / 30 x 10 mm

  • Recommended/max. fork height

    551 mm / 561 mm

  • Headset type

    ZS56 / ZS56, Integrated cable routing

  • Maximum tyre dimension (etrto)

    63mm / dim. 756

  • Disc brake standard

    POSTMOUNT 180 mm

  • Rear rotor max. size

    200 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BB92 Press Fit

  • ISCG

    No ISCG, custom upper guide

  • Chain Line

    55 mm

  • Rear hub compatibility

    Hub 12 x 148 mm - Axle L=180 mm, M12, P1.0 mm

  • Bicycle type

    Trail

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    3,44 kg / 7,58 lb

  • Rear travel

    125mm

  • Shock length/stroke

    210x50mm

  • Recommended SAG

    28-30% / 14-15mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x10mm / 30x10mm

  • Recommended/max. fork height

    551mm / 561mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 29’’

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm

  • rear brake mounting type

    Postmount 180mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 225mm / M : 265mm / L : 285mm / XL : 305mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05 lower - Custom upper guide

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

  • shock anchor adjustment

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
76,6°
76,6°
76,6°
76,6°
3 - HEAD TUBE ANGLE
65,5°
65,5°
65,5°
65,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1190
1211,5
1238,5
1261
6 - TOP TUBE LENGTH
579
600
621,5
642,9
7 - CHAIN STAY LENGTH
435
435
440
440
8 - BOTTOM BRACKET HEIGHT
-35
-35
-35
-35
9 - FORK LENGTH
551
551
551
551
10 - FORK OFFSET
51
51
51
51
11 - REACH
430
450
470
490
12 - STACK
624
628,5
633
637,5

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
