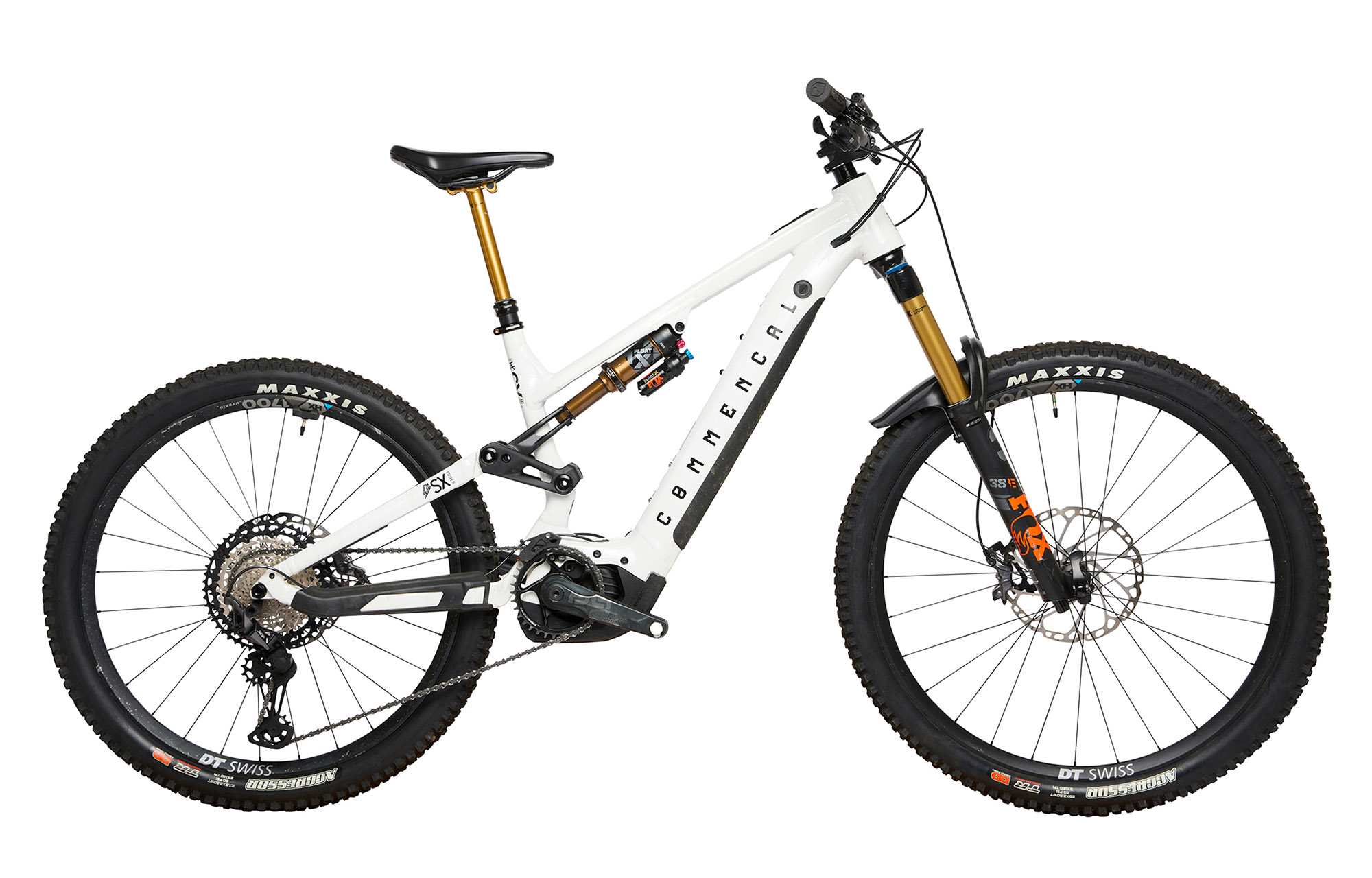

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.
COMMENCAL META POWER SX BOSCH SIGNATURE PURE WHITE - M (22181902) 584km
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike 584km ready for a new start.
- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, rims, fork, and dropper post.
Non-contractual pictures: new rims.
- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

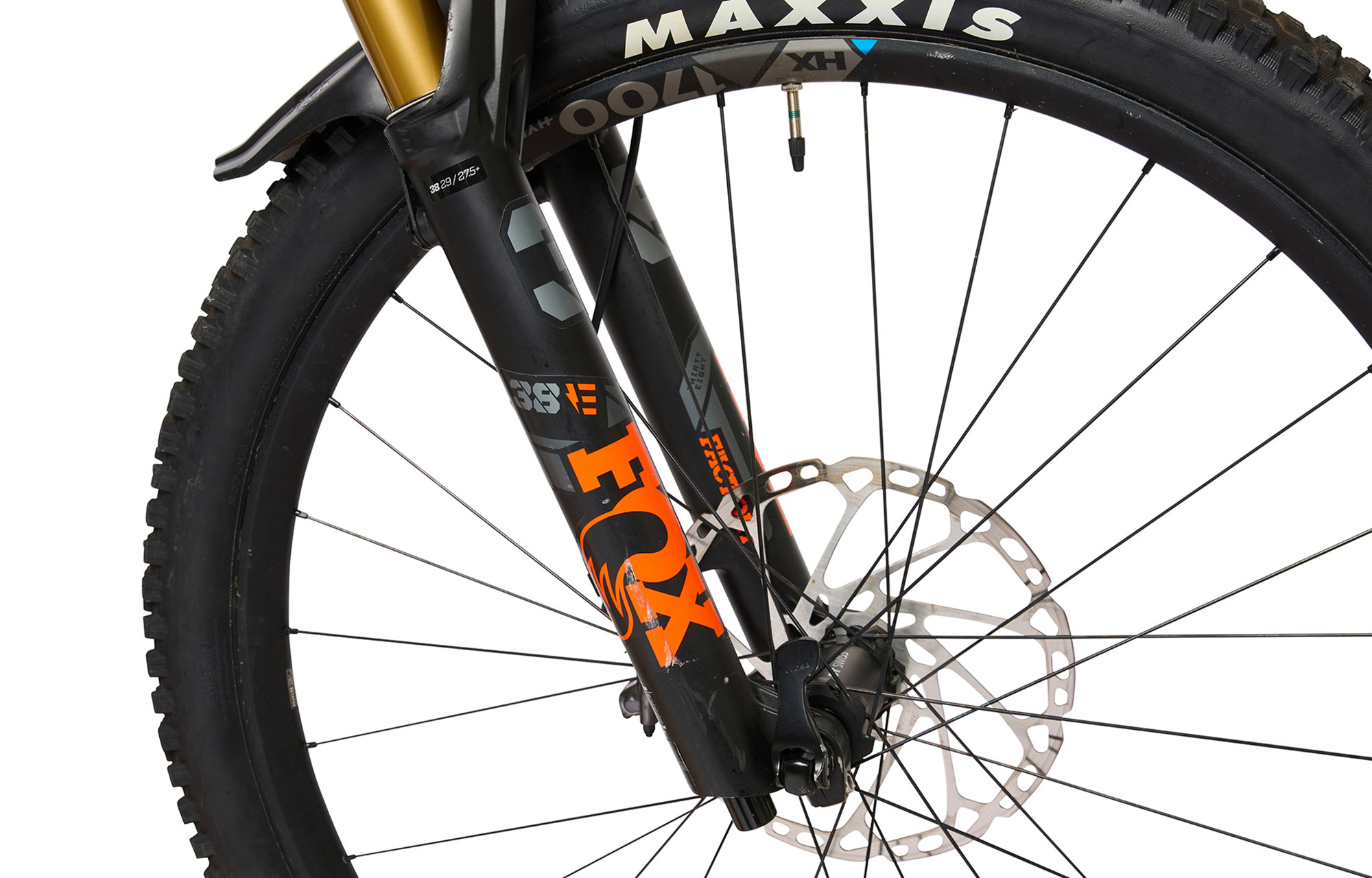

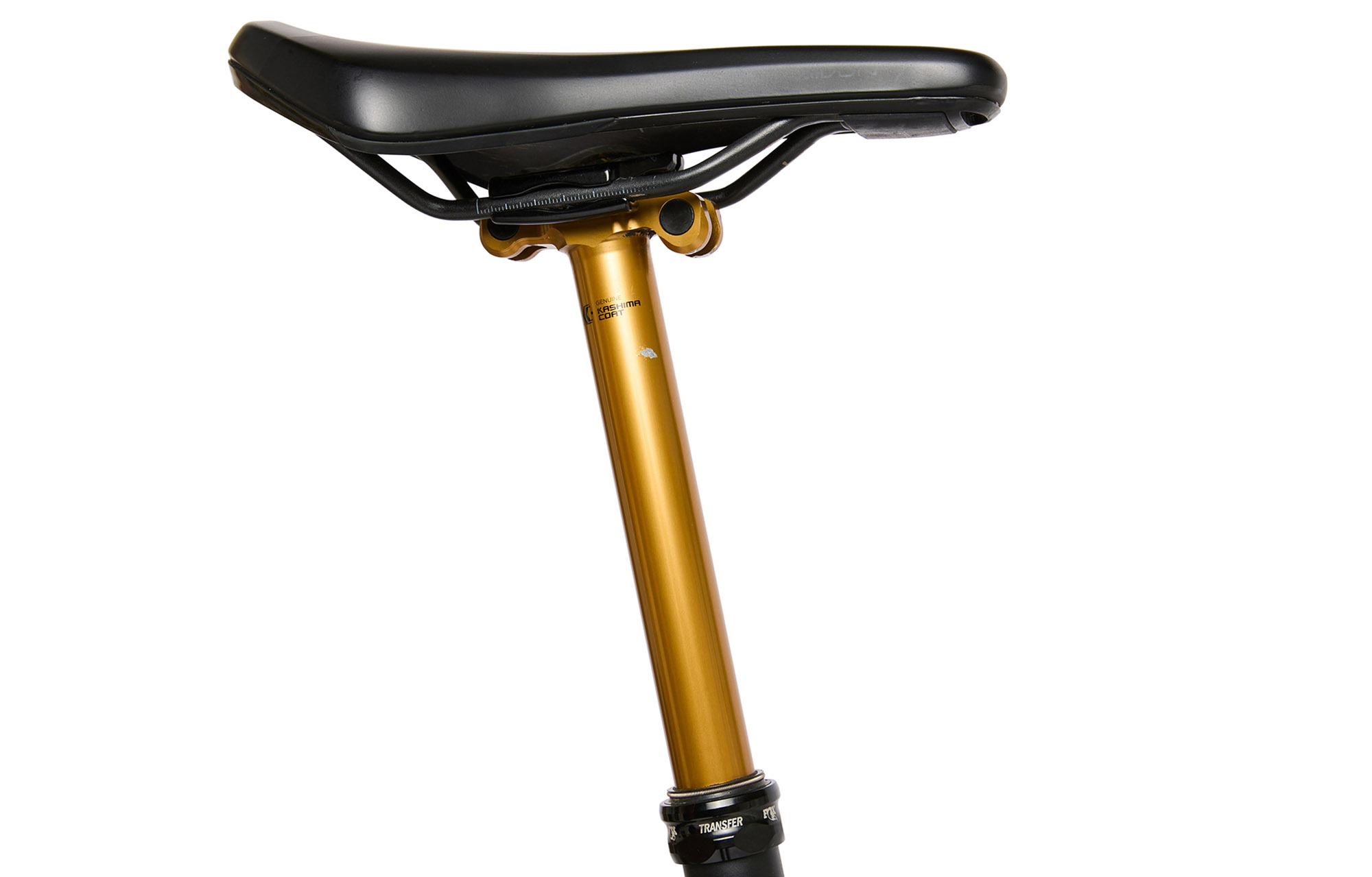

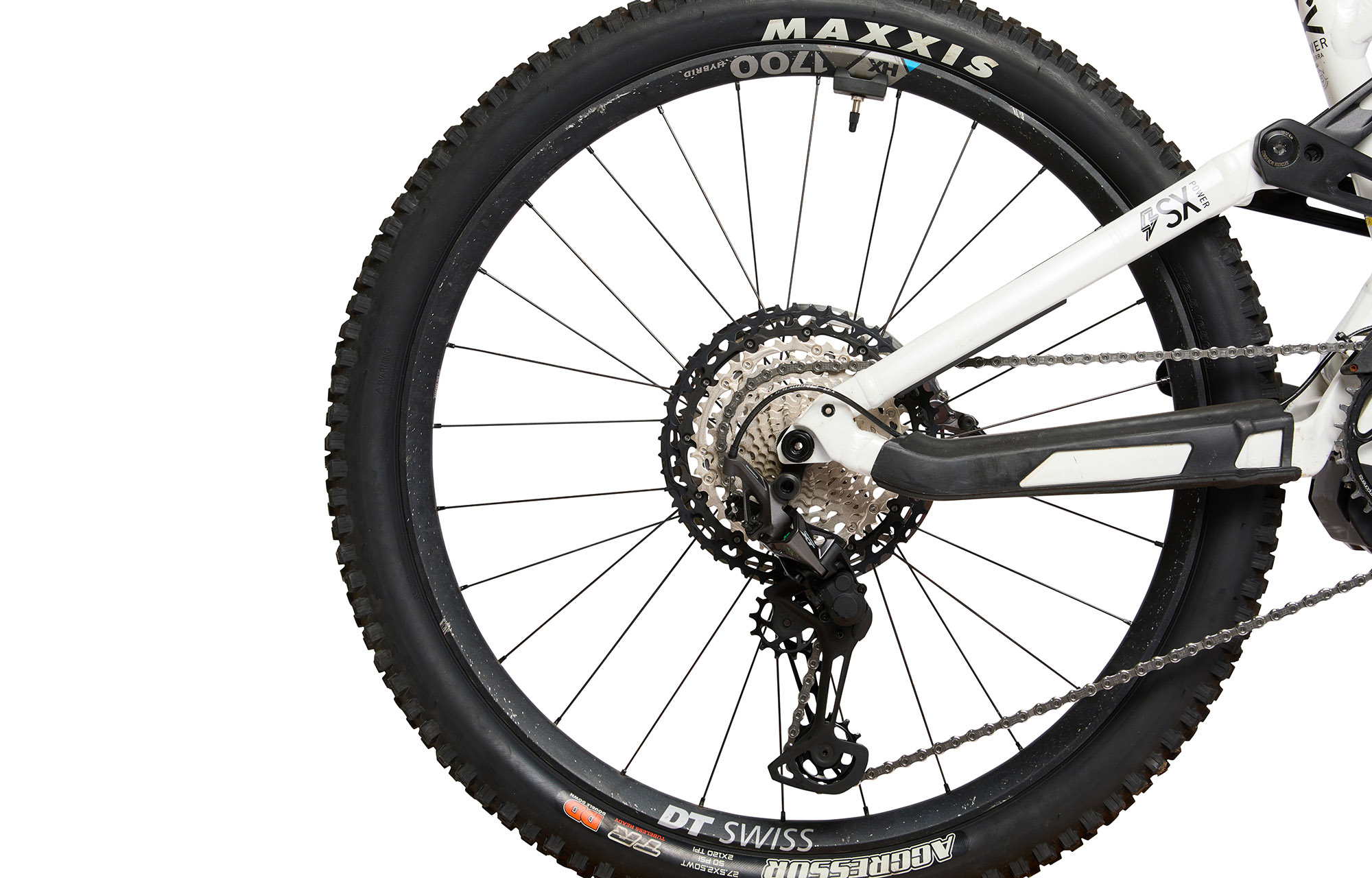

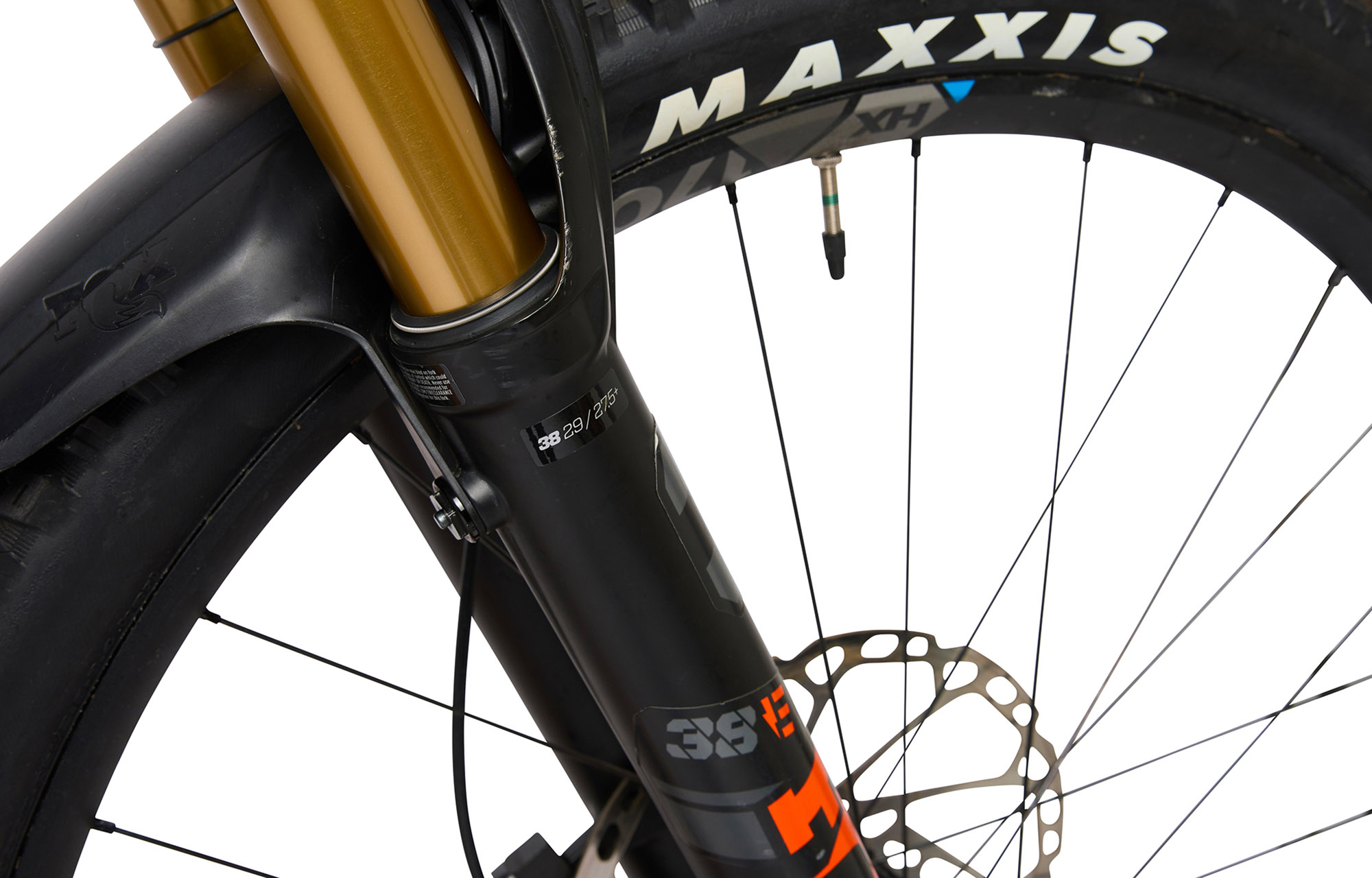

Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META POWER SX BOSCH, 165 mm travel
29"-27.5", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock
FOX Float X Factory
230 x 65 mm, LSC, LSR, 2-position (open/firm) lever, 0.6 spacerFork
FOX 38 Factory E-Bike, 170 mm travel
29", Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-boltShifters
SHIMANO Deore XT
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SHIMANO Deore XT
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus BOSCH CX, 160 mm crank arms
Chainring: E13 E*Spec Plus BOSCH CX, 34t, direct mountChain
SHIMANO Deore XT
12sCassette
SHIMANO Deore XT
12s, 10-51tRims
Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, SHIMANO Micro Spline - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
Fox Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L & 200 mm on XL, SHIMANO SL-MT500 remoteSaddle
FIZIK Terra Aidon X3
145 mm width, Kium Mobius railsWeight
24.2 kg / 53.35 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Pure White
Shiny FinishAccessories
RIDE ALPHA CNC pedals, fork fender, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
E-bike - Enduro / Freeride
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,1 kg / 9.03 lb
-
Rear travel
165mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
26-30% / 17-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
583mm / 593mm
-
Headset type
ZS56 / ZS66
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 160mm
-
Rear brake rotor max. size
220mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 220mm / M : 240mm / L : 270mm / XL : 280mm
-
Motor Crankarms interface
BOSCH CX Gen4
-
Chain guide
Custom upper guide
-
Chain line
53
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
-
shock anchor adjustment
2 positions
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
