Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

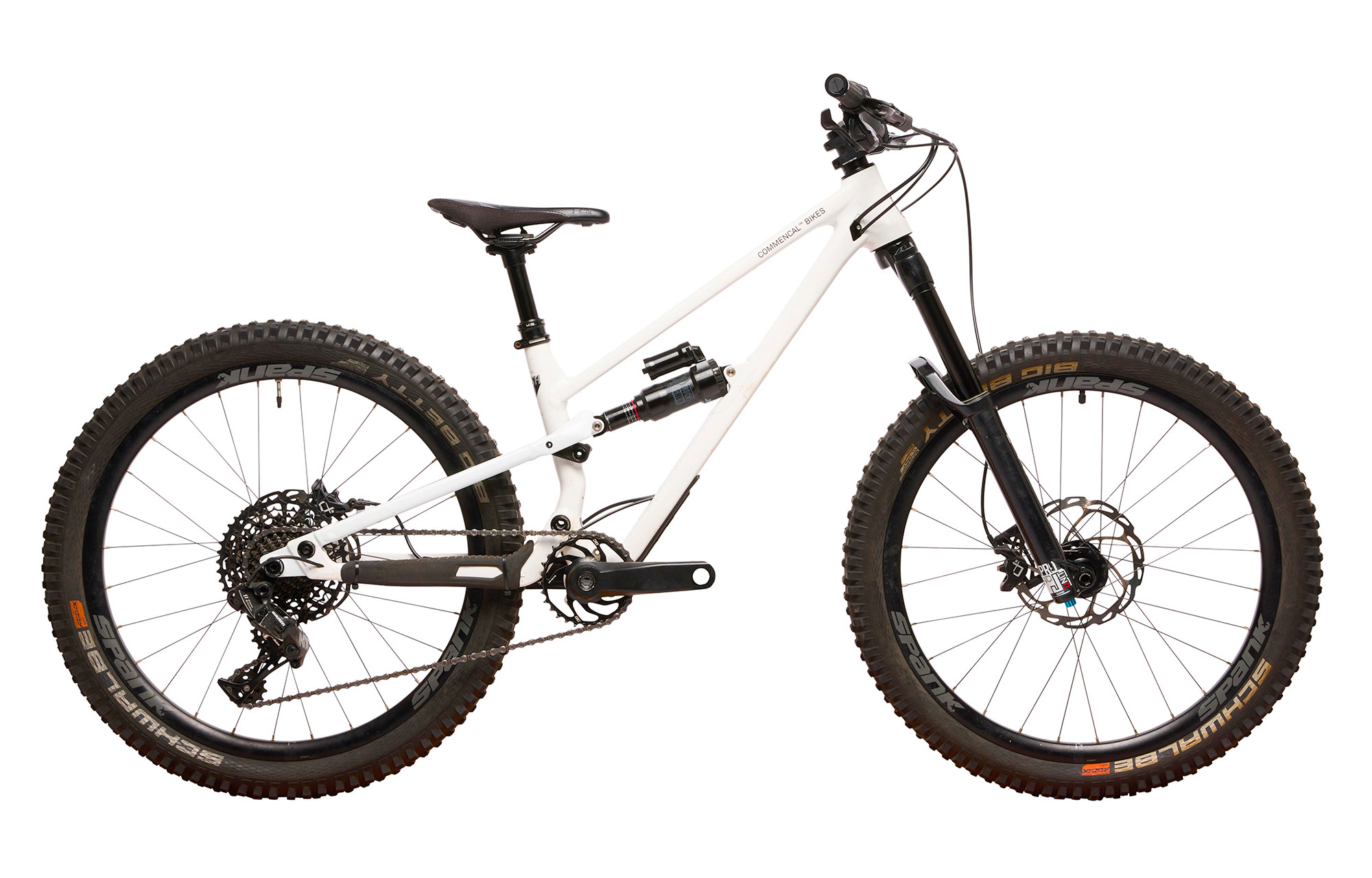

COMMENCAL CLASH 24 V2 PURE WHITE (22175400)
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike in good shape ready for a new start.
- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, rims, fork and brakes.
- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
CLASH 24, 145 mm travel
24", Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX Super Deluxe Select
190 x 45 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token posFork
MANITOU Machete Junit Pro, 145 mm travel
24'', kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
PROTAPER Junit Riser bar
31,8 mm, 680 mm width, 25 mm riseGrips
PROTAPER Junit Intermediate
Kids specific 27 mm diameterBrakes
HAYES DOMINION A2, 2 pistons, sintered pads, I-SPEC EV COMPATIBLE
Rotors : HAYES D Series 180 mm, 6-boltShifters
SRAM NX
11sREAR DERAILLEUR
SRAM NX
11sBottom bracket
AEROZINE PressFit BB92 / 41 mm outside diameter for 30 mm spindle
Crankset
AEROZINE Xeon-A1, 145 mm crank arms, 30 mm axle, 7075 alloy
Chainring: AEROZINE Direct Mount 30t, Narrow-Wide, full CNCChain
KMC X11
11sCassette
SRAM PG-1130
11s, 11-42tRims
SPANK Spoon 28
24", 28h, 23 mm inner widthHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 28h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Big Betty
Rear: 24" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 24" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
KS Rage-I
31,6 mm, 75 mm travel, SouthPaw alloy remoteSaddle
SDG Fly Jr
122 mm width, kids specific, reinforced sidesWeight
12,5 kg / 27.55 lb
Without pedals. Weight may differ slightly due to manufacturing tolerancesPedals included
Yes
Colour
Pure White
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pedals
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
Bicycle type
ENDURO - FREERIDE KIDS 24
Frame material
AL 6066 T4, T6
Frame weight
2,9 kg / 6.39 lb
Rear travel
145 mm
Shock length/stroke
190 x 45 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm Front, 30 x 8 mm + Bearings on shock head
Recommended/max. fork height
500 mm - 510 mm
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
24 x 2,5"
Disc brake standard
Post Mount 180 mm
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm - 34,9 mm
Bottom bracket type
PF 92 mm
ISCG
ISCG05
Rear hub compatibility
L=183 mm, M12, P1.0 mm - Hub 12 x 148 mm standard Maxle
-
Bicycle type
Kids bike - Enduro / Freeride
-
Frame material
AL 6066 T4, T6
-
Frame weight
2,9 kg / 6.39 lb
-
Rear travel
145mm
-
Shock length/stroke
190x45mm
-
Recommended SAG
26-30% / 14-17mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x8mm / 30x8mm
-
Recommended/max. fork height
500mm / 510mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
24’’ - 24’’
-
Max. rear tyre dimension - ETRTO
63mm - Ø507mm
-
rear brake mounting type
Postmount 180mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm - 34,9mm
-
Seatpost insertion max.
180mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05
-
Chain line
52
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 183mm, M12, P1.0mm
-
UDH hanger
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
