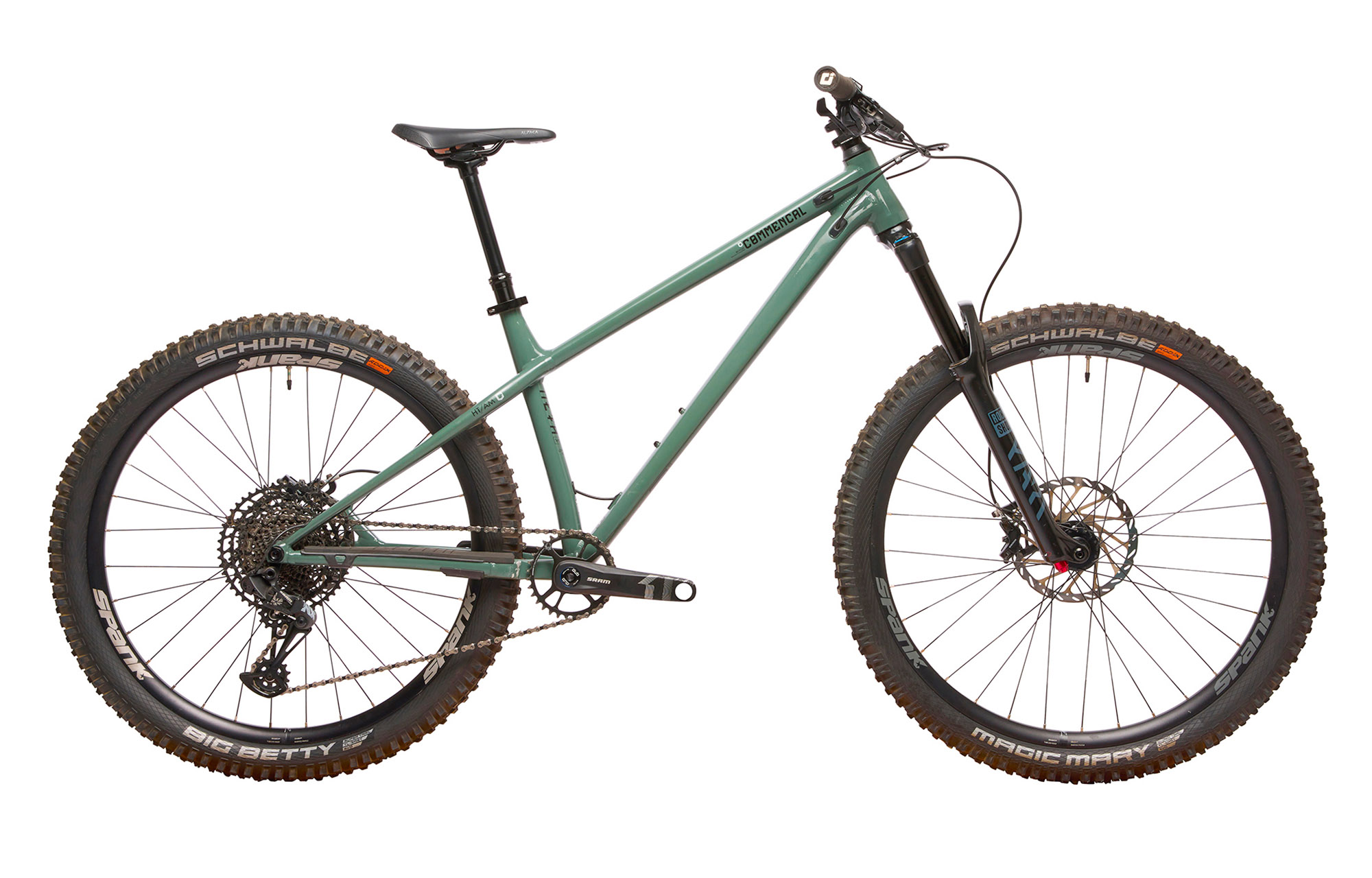

COMMENCAL META HT AM ESSENTIAL KESWICK GREEN - M (22130202) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL META HT AM ESSENTIAL KESWICK GREEN - M (22130202)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from A$ 2,818.18 excl. GST to A$ 1,890.90 excl. GST -33%
id/sku : OCAUS0091
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike in good shape ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, rims, fork and brakes.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

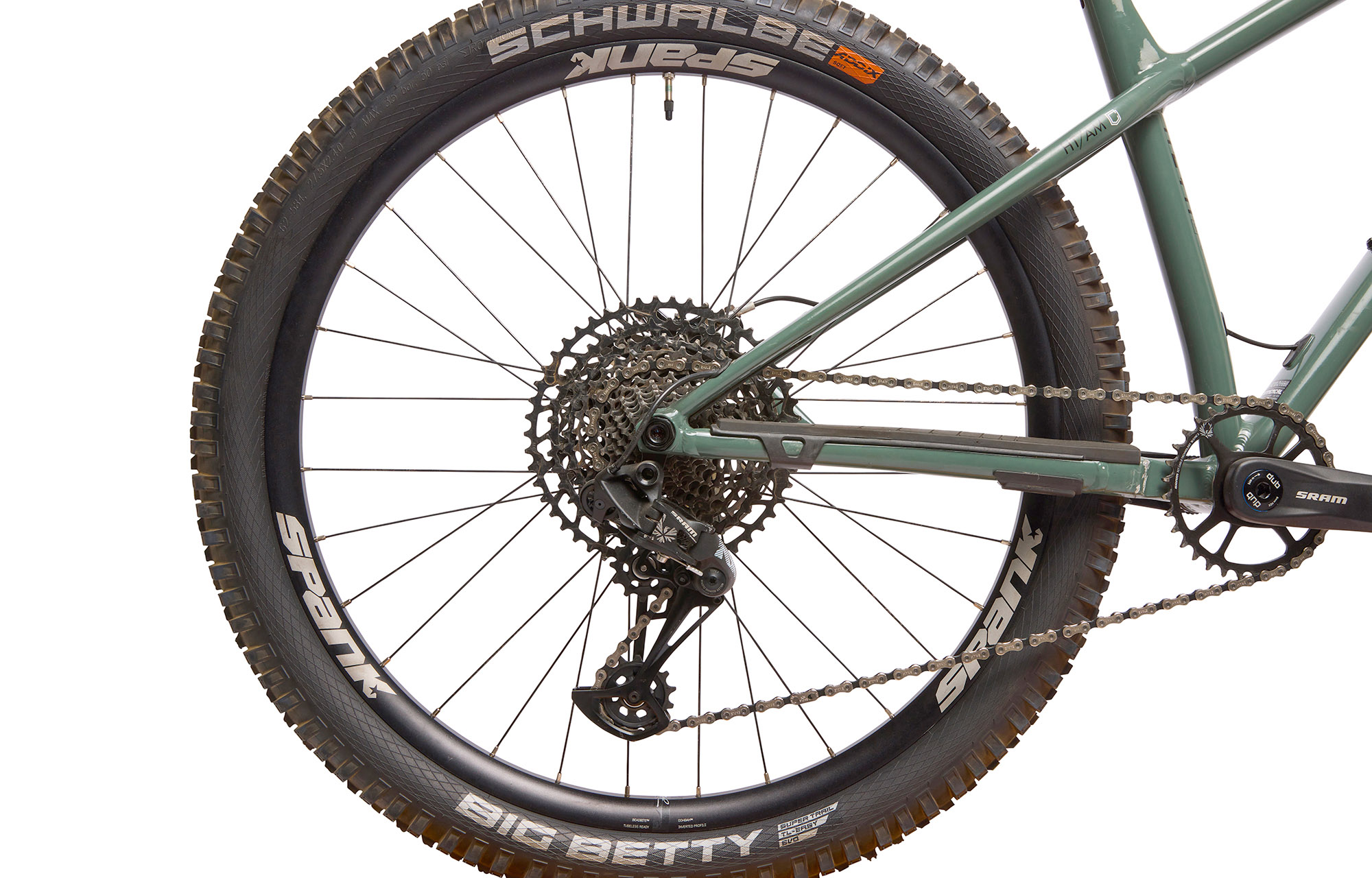

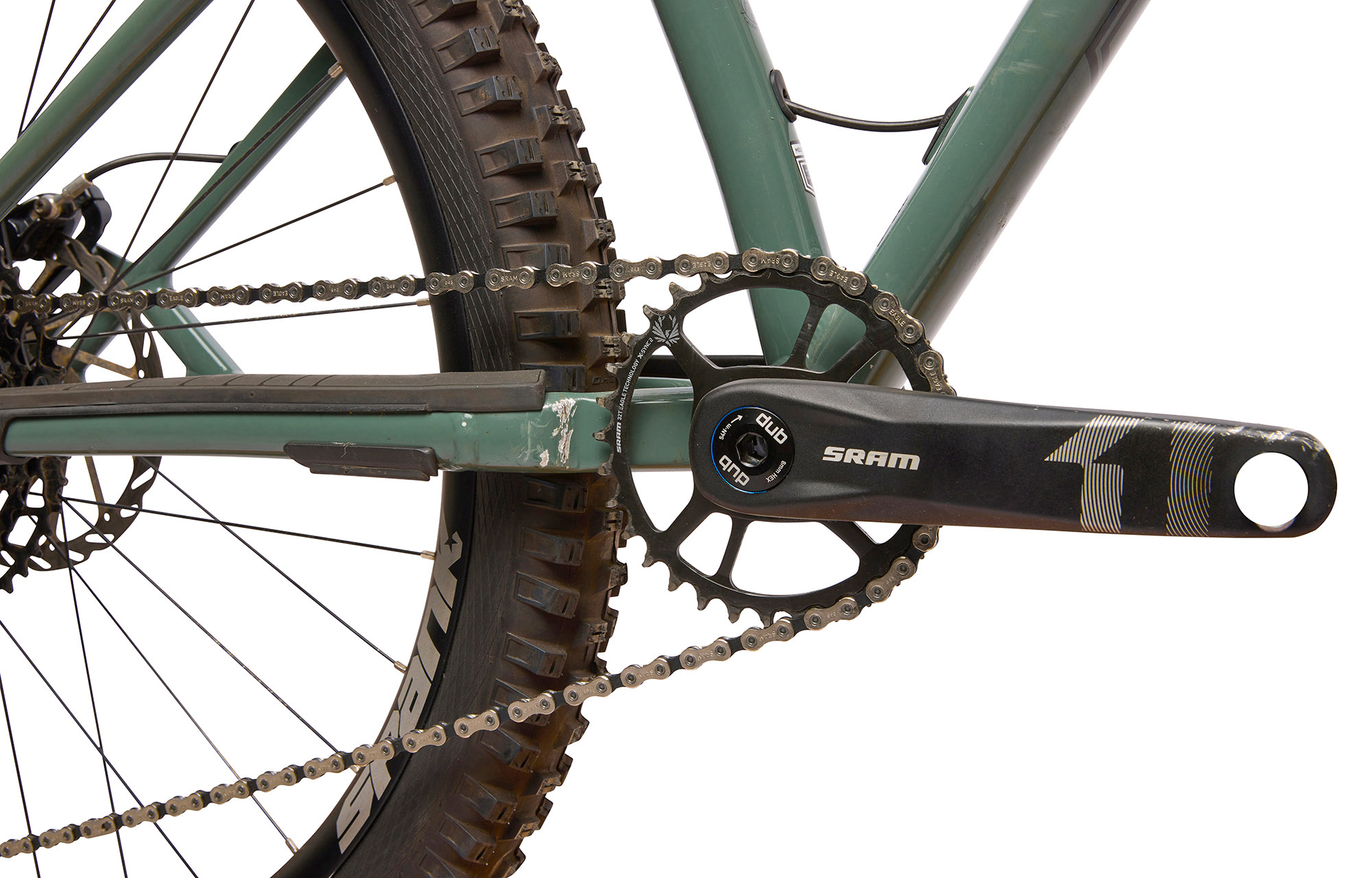

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

  • Frame

    2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL

    Alloy 6061, triple butted tubes, T4, T6

  • Fork

    ROCKSHOX Yari RC, 150 mm travel

    29", Motion Control damper, DebonAir, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens

  • Headset

    ACROS ZS44 / ZS56

    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40

    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL

    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion

    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible

    Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-bolt

  • Shifters

    SRAM NX Eagle

    12s

  • REAR DERAILLEUR

    SRAM NX Eagle

    12s

  • Bottom bracket

    SRAM BSA

    Threaded

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost

    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle

    12s

  • Cassette

    SRAM PG-1210

    12s, 11-50t

  • Rims

    SPANK Spike Race 33

    Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XL

  • Hubs

    Rear: FORMULA DC-348A - Front: FORMULA DC-711

    Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    SAPIM Leader

    J-Bend 2.0 mm, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary

  • Seat post

    KS Rage-I

    31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Alpaca X5

    145 mm width, S-alloy rails

  • Weight

    14,2 kg / 31.30 lb

    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Keswick Green

    Shiny Finish

  • Accessories

    Chainstay protector, seatstay protector

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    Hardtail Enduro

  • Frame material

    AL 6061 T4, T6

  • Frame weight

    2.08 kg / 4,58 lb

  • Recommended/max. fork height

    561 MM / 571 MM

  • Headset dimension

    TAPERED 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27,5" - 71-584 / 29'' - 66-622

  • Disc brake standard

    INTERNATIONAL STANDARD

  • Rear rotor max. size

    200 MM

  • Seatpost/seat clamp diameter

    31,6 MM / 34,9 MM

  • Bottom bracket type

    BSA 68 MM

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE

  • Bicycle type

    All Mountain

  • Frame material

    AL 6061 T4, T6

  • Frame weight

    2.08 kg / 4,58 lb

  • Recommended/max. fork height

    552mm / 562mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    29’’ - 29’’ (L-XL)
    29’’ - 27.5’’ (S-M)

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm (L-XL)
    64mm - Ø584mm (S-M)

  • rear brake mounting type

    IS 200mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 250mm / M : 297mm / L-XL : 340mm

  • Bottom bracket type

    BSA 68mm

  • Chain guide

    No

  • Chain line

    52

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
465
490
2 - SEAT TUBE ANGLE
74°
74,5°
74,5°
74,5°
3 - HEAD TUBE ANGLE
64°
64°
64,5°
64,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1180
1202
1229
1251
6 - TOP TUBE LENGTH
582
604
630
653
7 - CHAIN STAY LENGTH
432
432
432
432
8 - BOTTOM BRACKET HEIGHT
-30
-30
-40
-40
9 - FORK LENGTH
561
561
561
561
10 - REACH
405
425
450
475
11 - STACK
638
643
647
646

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
