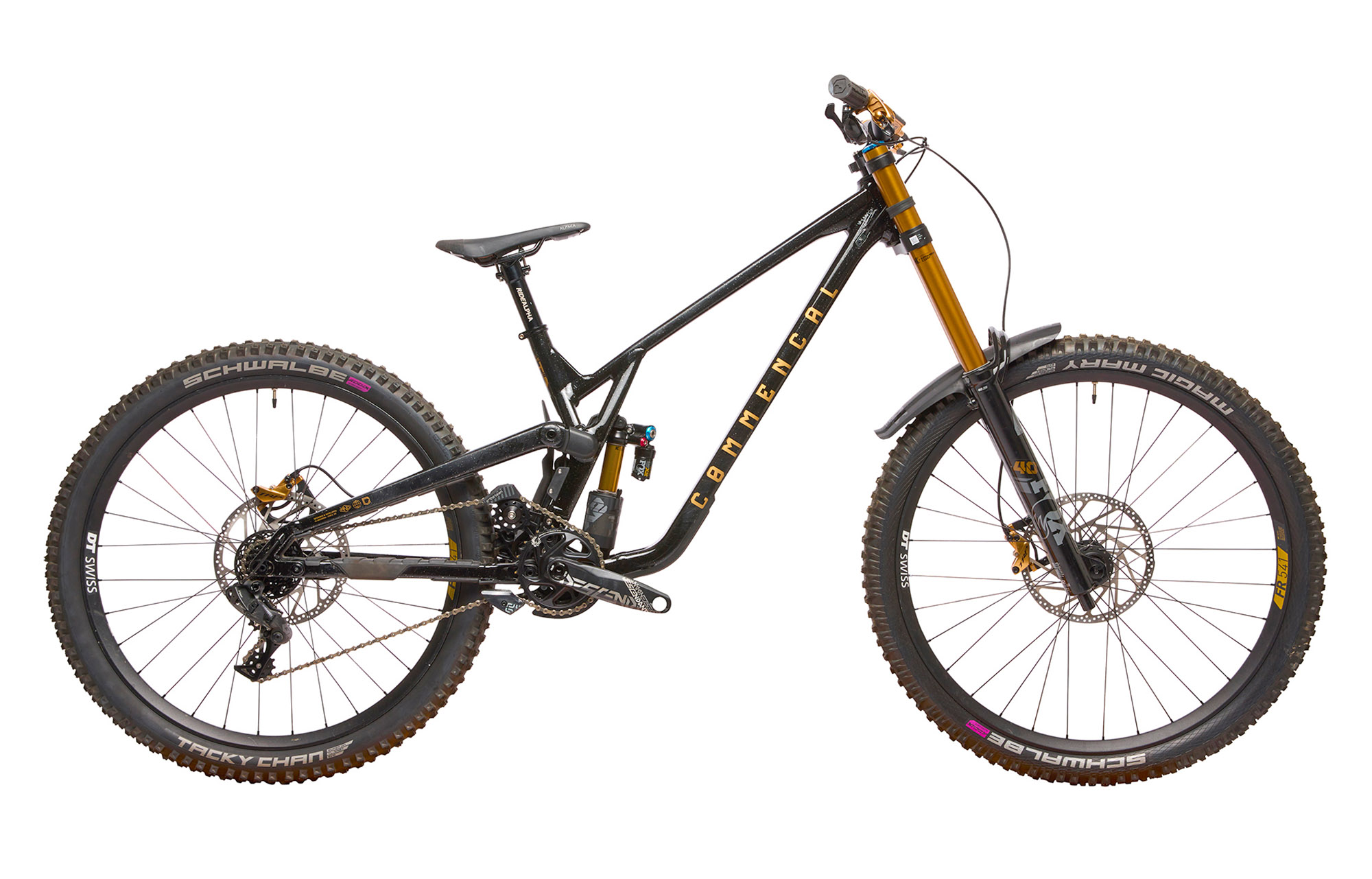

COMMENCAL SUPREME DH V5 SIGNATURE LTD GLITTERY BLACK - L (24152503)

Price reduced from A$ 10,818.18 excl. GST to A$ 8,627.27 excl. GST -20%
id/sku : OCAUS0092
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

- DESCRIPTION -

Our refurbished bikes come from a variety of fleets including:
Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage).
Each bike undergoes a thorough inspection and maintenance process:
Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced.
Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

- GENERAL -
Ridden bike in very good shape ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, rims and fork.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

For more information, feel free to get in touch.
*Please note that some components and accessories may vary from what is shown in the photos or specifications.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up
  • Wheel Base Length
    Centered
  • Bridge
    XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 29/27, 220 mm travel
    27/29'', Alloy 6066, triple butted tubes, T4, T6

  • Shock

    FOX Float X2 Factory
    250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 Spacer x3

  • Fork

    FOX 40 Factory, 203 mm travel
    29", Grip X2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacers

  • Headset

    CANECREEK ZS56/ZS56 SERIE 40
    Alloy cups, sealed bearings

  • Stem

    BURGTEC MK3
    45 mm extension, direct mount, 31.8 mm

  • Handlebar

    BURGTEC Ride Wide Alloy
    31.8 mm, 800 mm width, 30 mm rise on S / M / L / XL

  • Grips

    BURGTEC Bartender Pro Greg Minnaar Signature
    Single clamp, black

  • Brakes

    TRP DH-R EVO, 4 pistons, resin pads
    Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width
    Motostyle braking: front brake with right lever / rear brake with left lever

  • Shifters

    SRAM GX DH
    7s

  • Chain guide

    E13 LG1
    32-34t

  • REAR DERAILLEUR

    SRAM GX Eagle
    7s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM Descendant DH, 165 mm crank arms, DUB
    Chainring: SRAM Descendant DH, 34t

  • Chain

    SRAM PC 1130
    11s

  • Cassette

    SRAM PG-720 DH
    7s, 11-25t

  • Rims

    DT SWISS FR 541
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    DT SWISS DT 350
    Rear: 32h, sealed bearings, 12 x 157 mm, 36t, Sram XD - Front: 32h, sealed bearings, 20 x 110 mm Boost

  • Spokes/nipples

    DT SWISS Competition
    J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
    Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29"x2.4", Super DH, Addix Ultra Soft, Tubeless Easy

  • Seat post

    RIDE ALPHA
    31.6 mm, 250 mm

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    - kg / - lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Glittery Black
    Shiny Finish

  • Accessories

    Chainstay protector, seatstay protector, fork bumpers, downtube protector, Fox 40 fender
    *Please note that bike specs are subject to change without prior notice
