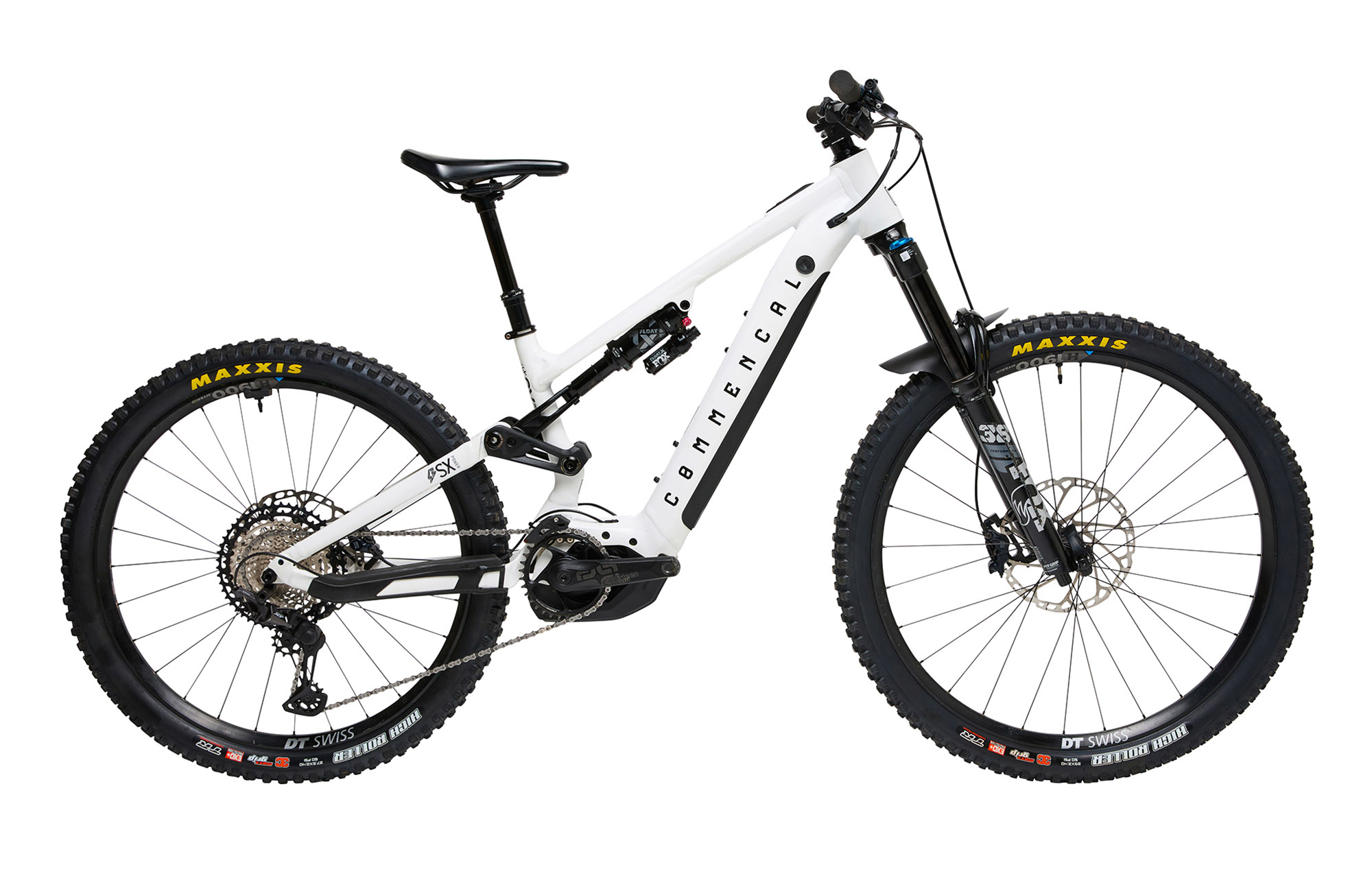

COMMENCAL META POWER SX BOSCH ESSENTIAL PURE WHITE - S (23181301) 1372km image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL META POWER SX BOSCH ESSENTIAL PURE WHITE - S (23181301) 1372km

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from A$ 9,727.27 excl. GST to A$ 7,627.27 excl. GST -22%
id/sku : OCAUS0101
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike 1372km in good shape ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, brakes, rims and fork.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

  • Frame

    META POWER SX BOSCH, 165 mm travel
    29"-27.5", Alloy 6066, triple butted tubes, T4, T6.

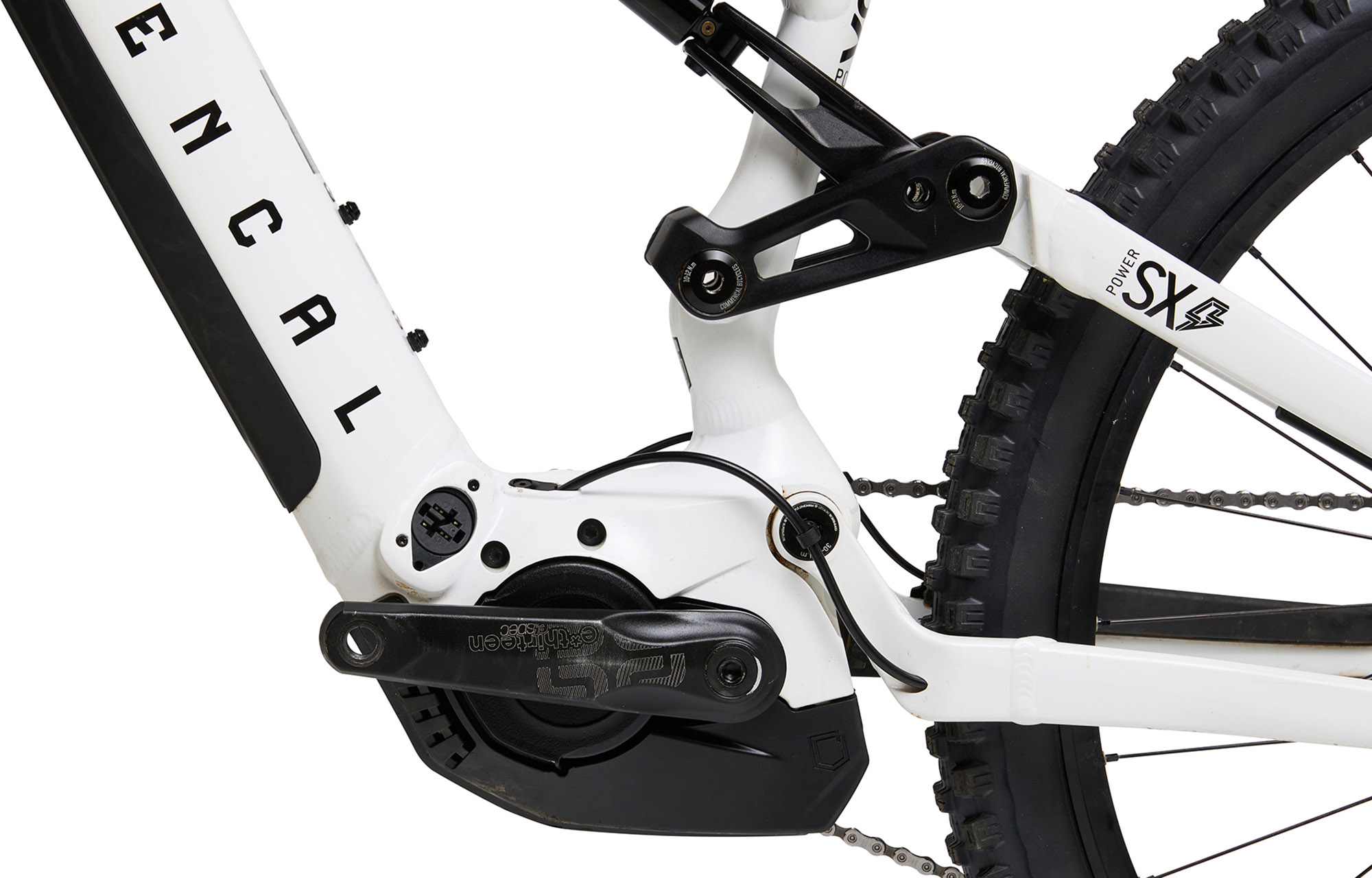

  • Motor

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    BOSCH Mini Remote currently not available in the USA

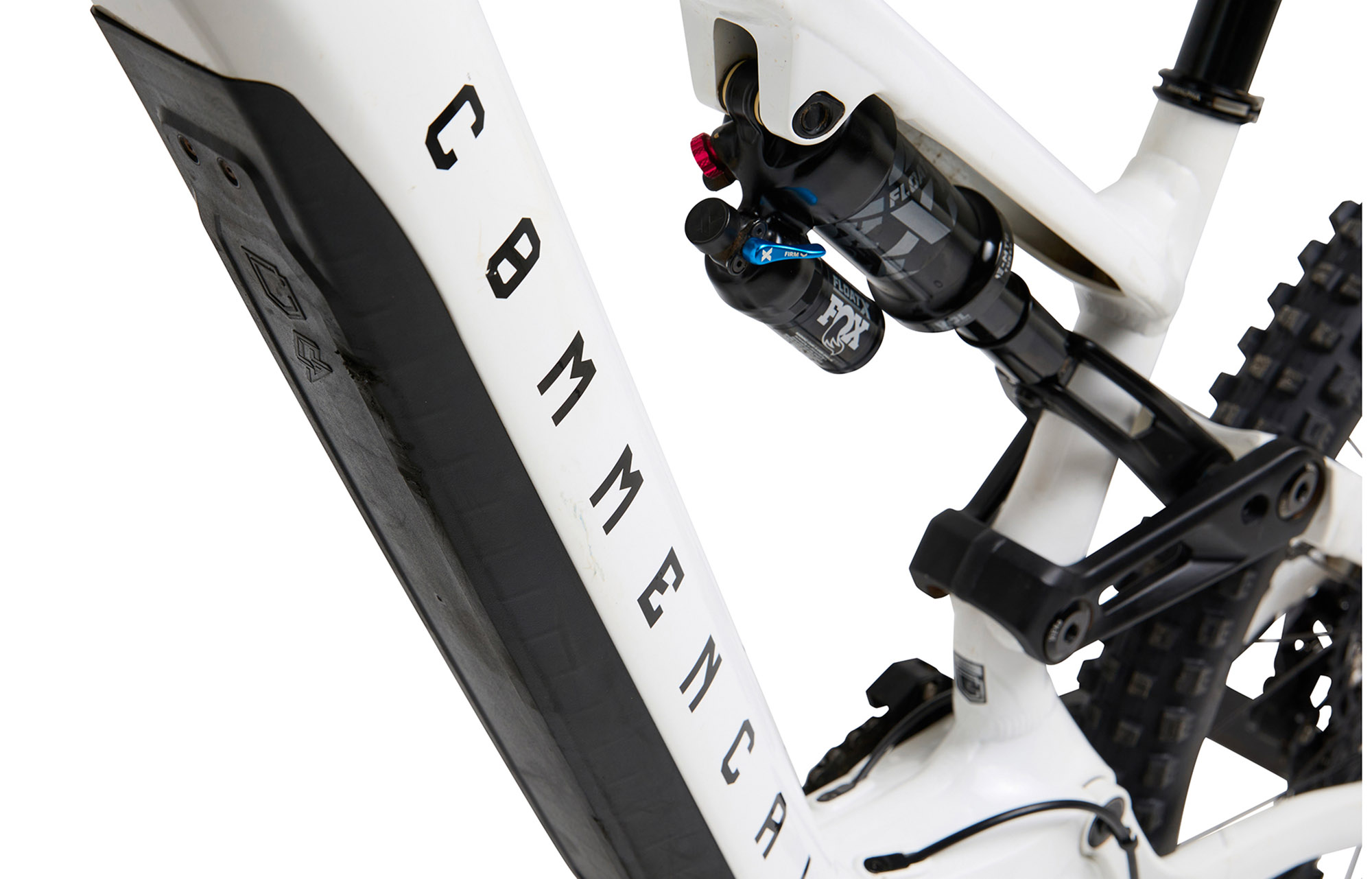

  • Shock

    FOX Float X Performance
    230 x 65 mm, LSC, rebound, 2-position open / firm lever, 0.6 spacer

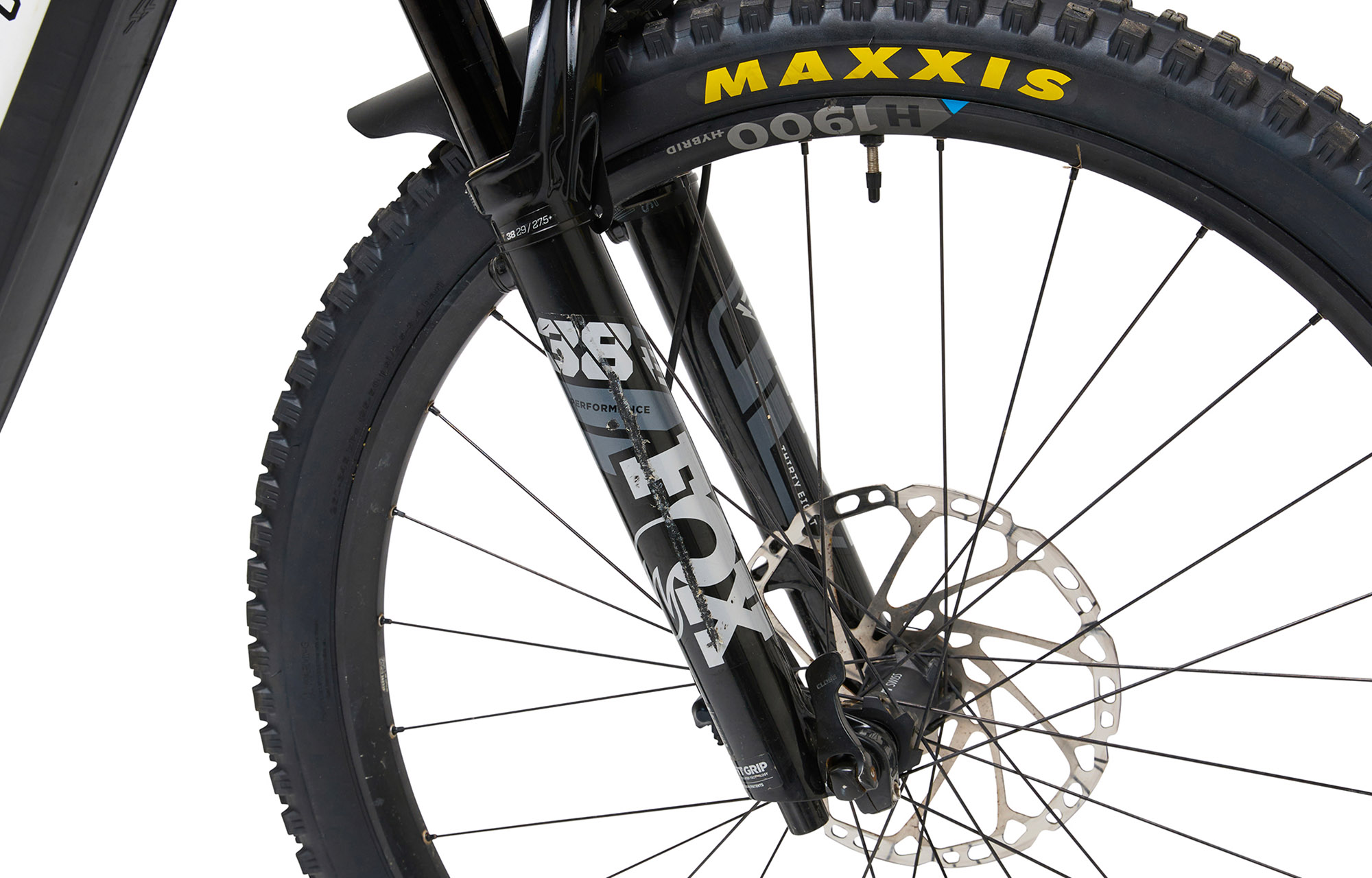

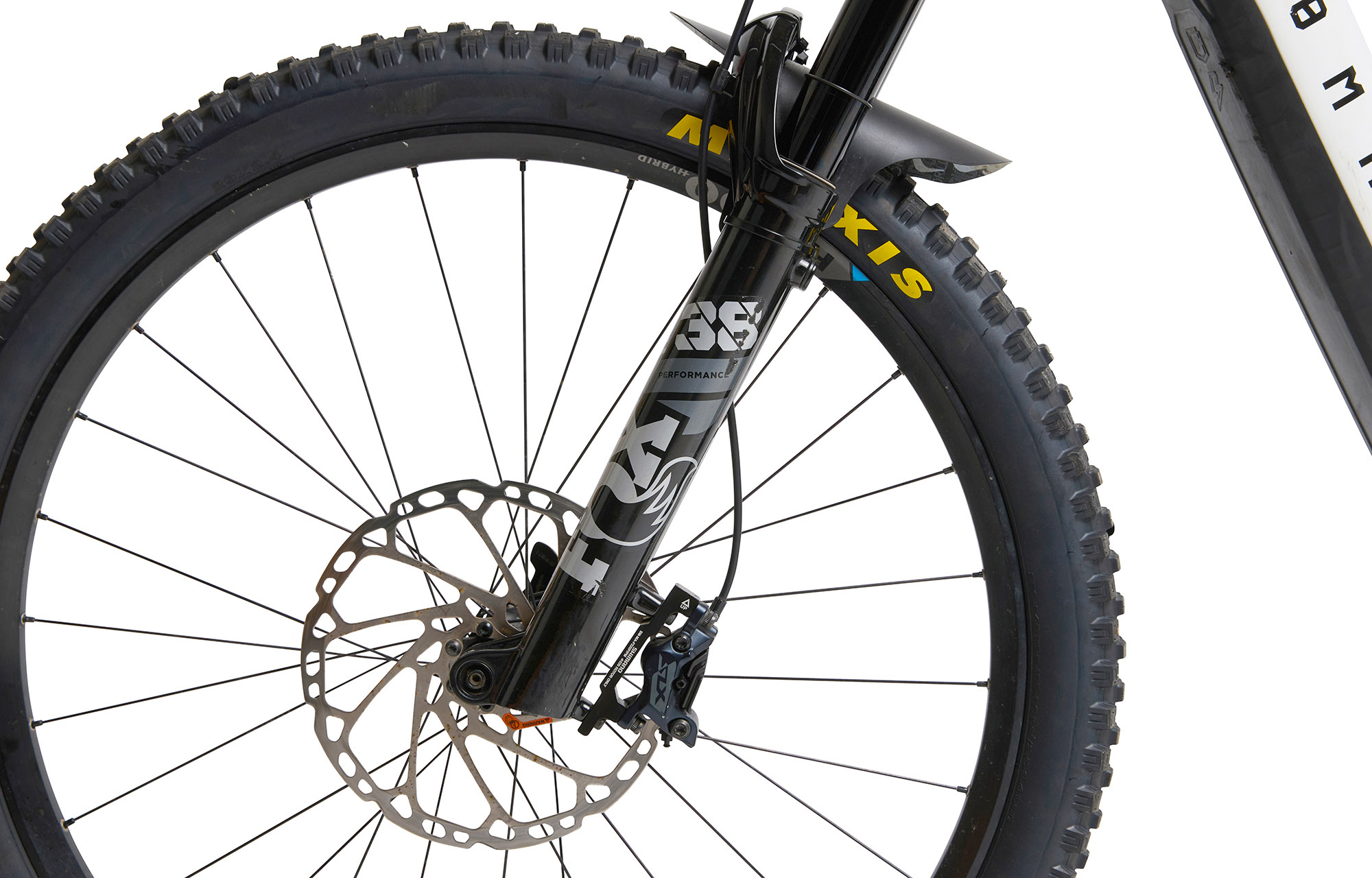

  • Fork

    FOX 38 Performance E-Bike, 170 mm travel
    29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacers

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 220 mm, 6-bolt

  • Shifters

    SHIMANO SLX
    12s, RapidFire Plus

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

  • REAR DERAILLEUR

    SHIMANO SLX
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus BOSCH CX, 160 mm crank arms
    Chainring: E13 E*Spec Plus BOSCH CX, 34t, direct mount

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO SLX
    12s, 10-51t

  • Rims

    Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
    Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 370 - Front: DT SWISS 370
    Rear: 28h, 12 x 148 mm, sealed bearings, 18t, e-bike specific - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS HIGH ROLLER - Front: MAXXIS HIGH ROLLER

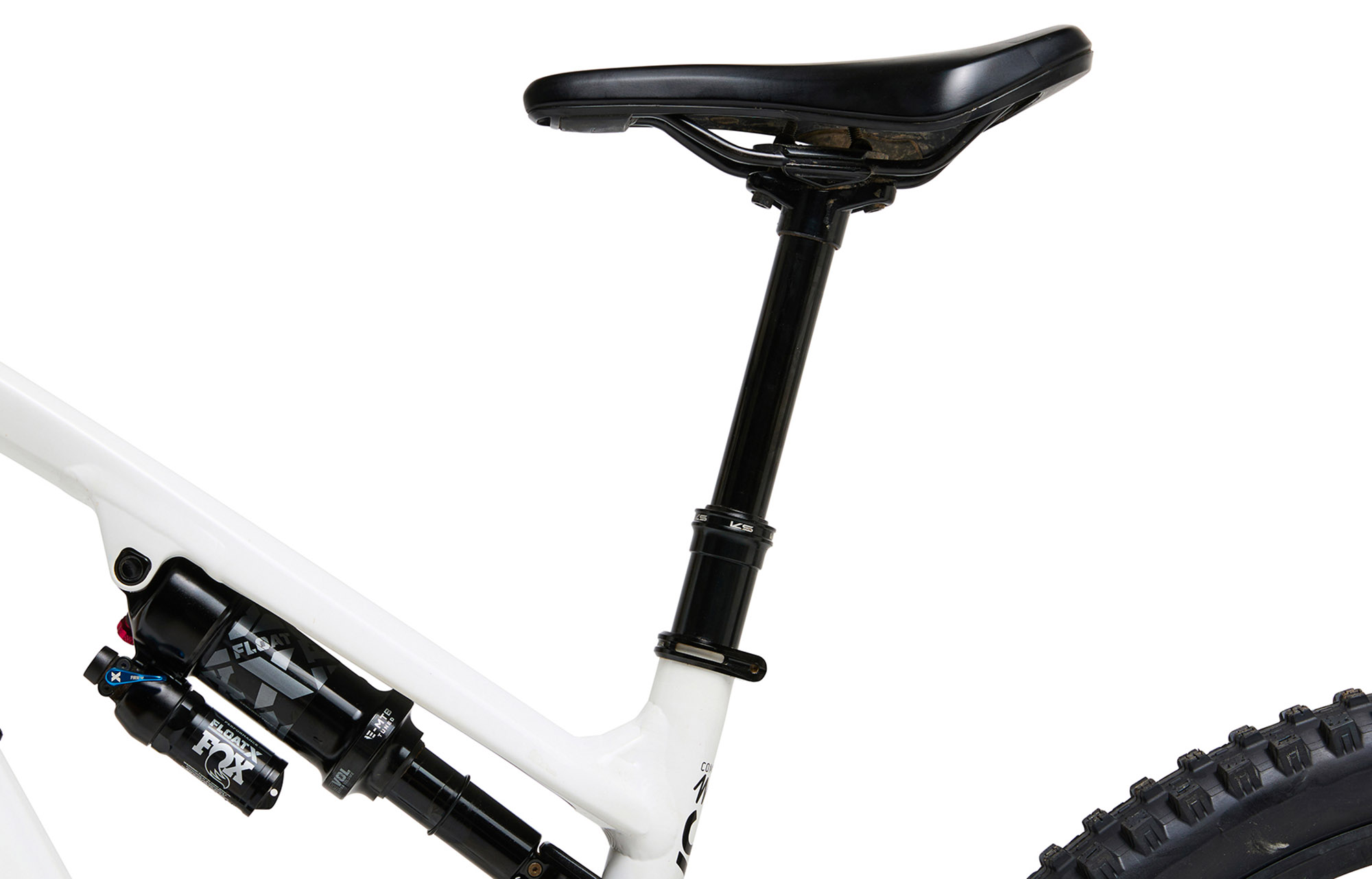

  • Seat post

    KS Rage I
    31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X5
    145 mm width, S-Alloy Mobius rails

  • Weight

    25 kg / 55.11 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Pure White
    Shiny Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
    *Actual product may differ from pictures.
    *Please note that bike specs are subject to change without prior notice

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    E-BIKE ENDURO 29''/27''

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    - kg / - lb - With plastic accessories

  • Rear travel

    165 mm

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm front

  • Recommended/max. fork height

    583 mm / 593 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 - 584 mm

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH E-BIKE

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    12 x 148 mm

  • Bicycle type

    E-bike - Enduro / Freeride

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb

  • Rear travel

    165mm

  • Shock length/stroke

    230x65mm

  • Recommended SAG

    26-30% / 17-20mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Included - 20x10mm

  • Recommended/max. fork height

    583mm / 593mm

  • Headset type

    ZS56 / ZS66

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 160mm

  • Rear brake rotor max. size

    220mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 220mm / M : 240mm / L : 270mm / XL : 280mm

  • Motor Crankarms interface

    BOSCH CX Gen4

  • Chain guide

    Custom upper guide

  • Chain line

    53

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

Geometry

SIZE
SLow / High
MLow / High
LLow / High
XLLow / High
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,6° / 78°
77,6° / 78°
77,6° / 78°
77,6° / 78°
3 - HEAD TUBE ANGLE
63,6° / 64°
63,6° / 64°
63,6° / 64°
63,6° / 64°
4 - HEAD TUBE LENGTH
120
125
130
130
5 - WHEELBASE
1243 / 1242
1265 / 1264
1297 / 1296
1331 / 1330
6 - TOP TUBE LENGTH
578 / 576
599 / 597
625 / 623
650 / 648
7 - CHAIN STAY LENGTH
445 / 444
445 / 444
450 / 449
450 / 449
8 - BOTTOM BRACKET HEIGHT
-1,5 / 4
-1,5 / 4
-1,5 / 4
-1,5 / 4
9 - FORK LENGTH
586
586
586
586
10 - FORK OFFSET
51
51
51
51
11 - REACH
436 / 440
456 / 460
481 / 485
506 / 510
12 - STACK
634 / 631
639 / 636
643 / 640
643 / 640

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
