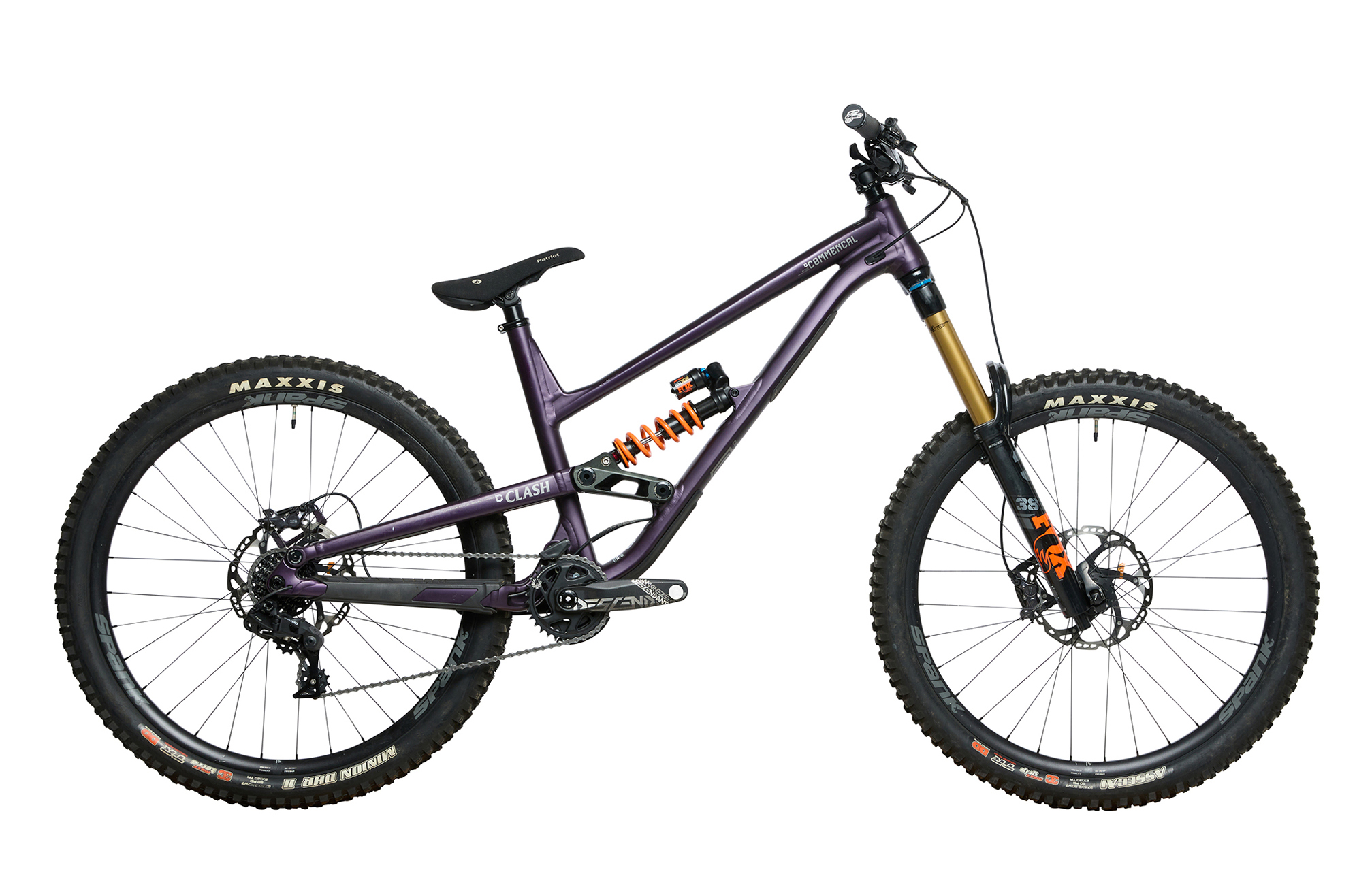

COMMENCAL CLASH PARK EDITION METALLIC PURPLE - L (22131703)
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike ready for a new start.
- AESTHETIC -

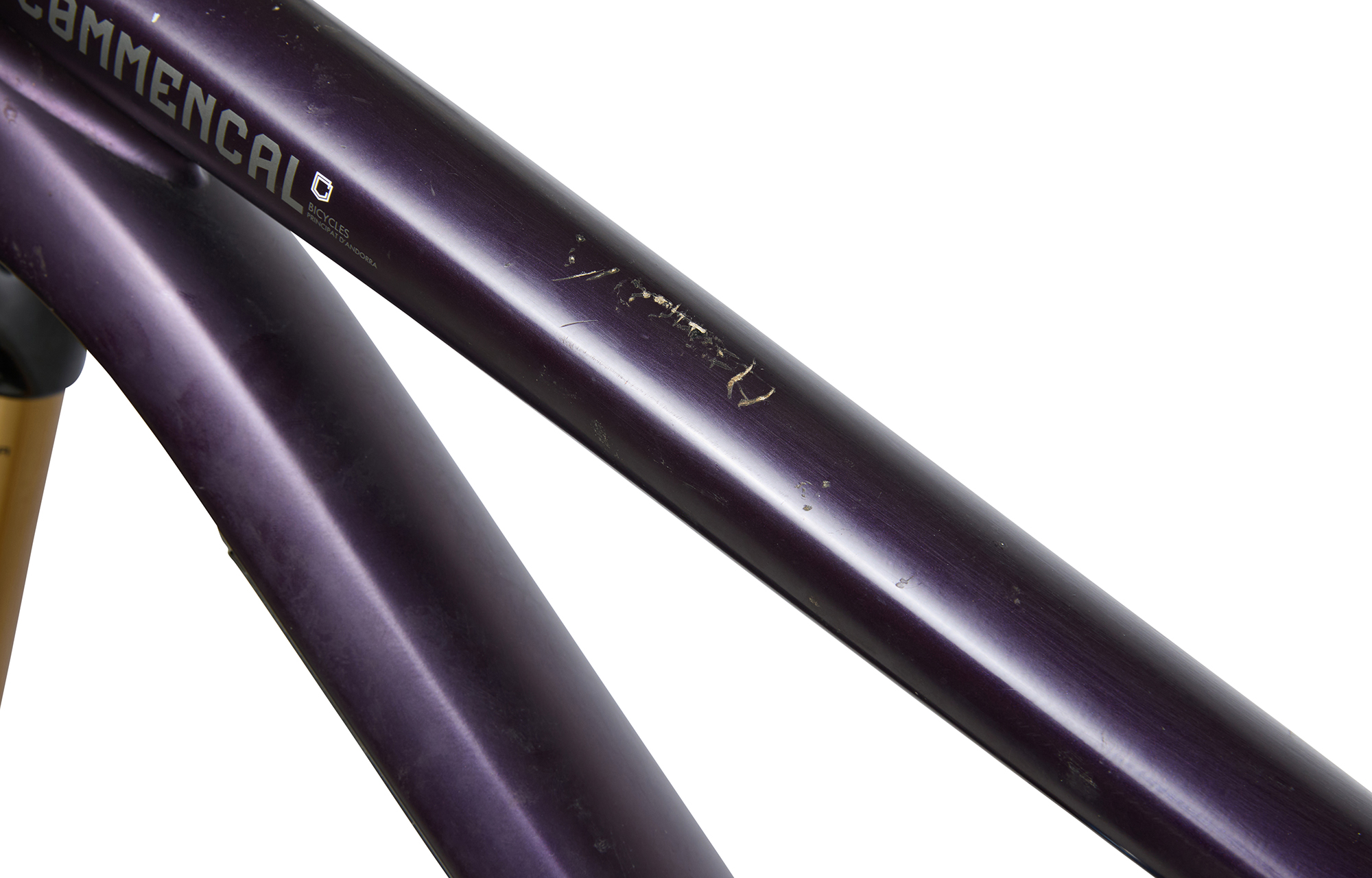

Scratches and paint chips on frame.

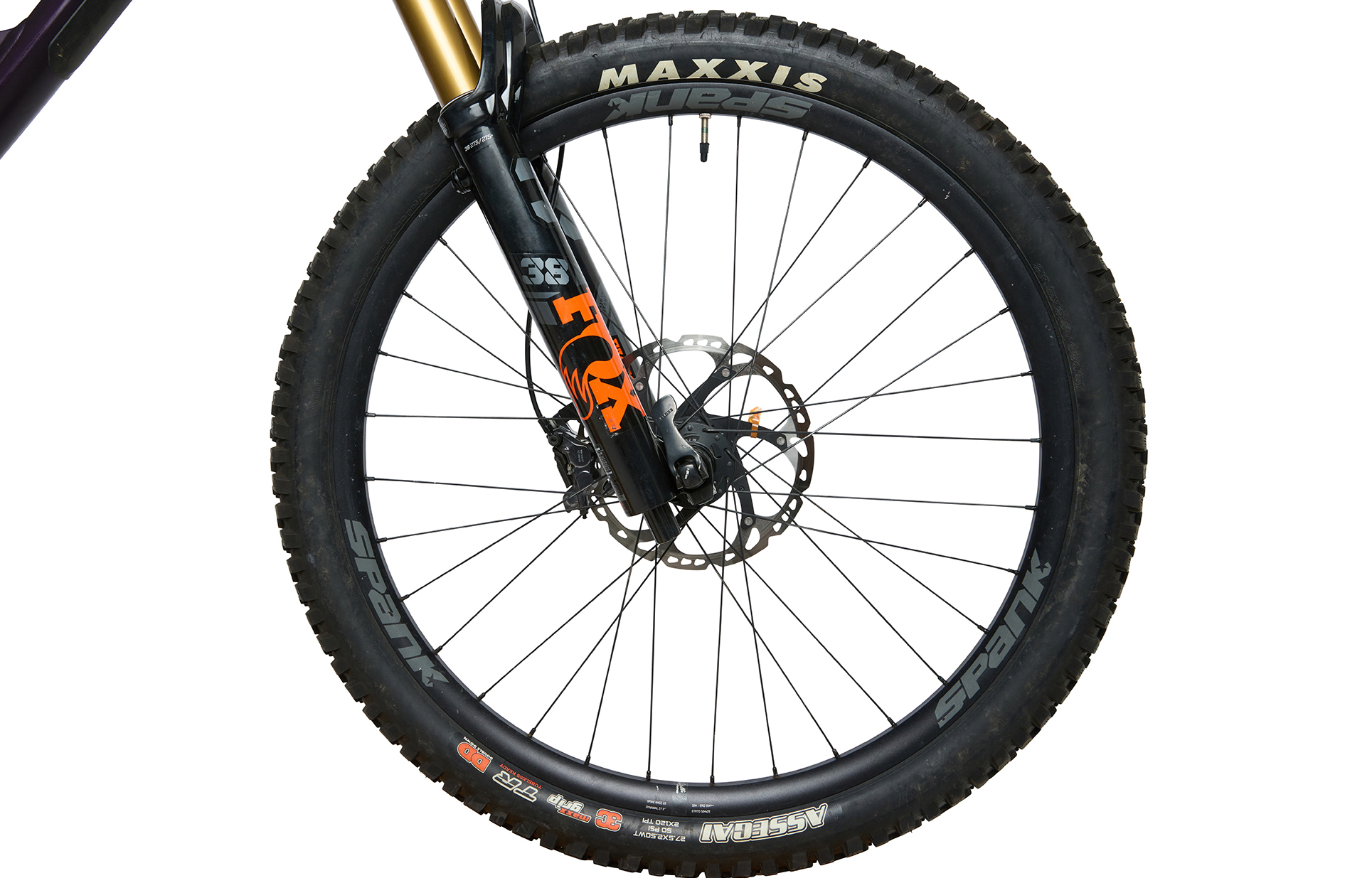

Scratches on rims, crank arms and fork.
- MECHANICAL -

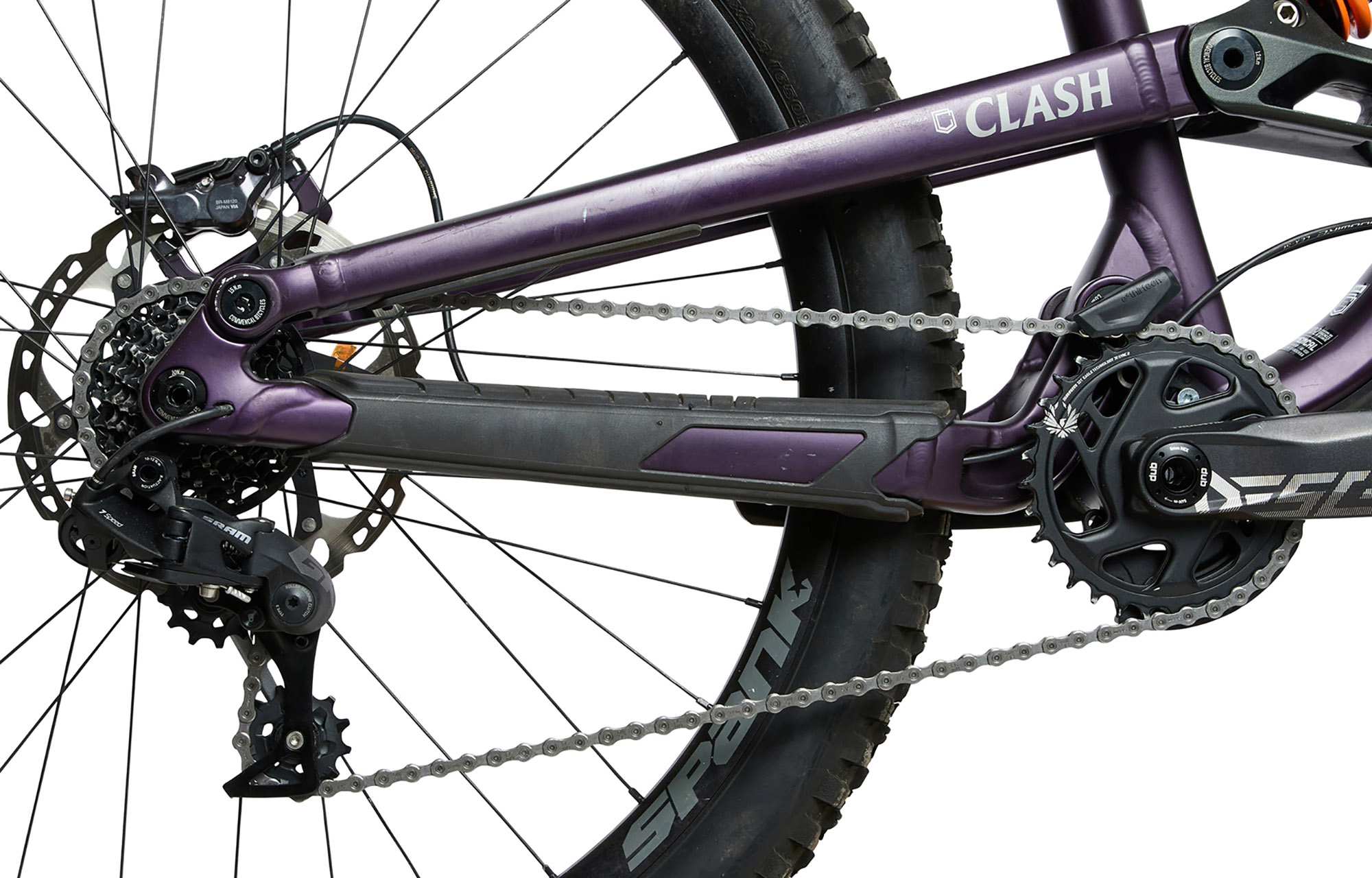

New derailleur.
New cassette.
New chain.

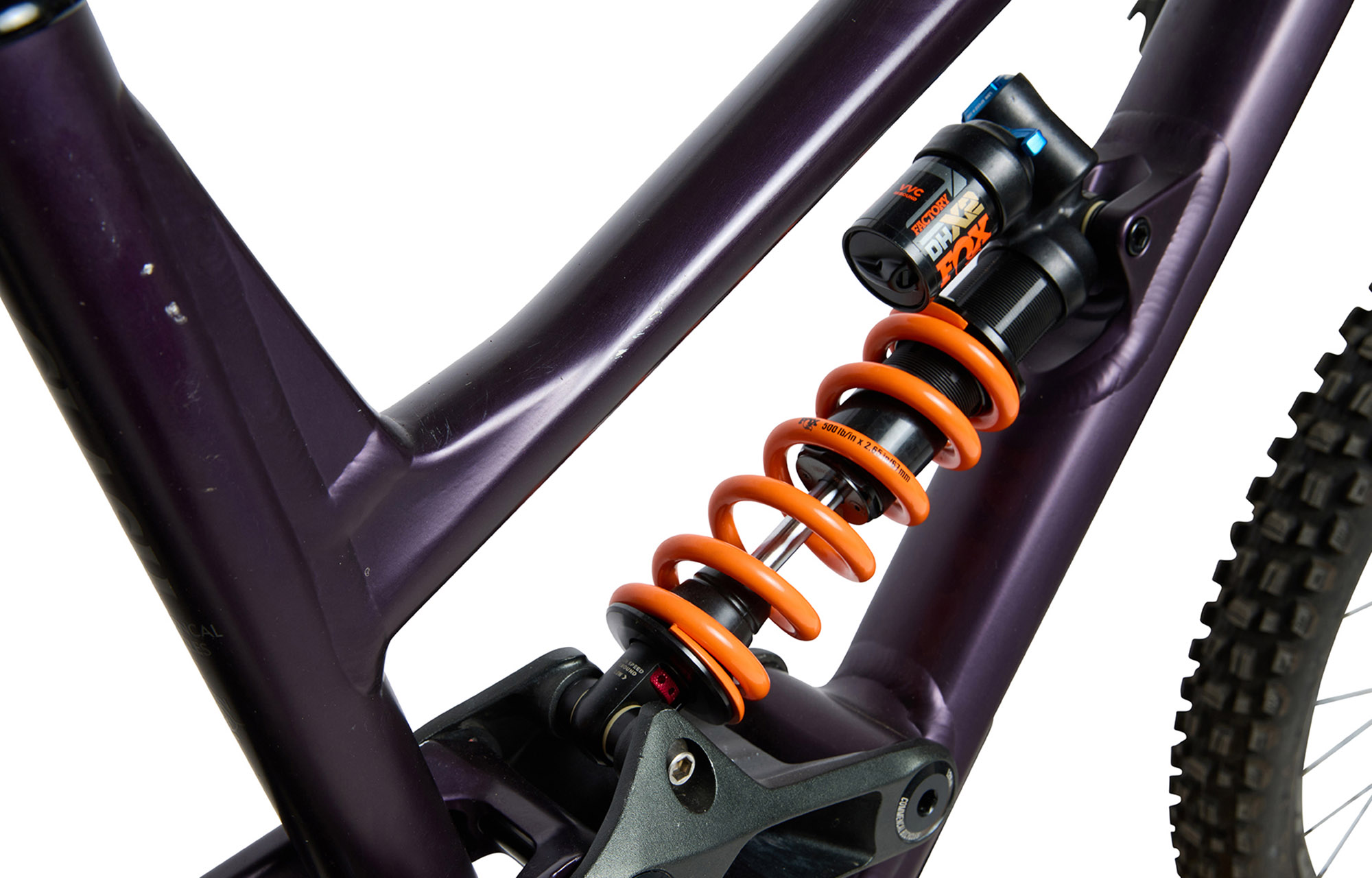

Serviced shock absorber and fork.

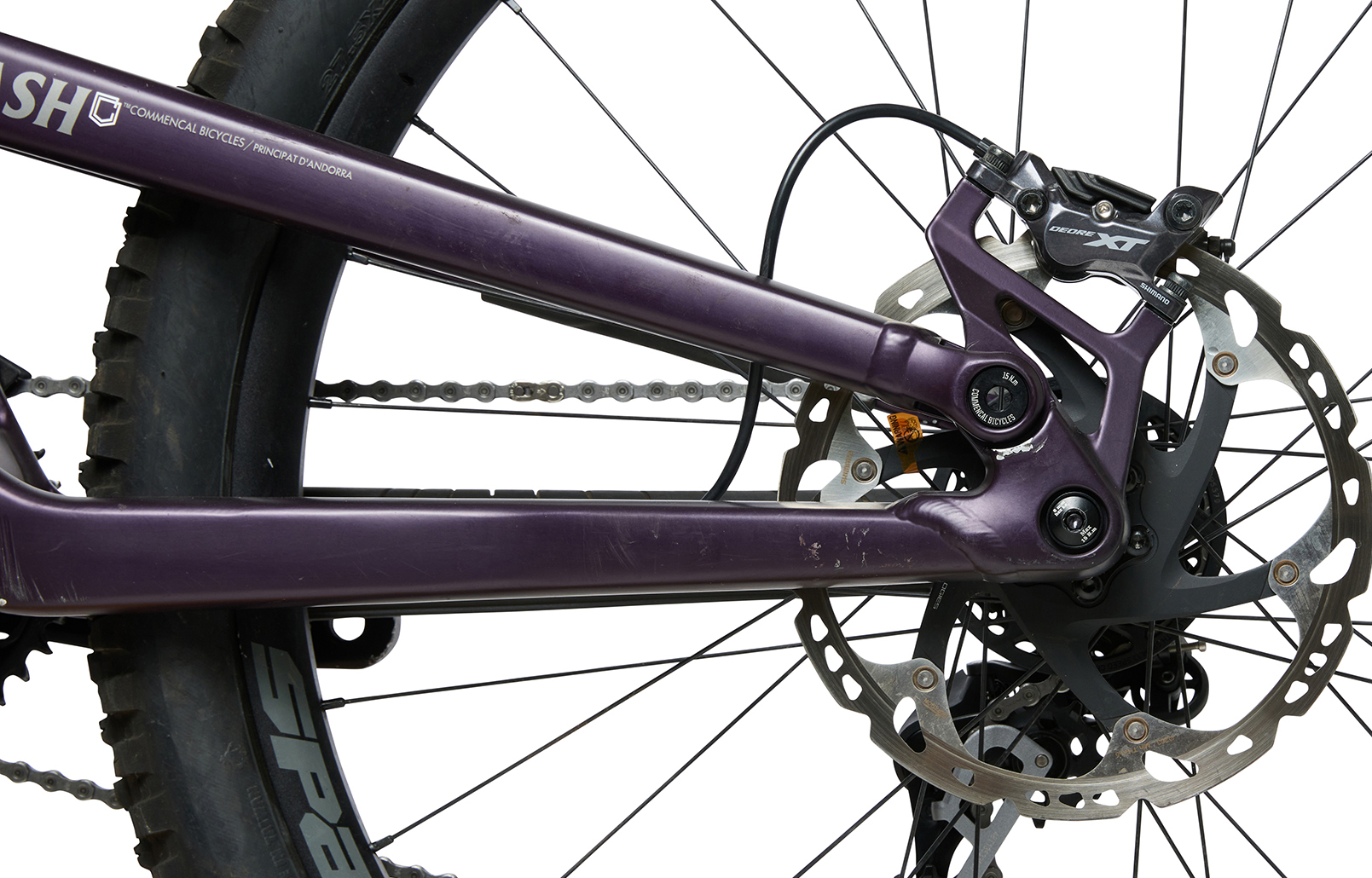

Brakes bleed, pads changed.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
CLASH, 170 mm travel
27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearingsShock
FOX DHX2 Factory
230 x 65 mm, HSC, LSC, HSR, LSR. 2-position (open / firm) lever. Spring rates : 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL.Fork
FOX 38 Factory, 180 mm travel
27.5", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 37 mm offset, 1 spacerHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
TITLE ST1 35
40 mm extension, 35 mm, Alloy 6061 T6, oil slick stainless steel boltsHandlebar
TITLE AH1 35
35 mm, 810 mm width, 20 mm rise, Alloy 7050 T74Grips
RENTHAL
Brakes
SHIMANO XT, 4 PISTONS, I-SPECS EV COMPATIBLE OR TRP DH-R EVO, 4 PISTONS
Rotors: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology Freeza or TRP R1 203mm, 6-bolt, 2.3 mmShifters
SRAM GX DH
7sChain guide
E13 TRS
30 - 32tREAR DERAILLEUR
SRAM GX DH
7sBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant X-Sync, 32tChain
KMC X11
Cassette
SRAM GX DH
7s, 11 - 25tRims
SPANK Spike Race 33
27.5'', 32h, 28 mm inner width, Tubeless ReadyHubs
Rear: SPANK Spike - Front: SPANK Spike
Rear: HEX J-Type, 32h, 2 sealed bearings, 12 x 148 mm, XD, black - Front: HEX J-Type, 32h, 2 sealed bearings, 15 x 110 mm, blackSpokes/nipples
SPANK J-Hook
J-Bend, tripple butted 2.2/1.8/2.0, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
SDG Micro I-Beam
31.6 mm, 250 mm lengthSaddle
SDG Patriot I-Beam
31.6 mm, 250 mm length, diameter reducerWeight
15,6 kg / 34.39 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
METALLIC PURPLE
Matte FinishAccessories
down tube protector, chainstay protector, seatstay protector, shuttle pad, specific fox 38 fender
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
Bicycle type
ENDURO / FREERIDE
Frame material
AL 6069 T4, T6
Frame weight
4 kg / 8.81 lb
Rear travel
Adjustable via flip chip: 170 mm on Sensitive position / 155 mm on Responsive position
Shock length/stroke
230 mm x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm on body - 30 x 10 mm on shaft
Recommended/max. fork height
572 mm / 586 mm
Headset dimension
Tapered
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - moyeu 148 x 12 mm standard maxle
-
Bicycle type
Enduro / Freeride
-
Frame material
AL 6069 T4, T6
-
Frame weight
4,1 kg / 9.03 lb
-
Rear travel
155mm / 170mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
26-30% / 17-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x8mm / 30x10mm
-
Recommended/max. fork height
572mm / 586mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
27.5’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 250mm / M-L-XL : 275mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
-
shock anchor adjustment
2 positions
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
