Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.
COMMENCAL META HT XS CHAMPAGNE (22170400)
Demo, rental, press, teams, bike patrols, showroom, new bikes (damaged): our refurbished bikes come from a variety of fleets. Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
THESE BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Showroom Delivery
Choose to pick up your order at our COMMENCAL Australia showroom (Mona Vale, NSW) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ex-display bike never ridden, as good as new.
- AESTHETIC -

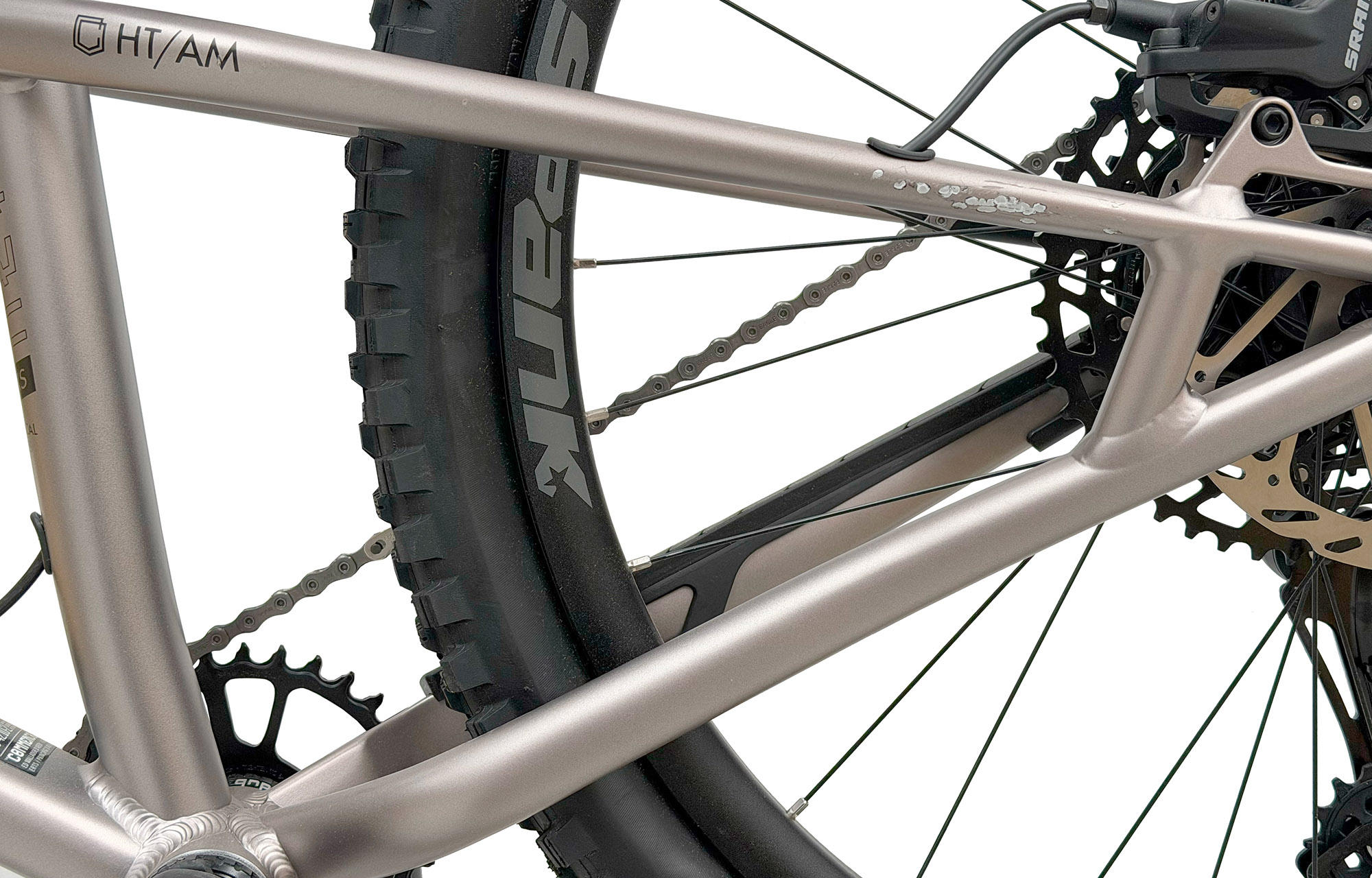

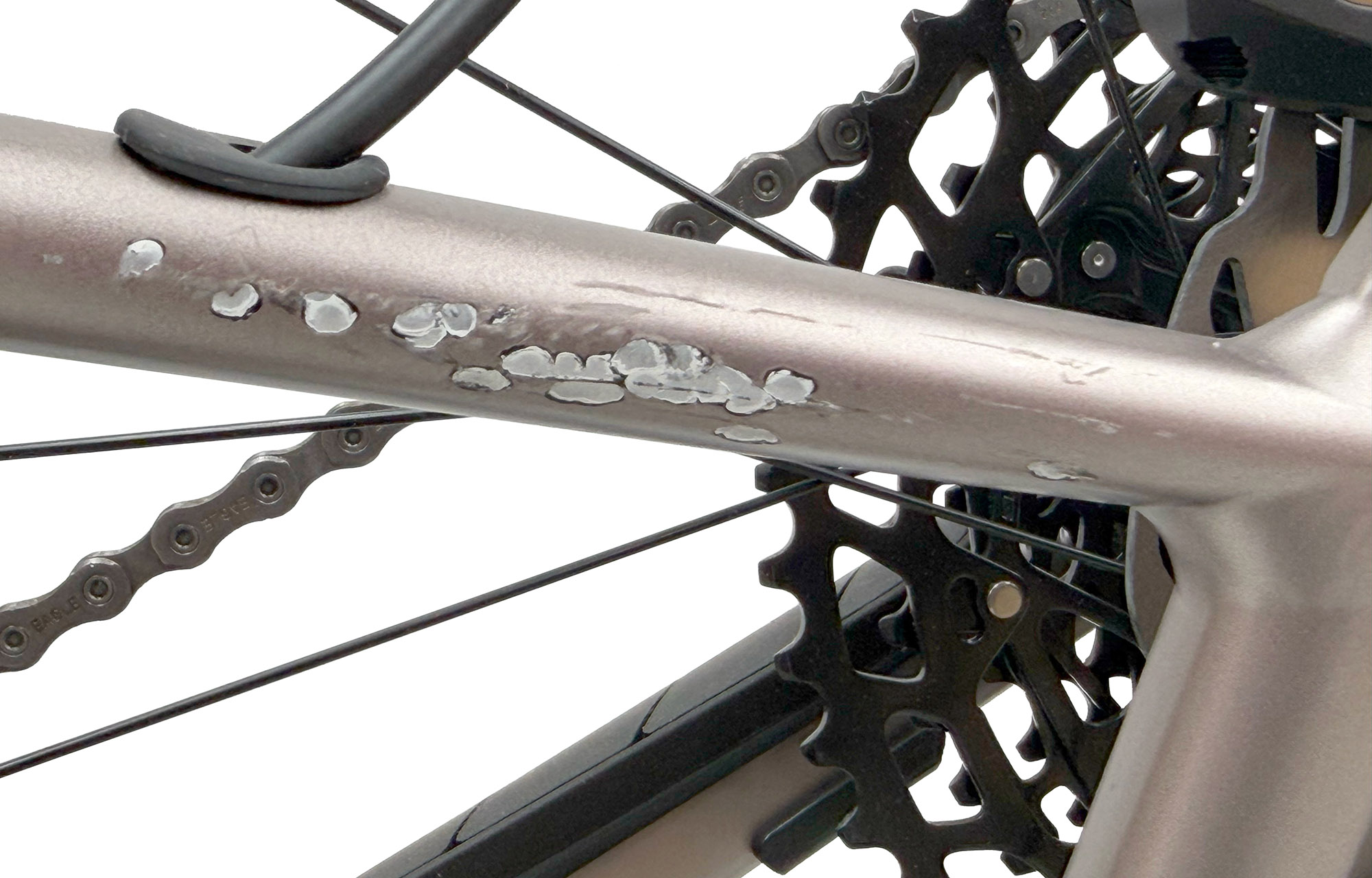

Scratches and paint chips on left seat stay (transport and storage).
- MECHANICAL -
Fully checked.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META HT XS
26’’-27.5'', Alloy 6061, triple butted tubes, T4, T6Fork
ROCKSHOX Gold RL, 150 mm travel
27.5'', Motion Control Damper, Debonair, LSC to lock, rebound, Boost (15 x 110 mm), 37 mm offset, 0 TokenHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40 mm
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20
31,8 mm, 740 mm width, 20 mm rise, Alloy 6061Grips
RIDE ALPHA DH
Ultra-soft compound, single clamp, blackBrakes
SRAM Level, 2 pistons, Hydraulic disc brake
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-boltShifters
SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
ThreadedCrankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK Spoon 32
Rear: 26'', 32h, 26.5 mm inner width - Front: 27.5'', 32h, 26.5 mm inner width, tubetypeHubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 26'' x 2.40'', WT, Dual Compound, EXO, TR - Front: 27.5'' x 2.40'', WT, 3C MaxxTerra, EXO, TRSeat post
KS Rage-I
31,6 mm, travel: 100 mm, SouthPaw alloy remoteSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
14 kg / 30.86 lb
Without pedals. Weight may differ slightly due to manufacturing tolerancesPedals included
No
Colour
Champagne
Matte FinishAccessories
Chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Kids bike - All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
NC
-
Recommended/max. fork height
520mm / 530mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
27.5’’ - 26’’
-
Max. rear tyre dimension - ETRTO
64mm - Ø559mm
-
rear brake mounting type
IS 160mm
-
Rear brake rotor max. size
180mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
240mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Chain line
52
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
