COMMENCAL META SX V5 RACE PURE WHITE image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

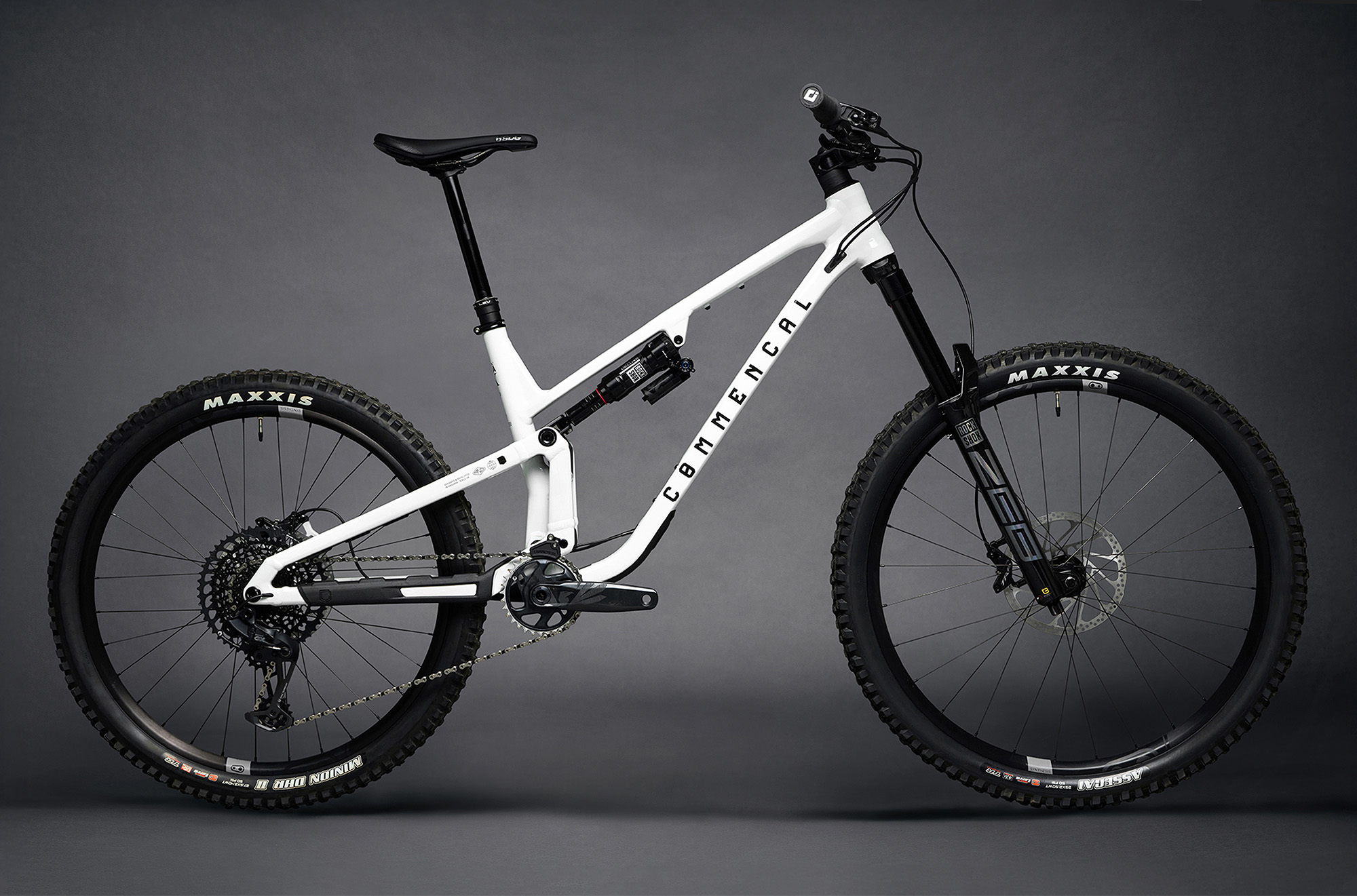

COMMENCAL META SX V5 RACE PURE WHITE

This UNIQUE model is produced in a single version with an exclusive colour, and benefits from hand assembly in our workshop.

LEARN MORE ABOUT THIS BIKE
A$ 7,545.45 excl. GST
id/sku : 23METASXTMWL
  SIZE GUIDE
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

COMMENCAL META SX V5 RACE PURE WHITE image cover number large 0
COMMENCAL META SX V5 RACE PURE WHITE image cover number large 1
COMMENCAL META SX V5 RACE PURE WHITE image cover number large 2
COMMENCAL META SX V5 RACE PURE WHITE image cover number large 3
COMMENCAL META SX V5 RACE PURE WHITE image cover number large 4

In fresh white complimented by black components, this META SX V5 is built for pure performance. RockShox suspension, a ZEB Ultimate fork and Super Deluxe shock, bring out its full potential on rough terrain. TRP DH-R EVO brakes offer standout modulation and consistency. CRANKBROTHERS Synthesis Enduro aluminium wheels maximize grip and control through every corner. The SRAM GX Eagle 12-speed drivetrain with a 10-52 cassette completes a package ready to conquer any gradient.

specifications

  • Frame

    META SX V5, 165 mm travel
    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6

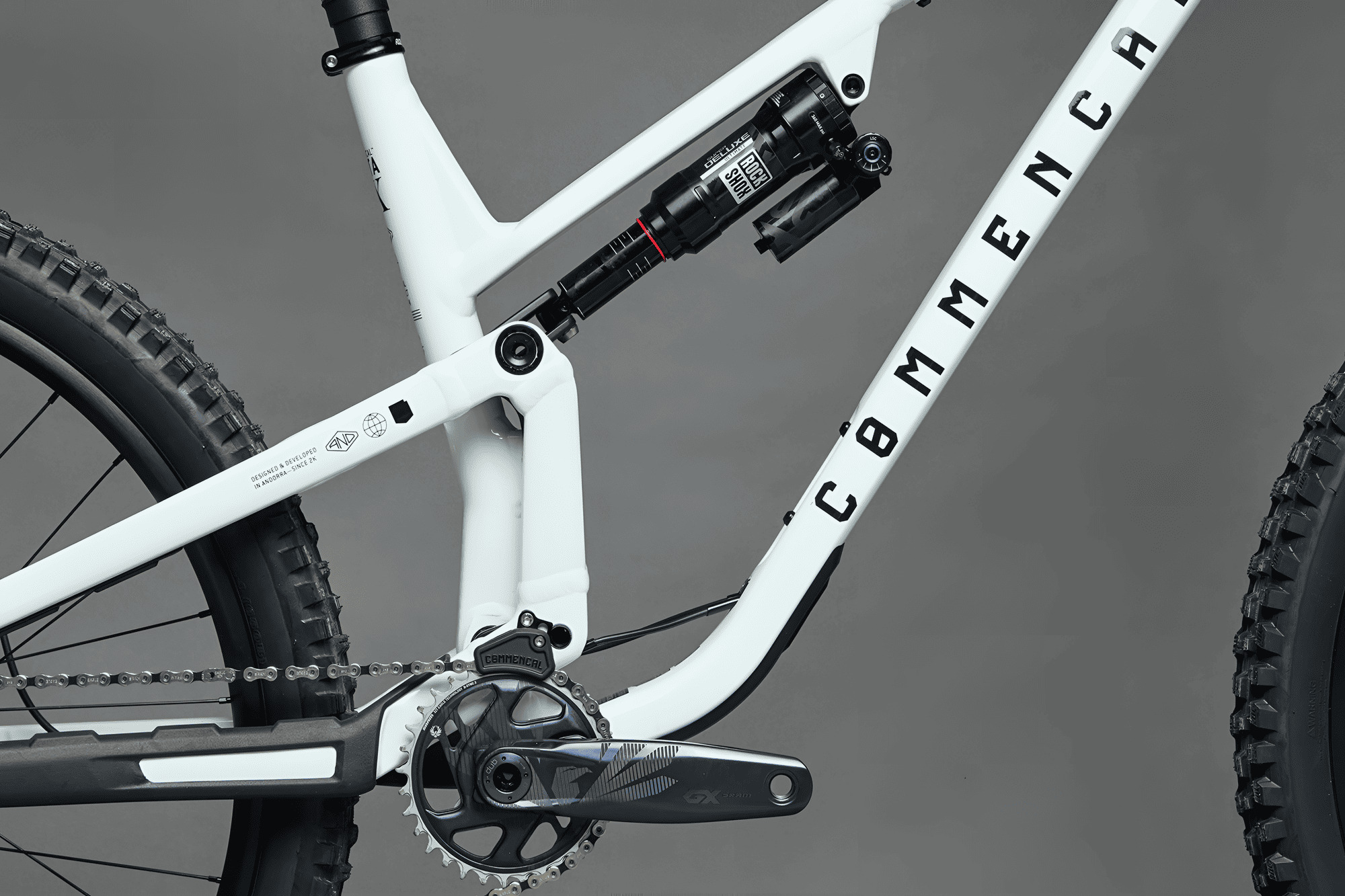

  • Shock

    ROCKSHOX Super Deluxe Ultimate
    230 x 65 mm, RC2T damper, DebonAir, HSC, LSC, rebound, 2-position (open/firm) compression, 0 Token neg. 2 Tokens pos.

  • Fork

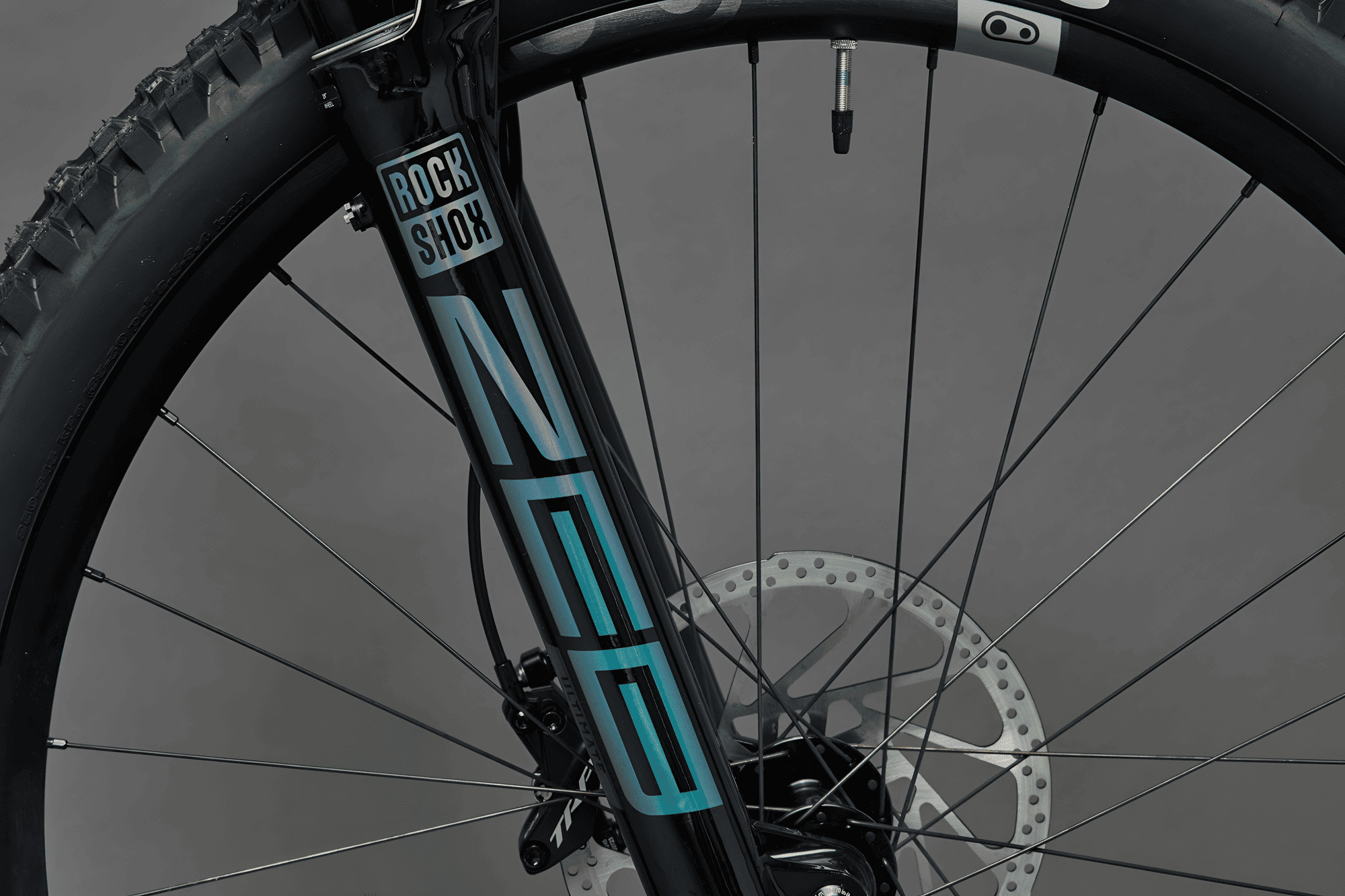

    ROCKSHOX ZEB Ultimate, 170 mm travel
    29", Charger 3 RC2 W/ButterCup damper, DebonAir+ W/ButterCups, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061

  • Grips

    ODI Longneck
    Soft compound, single clamp, black

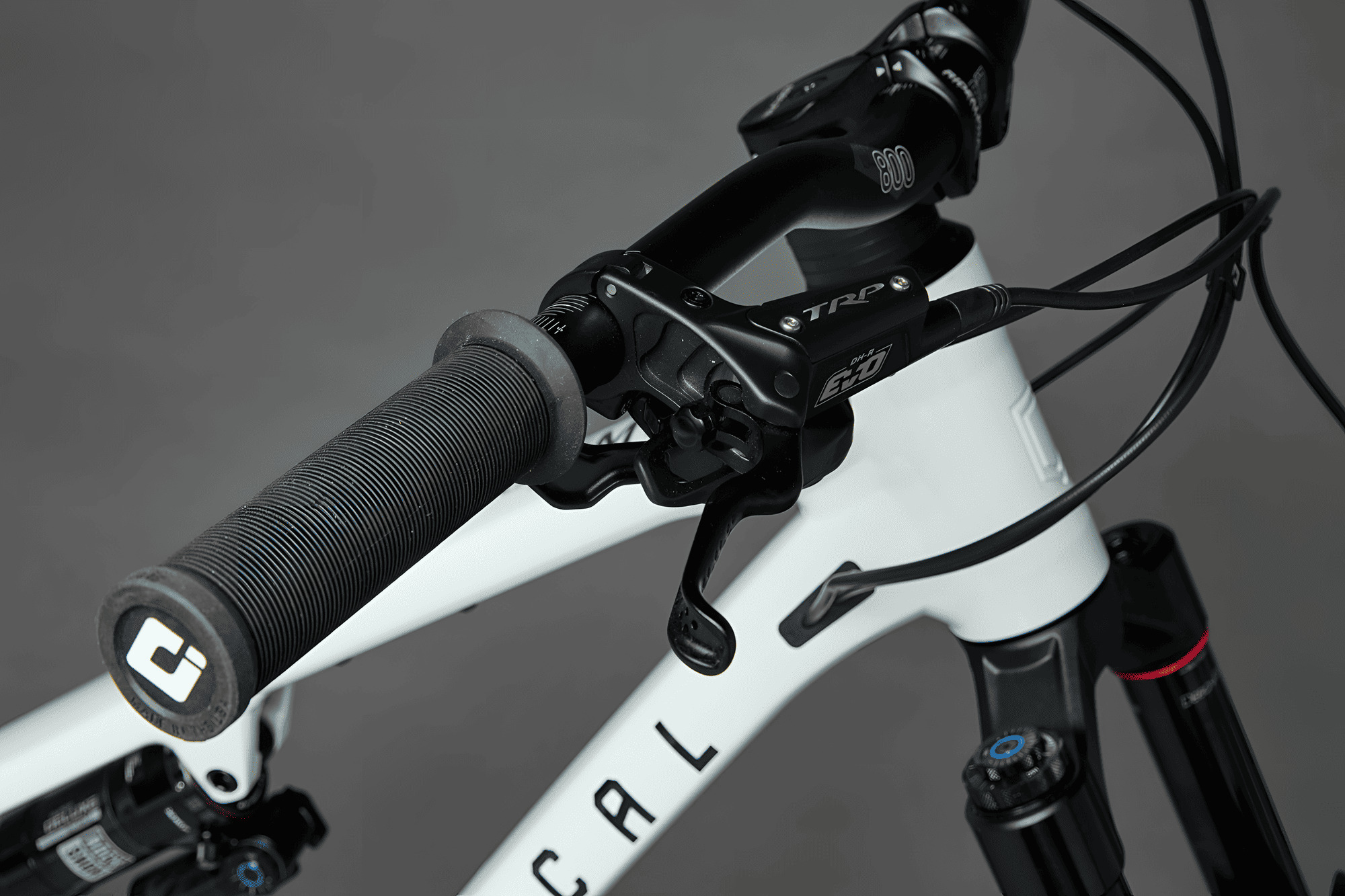

  • Brakes

    TRP DH-R EVO, 4 pistons, resin pads, Postmount
    Rotors: TRP R1 203 mm, 6-bolts, 2.3 mm width

  • Shifters

    SRAM GX Eagle
    12s

  • Chain guide

    RIDE ALPHA
    32t-34t

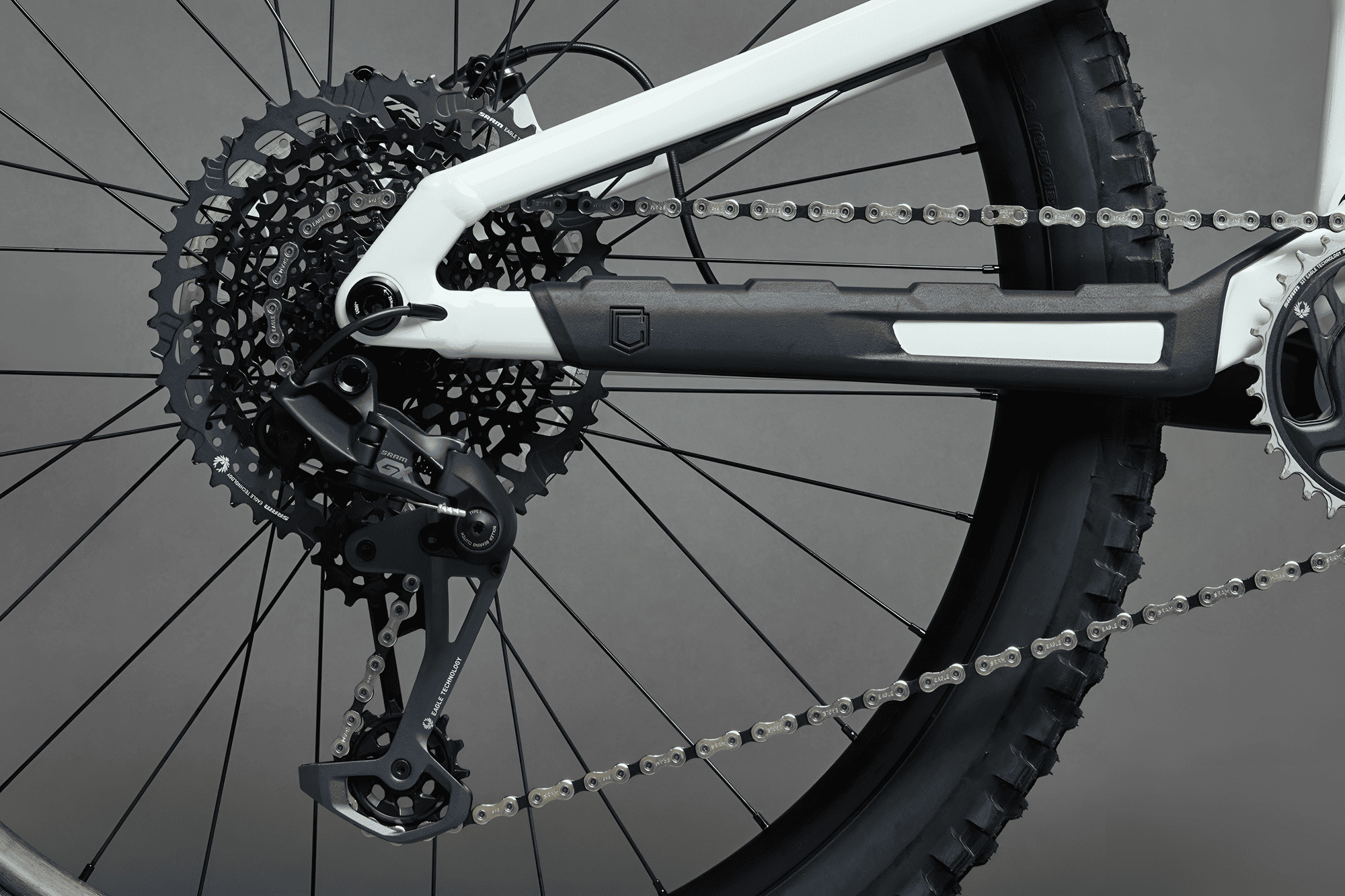

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB WIDE
    Pressfit

  • Crankset

    SRAM GX Eagle, 165 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    CRANK BROTHERS Synthesis Alloy Enduro
    Rear: 27,5'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner width

  • Hubs

    INDUSTRY NINE 1/1
    Rear: 32h, sealed bearings, 12 x 148 mm, 4°, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    Rear: SAPIM Race - Front:  SAPIM D-Light
    Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm,  double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready

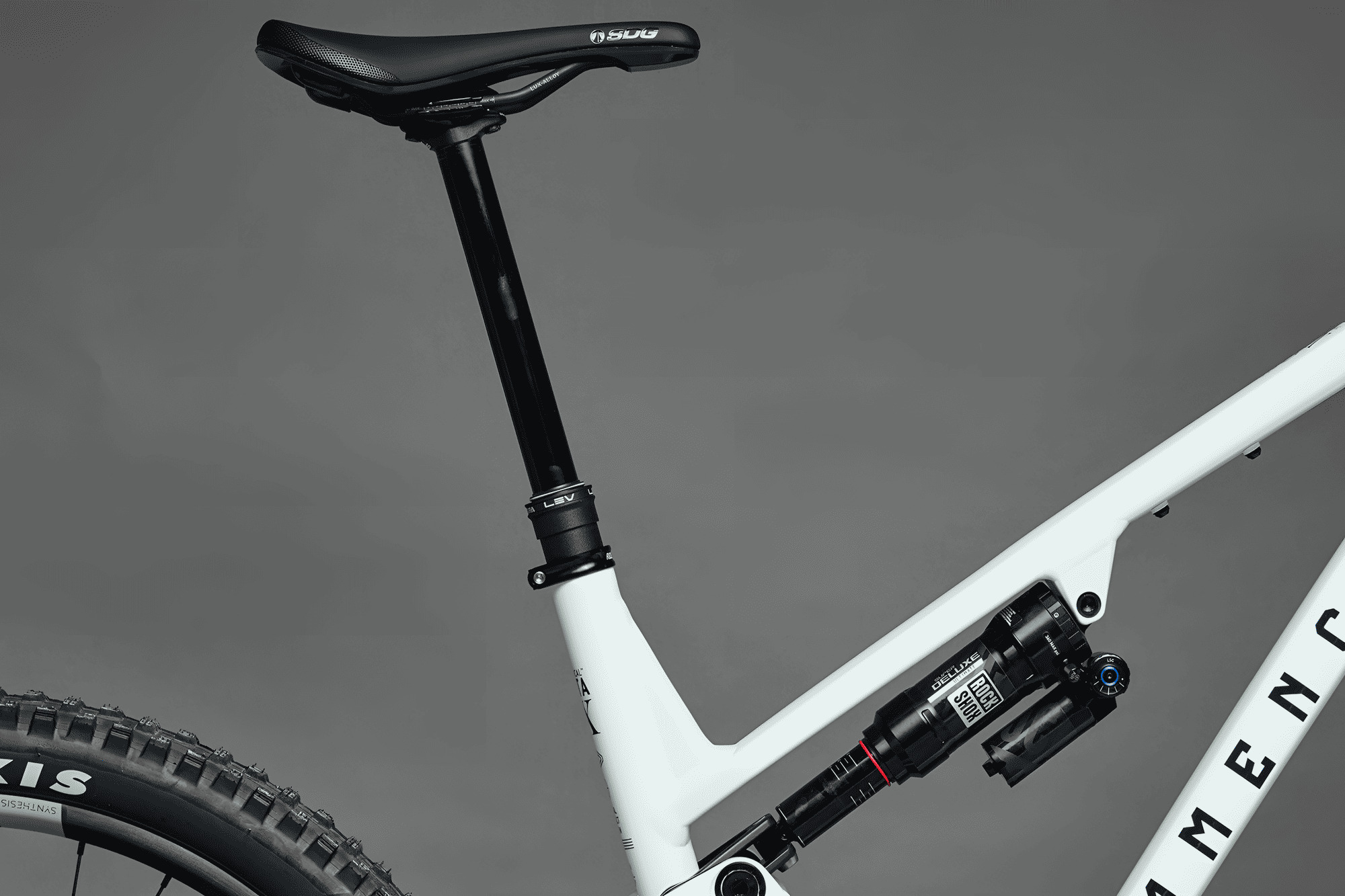

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 200 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3 Atmos
    140 mm width, Lux-Alloy Rails

  • Weight

    15.9 kg / 35 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pure White
    Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, pick up pad

Bike specifications are subject to change without notice.

Technical informations

  • Bicycle type

    Enduro / Freeride

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4,08 kg / 8,99 lb

  • Rear travel

    165mm

  • Shock length/stroke

    230x65mm

  • Recommended SAG

    27-30% / 18-20mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Included - 20x10mm

  • Recommended/max. fork height

    586mm / 598mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 230mm / M : 270mm / L : 290mm / XL : 310mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05 lower - Custom upper guide

  • Chain Line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

  • shock anchor adjustment

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,5°
77,5°
77,5°
77,5°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1230,8
1253
1280,2
1302,4
6 - TOP TUBE LENGTH
579,4
600,6
621,9
643,2
7 - CHAIN STAY LENGTH
442
442
447
447
8 - BOTTOM BRACKET HEIGHT
4
4
4
4
9 - FORK LENGTH
586
586
586
586
10 - REACH
440
460
480
500
11 - STACK
633,8
638,3
642,8
647,3

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
