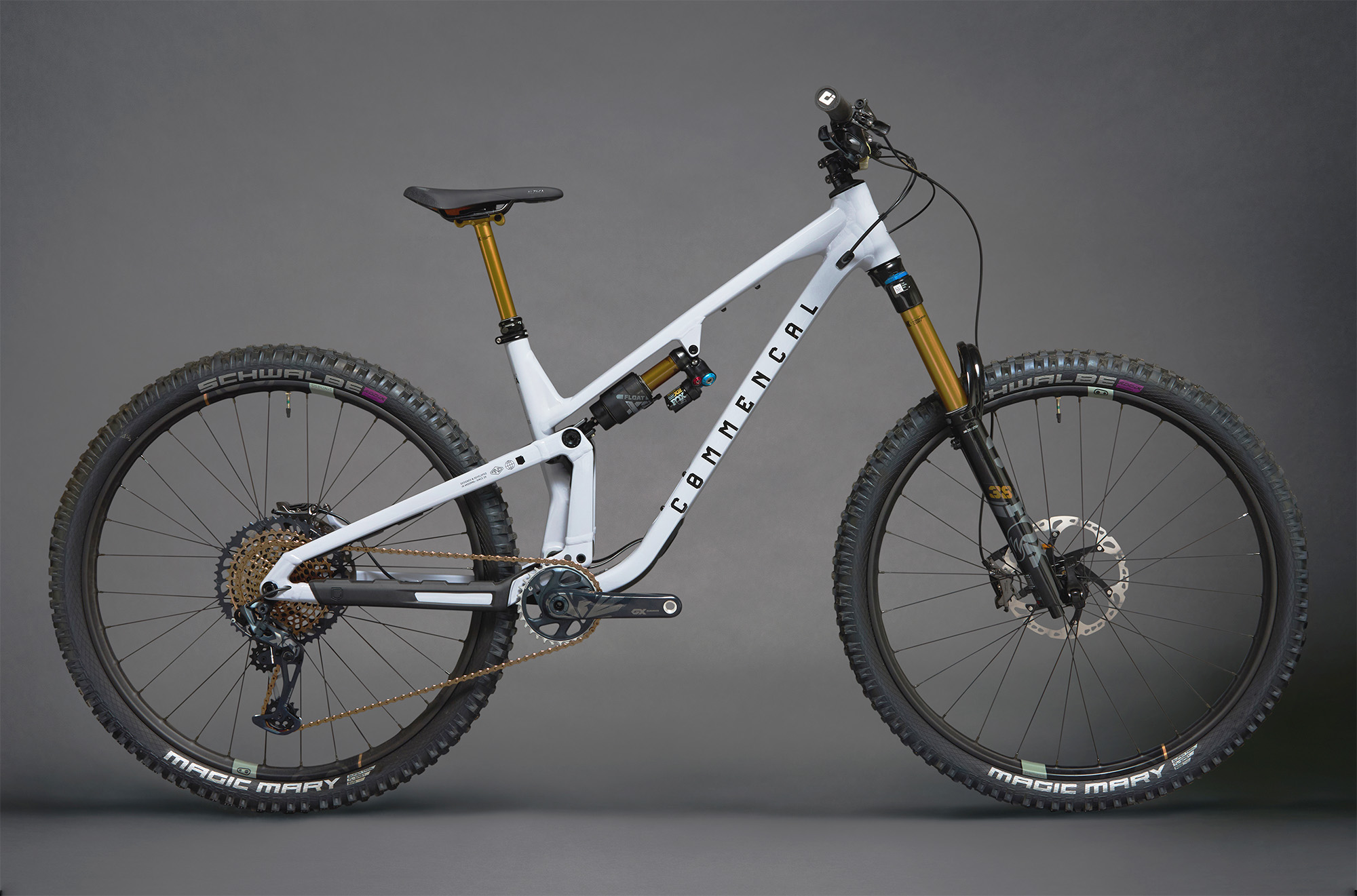

COMMENCAL META V5 STAFF EDITION
This UNIQUE model is produced in a single version with an exclusive colour, and benefits from hand assembly in our workshop.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
An exclusive build for riders who want the highest spec, this META V5 leaves nothing to chance. It’s equipped with a FOX 38 Factory fork and Float X2 Factory shock, paired with a SRAM X01 Eagle drivetrain. Gold standard SHIMANO XTR brakes, deliver consistency, natural feel, and total control. CRANKBROTHERS Synthesis Enduro 11 Carbon wheels strike the ideal blend of traction and efficiency with their perfectly balanced stiffness and tuneable grip. Laced to INDUSTRY NINE Hydra hubs, they represent the pinnacle of performance. SCHWALBE Magic Mary tyres in ultra-soft compound finish off this elite build.
specifications
specifications
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6Shock

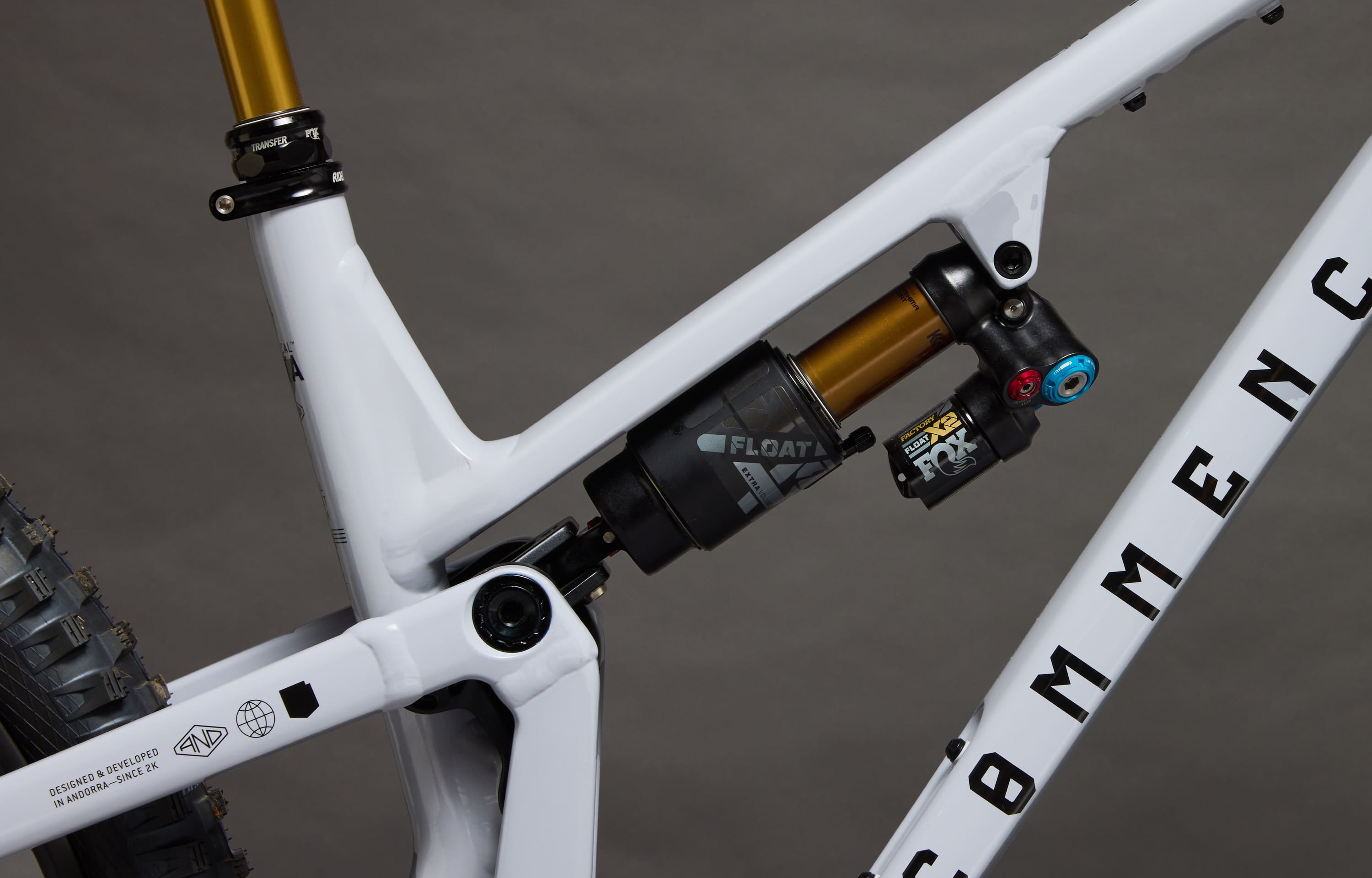

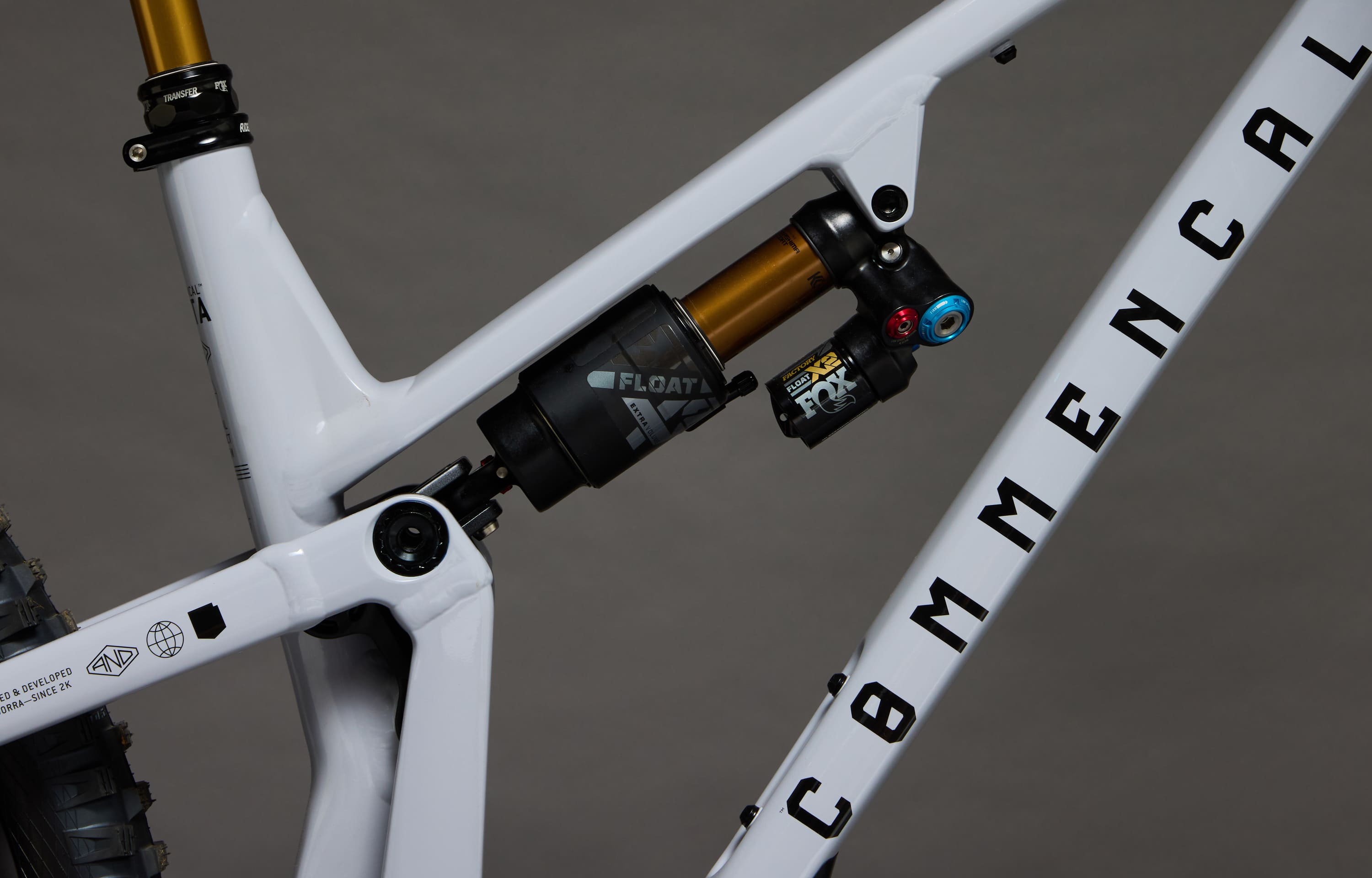

FOX Float X2 Factory
210 x 55 mm, HSC, LSC, HSR, LSR, 2-postion adjustmentFork
FOX 38 Factory, 160 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 3 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem

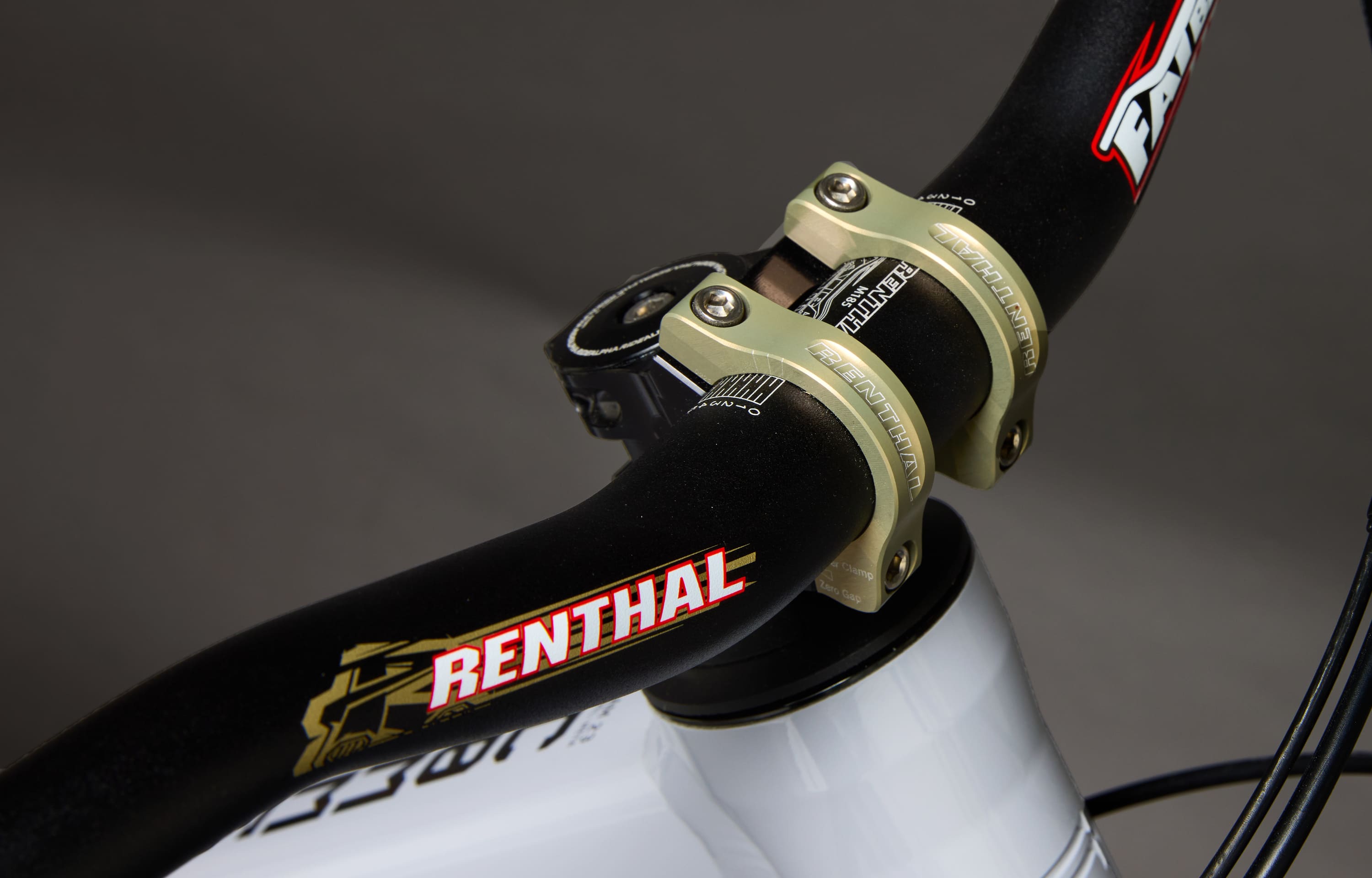

RENTHAL Apex
40 mm extension, 31.8 mmHandlebar

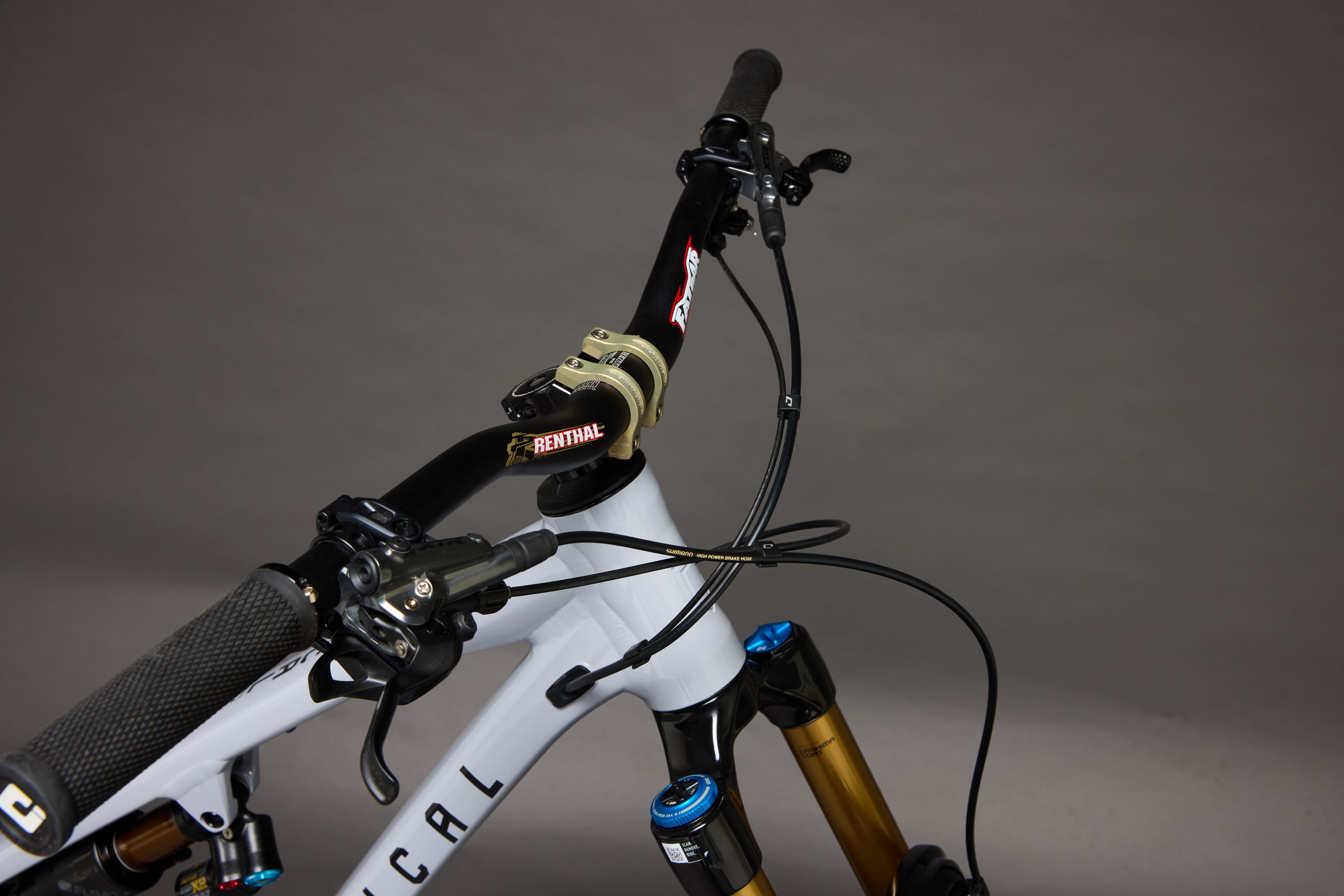

RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XLGrips
ODI Elite Motion
Single clamp, blackBrakes

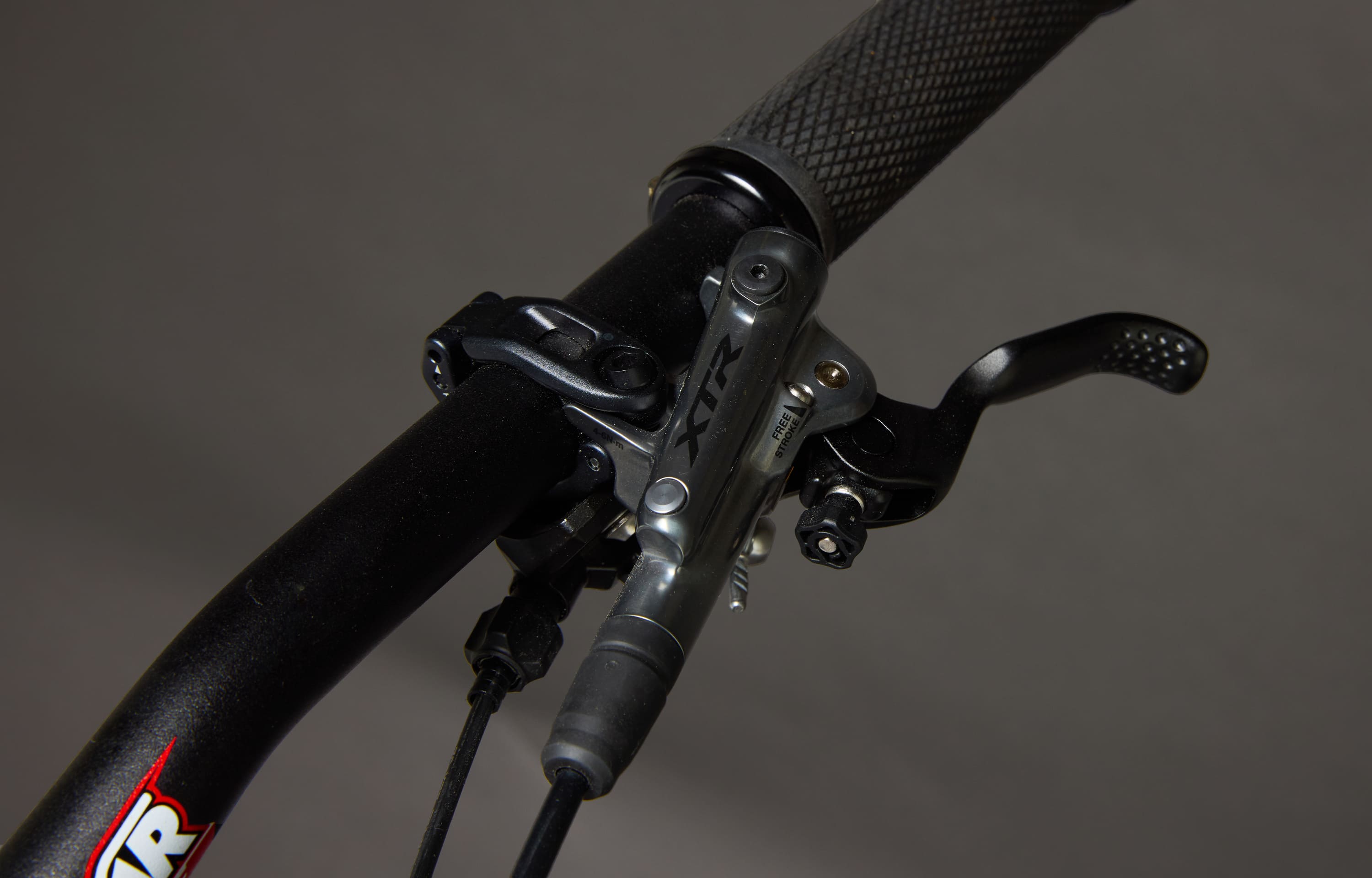

SHIMANO XTR, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology FreezaShifters

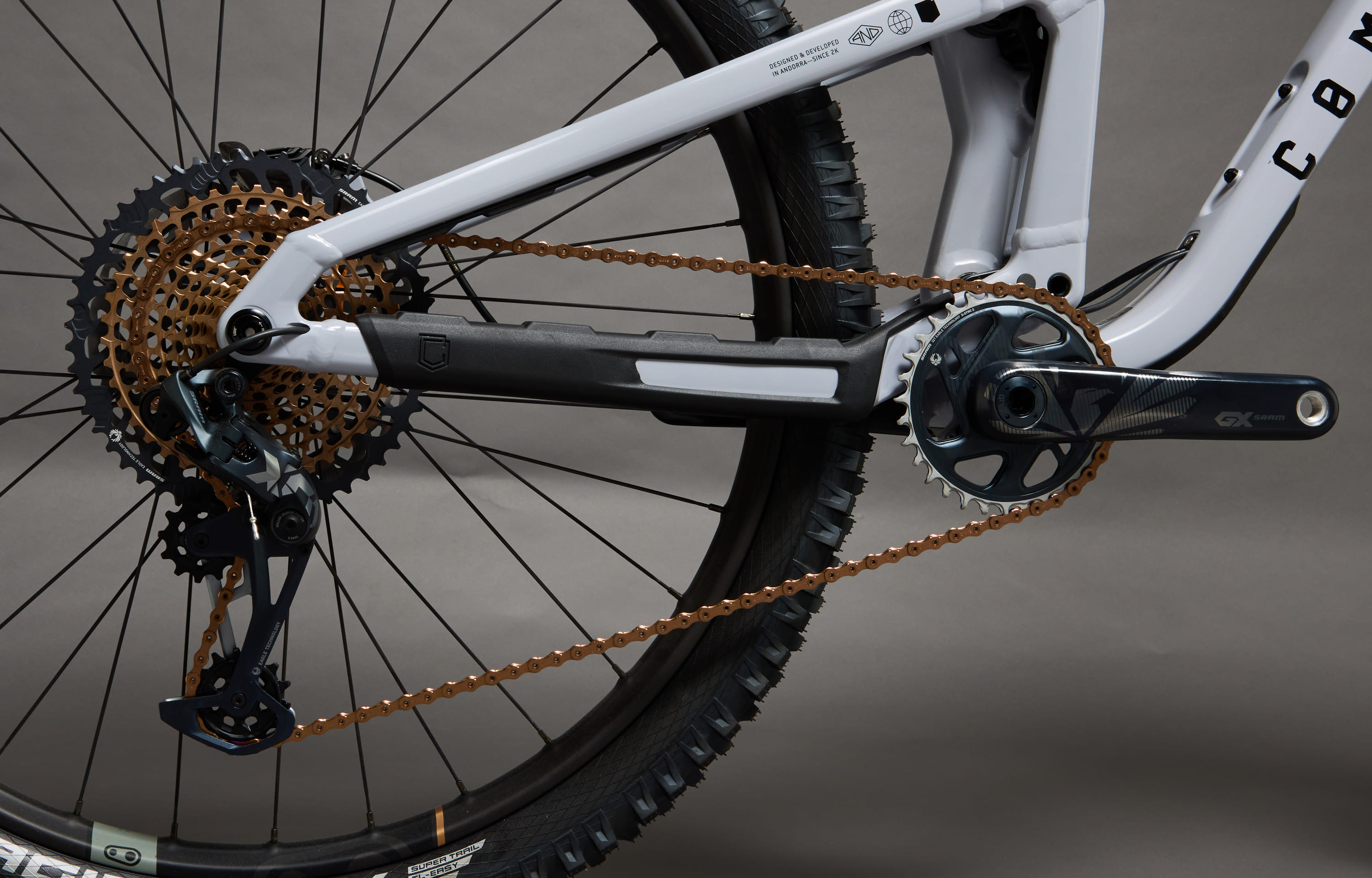

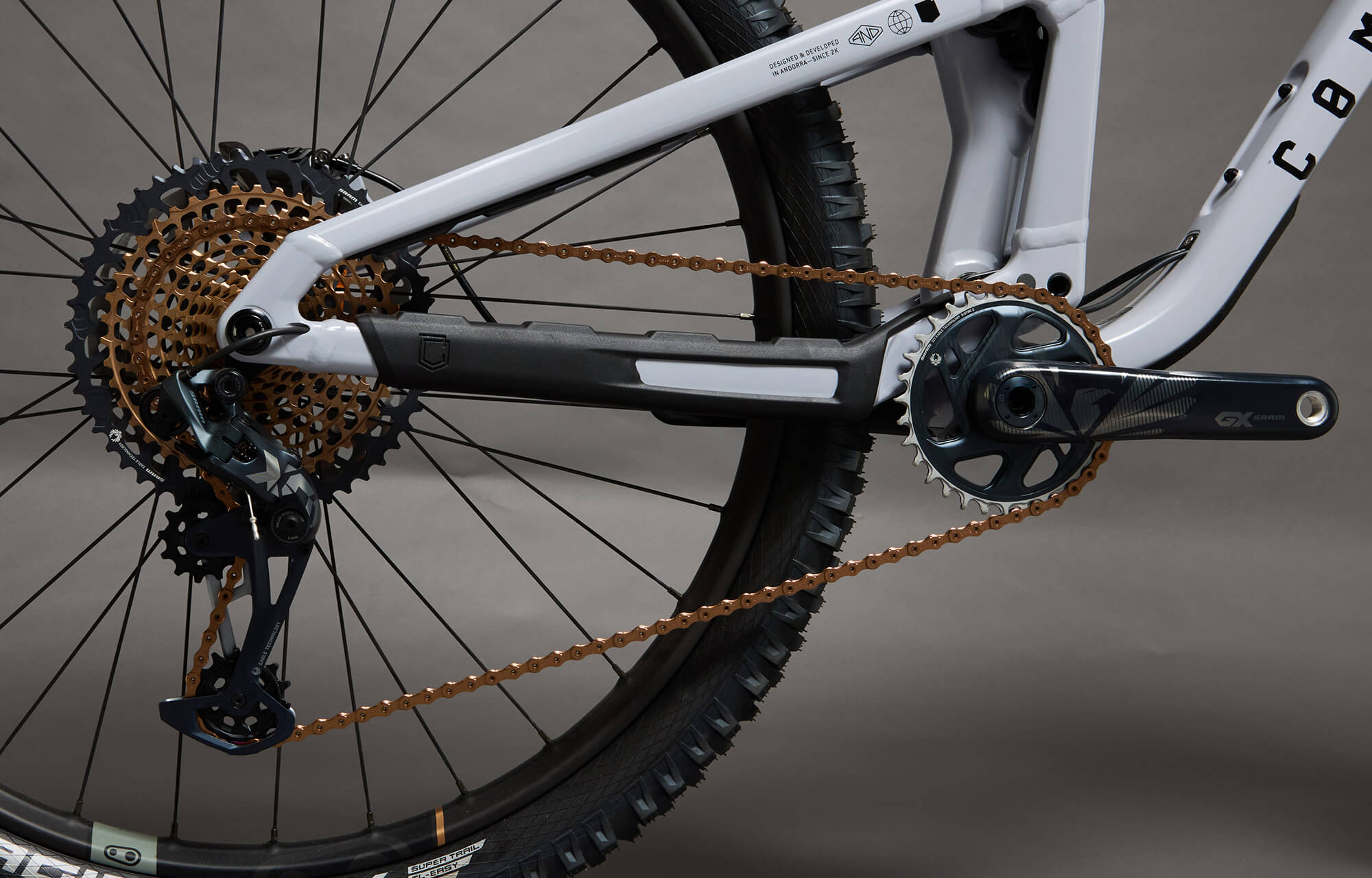

SRAM X01 Eagle
12s, BlackREAR DERAILLEUR
SRAM X01 Eagle
12s, BlackBottom bracket
SRAM DUB
PressfitCrankset

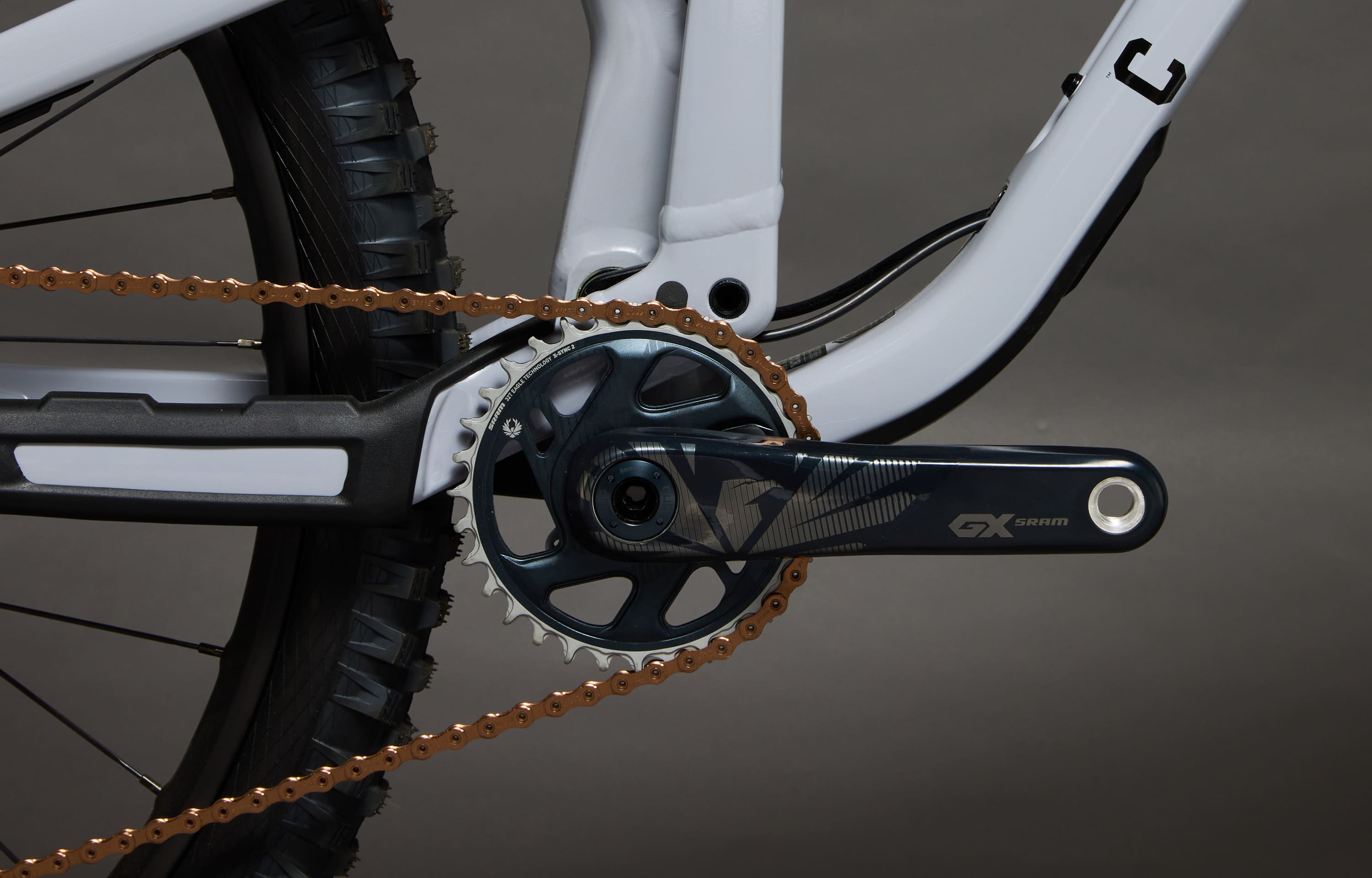

SRAM Descendant Carbon Eagle, 170 mm crank arms, Boost
Chainring: SRAM Descendant X-Sync, 32tChain
SRAM XX1 Eagle
Copper finish, 12sCassette
SRAM XG-1299
Copper finish, 12s, 10-52tRims
CRANKBROTHERS Synthesis Enduro Carbon
Rear: 29", 32 holes, 29.5 mm inner width - Front: 29", 28 holes, 31.5mm inner widthHubs
INDUSTRY NINE 11
Rear: 32 holes, 12 x 148 mm, 0.52° ultra fast engagement, 6 pawls - Front: 28 holes, 15 x 110 mmSpokes/nipples
SAPIM
Sapim CX-Ray front / Sapim CX-Sprint rearTyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Rear: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless Ready - Front: 29" x 2.4", Super Trail, Addix Ultra-Soft, Tubeless ReadySeat post

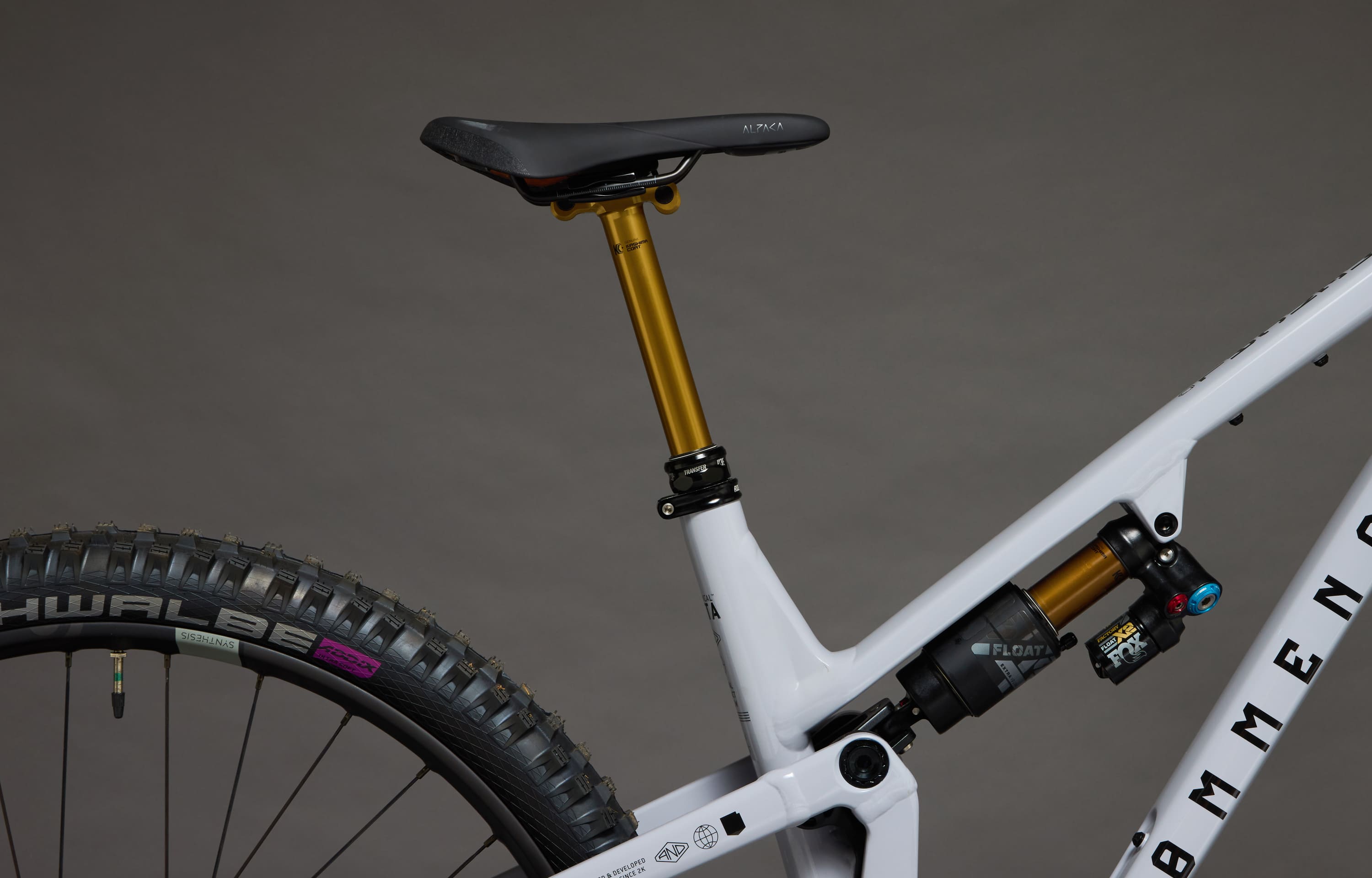

FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mmSaddle
FIZIK Terra Alpaca X5
145 mm width, S-Alloy railsWeight
15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Cloud
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, FOX 38 fork fender
Bike specifications are subject to change without notice.
Technical informations
Technical informations
-
Bicycle type
Enduro / All Mountain
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,06 kg / 8,95 lb
-
Rear travel
150mm
-
Shock length/stroke
210x55mm
-
Recommended SAG
27-30% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
571mm / 586mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø622mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Chain Line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
2 positions
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
