ÖHLINS LIGHTWEIGHT COIL 76MM 480 LBS

A brand like COMMENCAL generates dozens and dozens of used components every year.
Our second-hand components are coming from exhibitions, tests or have been dismounted from our bikes.
For scratches, paint chips and/or wear and tear, please see photos.

Brand new with a scratch from storage.

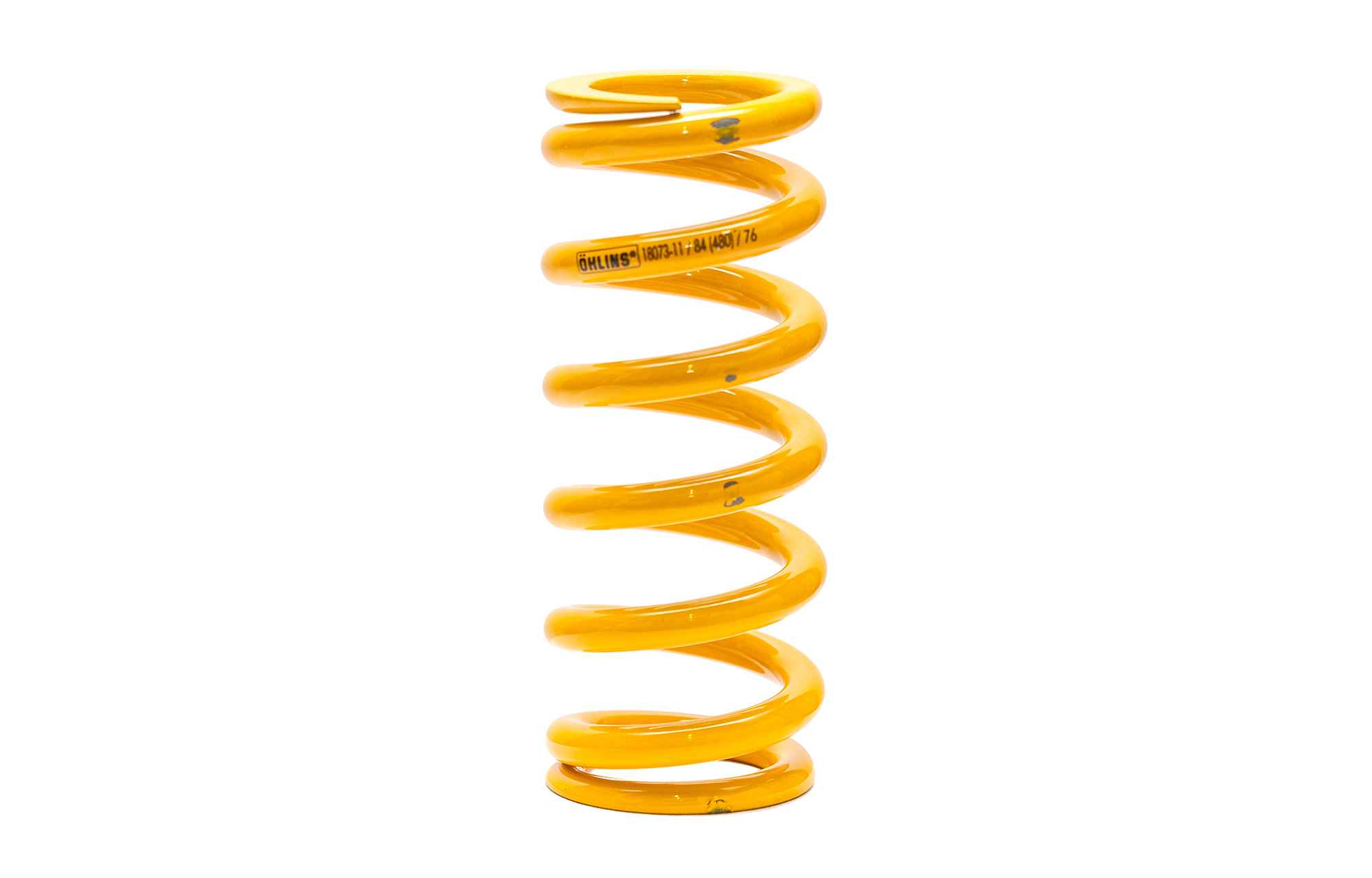

ÖHLINS steel spring for the ÖHLINS TTX 22 M shocks with a stroke between 68mm and 76 mm.

• Compatible shocks (length x stroke): 222 x 70mm // 241 x 76mm // 225 x 70mm // 225 x 75mm // 250 x 70mm // 250 x 75mm
• Spring rate: 480lbs
• Weight: 440g
• Manufacturer reference: 18073-11

This spring is compatible with ÖHLINS shocks mounted on our SUPREME and FRS.

Recommendations:

• Rider weight: 60-70kg = 343lbs
• Rider weight: 70-80kg = 388lbs
• Rider weight: 80-90kg = 434lbs
• Rider weight: 90-100kg = 480lbs

These recommendations represent simplified help in the choice of spring rate, which is based solely on the weight of the rider and the kinematics of the bike.

Obviously, these values do not consider the level of the user, the type of trail or the steepness of it etc.

Please do not hesitate to contact our Customer Service if you need further assistance.
