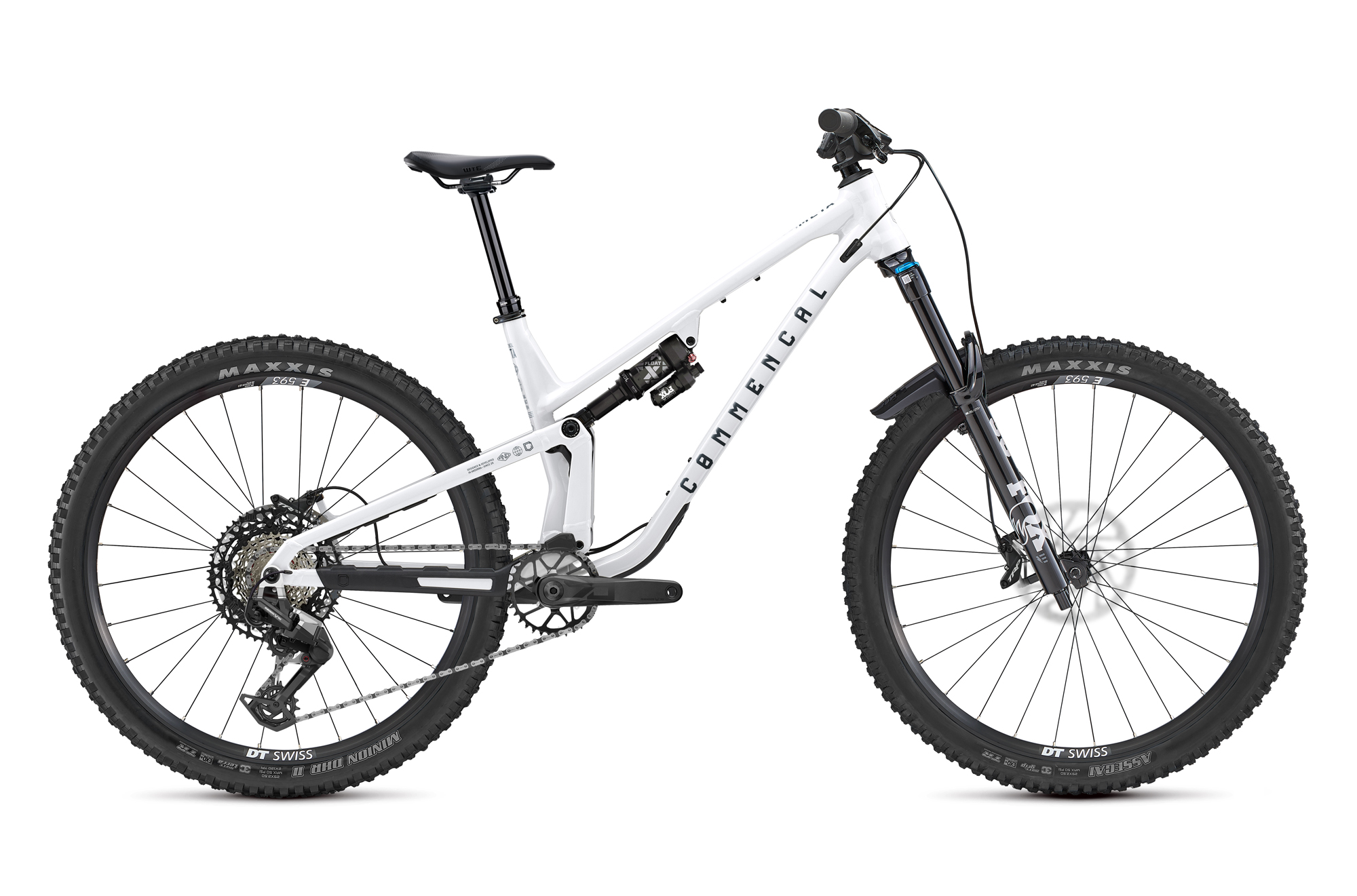

COMMENCAL META V5 ESSENTIAL PURE WHITE 2027
The META V5 is our vision of enduro. It's also our heritage. It targets performance and speed, our double victory at the 2024 World Championships is the best proof of this. It's easy to ride and adapts to the terrain and its rider, never forgetting to put a smile on your face.
ENDURO
ALL MOUNTAIN
ENDURO
ALL MOUNTAIN
160mm
160mm
150mm
150mm
29" / 29"
29" / 29"
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Showroom Delivery
Choose to pick up your order at our COMMENCAL Canada showroom (Squamish, BC) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
The META V5 ESSENTIAL offers a high-performance and accessible configuration to fully exploit the META V5 frame and its 150 mm of travel.
• The FOX 38 Performance (170 mm) combined with the FOX Float X Performance shock absorber offers support, comfort, and efficiency for tackling demanding rides.
• Braking relies on the new TRP DHR EVO PRO 4-piston with TRP 203/203 mm discs, ensuring power and reliability on descents.
• DT SWISS E593 wheels mounted on DT SWISS 370 hubs constitute a robust and durable package for tackling all terrains.
• The SRAM Eagle 90 12-speed drivetrain, combined with the SRAM Eagle 70 crankset and XS 1270 10-52t cassette, guarantees versatility and pedaling efficiency.
specifications
specifications
Frame
META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6.Shock
FOX Float X Performance 2027
210 x 55 mm, 2-pos lever, rebound, LSC, 0,6ci spacers
Fork
FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 tokenHeadset
ACROS ZS56/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31.8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
Black clamp
Brakes
TRP EVO Expert, 4 pistons
Rotors : TRP RS06E 203 mm, 6-boltsShifters
SRAM Eagle 90
12sChain guide
RIDE ALPHA
32t-34tRear derailleur
SRAM Eagle 90
12sBottom bracket
SRAM DUB92
MTB WIDE, PressfitCrankset
SRAM Eagle 70, 170 mm crank arms
Chainring : SRAM Eagle 70, 32tChain
SRAM Eagle 70
12sCassette
SRAM XS 1270
12s, 10-52tRims
DT SWISS E593
29'', 32h, 28 mm inner width
Hubs
DT SWISS 370
Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 32h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear : MAXXIS DHR II - Front : MAXXIS Assegai
Rear : 29''x2.5'' WT, 3C MaxxTerra, New EXO+, Tubeless Ready - Front : 29"x2.5" WT, 3C MaxxGrip, New EXO+, Tubeless Ready
Seat post
KS Ragei
34.9 mm, travel: 150 mm on S, 170 mm on M and 190 mm on L/XL, I-SPEC EV, SouthPaw alloy remoteSaddle
WTB Solano SL Crmo
Crmo rails, 142 x 240 mm
Weight
- kg / - lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny finishAccessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, FIDLOCK base
Bike specifications are subject to change without notice.
Technical informations
Technical informations
-
Bicycle type
Enduro / All Mountain
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,06 kg / 8,95 lb
-
Rear travel
150mm
-
Shock length/stroke
210x55mm
-
Recommended SAG
27-30% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / no bushing needed on clevis
-
Recommended/max. fork height
571mm / 586mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø622mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Recommended/max. chainring teeth
32T / 34T
-
Chain Line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
2 positions
WHICH META V5 TO CHOOSE?
WHICH META V5 TO CHOOSE?
Our META V5 and META SX V5 share the same playing field but have their own style and behaviour. Whether racing or adventuring, the META V5 loves long rides and wild trails. The META SX V5 prefers the slope, jumps or secret trail features, and the bike park. Their common denominator: Enduro
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
