ALL ABOUT SUPREME DH V5
The SUPREME DH V5 XS is the kid’s version of our World Cup Downhill winning bike. Coming from a race background, it is the bike that put Amaury Pierron on the top step of the World Cup DH podium. Ultra efficient and super adjustable; it has no limits. The XS version in 27.5 is specifically designed for teenagers and smaller riders.
SUPREME DH V5 TECHNICAL GUIDE
SUPREME DH V5 XS
The SUPREME DH V5 XS is designed for smaller riders.

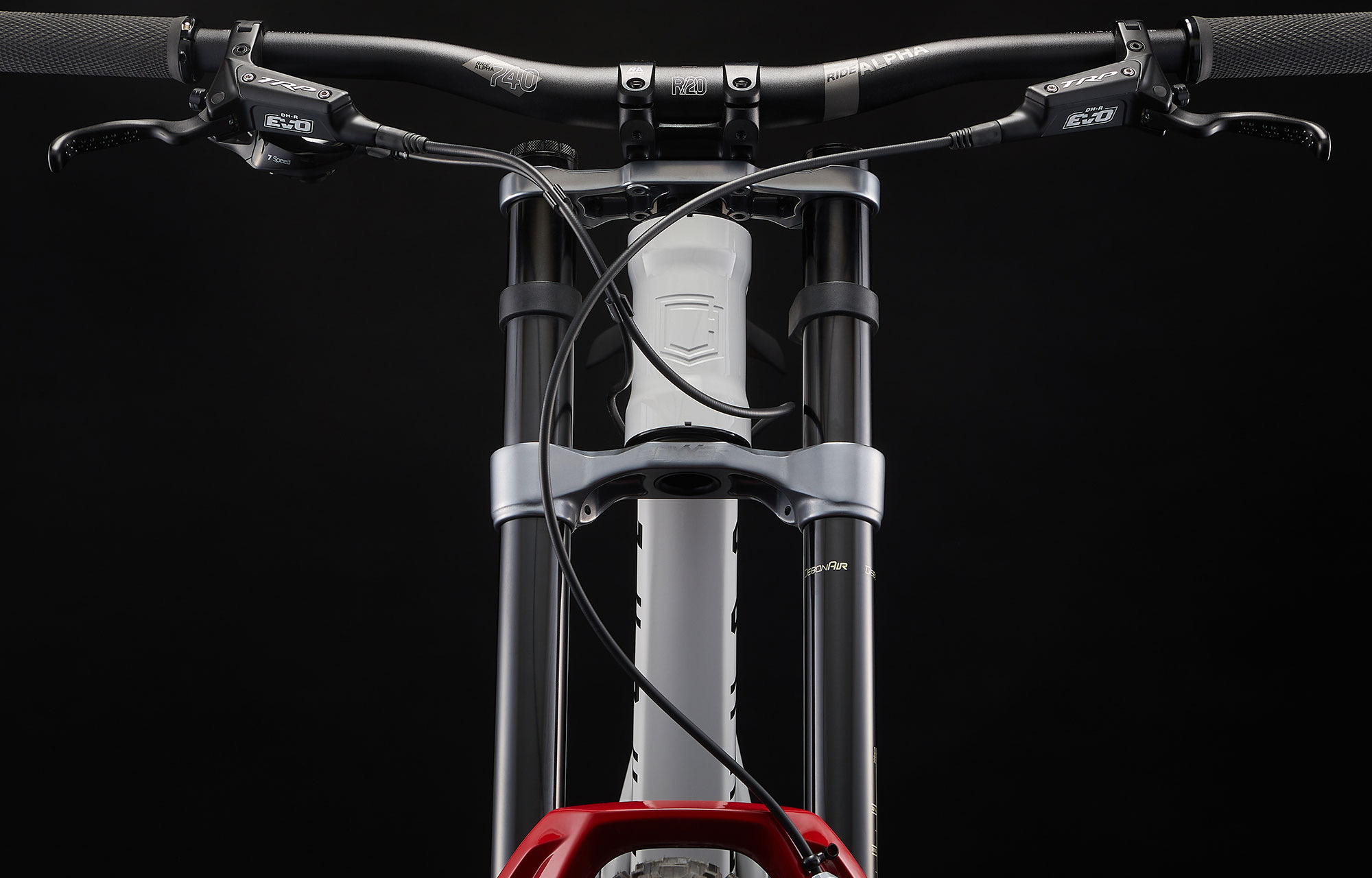

The ROCKSHOX BoXXer Ultimate World Cup fork is the most efficient and ergonomic in terms of adjustments. It features 35mm stanchions and is therefore perfectly suited to light riders.
The rear suspension comes in the form of the ROCKSHOX Super Deluxe Select R which provides sensitivity and dynamism. The air spring makes it versatile for many riders because the volume of the negative and positive chambers can be adjusted independently.
TRP DH-R Evo brakes provide the stopping power: 4 pistons and 223mm discs make them powerful, durable, progressive, and precise.
The SPANK Race 33 rims are perfect for riders looking for strong, light, and reliable wheels at the same time.
The SRAM GX DH transmission offers ultra-precise and quick gear changes for DH.
To offer maximum grip and stability we have a MAXXIS Assegai and Minion DHRII DH casing tyre combo.
*Please note that bike specs are subject to change without prior notice.
Frame DH Racing
AL 6066 T4, T6
5,2 kg / 11,46 lbs in size S with frame protections, chain guide, rear wheel axle
220 mm
250 mm / 75 mm
Yes
30 x 8 mm / 30 x 8 mm
590 mm
ZS56 / ZS56
65 mm
Postmount 200 mm
223 mm
31,6 mm / 34,9 mm
Press Fit BB 107
ISCG 05
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
SUPREME DH V5 27'', 220 mm travel
27.5'', Alloy 6066, triple butted tubes, T4, T6
ROCKSHOX SuperDeluxe Select R
250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos.
ROCKSHOX Boxxer Ultimate, 200 mm travel
27.5", Charger 2.1 RC2 damper, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 Token
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm
RIDE ALPHA R20
31.8 mm, 740 mm width, 20 mm rise, Alloy 6061
ODI Elite Motion
Soft pro compound, single clamp, black
TRP DH-R Evo, 4 pistons, resin pads
Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width
SRAM GX DH
7 sp
E13 LG1 + Bottom Guide
32-34t
SRAM GX DH
7 sp
SRAM DUB
Pressfit
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t
KMC X11EL
Black
SRAM PG-720
7 sp, 11-25t
SPANK Spike Race 33
27.5'', 32h, 28 mm inner width, tubeless ready
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails
16.8 kg / 37.04 lbs
Average weight for XS size, without pedals. Weight may differ slightly due to manufacturing tolerances.
No
Pure White
Shiny FInish
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
