COMMENCAL SUPREME DH V5 RIDE METALLIC GREEN - L

Price reduced from C$ 7,400.00 to C$ 5,300.00 -28%
id/sku : OCCAN346
Availability: This Item is currently not available. null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

- DESCRIPTION -

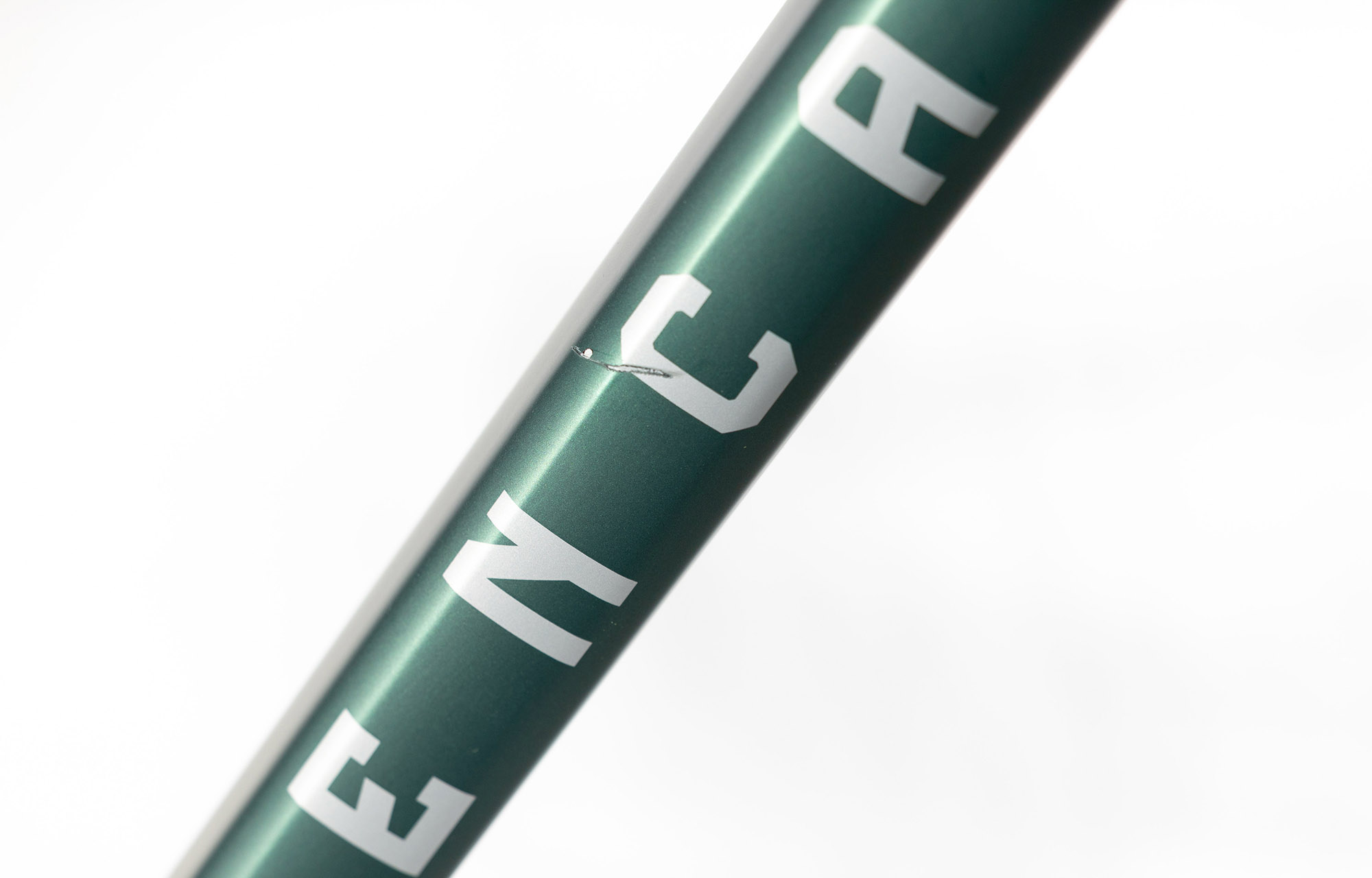

This is an exhibition bike that has never been ridden, but has minor scratches caused by transport and storage.

- THE WORKSHOP NOTE -

-As Good as New !
-Brand new bike with scratches from transport, comes with full warranty

Please note that this bike is guaranteed as new!
Enjoy!

Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    Al 6066 T4, T6

  • Frame weight

    5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
  • Wheel Base Length
    Centered (Available as an option: Flip Flop +/-6mm)
  • Bridge
    XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
    29'', Alloy 6066, triple butted tubes, T4, T6

  • Shock

    ROCKSHOX Super Deluxe Select R
    250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 3 Tokens pos.

  • Fork

    ROCKSHOX BOXXER, 200 mm
    29’’, Charger 3 RC damper, DebonAir+, LSC, rebound, Boost (20 x 110 mm), 52 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on  XL

  • Grips

    RIDE ALPHA

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm widthv

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL

  • Cassette

    SRAM GX DH
    7 sp, 11-25t

  • Rims

    SPANK 359
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
    Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless Ready

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    17,8 kg / 39,68 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Metallic Green
    Matte Finish

  • Accessories

    Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
     *Please note that bike specs are subject to change without prior notice.
