Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

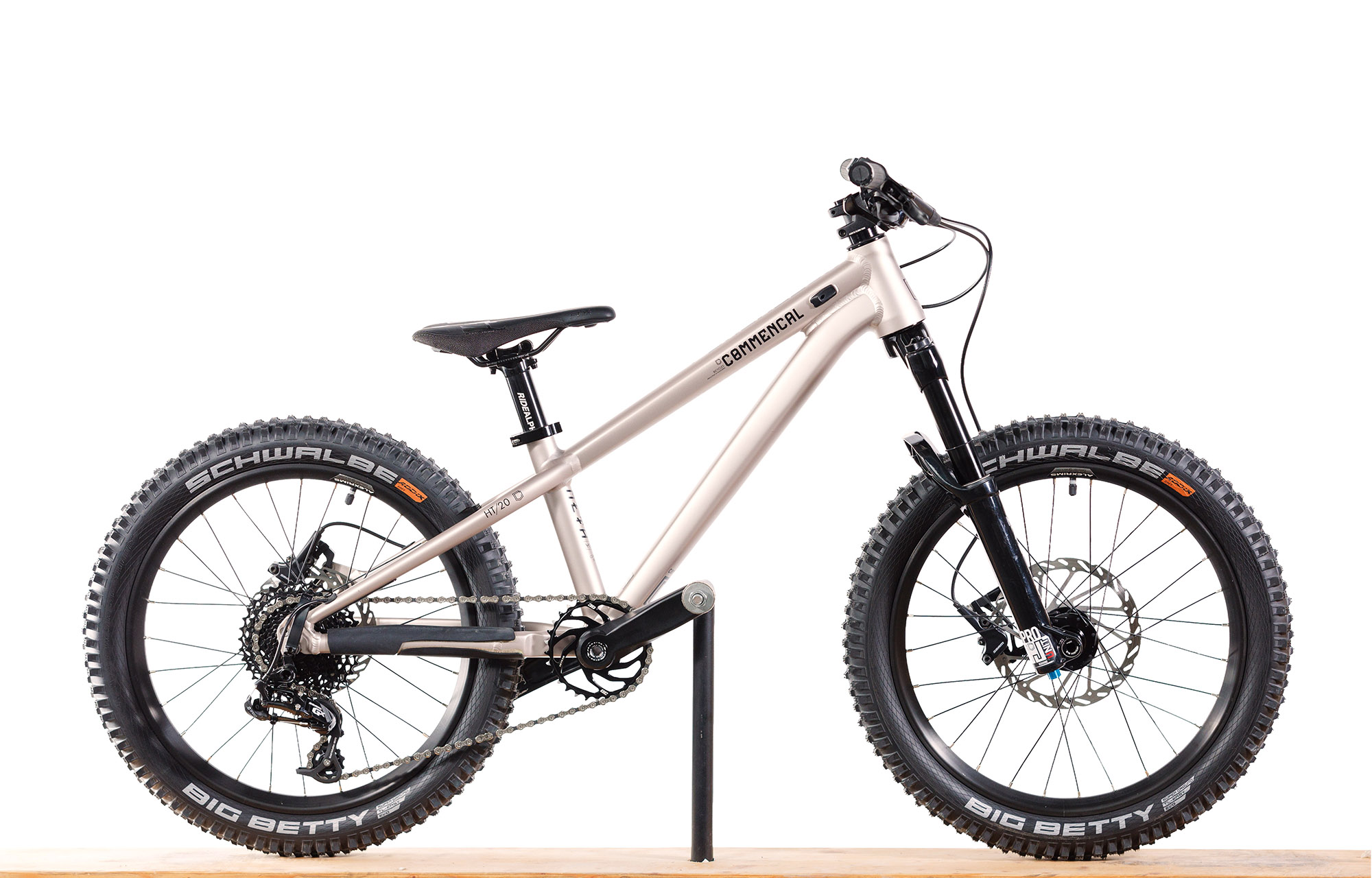

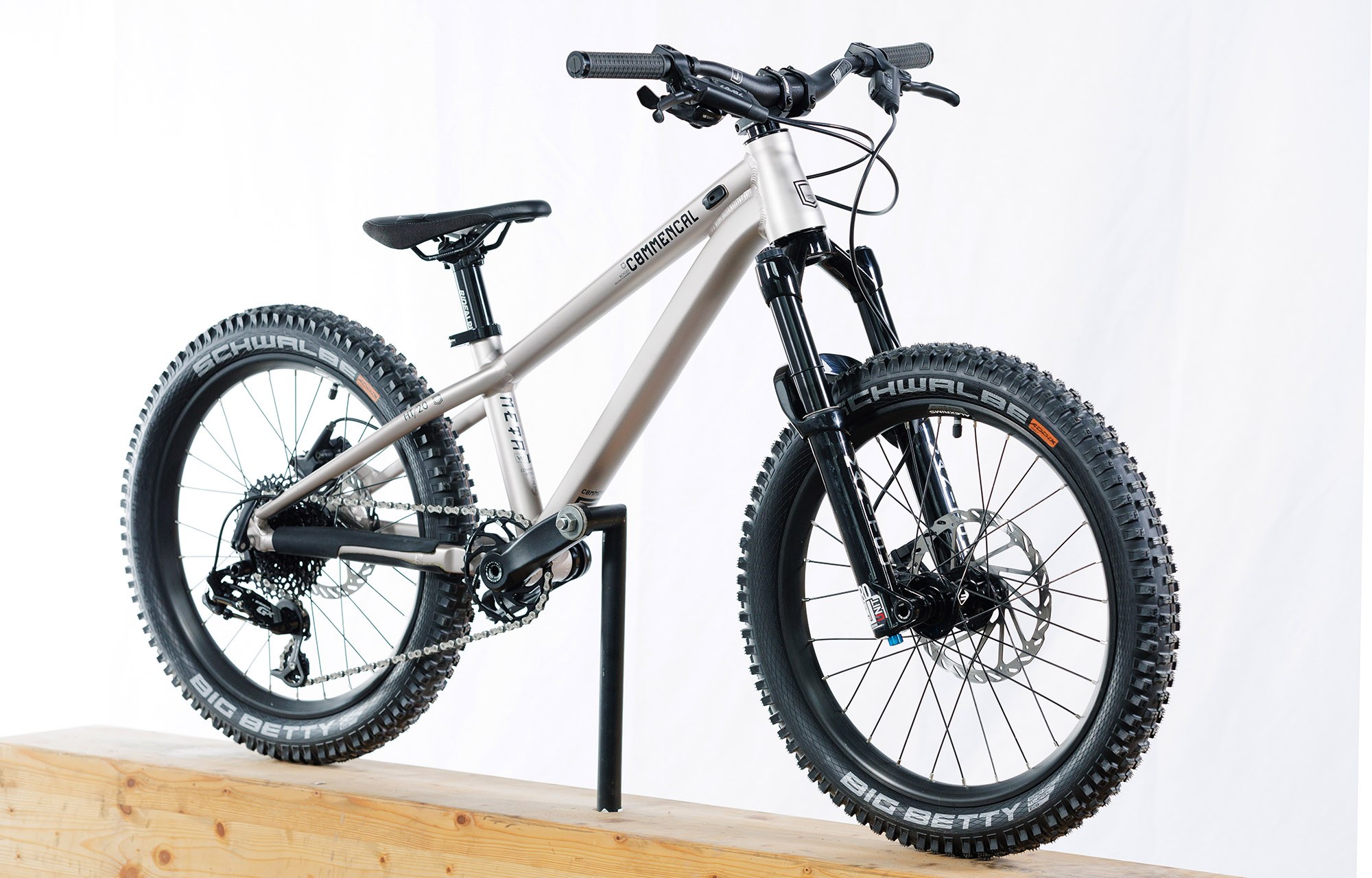

COMMENCAL META HT 20 CHAMPAGNE - (22170100)
Demo, rental, press, teams, bike patrols, showroom, new bikes (damaged): our refurbished bikes come from a variety of fleets. Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
THESE BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Showroom Delivery
Choose to pick up your order at our COMMENCAL Canada showroom (Squamish, BC) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike in very good shape, returned from our demo fleet, ready for a new start.
- AESTHETIC -
Small scratches and paint chips on frame.

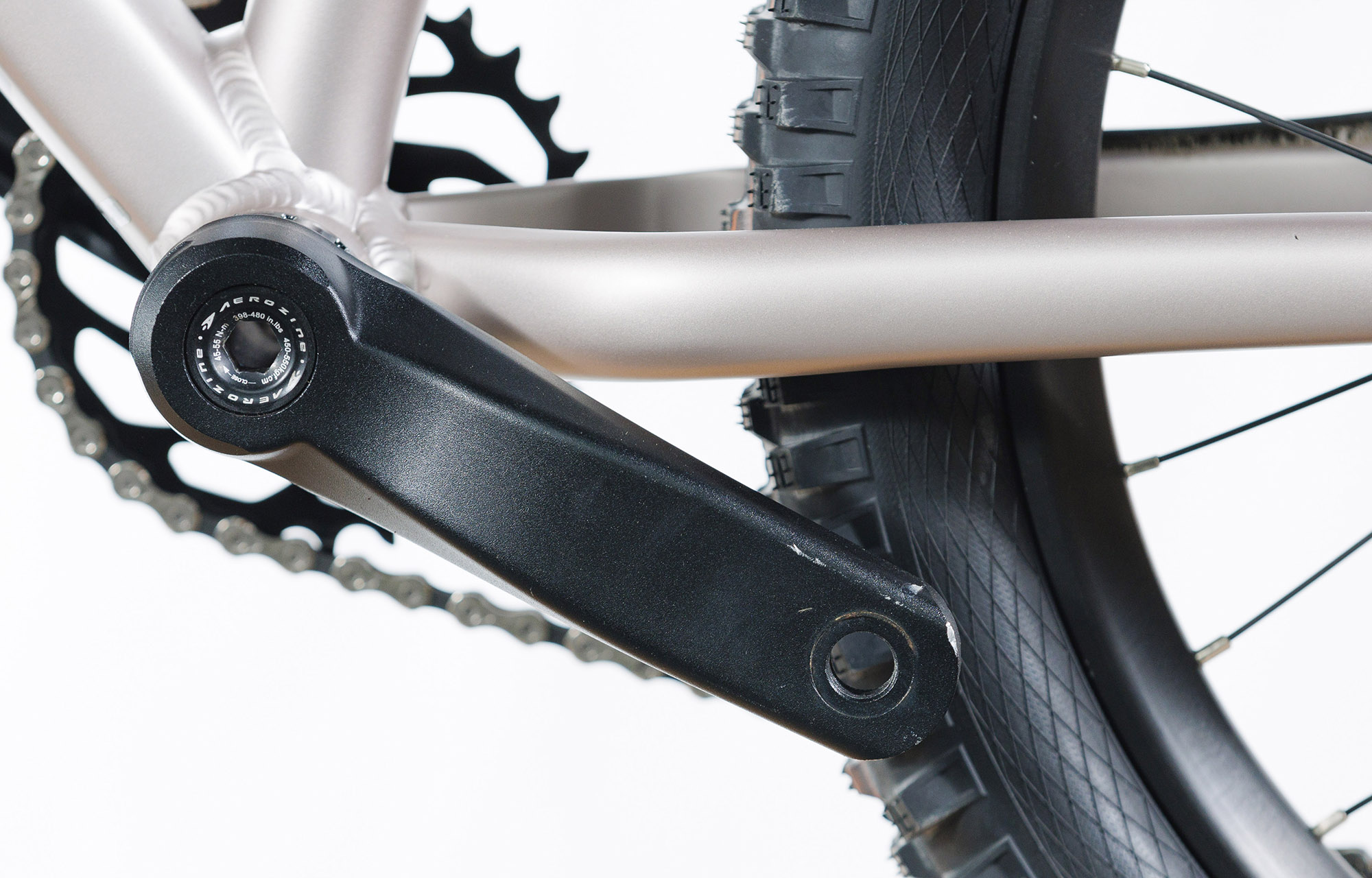

Scratches on crank arms and fork.
- MECHANICAL -
Fully checked.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META HT 20
20’’, Alloy 6061, triple butted tubes, T4, T6.Fork
MANITOU Machete Junit Pro, 100 mm travel
20", kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40 mm
40 mm extension, 31,8 mmHandlebar
PROTAPER Junit Riser bar
31,8 mm, 600 mm width, 25 mm riseGrips
PROTAPER Junit Intermediate
Kids specific 27 mm diameterBrakes
SRAM Level, 2 pistons, Hydraulic disc brake, steel-backed organic pads
Rotors: SRAM G2 CleanSweep 180 / 160 mm, 6-boltShifters
SRAM GX
10sREAR DERAILLEUR
SRAM GX
10s, short cageBottom bracket
AEROZINE BSA 30
ThreadedCrankset

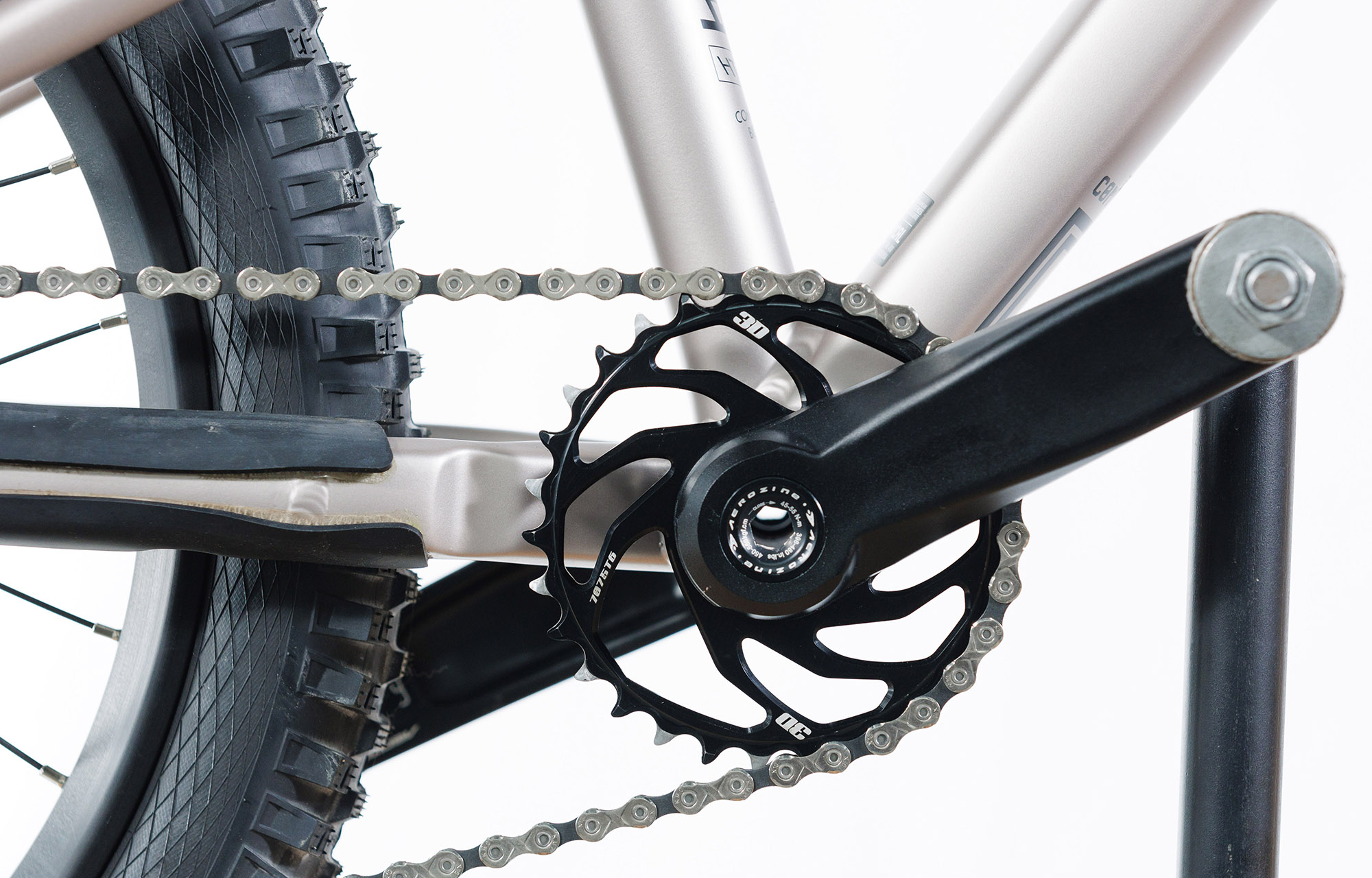

AEROZINE Xeon-A1, 135 mm crank arms, 30 mm axle, 7075 alloy
Chainring: AEROZINE Direct Mount 30t, Narrow-Wide, full CNCChain
KMC X10
10sCassette
SRAM PG-1020
10s, 11-36tRims
ALEXRIMS MD30
20'', 28h, 30 mm inner widthHubs
Front: FORMULA RX-26 - Rear: FORMULA DC-711
Rear: 28h, sealed bearings, 9 x 135 mm (for QR axle), Shimano Hyperglide - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Leader
J-Bend 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Big Betty
Rear: 20" x 2.4" - Front: 20" x 2.4"Seat post
RIDE ALPHA
31,6 mm, 250 mm lengthSaddle
SDG Fly Jr
122 mm width, kids specific, reinforced sidesWeight
10,6 kg / 23.36 lb
Without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Champagne
Matte FinishAccessories
Chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Kids bike - All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
NC
-
Recommended/max. fork height
400mm / 420mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
20’’ - 20’’
-
Max. rear tyre dimension - ETRTO
61mm - Ø406mm
-
rear brake mounting type
IS 160mm
-
Rear brake rotor max. size
180mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
205mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Recommended/max. chainring teeth
30T / 32T
-
Chain line
52
-
Rear Hub dimension
135x9mm
-
Rear Axle dimension
QR
-
UDH hanger
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
