Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

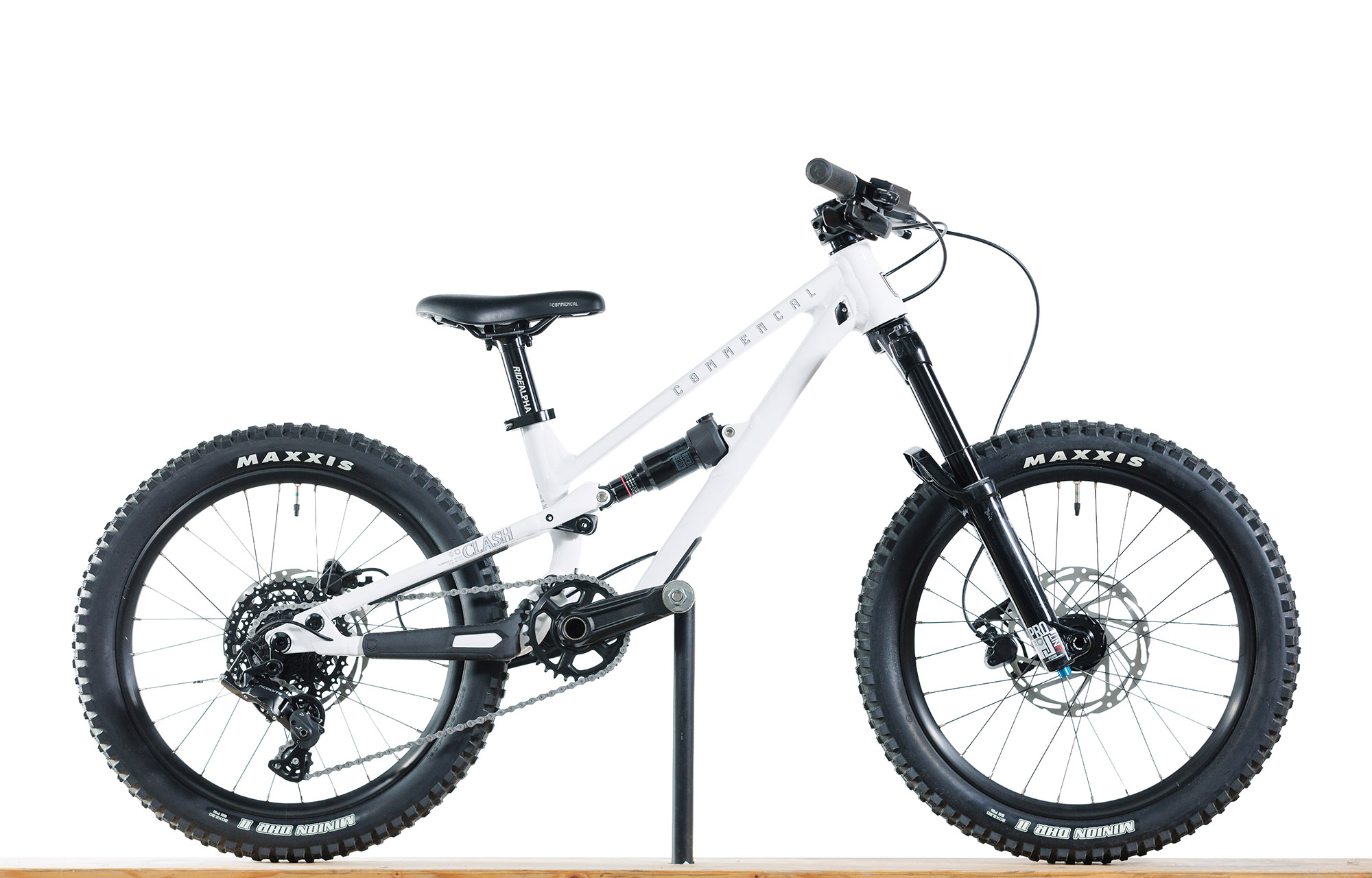

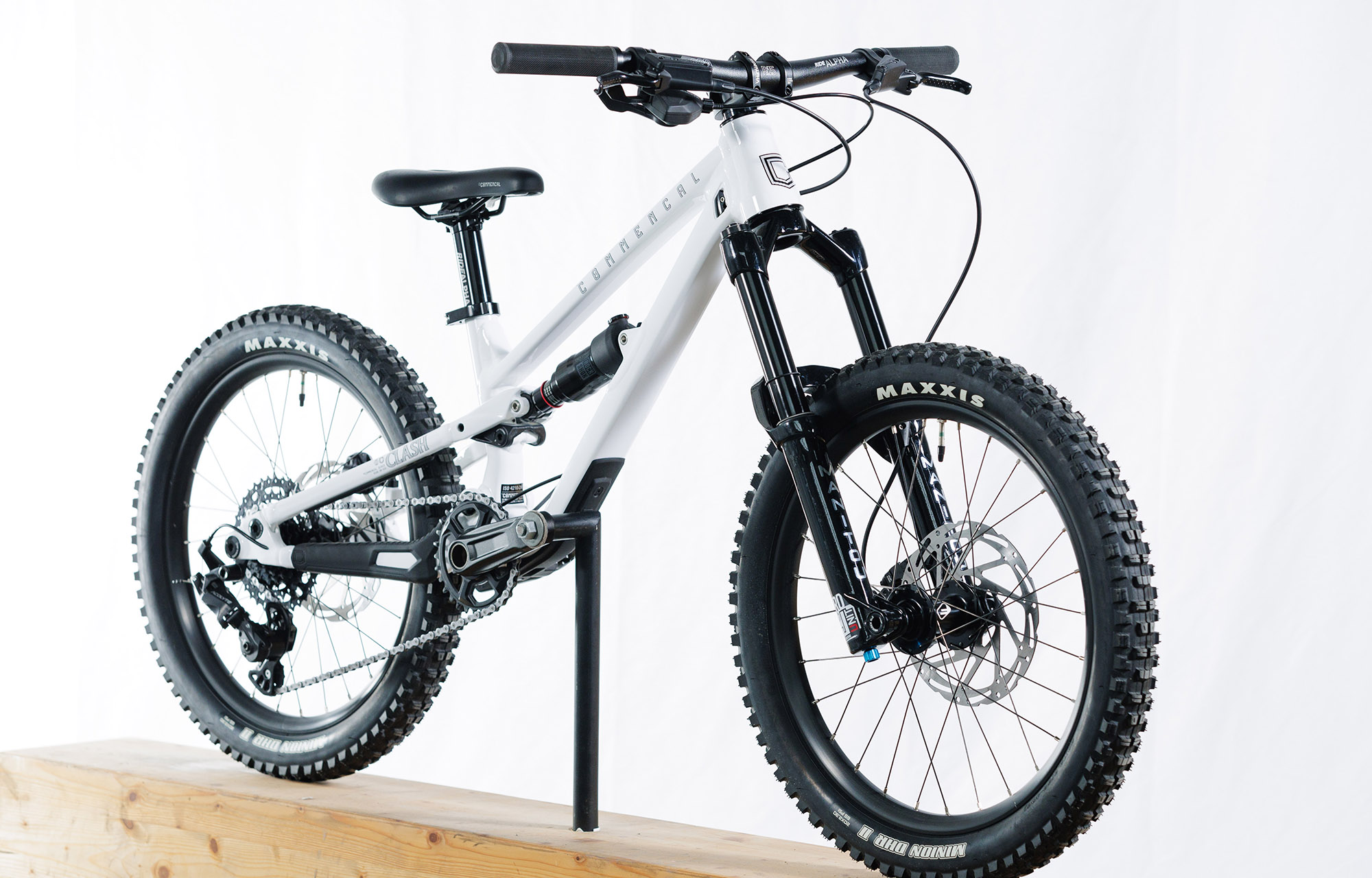

COMMENCAL CLASH 20 PURE WHITE - (24177200)
Demo, rental, press, teams, bike patrols, showroom, new bikes (damaged): our refurbished bikes come from a variety of fleets. Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
THESE BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Showroom Delivery
Choose to pick up your order at our COMMENCAL Canada showroom (Squamish, BC) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike in very good shape, returned from our demo fleet, ready for a new start.
- AESTHETIC -
Small scratches and paint chips on frame.

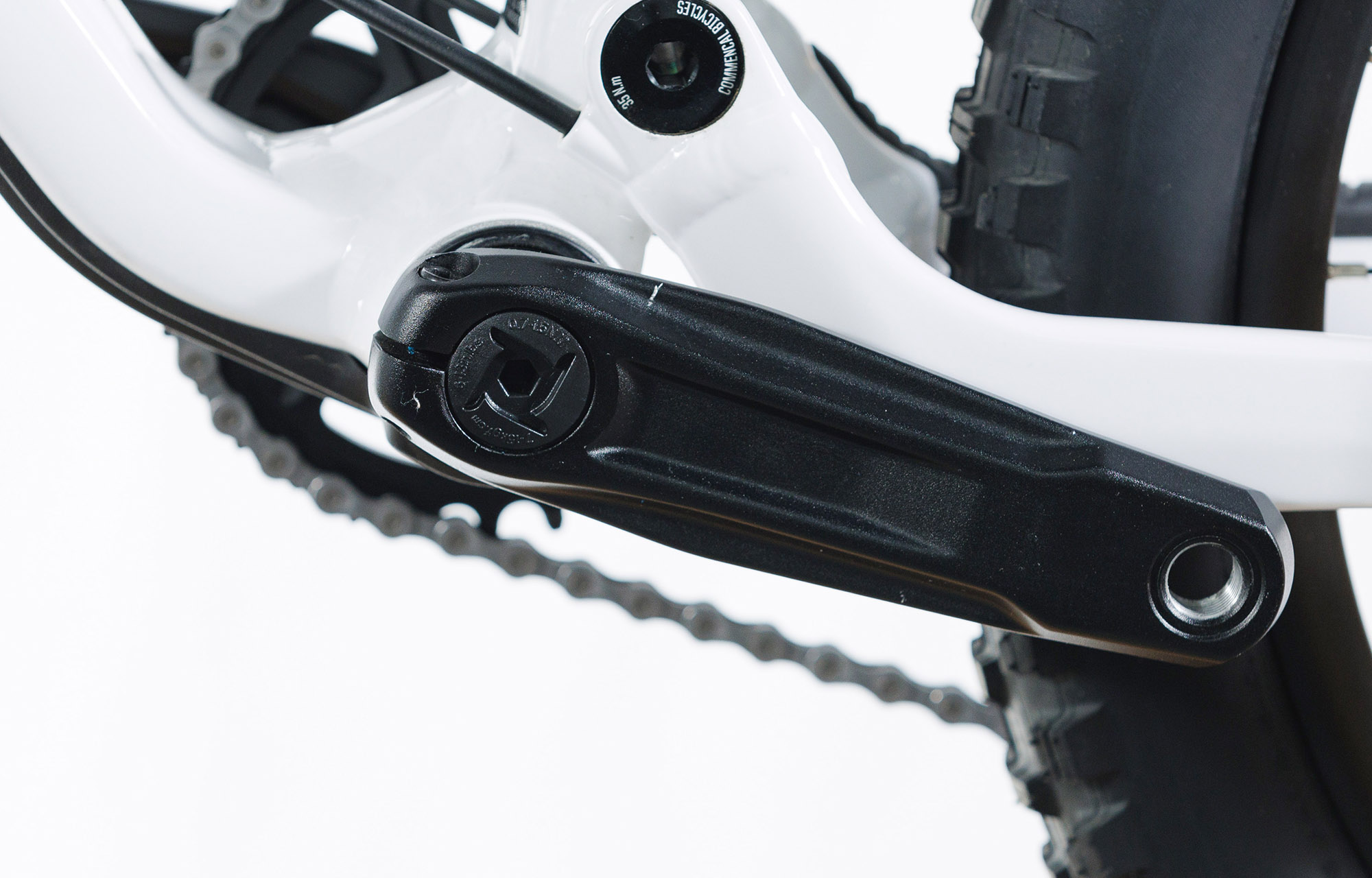

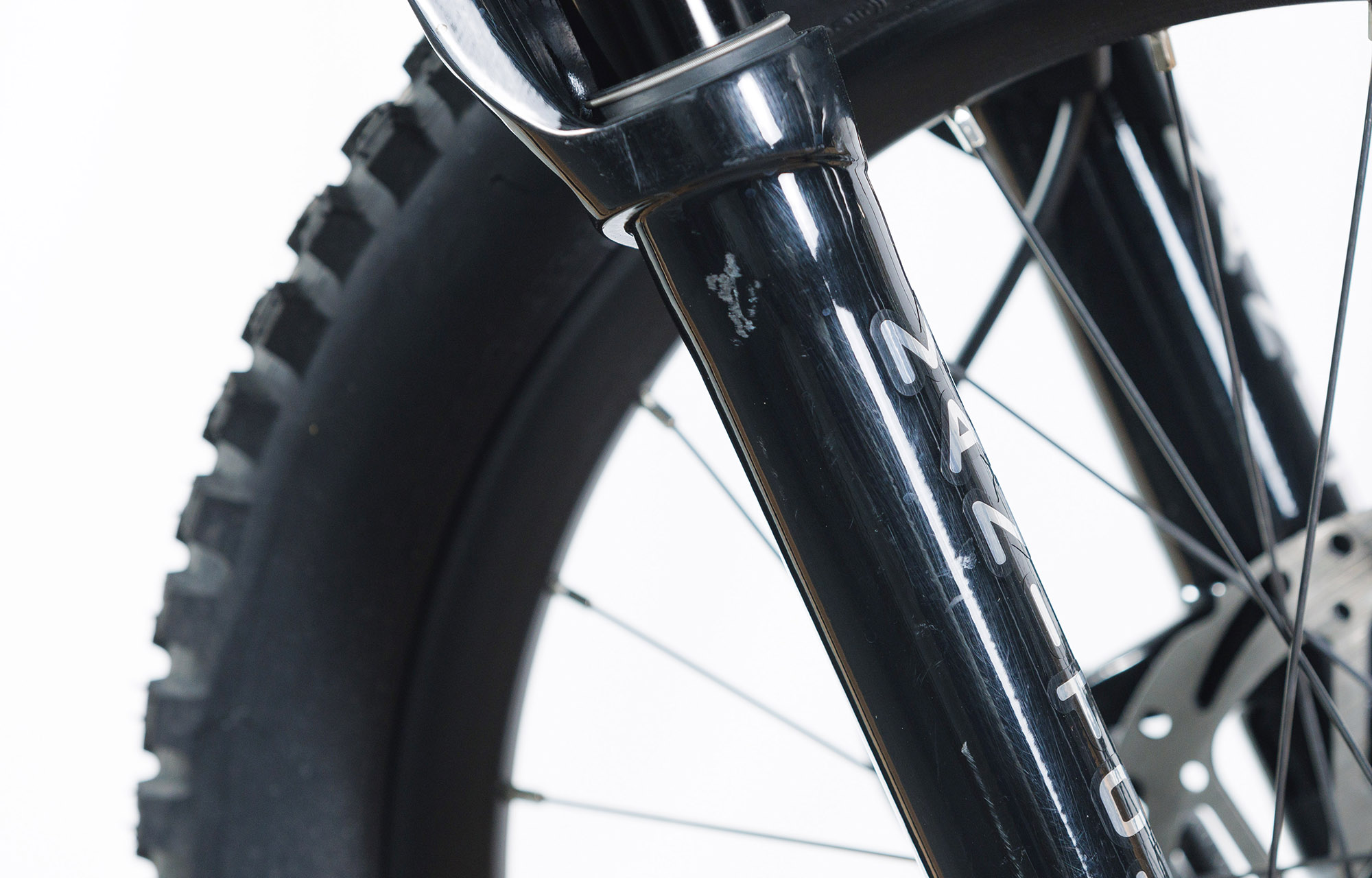

Scratches on derailleur, rims and fork.
- MECHANICAL -
Fully checked.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
CLASH 20, 130 mm travel
20'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsShock
ROCKSHOX Deluxe Select
170 x 35 mm, rebound, threshold adjustment, 1 tokenFork
MANITOU Machete Junit Pro, 120 mm travel
20'', kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles, Boost (15 x 110 mm), 40 mm offsetHeadset
ACROS ZS44/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R15
31.8 mm, 600 mm width, 15 mm rise, Alloy 6061Grips
ODI Elite Motion
BlackBrakes
TEKTRO HD-J2820, 2 pistons
Rotors: TEKTRO TR 180-52, 6-bolt, 180 mm, 1.8 mm ThicknessShifters
MICROSHIFT Acolyte
8sREAR DERAILLEUR
MICROSHIFT Acolyte
8sBottom bracket
PROWHEEL BB92
PressfitCrankset
PROWHEEL DMJ
127 mm crank arms, 7075 alloy, 30t, Narrow wide
Chainring: Included with cranksetChain
KMC X8
8sCassette
MICROSHIFT Acolyte
11-38tRims
ALEXRIMS MD25
20'', 28h, 23 mm inner widthHubs
Rear: FORMULA DHT-142S / Front: FORMULA DC-611
28h, sealed bearingsSpokes/nipples
SAPIM D-Light
2.0-1.65-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Minion DHR II - Front: MAXXIS Minion DHR II
Seat post
RIDE ALPHA
31.6 mm, 250 mm lengthSaddle
SELLE ROYAL Explora JR
Kids specificWeight
11,19 kg / 24,66 lb
Without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
RIDE ALPHA CNC small
Colour
Pure White
Shiny finishAccessories
down tube protector, chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Kids bike - Enduro / Freeride
-
Frame material
AL 6066 T4, T6
-
Frame weight
2,8 kg / 6.17 lb
-
Rear travel
125mm
-
Shock length/stroke
170x35mm
-
Recommended SAG
26-30% / 14-17mm
-
Piggy back shock compatible
No
-
Shock bushings
20x8mm / 30x8mm
-
Recommended/max. fork height
430mm / 440mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
20’’ - 20’’
-
Max. rear tyre dimension - ETRTO
61mm - Ø406mm
-
rear brake mounting type
Postmount 180mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm - 34,9mm
-
Seatpost insertion max.
150mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
No
-
Recommended/max. chainring teeth
30T / 32T
-
Chain line
52
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
Geometry
Geometry
All lengths in millimeters.
