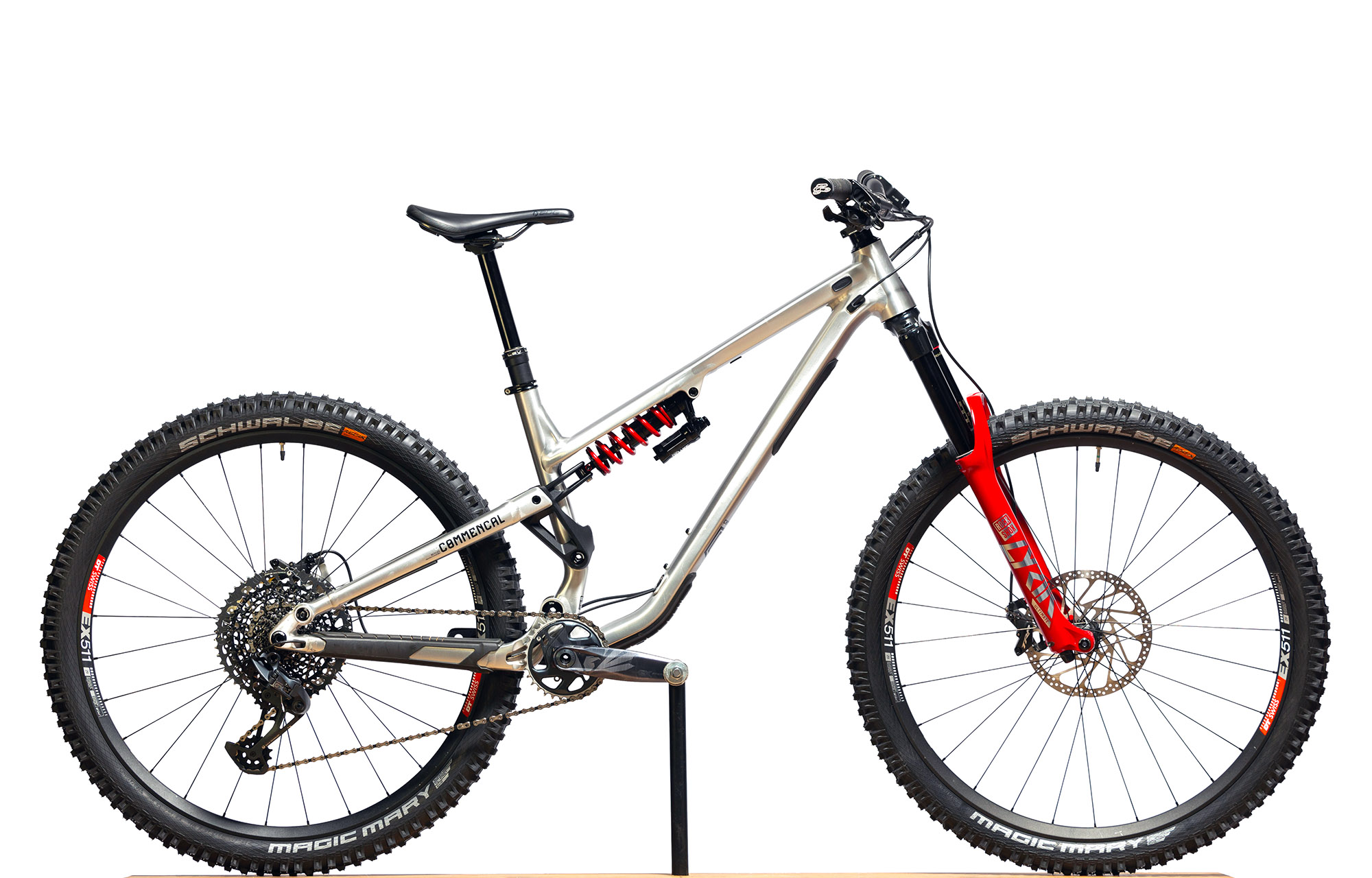

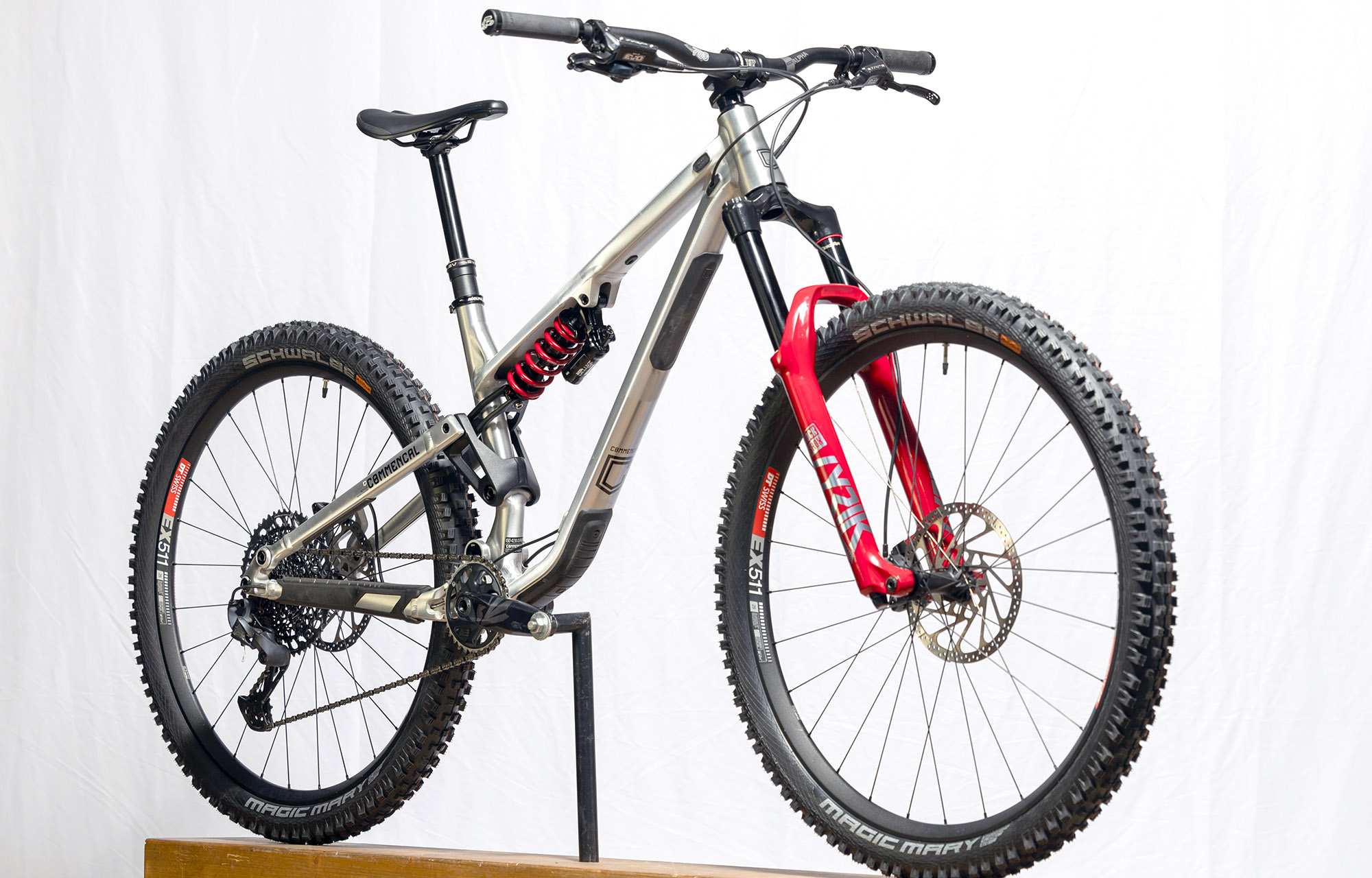

COMMENCAL META TR V4 RACE BRUSHED (M)

Price reduced from C$ 6,300.00 to C$ 4,400.00 -30%
id/sku : OCCAN218
Availability: In stock null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Super Deluxe Coil Ultimate
    210 x 55 mm, RC2T damper,  HSC,  LSC, rebound, 2-position adjustment, Hydraulic Bottom Out. Spring rates: 350lbs on S/M, 400lbs on L, 450lbs on XL

  • Fork

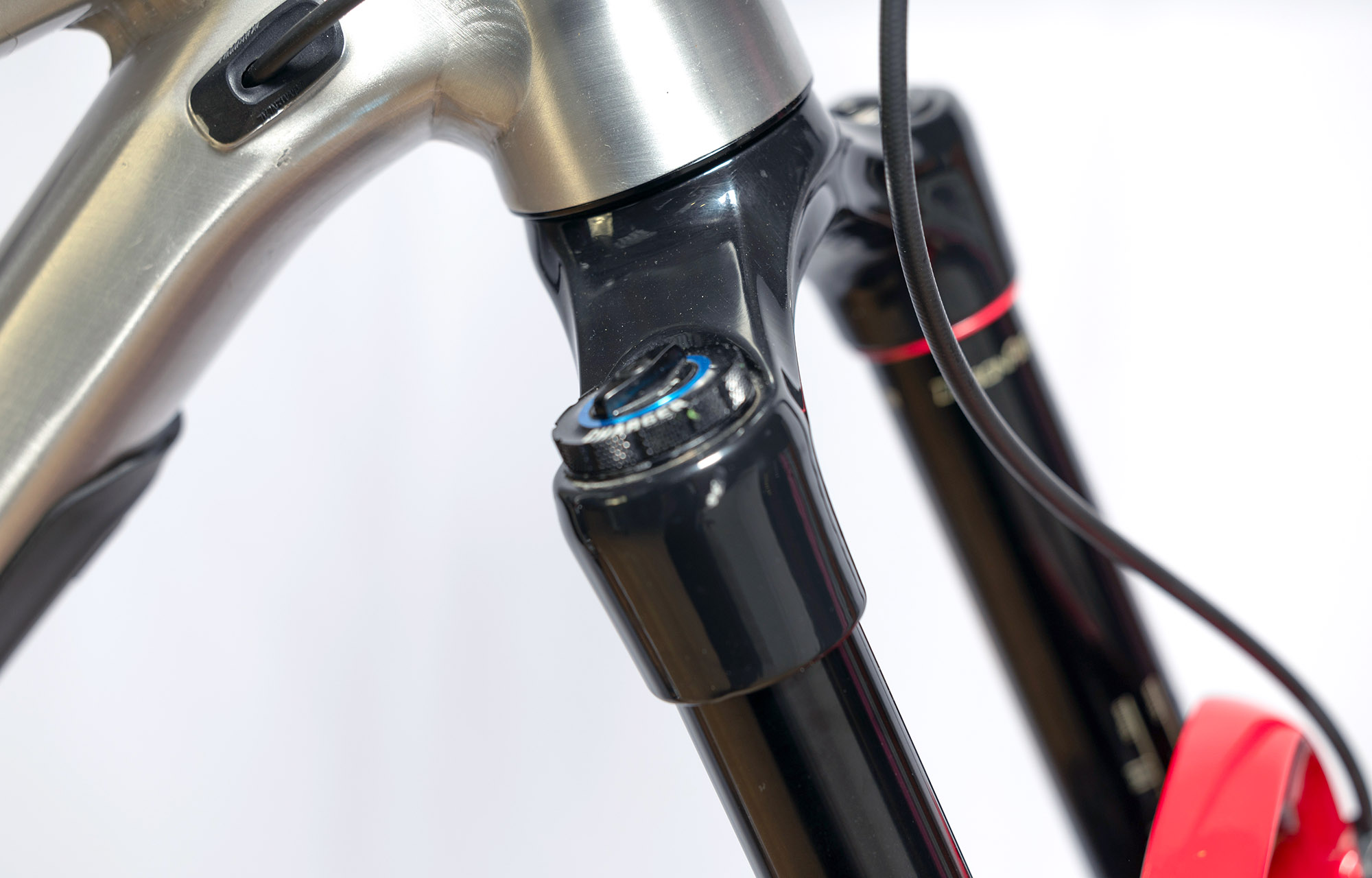

    ROCKSHOX Lyrik Ultimate, 160 mm travel
    29", Charger 2.1 damper, DebonAir, LSC, HSC, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RENTHAL Lock On Grip Ultra Tacky

  • Brakes

    TRP DH-R Evo, 4 pistons
    Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX Eagle
    12s

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

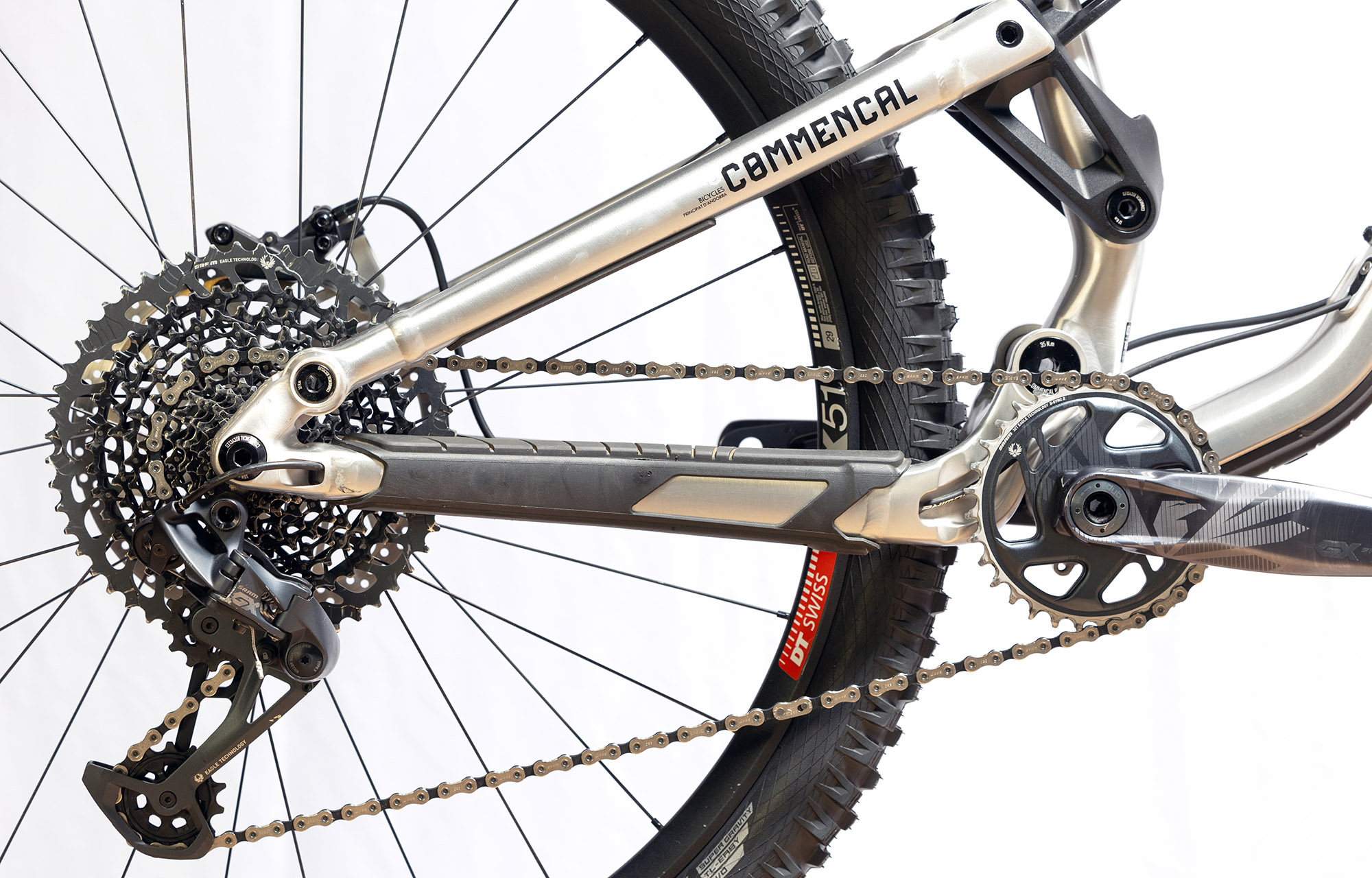

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

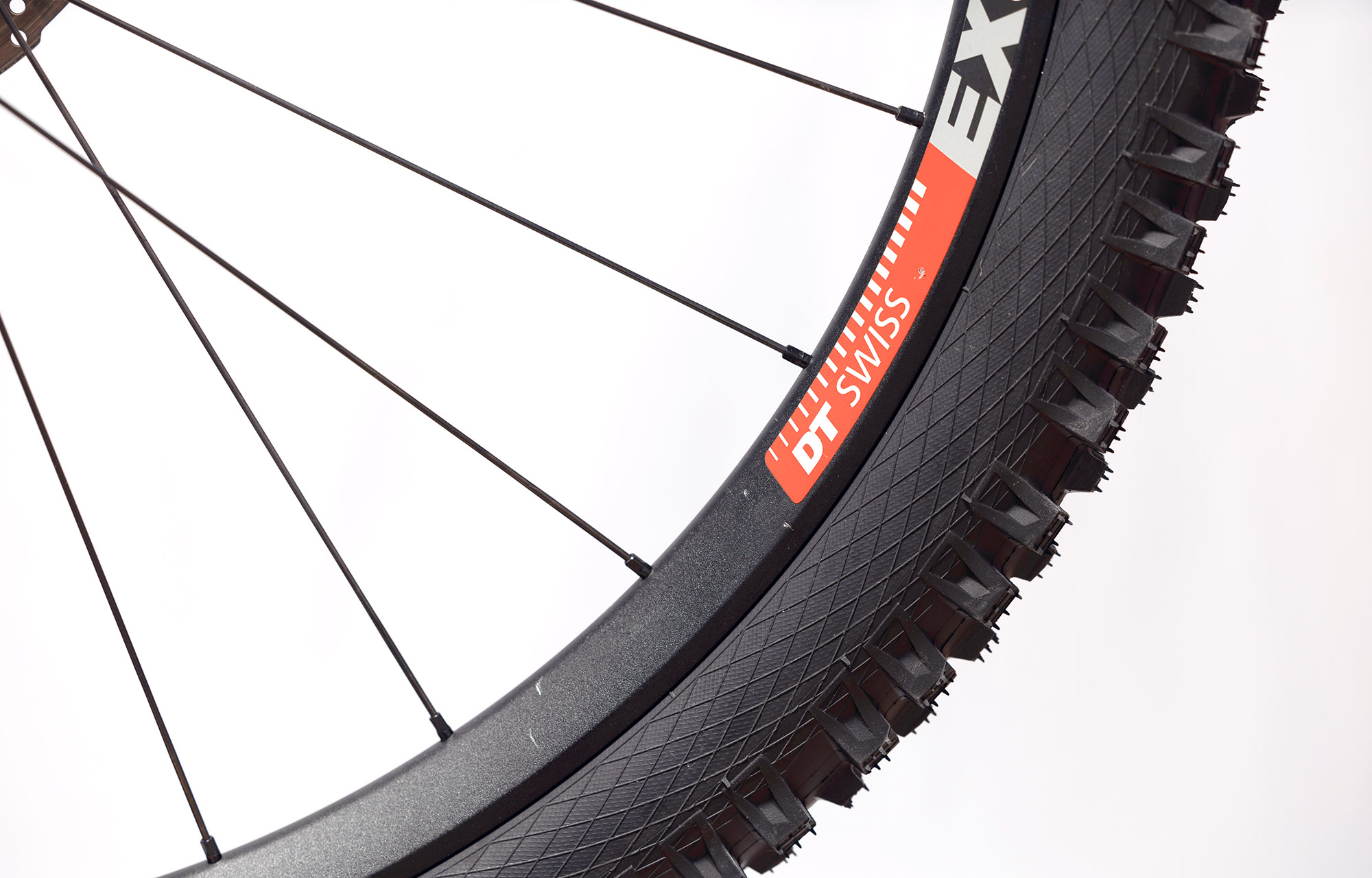

    DT SWISS EX511
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE MAGIC MARY - Front: SCHWALBE MAGIC MARY

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3 Atmos
    140 mm width, Lux-Alloy Rails

  • Weight

    15,9 kg / 35.05 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Brushed
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice
