COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

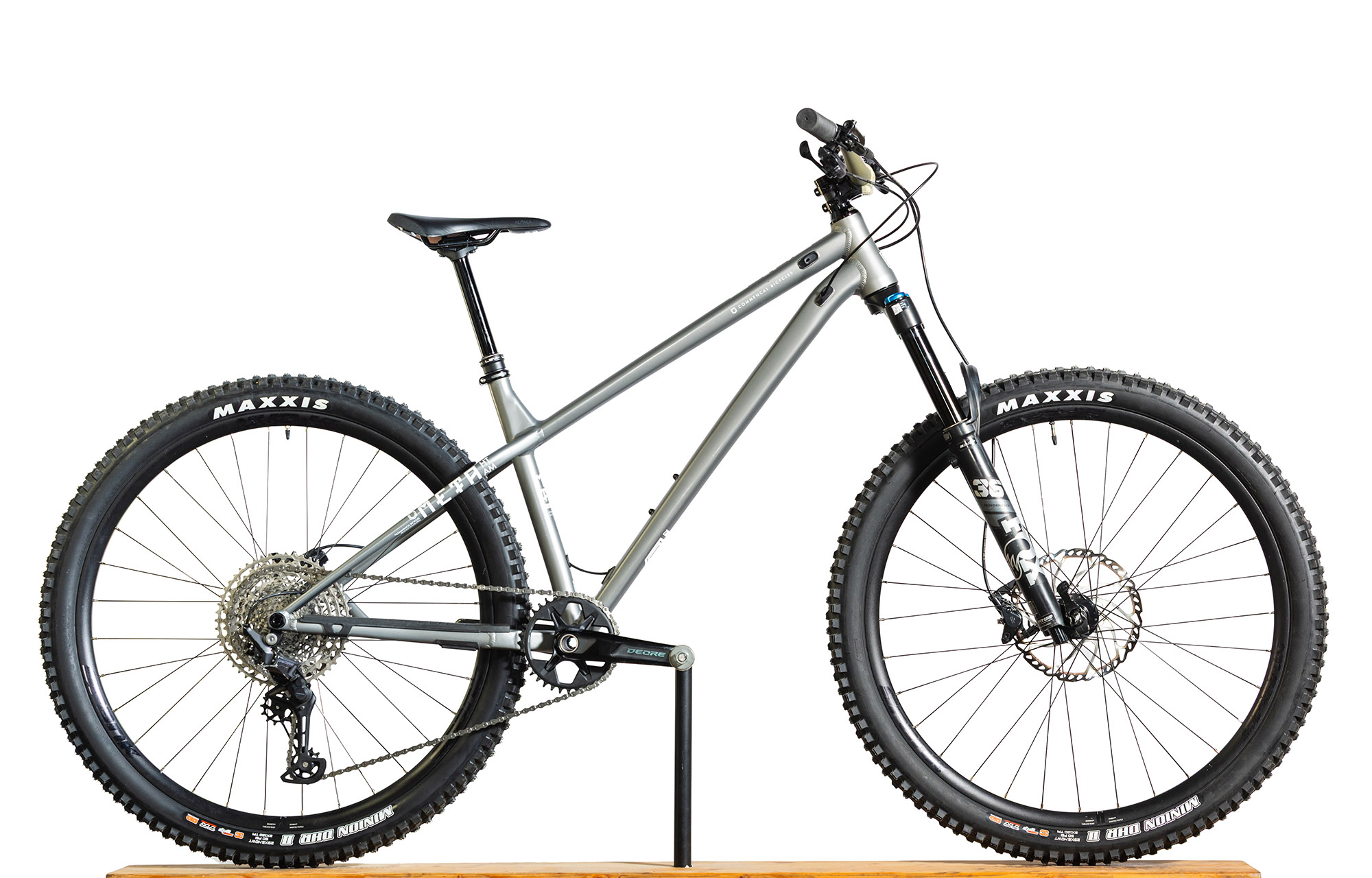

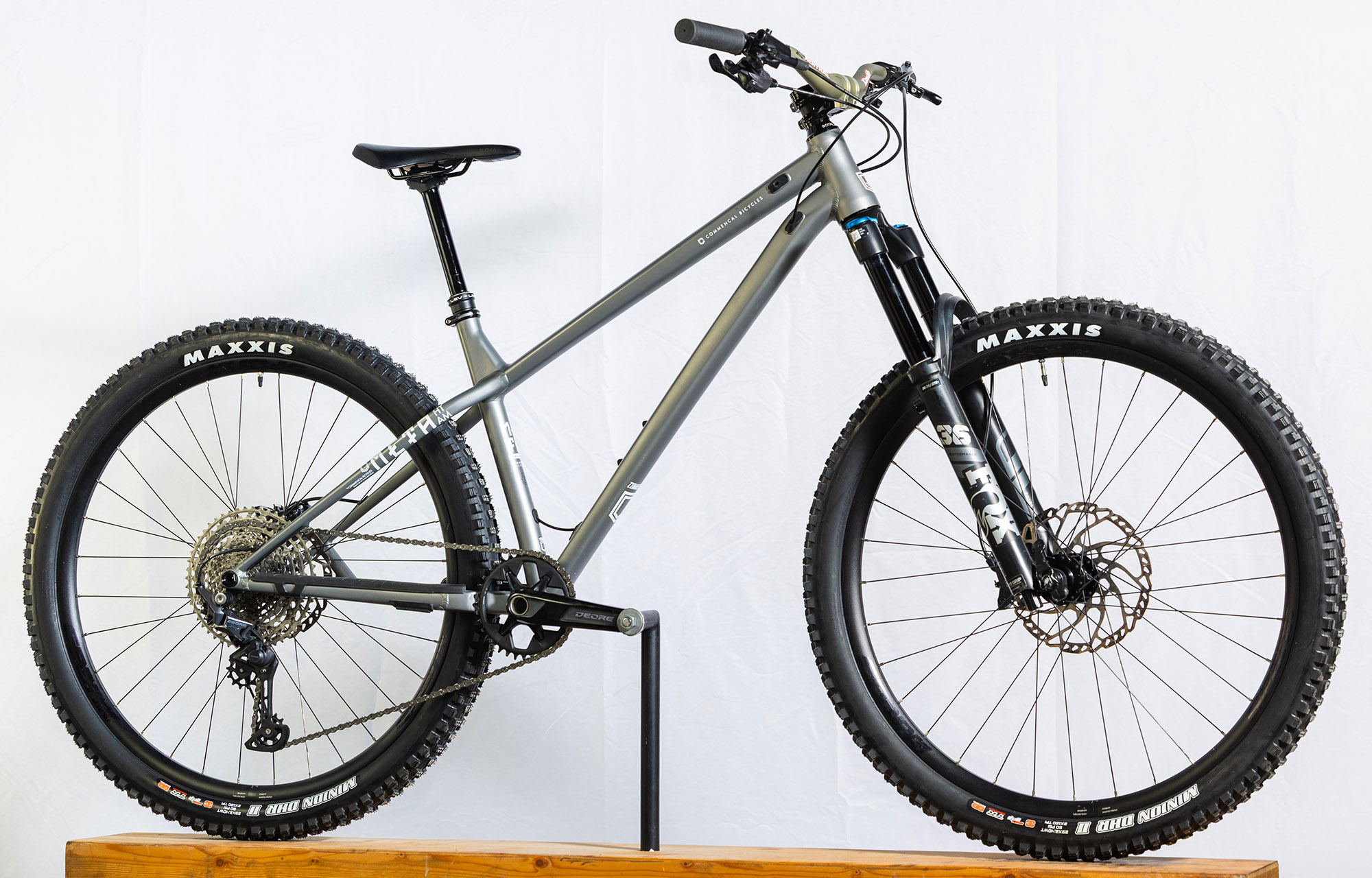

COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

LEARN MORE ABOUT THIS BIKE
Price reduced from C$ 3,700.00 to C$ 2,470.00 -33%
id/sku : OCCAN375
  SIZE GUIDE
Availability: In stock null
Shipping Estimation
Please select an option
Please enter a valid Postal Code
OK
No delivery options are available for this address or item. Please contact us at store.ca@commencal.com

The estimated shipping cost is calculated based on all the items in your cart.

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike, ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rear derailleur, crank arms, dropper post, rims and fork.

- MECHANICAL -
New tyres.
New grips.
Checked fork.
Brakes bleed, pads changed.

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302) image cover number large 0
COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302) image cover number large 1
COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302) image cover number large 2
COMMENCAL META HT AM RACE MATTE GRAPHITE - M (21130302) image cover number large 3

specifications

  • Frame

    META HT AM - 29’’
    Alloy 6061, triple butted tubes, T4, T6.

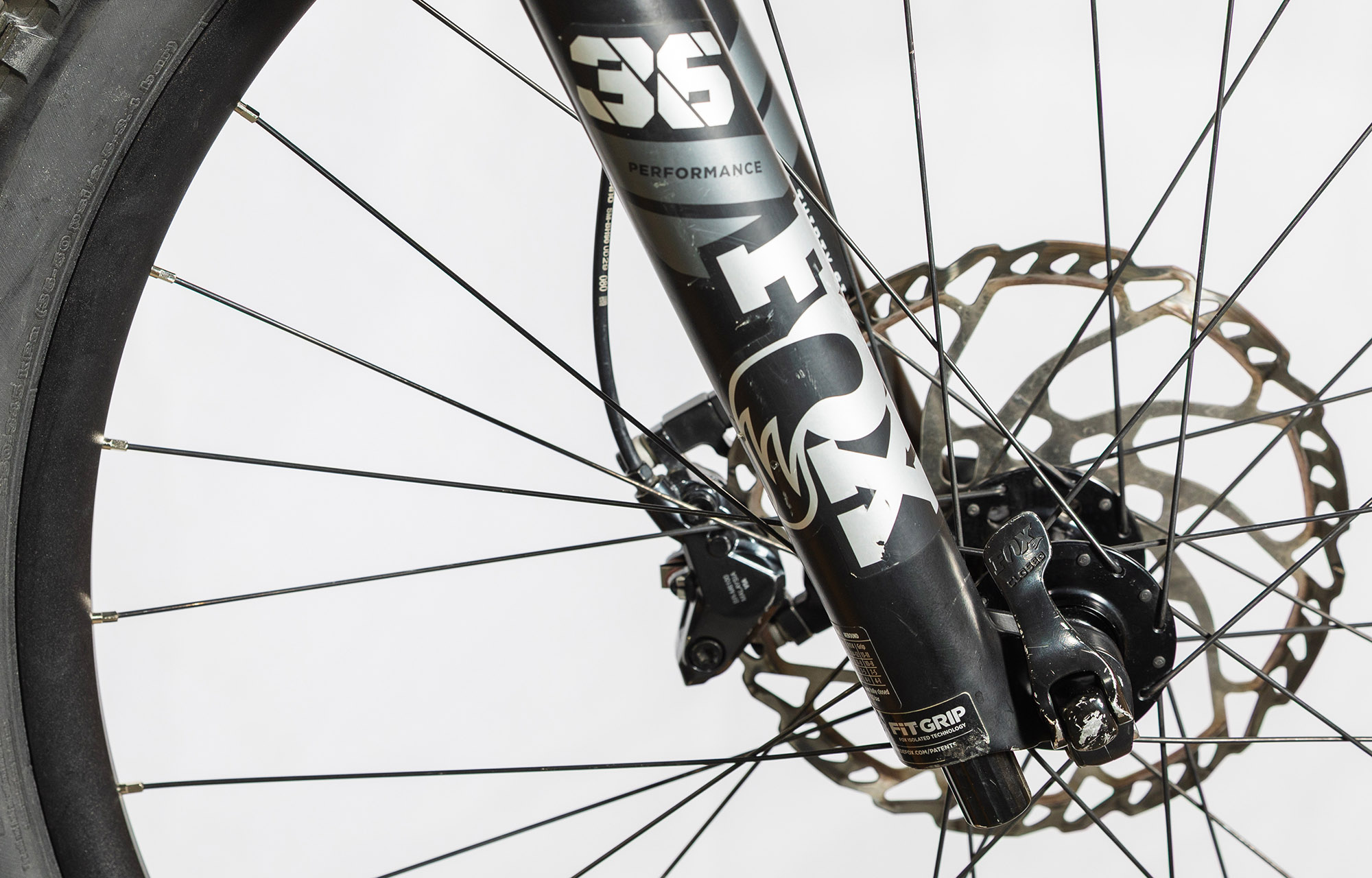

  • Fork

    FOX 36 Performance, 150 mm travel
    29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 51 mm offset

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RENTHAL APEX
    50 mm extension, 31,8 mm

  • Handlebar

    RENTHAL FAT BAR
    31.8x40mm

  • Grips

    RIDE ALPHA

  • Brakes

    SHIMANO Deore, 2 PISTONS, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 203 / 180 mm

  • Shifters

    SHIMANO Deore
    12 sp, RapidFire Plus

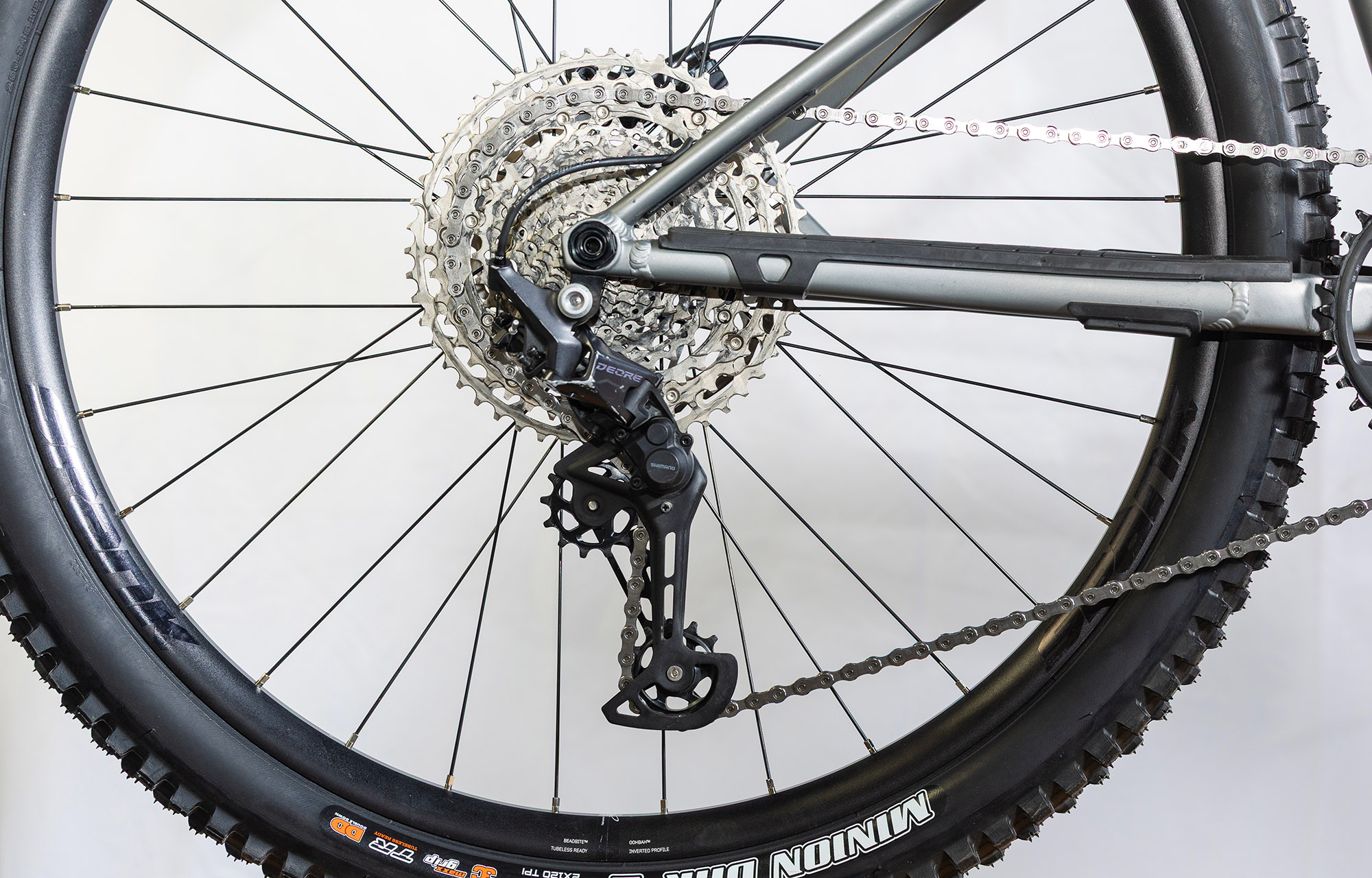

  • REAR DERAILLEUR

    SHIMANO Deore
    12 sp

  • Bottom bracket

    SHIMANO Deore
    BSA, threaded

  • Crankset

    SHIMANO Deore, 170 mm crank arms, Boost
    Chainring: SHIMANO Deore, 32t

  • Chain

    KMC X12
    12 sp

  • Cassette

    SHIMANO Deore
    12 sp, 10-51t

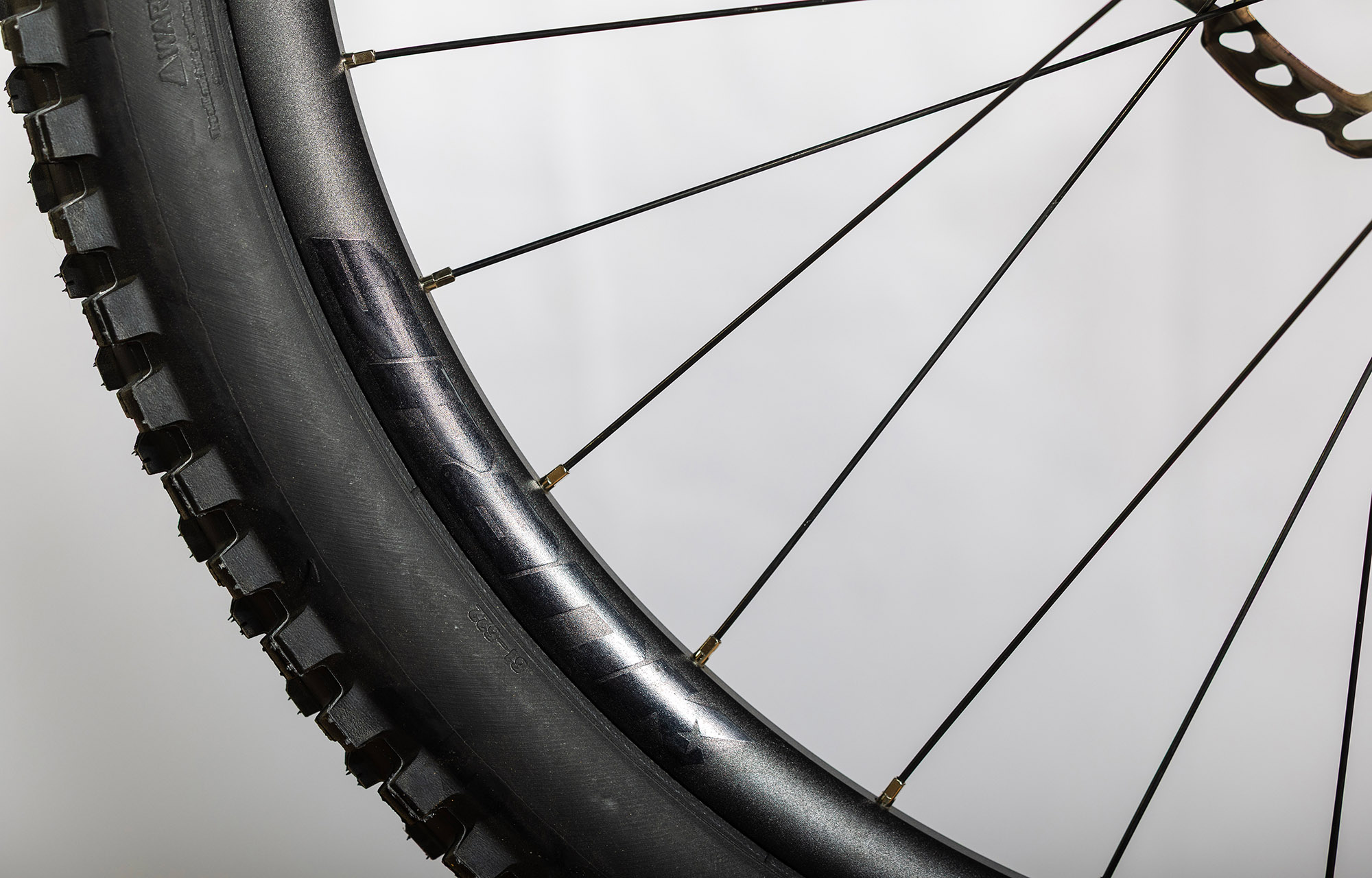

  • Rims

    SPANK Spike Race 33
    29'', 32h, 28 mm inner width, Tubeless Ready

  • Hubs

    Rear: FORMULA MSL-148A - Front: FORMULA DC-711
    Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    DT SWISS Competition
    J-Bend, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Minion DHR II - Front: MAXXIS Minion DHR II
    Rear: 29" x 2.4"
    Front: 29" x 2.4"

  • Seat post

    KS LEV INTEGRA
    31,6 mm, travel: 150 mm

  • Saddle

    FIZIK Alpaca X5
    145mm width, S-Alloy rail

  • Weight

    13,4 kg / 29,54 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Matte Graphite
    Matte finish

  • Accessories

    Chainstay protector, seatstay protector

Bike specifications are subject to change without notice.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

learn more

Technical informations

  • Bicycle type

    All Mountain

  • Frame material

    AL 6061 T4, T6

  • Frame weight

    2.08 kg / 4,58 lb

  • Recommended/max. fork height

    552mm / 562mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    29’’ - 29’’ (L-XL)
    29’’ - 27.5’’ (S-M)

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm (L-XL)
    64mm - Ø584mm (S-M)

  • rear brake mounting type

    IS 200mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 250mm / M : 297mm / L-XL : 340mm

  • Bottom bracket type

    BSA 68mm

  • Chain guide

    No

  • Chain line

    52

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
465
490
2 - SEAT TUBE ANGLE
74°
74,5°
74,5°
74,5°
3 - HEAD TUBE ANGLE
64°
64°
64,5°
64,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1180
1202
1229
1251
6 - TOP TUBE LENGTH
582
604
630
653
7 - CHAIN STAY LENGTH
432
432
432
432
8 - BOTTOM BRACKET HEIGHT
-30
-30
-40
-40
9 - FORK LENGTH
561
561
561
561
10 - REACH
405
425
450
475
11 - STACK
638
643
647
646

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Adjust your suspension

commencal care

We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

Warranty

Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.

learn more

Registration

The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.

Register your bike

Technical documents

Here you will find all the technical and practical information concerning your COMMENCAL.

commencal tech
User Manual
