Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

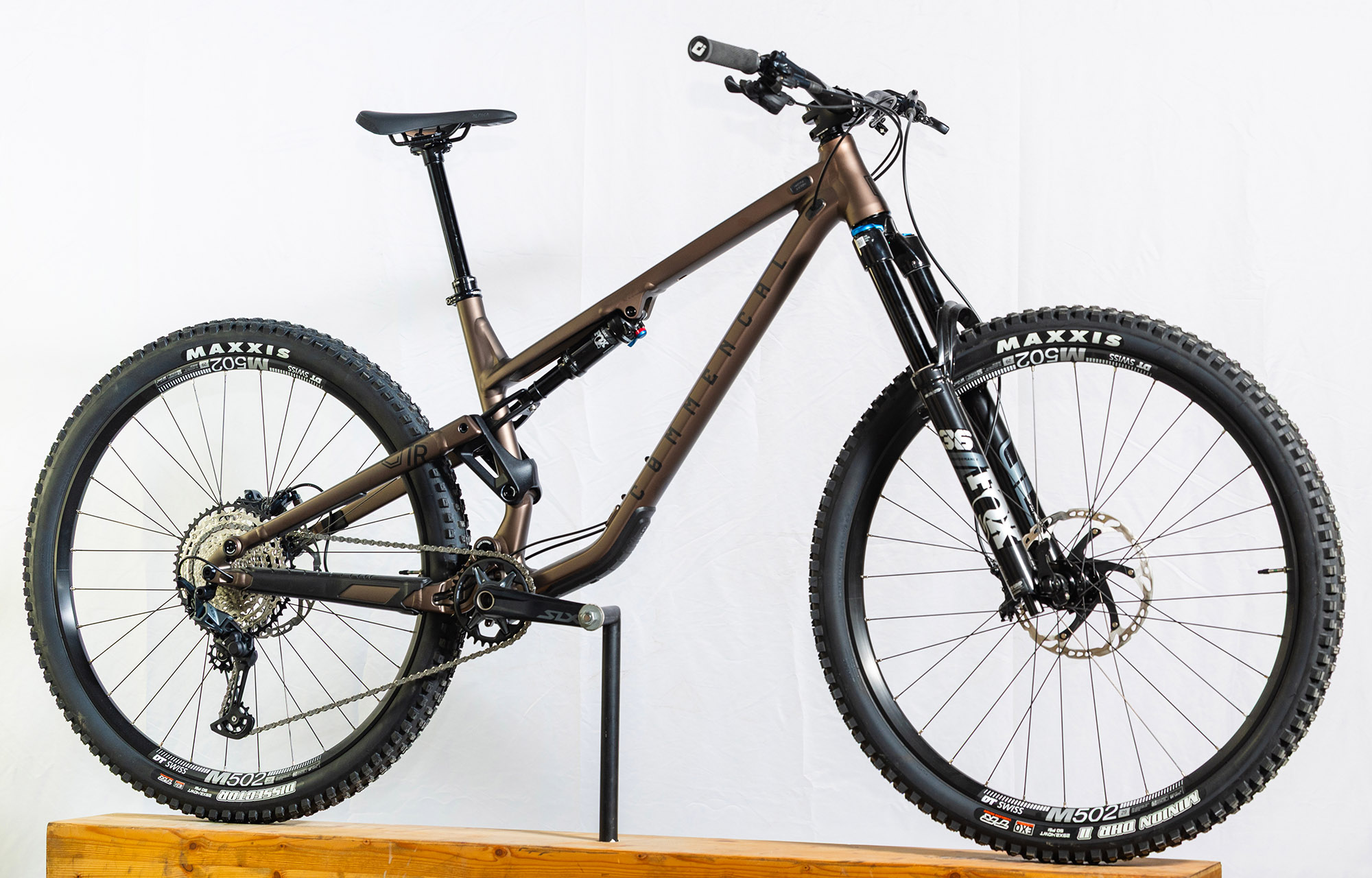

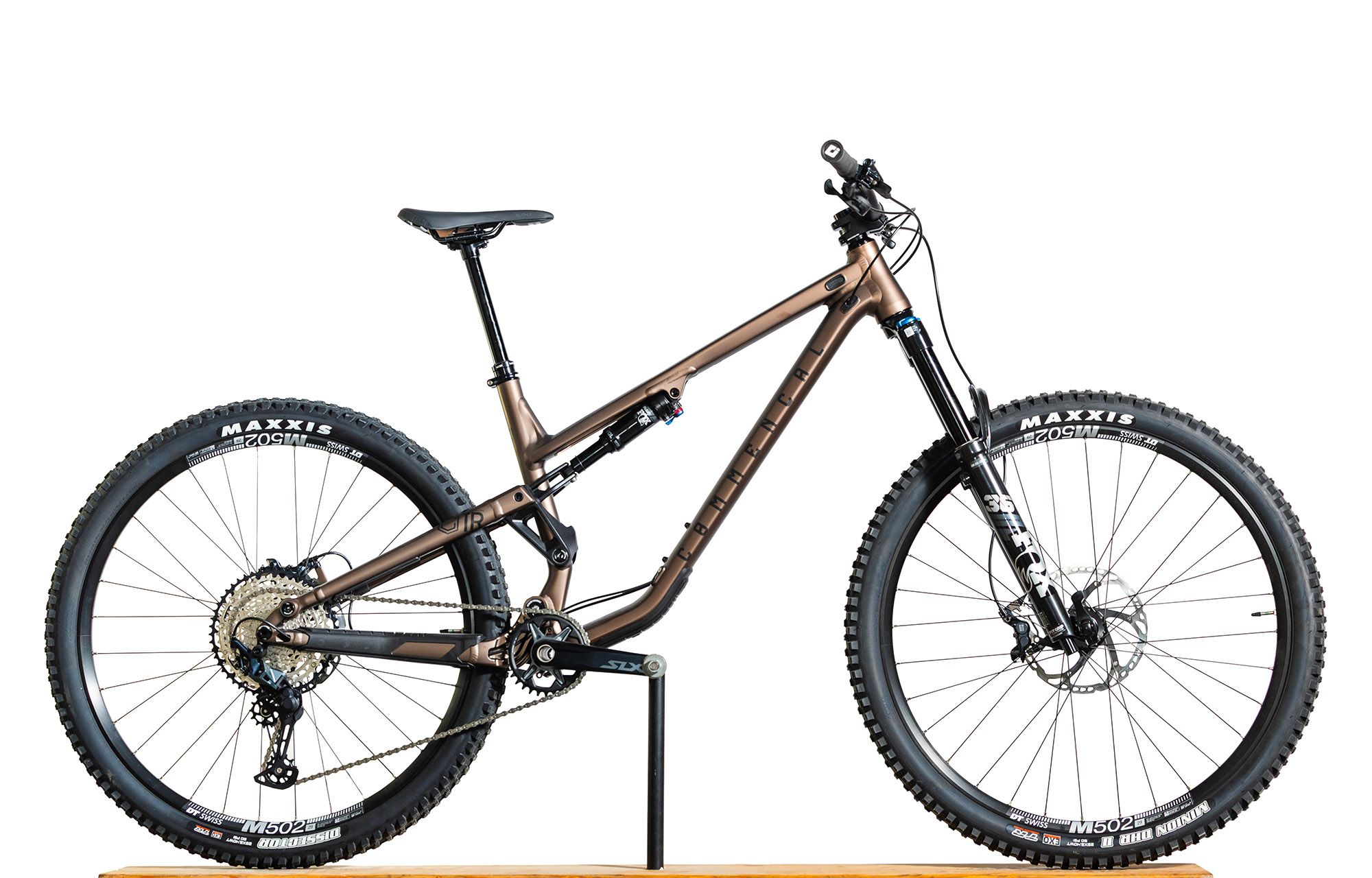

COMMENCAL META TR V4 ESSENTIAL FROZEN BROWN - L (22123503)
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ex-display bike never ridden as good as new, ready for a new start.
- AESTHETIC -

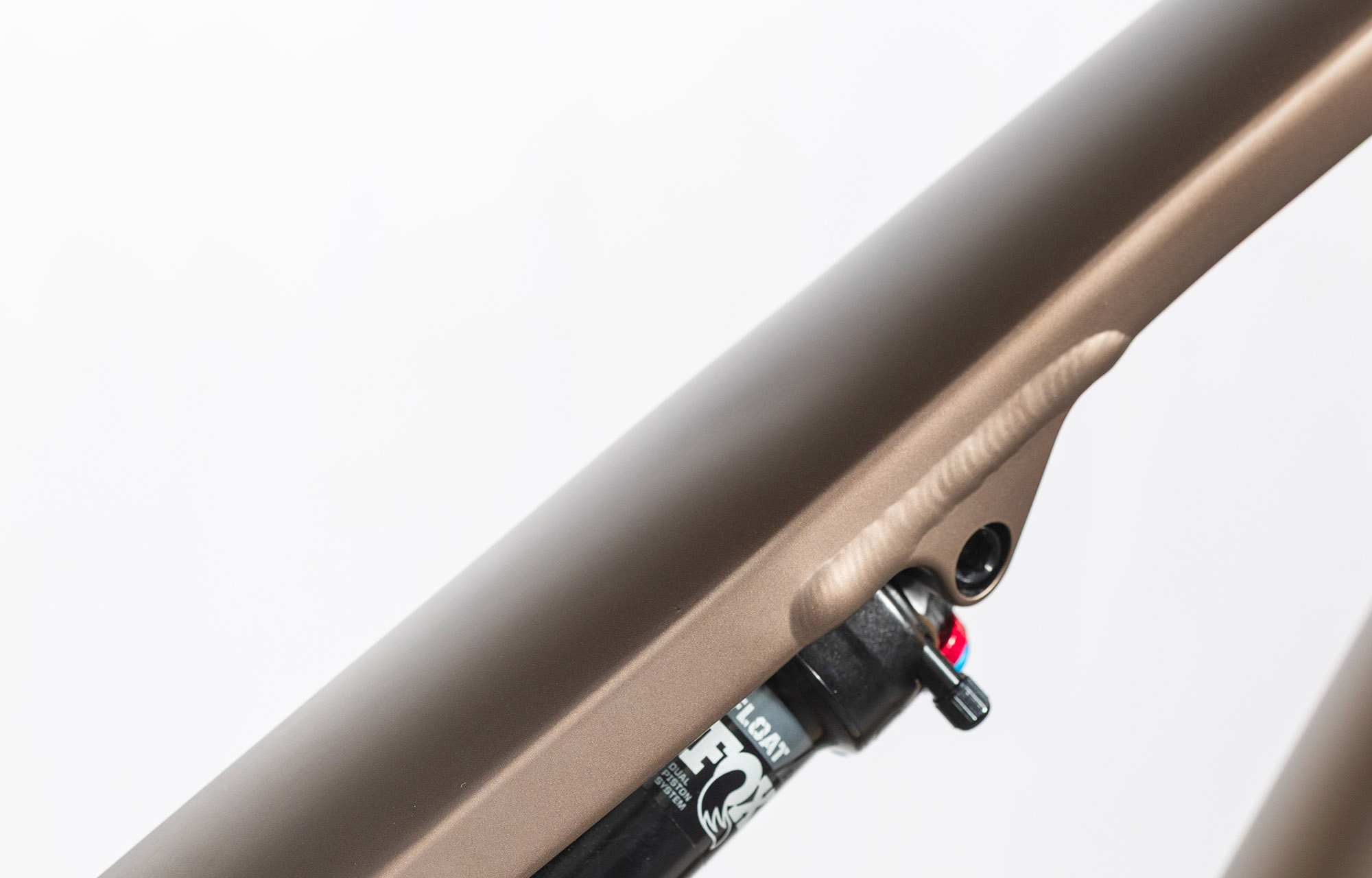

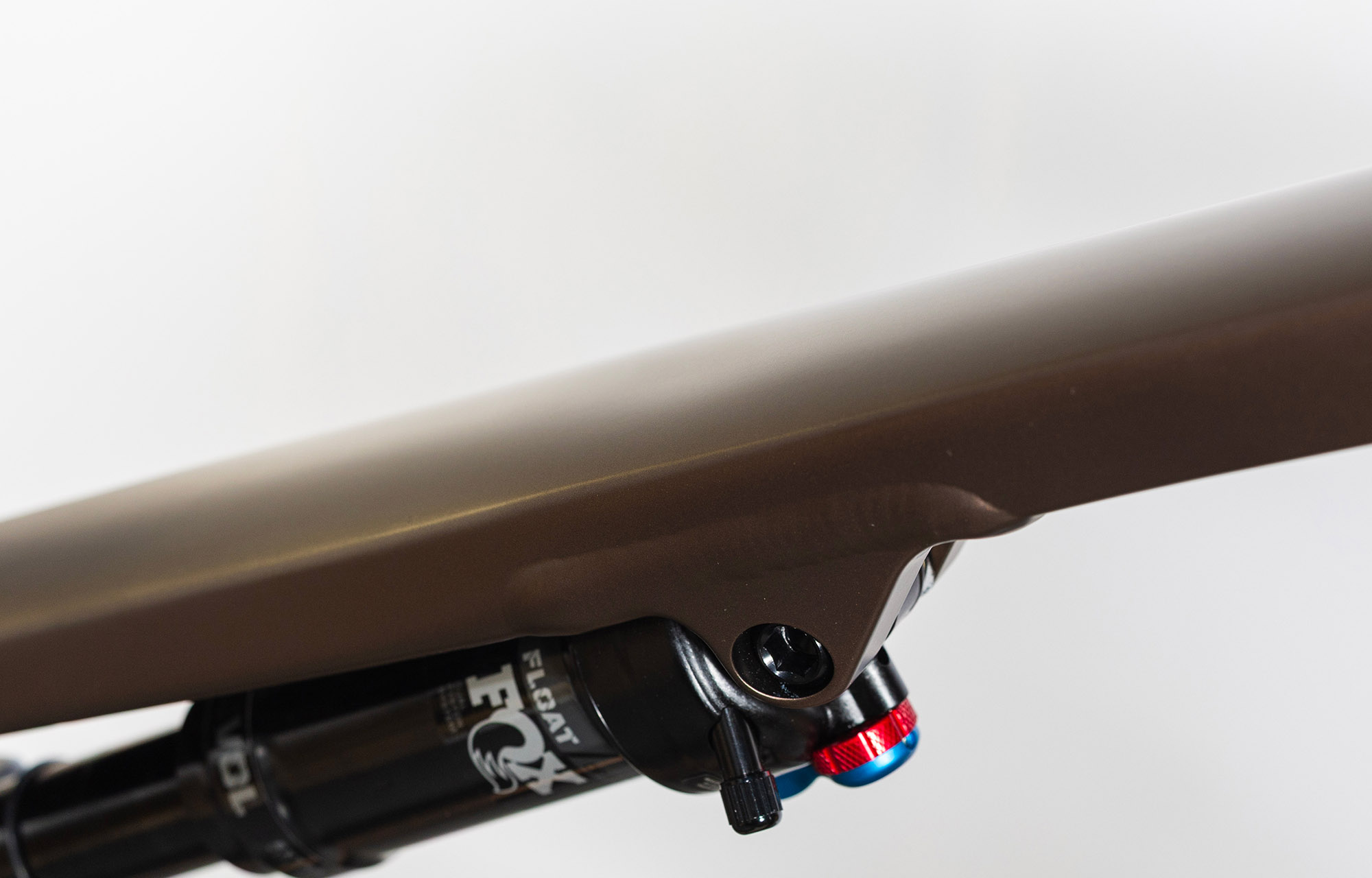

Small dent on the top tube (transport and storage).
- MECHANICAL -
Fully checked.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META TR V4, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustmentFork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holesShifters
SHIMANO SLX
12sREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO BB71-41A
PressfitCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + TechnologyChain
SHIMANO SLX
12sCassette
SHIMANO SLX
12s, 10-51tRims
DT SWISS M 502
29'', 32h, 30 mm inner widthHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearingsSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless ReadySeat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
All Mountain
-
Frame material
AL 6066 T4, T6
-
Frame weight
3,7 kg / 8.15 lb
-
Rear travel
140mm
-
Shock length/stroke
210x55mm
-
Recommended SAG
26-30% / 14-17mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
551mm / 571mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø622mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
220mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 240mm / M : 280mm / L : 300mm / XL : 320mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
-
shock anchor adjustment
2 positions
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
