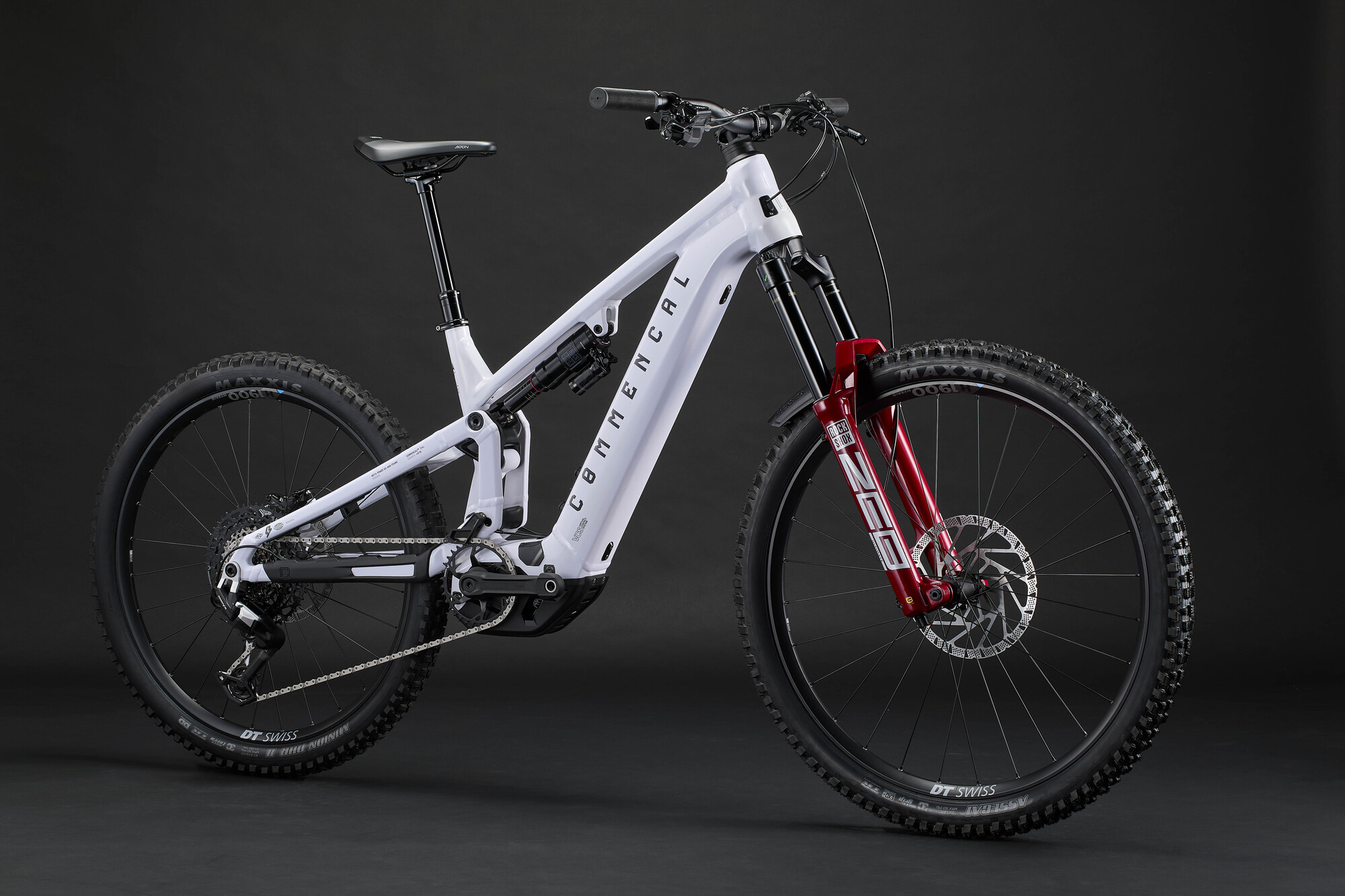

Cuadro
META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Motor

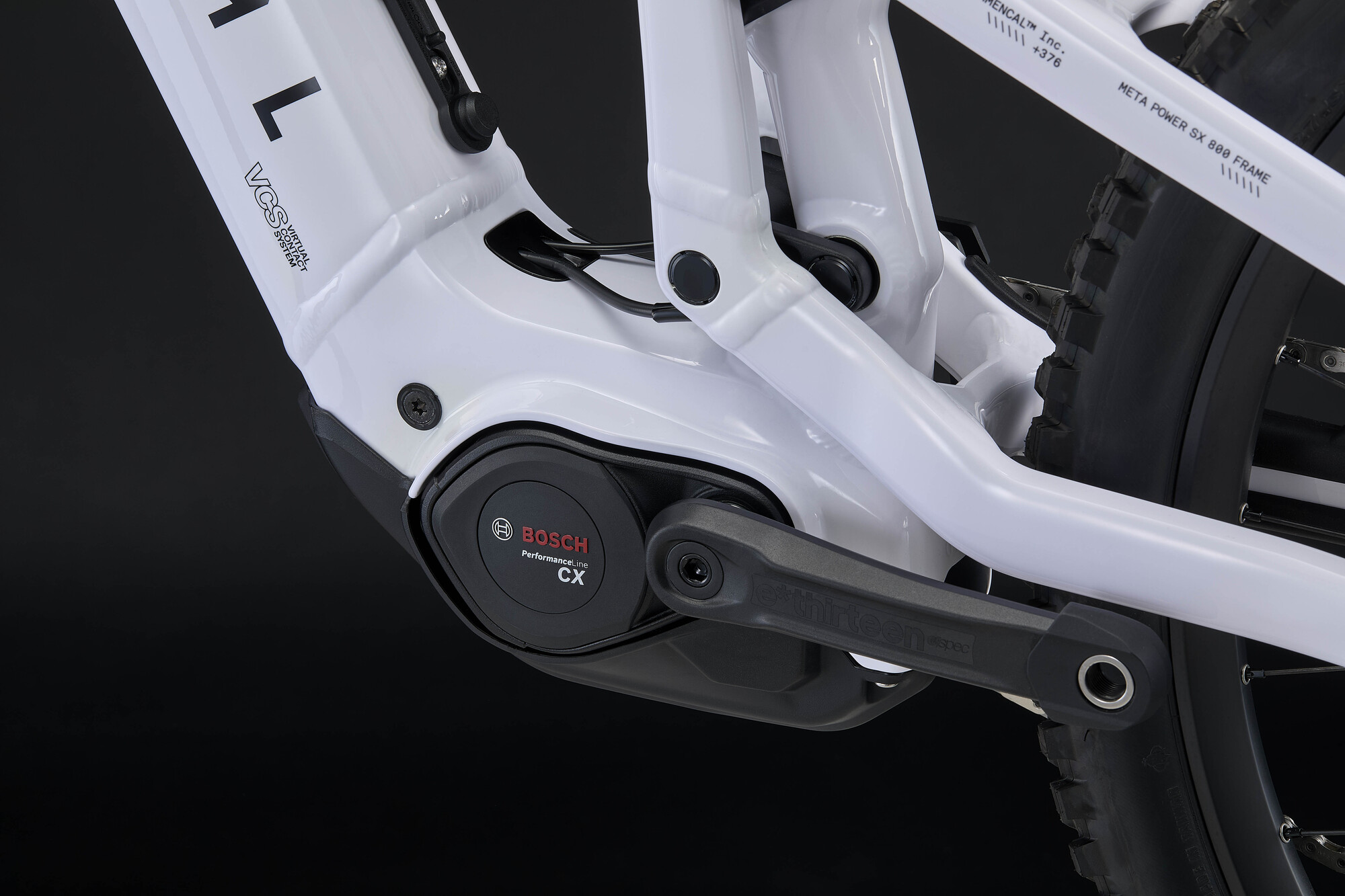

BOSCH Performance Line CX Gen5
100 n.m
Batería
BOSCH Powertube 800
Fully integrated main battery, 800 Wh
Display
BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switch
Amortiguador

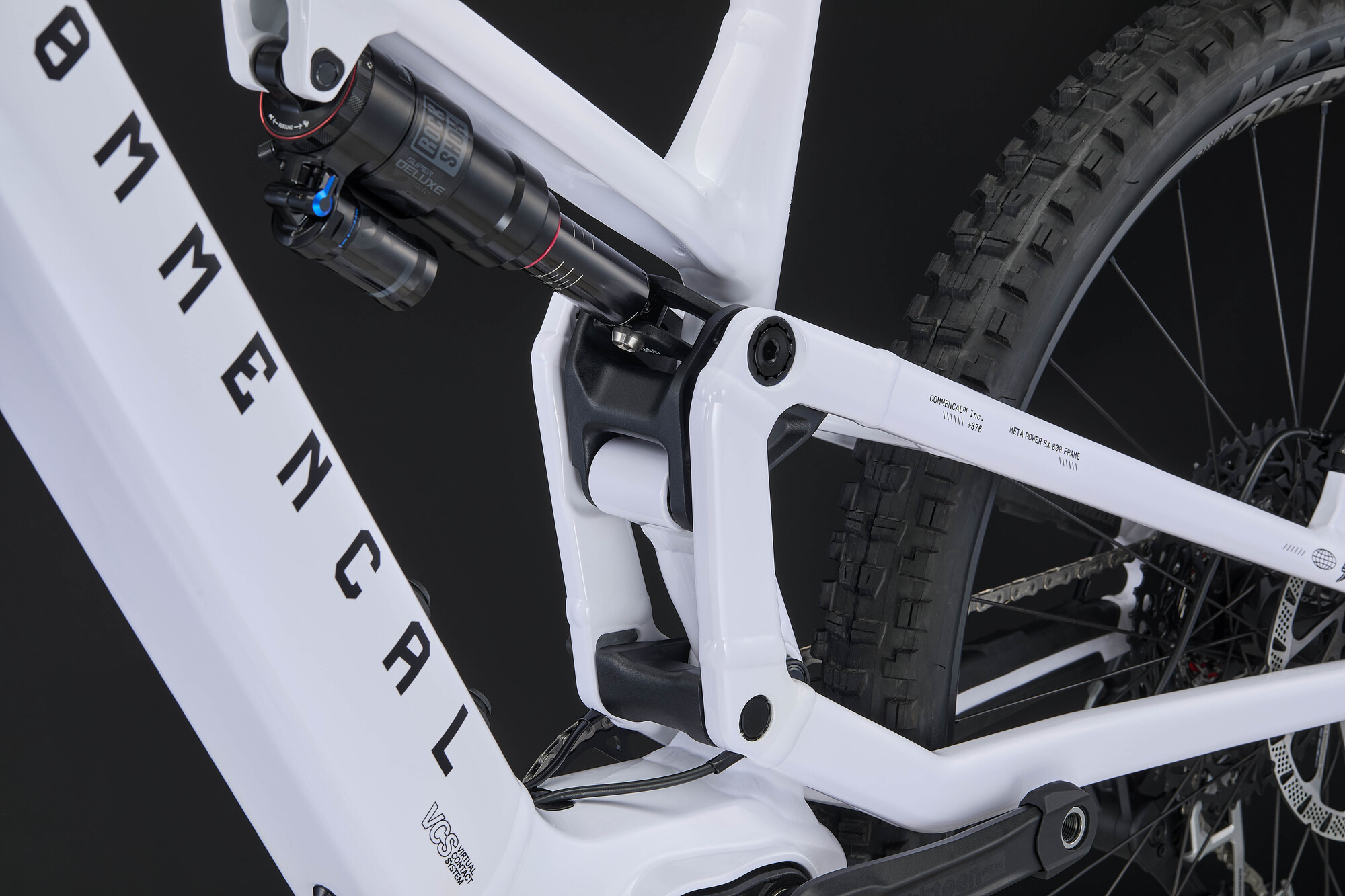

ROCKSHOX Super Deluxe Select
230 x 65 mm, Debonair +, 2-postion (open/firm) lever, Rebound
Horquilla

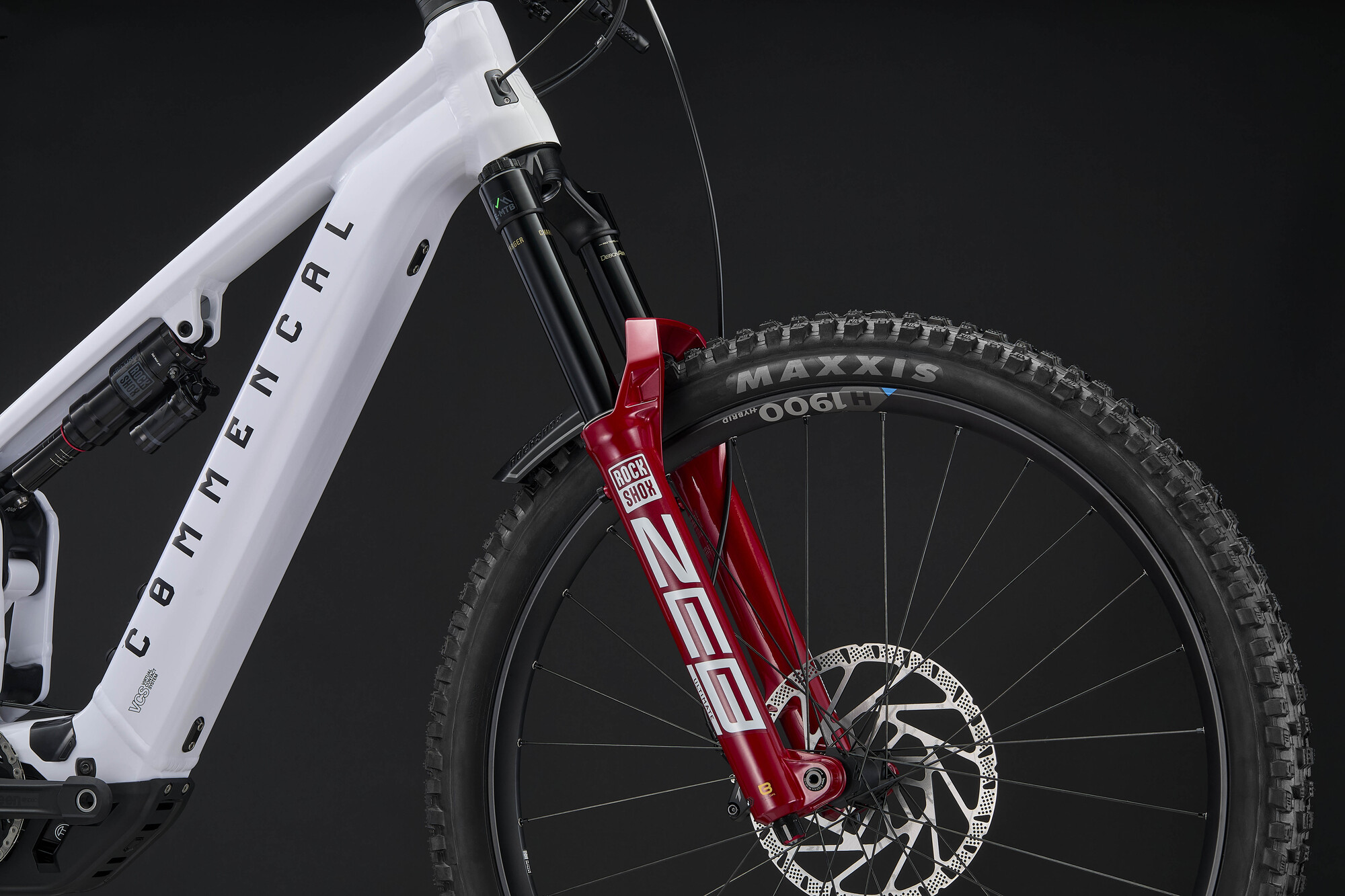

ROCKSHOX ZEB Ultimate, 180 mm
29", Charger 3.1 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset
Dirección
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings
Potencia
RIDE ALPHA 40
40 mm extension, 31.8 mm

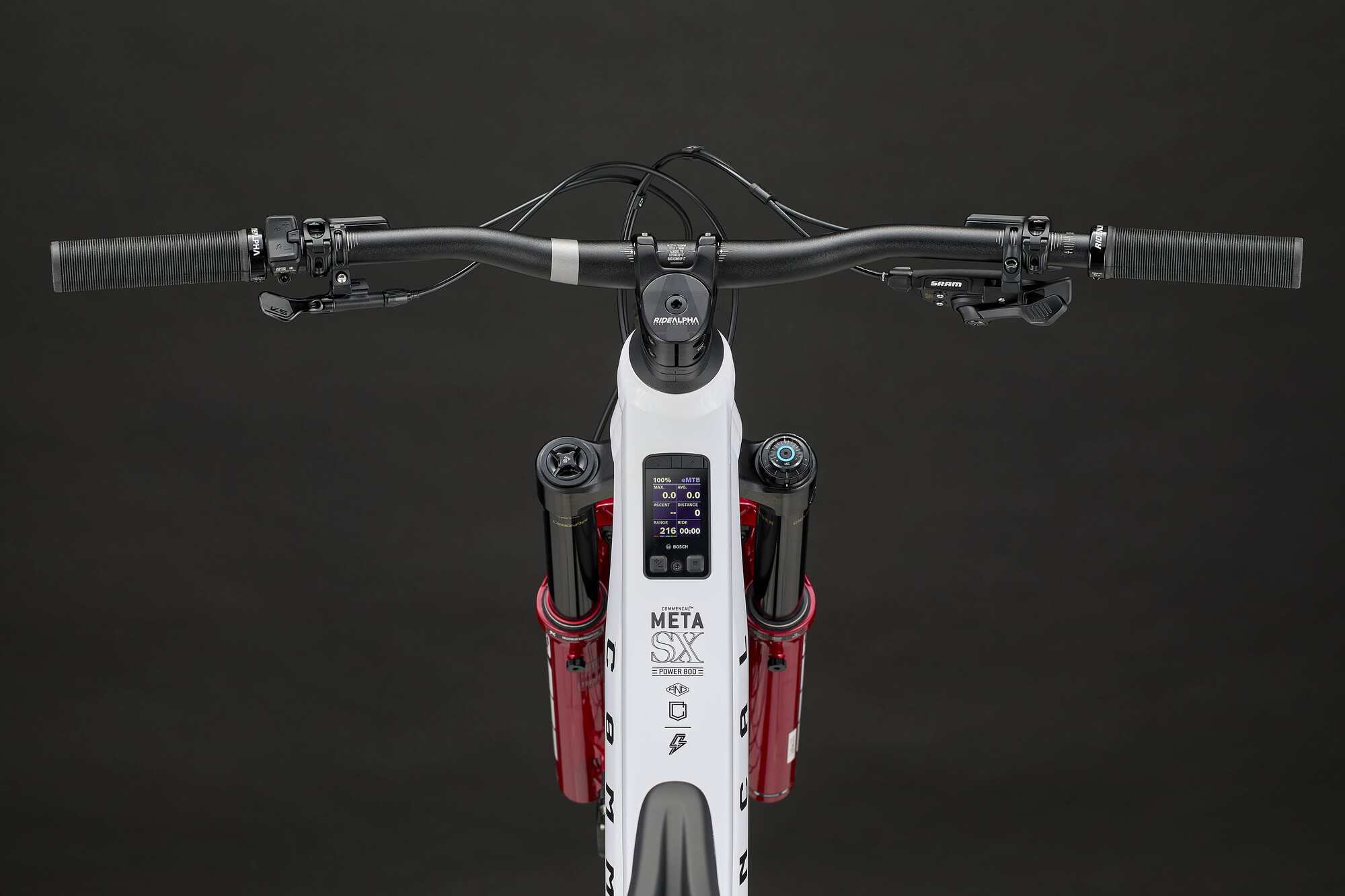

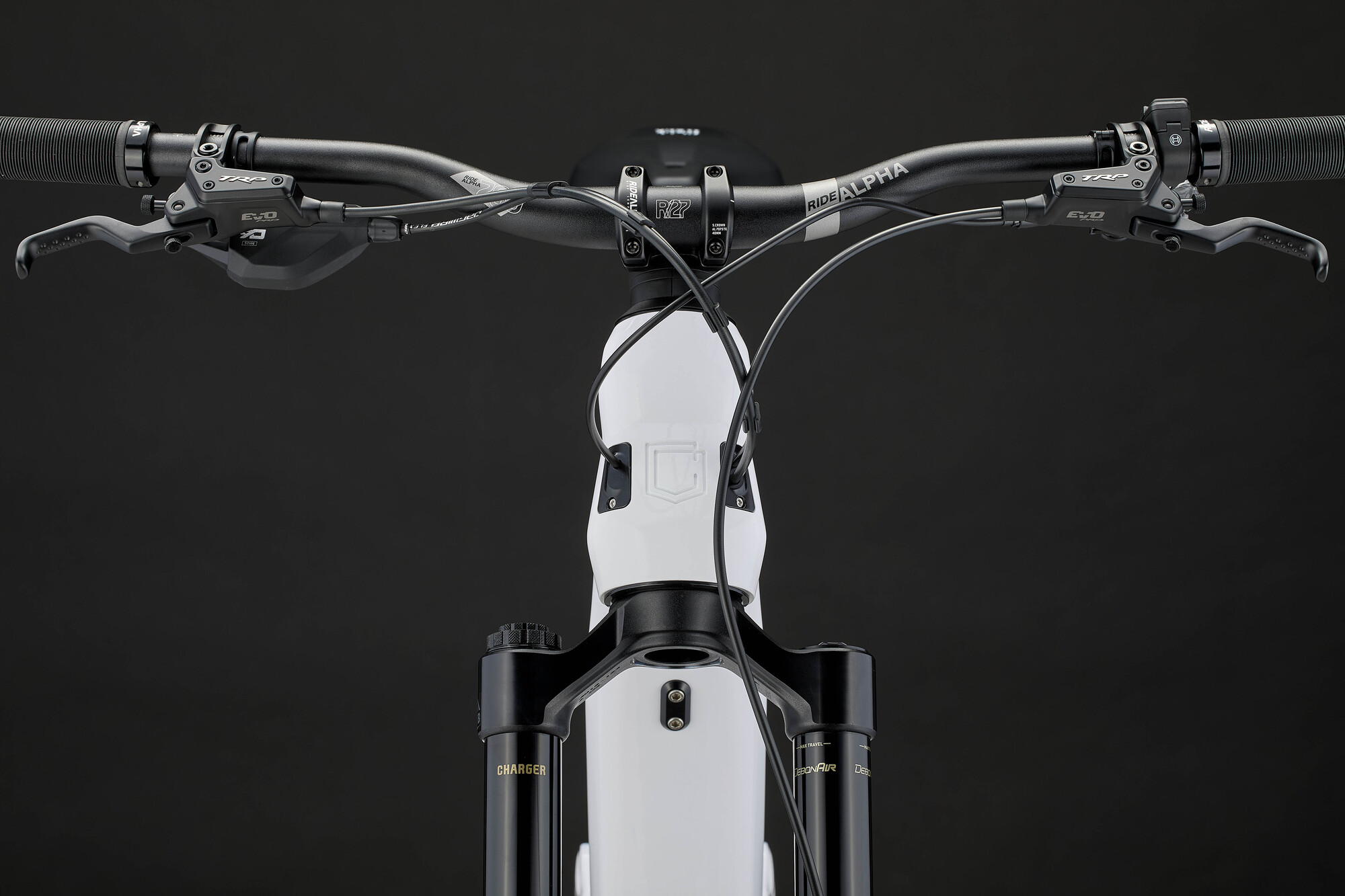

Manillar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Puños
RIDE ALPHA Mushroom
Soft compound, single clamp, black
Frenos
TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width
Pulsador
SRAM Eagle 90
12s
Guía cadena
RIDE ALPHA
32-34t
Desviador trasero
SRAM Eagle 90
12s
Bielas / Plato
E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM E-MTB T-Type, 34t for Bosch system, direct mount
Cadena
SRAM GX T-Type
12s, Flattop
Cassette
SRAM XS 1270 T-TYPE
12s, 10-52t
Llantas
DT SWISS H1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Buje
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
Radios
Included with wheelset
Neumáticos
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR
Tija de sillín
KS Ragei
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XL
Sillín
FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails
Peso
TBD
Pedales incluidos
CRANKBROTHERS Stamp 1
Color
Pure White
Shiny Finish
Accesorios
Down tube protector, chainstay protector, seatstay protector, ZEB specific fender, FIDLOCK base, BOSCH Kiox 400, Pedals CRANKBROTHERS Stamp 1.
Battery charger: BOSCH 4A Charger, Compact size & lightweight
*Please note that bike specs are subject to change without prior notice.
Batería Reciclable
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
