- DESCRIPTION -

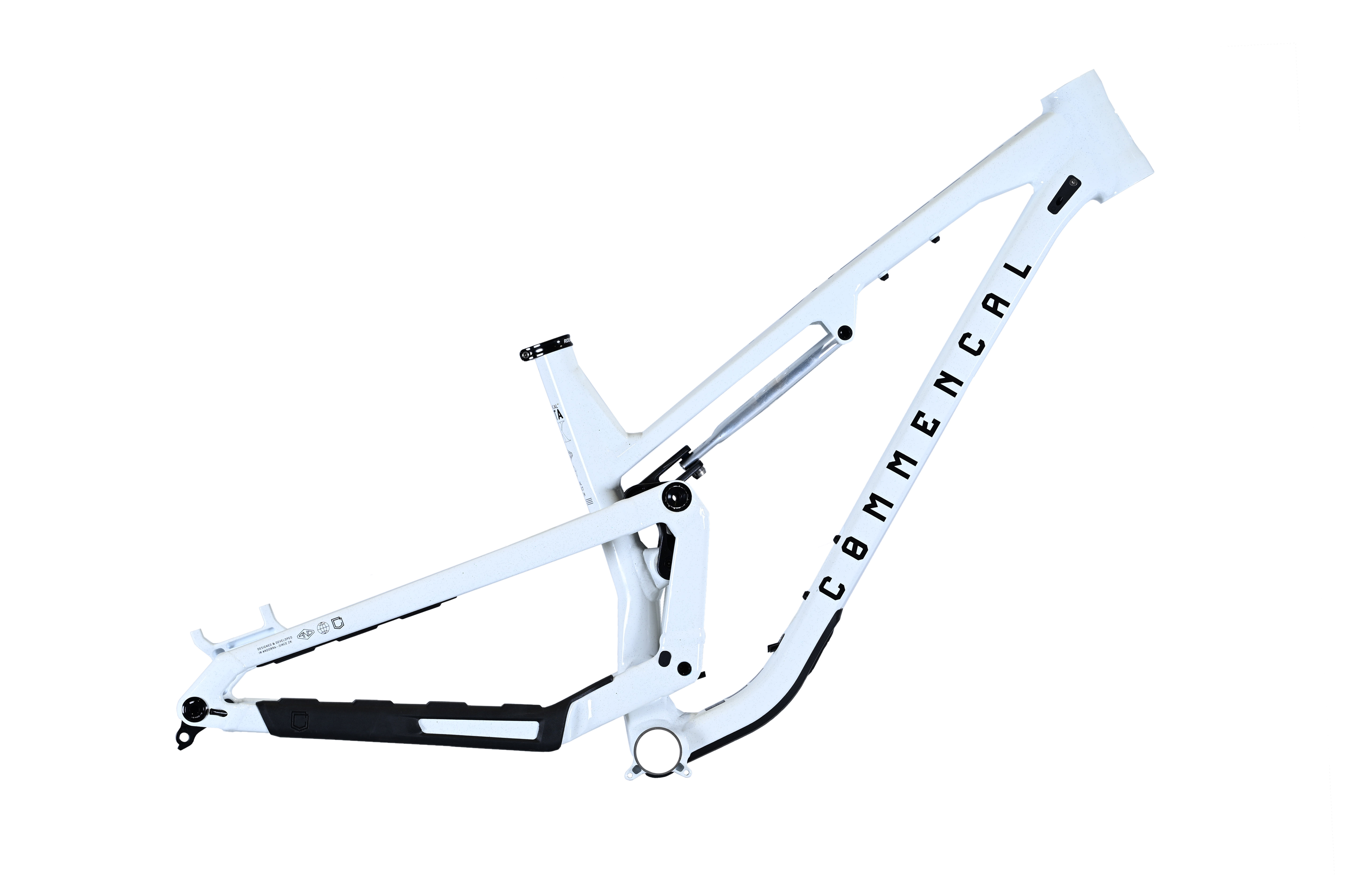

CHECK OUT THE META SX V5

The META SX V5 responds the moment you get on it. With 165mm of travel and our new Virtual Contact System (VCS) kinematics, it delivers maximum efficiency. It truly comes alive on steep terrain and in the bike park. Ideal for riders chasing that downhill feeling on a capable enduro bike.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO 27/29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,3 kg / 7.27 lb, raw without accessories

  • Rear travel

    165 mm

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    NOTHING ON BODY / 20 X 10 mm ON SHAFT

  • Recommended/max. fork height

    586 mm / 44 mm

  • Headset type

    ZS56 / ZS56, Integrated cable routing, Headset included with the frameset

  • Maximum tyre dimension (etrto)

    64 mm / diam. 721

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG 05

  • Chain Line

    55 mm

  • Rear hub compatibility

    148 x 12 mm / Maxle 180 x 12 mm UDH

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, pick up pad

- SPECIFICATIONS -
  • Colour

    Glittery Black
