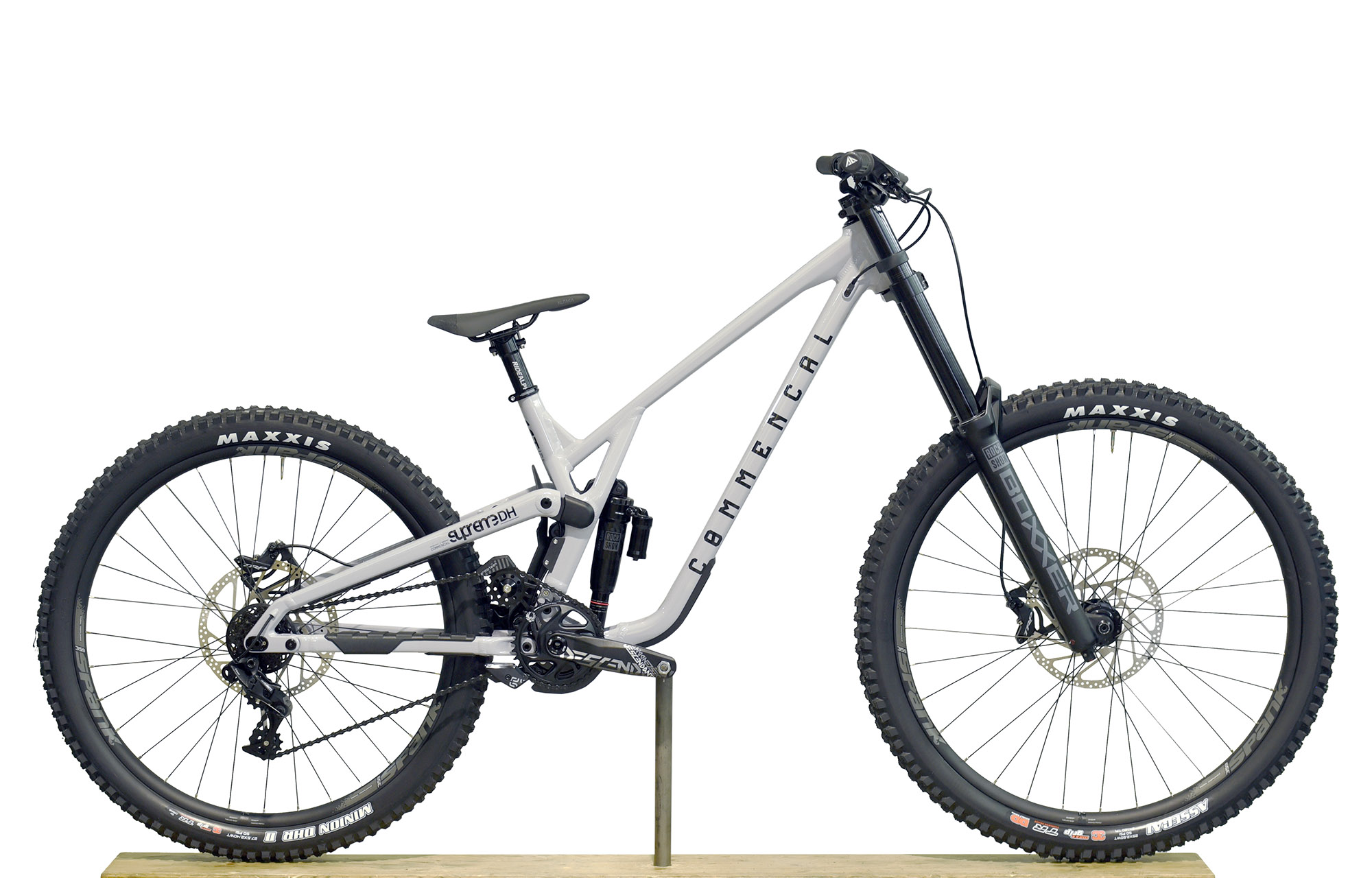

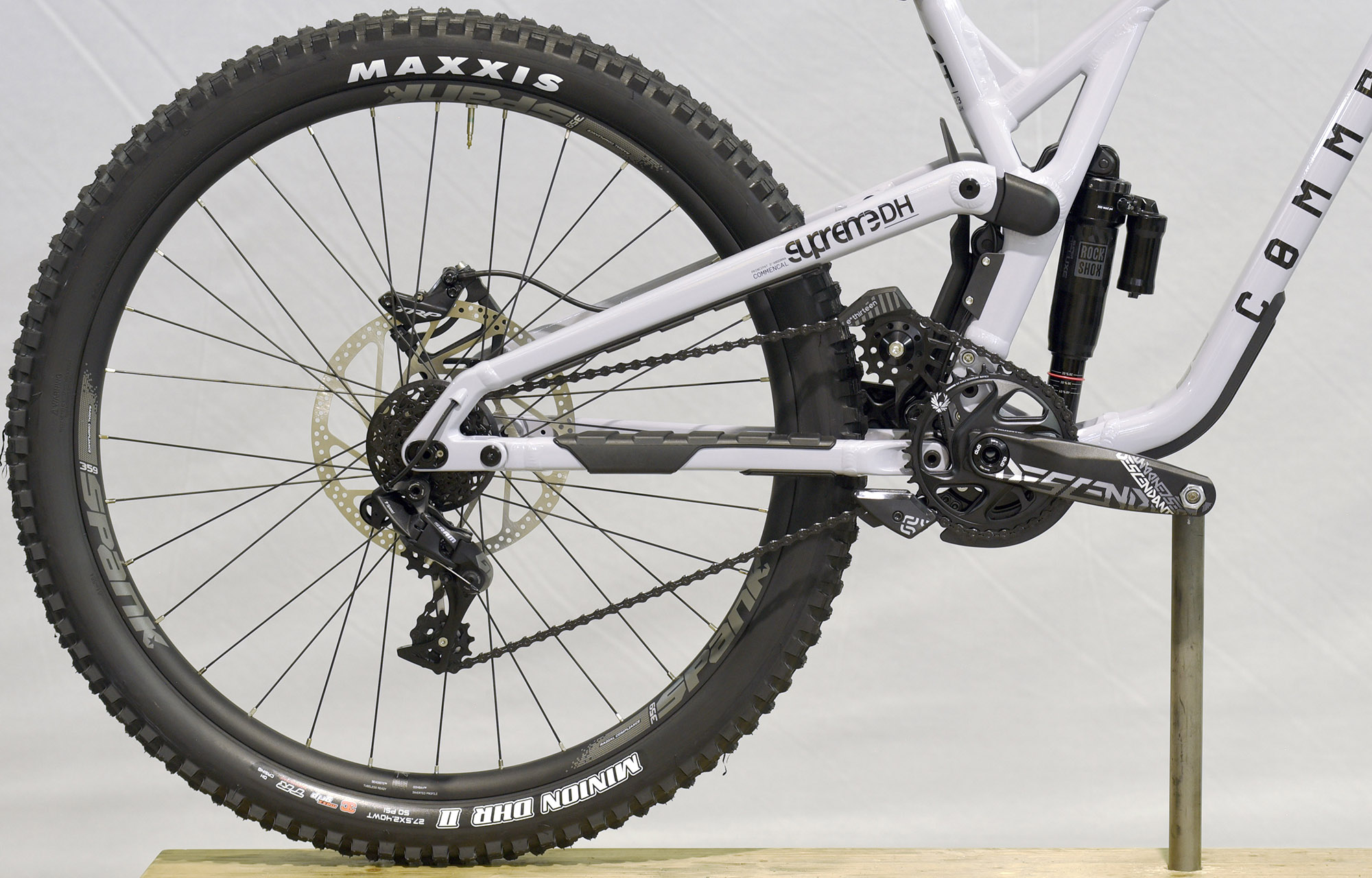

COMMENCAL SUPREME DH V5 RIDE ROCKSHOX TEAM CLOUD - M (23150802)
Price reduced from
€ 5.166,66
excl. VAT
to
€ 3.916,66
excl. VAT
-24%
id/sku : AN4293
Availability:
This Item is currently not available.
null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up in andorra
You can place your order online and have the COMMENCAL bikes, frames, skis and snowboards of your choice ready to collect directly from our SHOWROOM in Andorra. You will benefit from an additional 10% OFF the total price on our website (including VAT). Just contact our SALES DEPARTMENT to place an order. Our team will contact you to set a collection date shortly after the request is processed.
- DESCRIPTION -
This is an exhibition bike that has never been ridden, but has minor scratches caused by transport and storage.
- THE WORKSHOP NOTE -

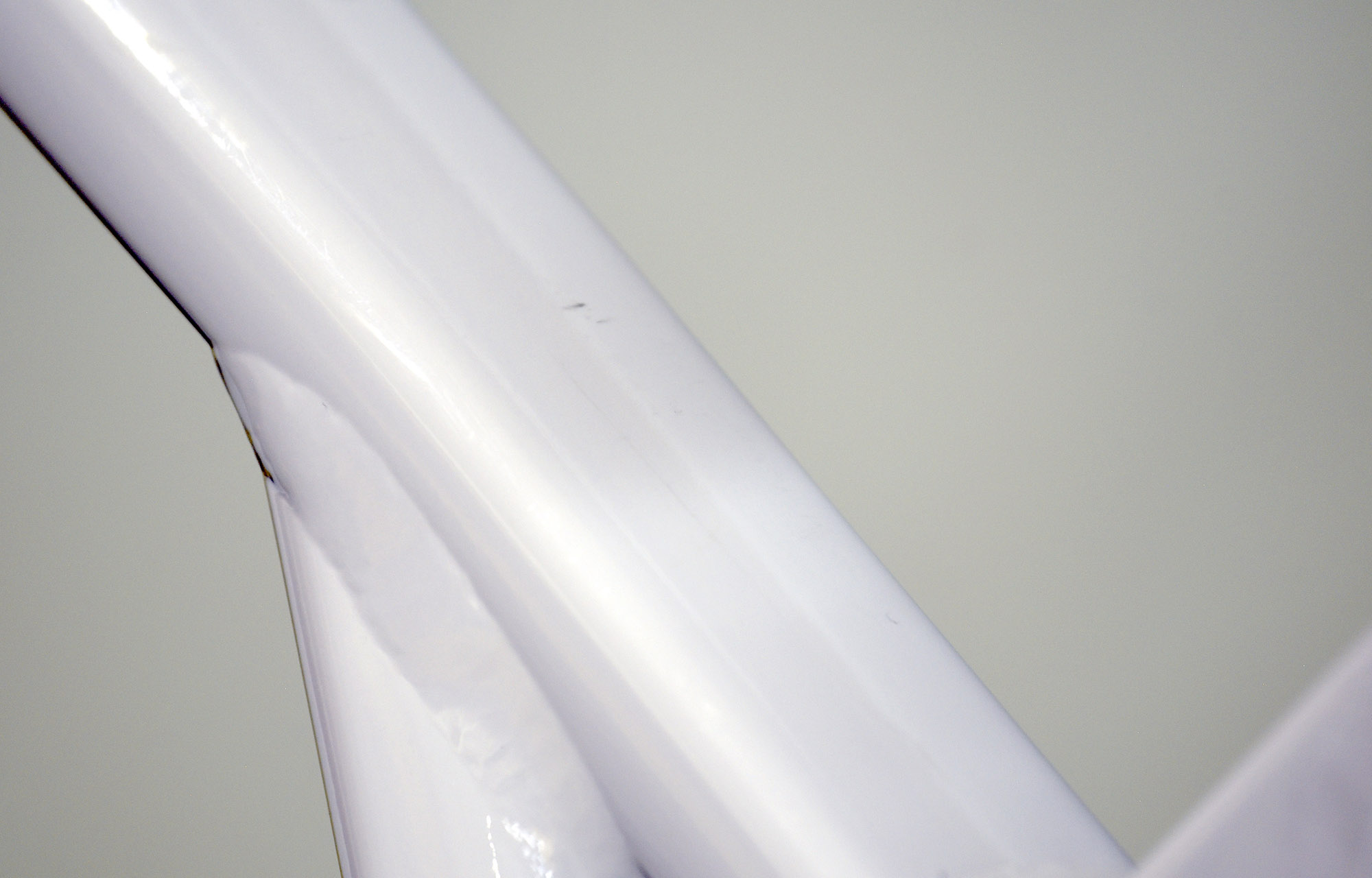

- Slight scratch on the top tube
Please note that this bike is guaranteed as new!
Enjoy!
Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.
Don't hesitate to contact us for more details.
See more
See less
- Video -
- TECHNICAL INFO -
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
29'', Alloy 6066, triple butted tubes, T4, T6Shock
ROCKSHOX Super Deluxe Select R
250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 3 Tokens pos.Fork

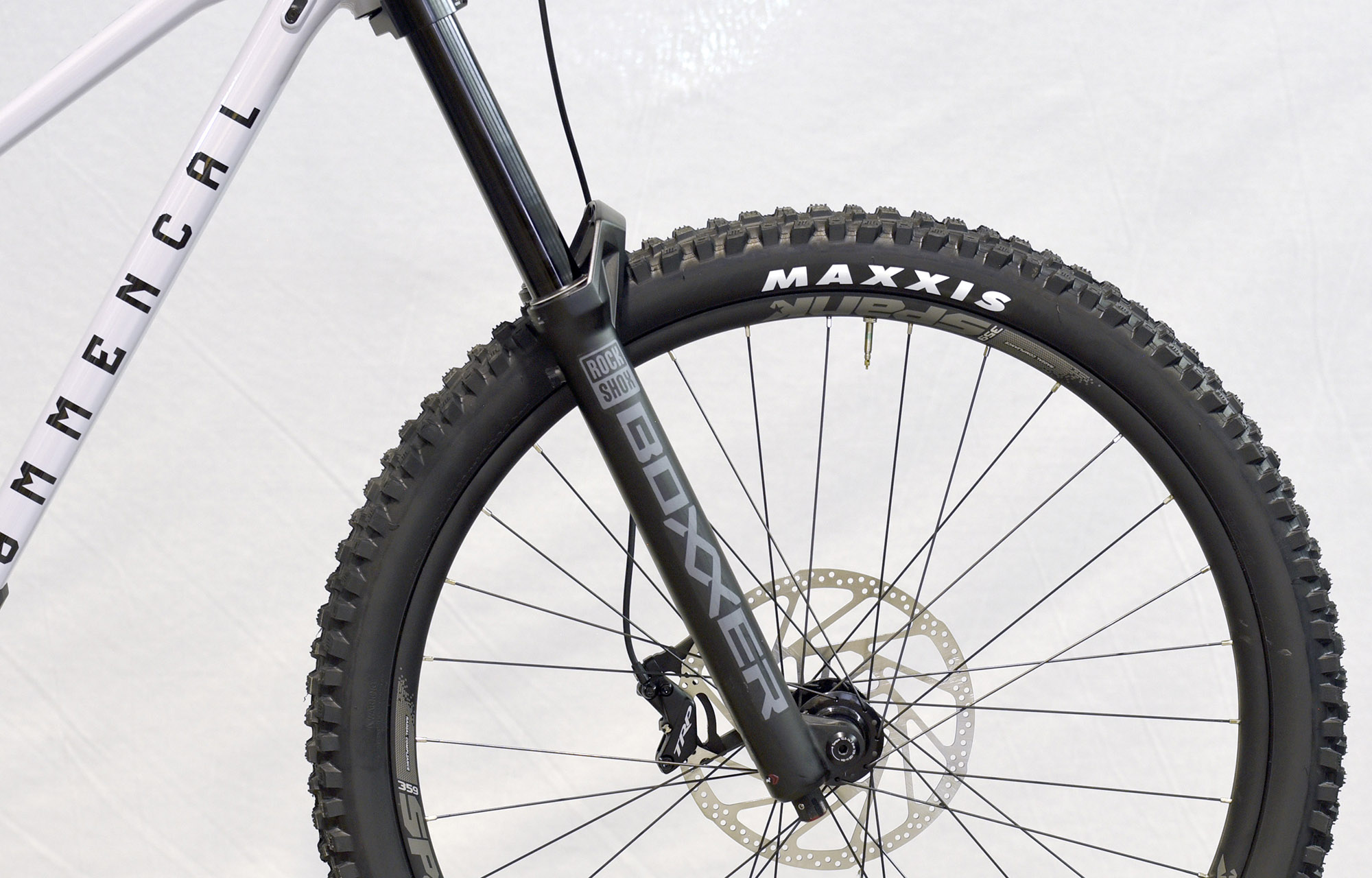

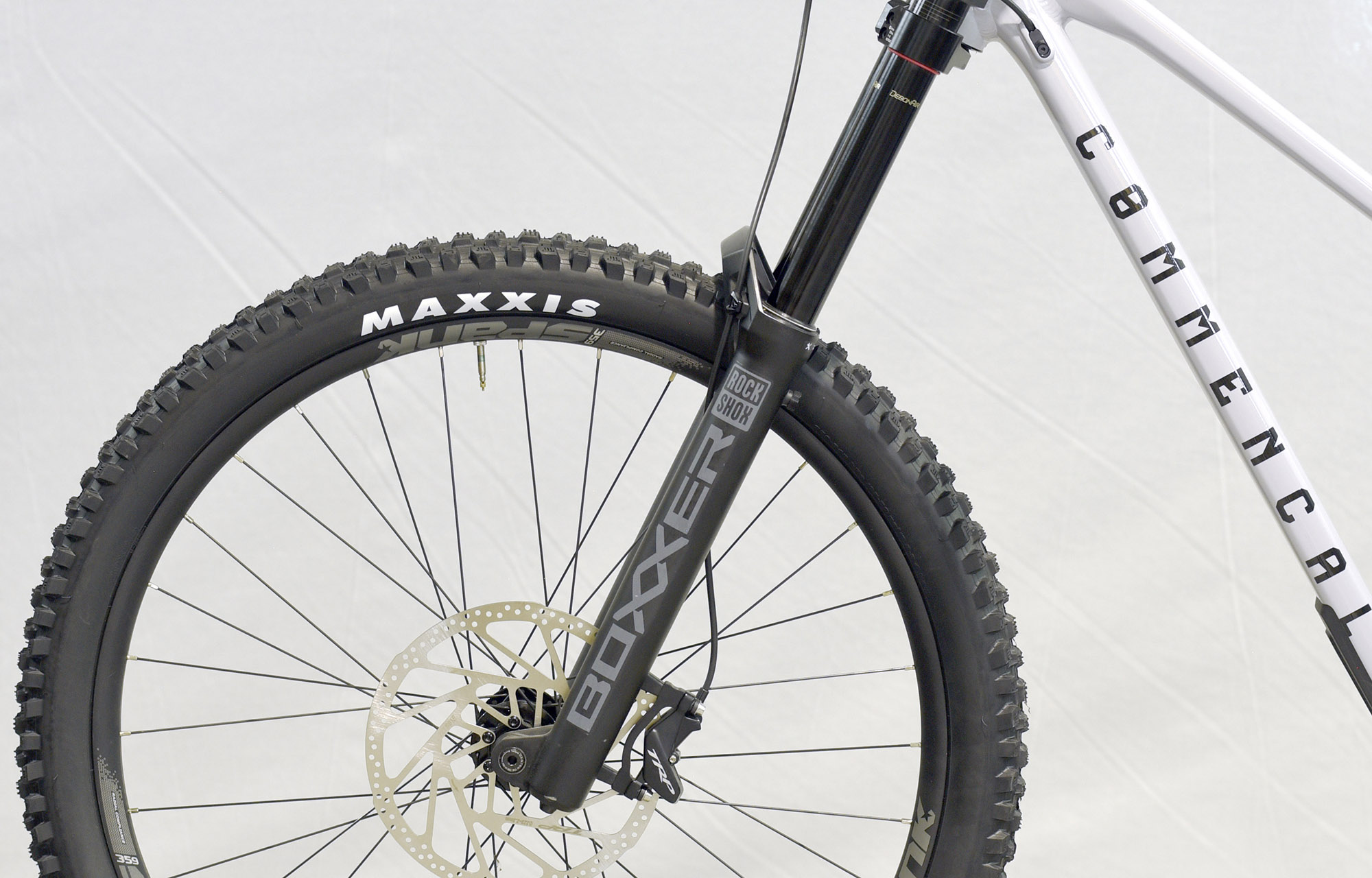

ROCKSHOX BOXXER, 200 mm
29’’, Charger 3 RC damper, DebonAir+, LSC, rebound, Boost (20 x 110 mm), 52 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar

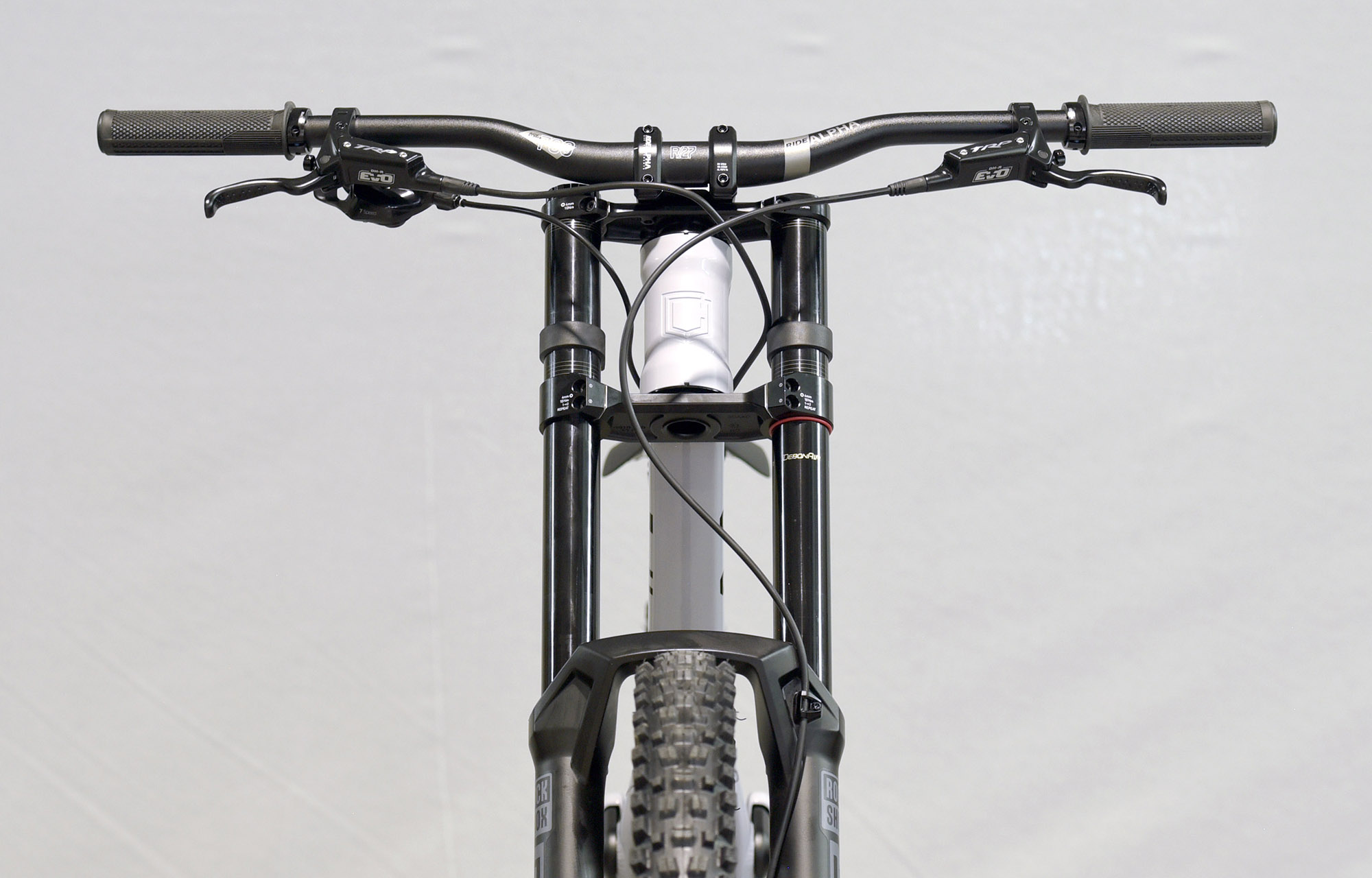

RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA
Brakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm widthvShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM GX DH
7 sp, 11-25tRims
SPANK 359
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,8 kg / 39,68 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Cloud - Shiny Finish
Accessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
