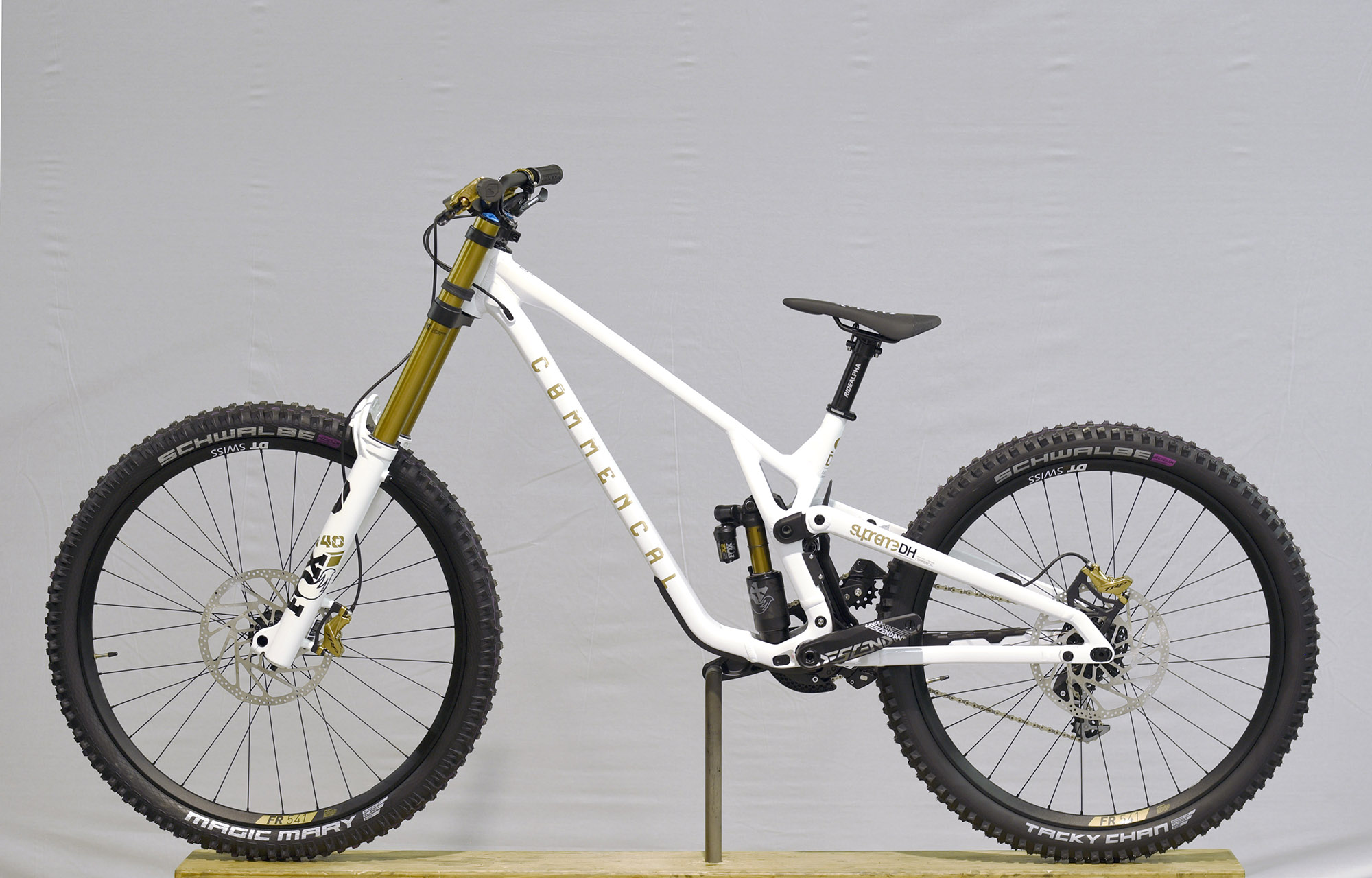

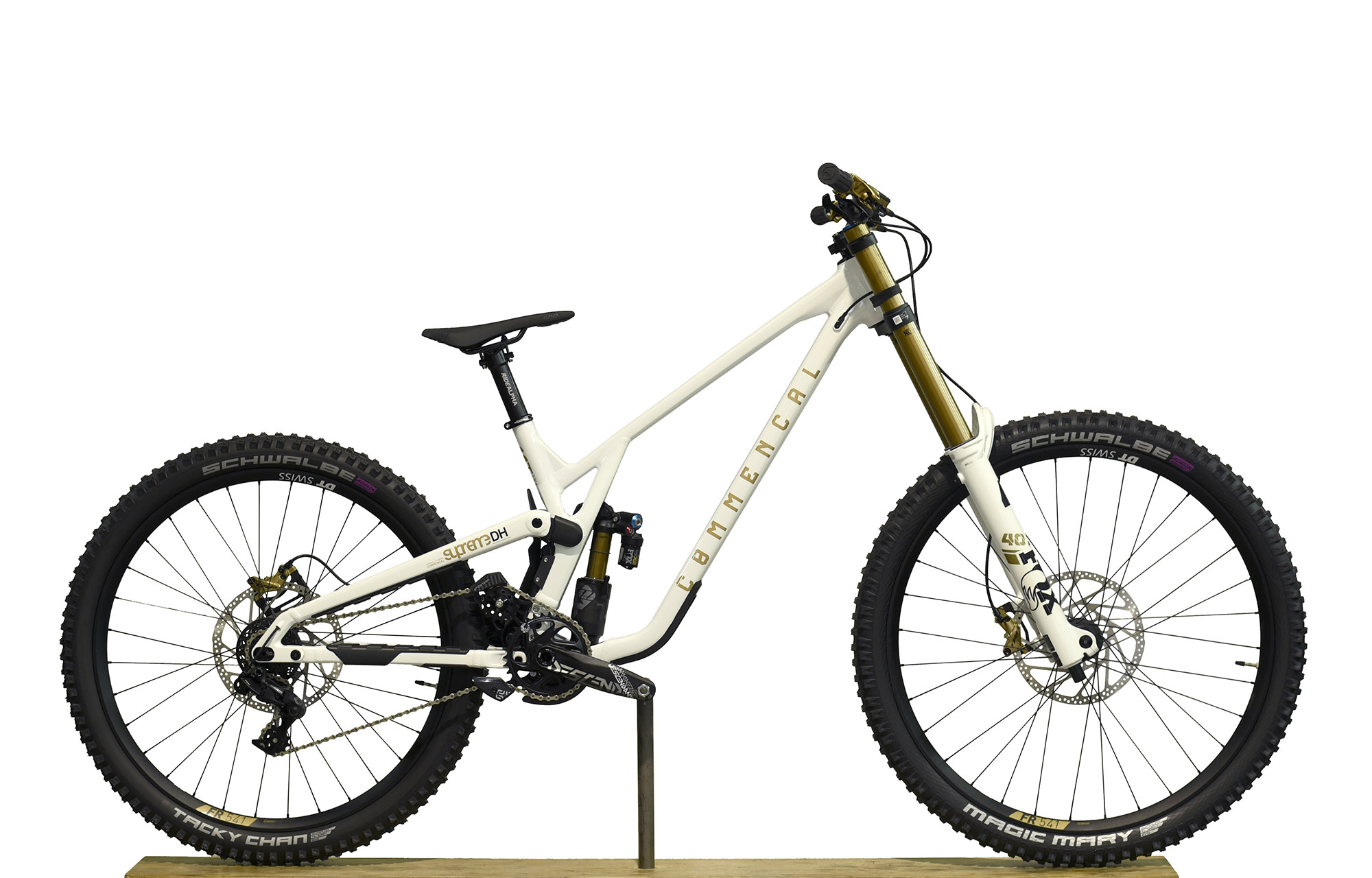

COMMENCAL SUPREME DH V5 SIGNATURE LTD PURE WHITE - L (23151003)
€ 5.750,00
excl. VAT
id/sku : AN4296
Availability:
This Item is currently not available.
null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order.
Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up at the COMMENCAL Village
To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform.
On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.
- DESCRIPTION -
This is an exhibition bike that has never been ridden, but has minor scratches caused by transport and storage.
- THE WORKSHOP NOTE -
- Slight scratch on the chainring
Please note that this bike is guaranteed as new!
Enjoy!
Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.
Don't hesitate to contact us for more details.
See more
See less
- Video -
- TECHNICAL INFO -
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
Frame

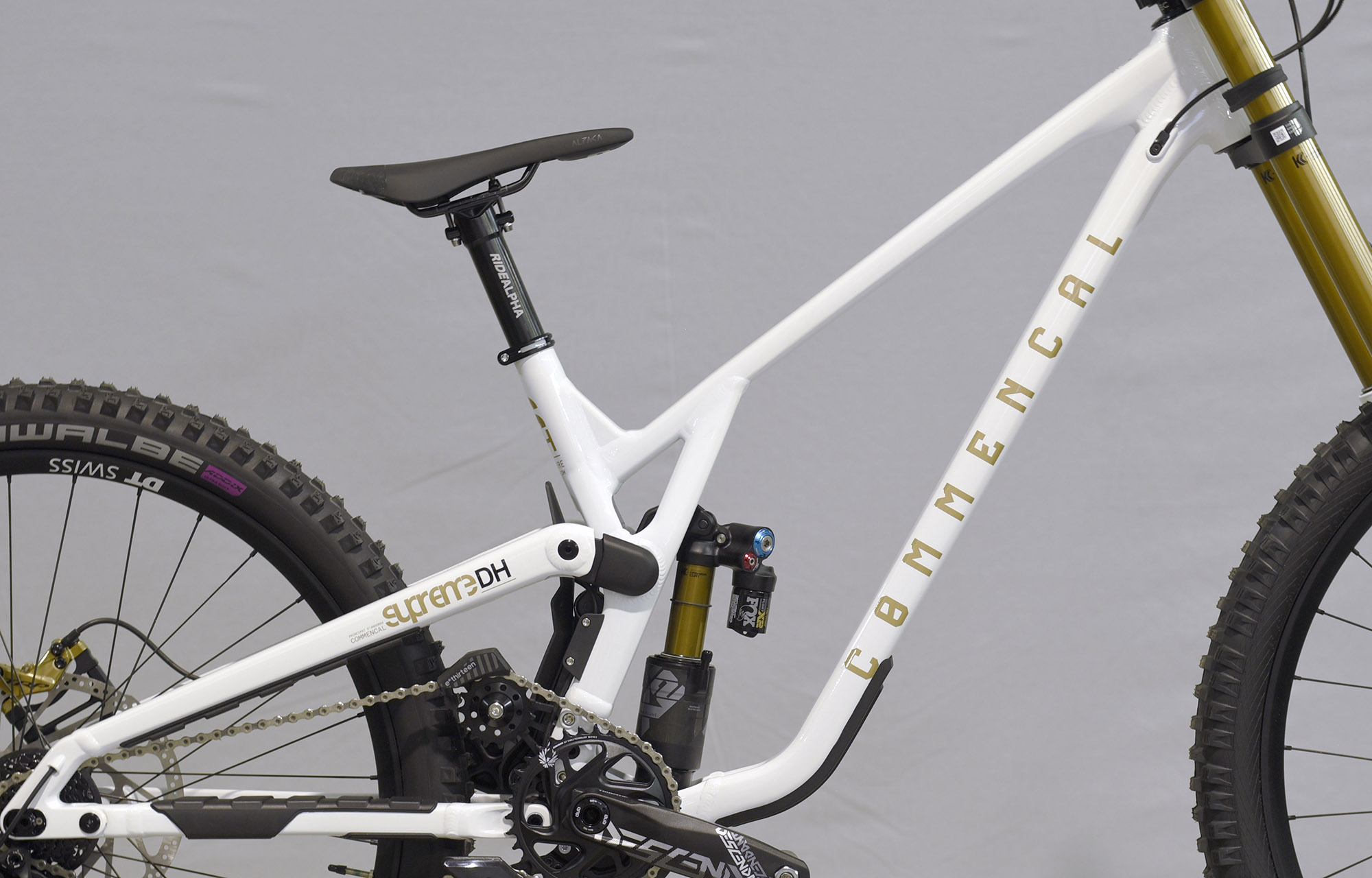

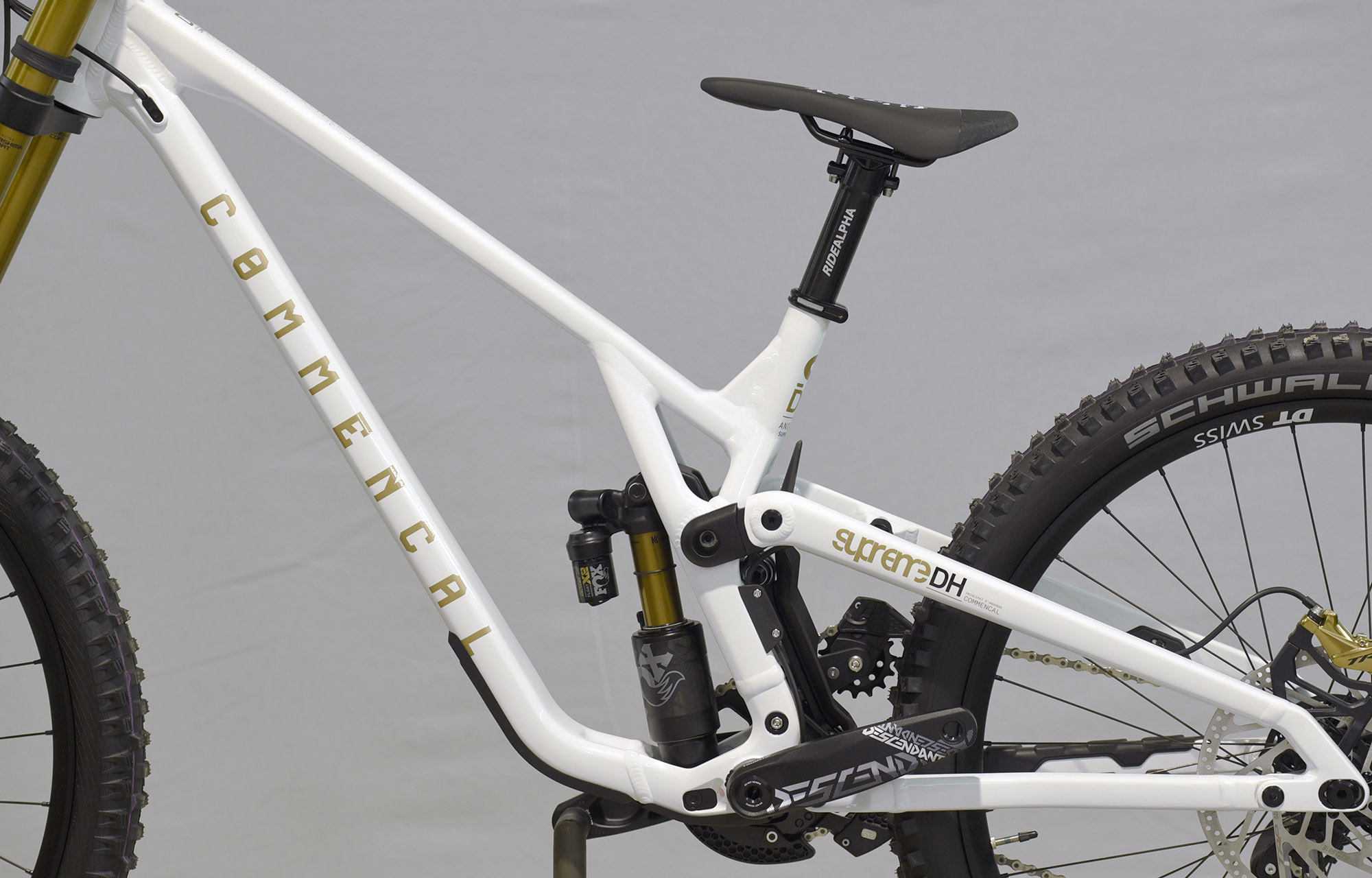

SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearingsShock
FOX Float X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 spacer x3Fork

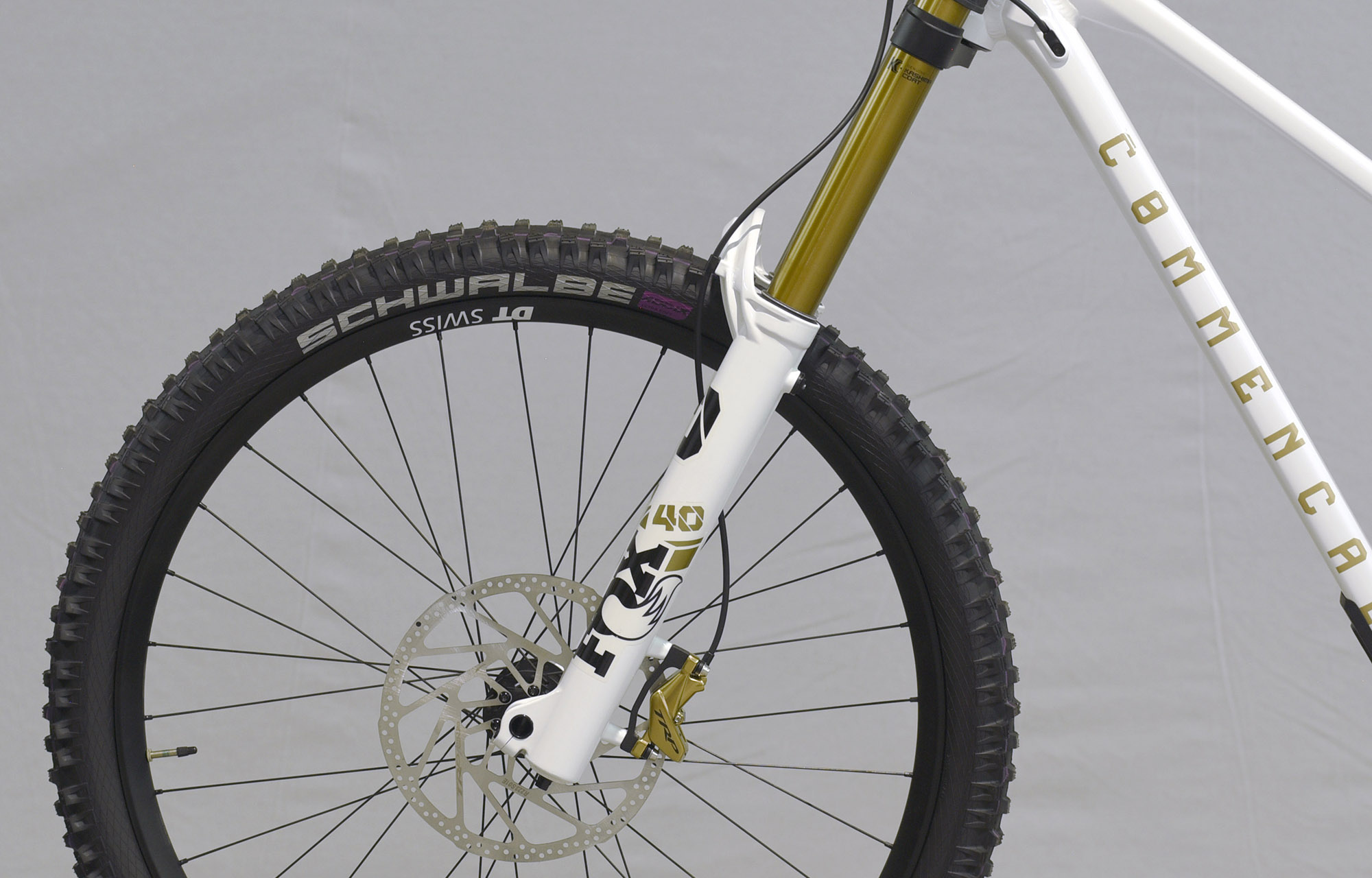

FOX 40 Factory, 200 mm travel
29", Grip2 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset, 2 spacers.Headset
CANECREEK ZS56/ZS56 SERIE 40
Alloy cups, sealed bearingsStem
BURGTEC MK3
45 mm extension, direct mount, 31.8 mmHandlebar

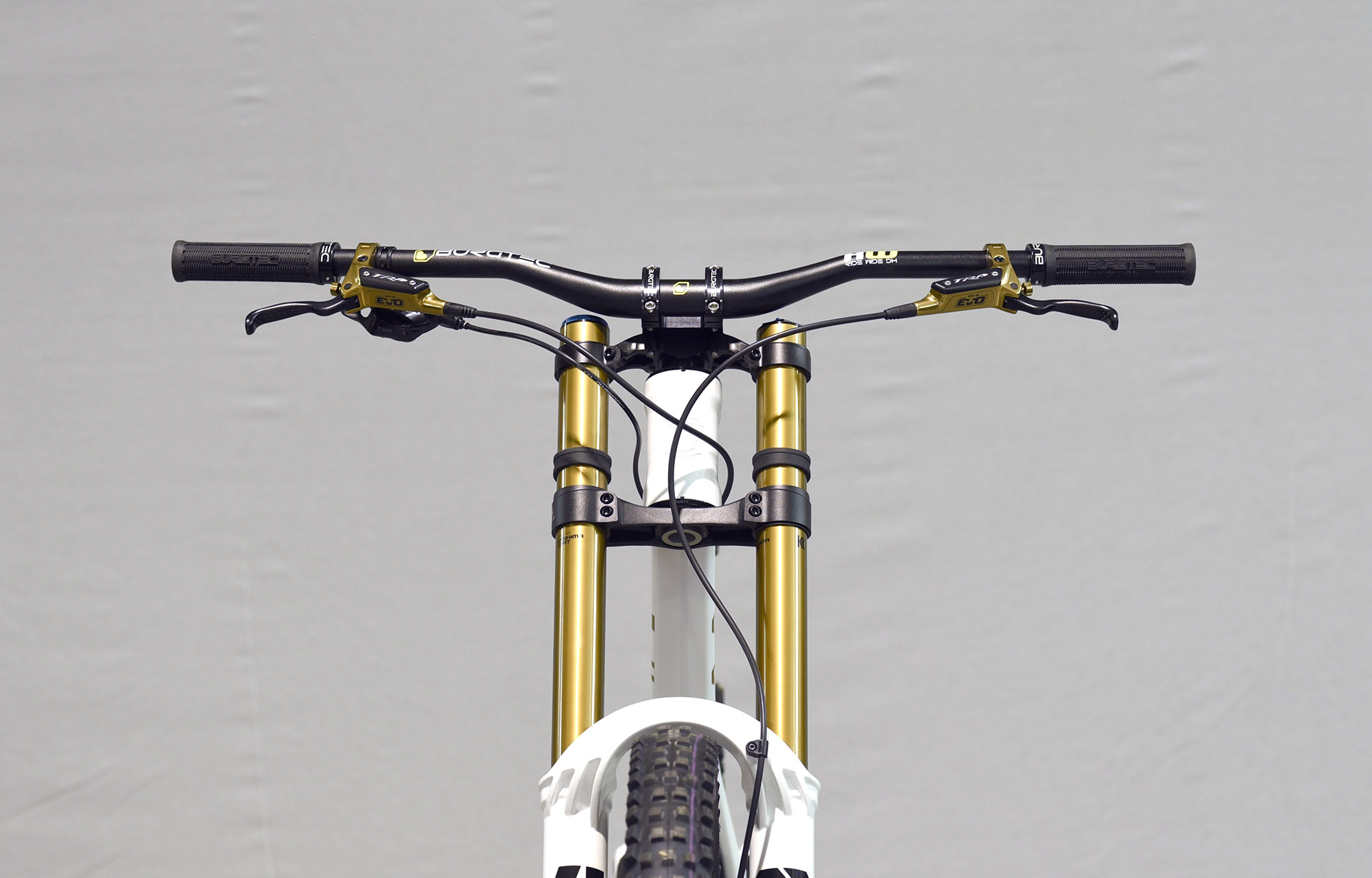

BURGTEC Ride Wide Alloy
31.8 mm, 800 mm width, 30 mm rise on S / M / L / XLGrips
BURGTEC Bartender Pro Greg Minnaar Signature
Single clamp, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7sChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX Eagle
7sBottom bracket
SRAM DUB
PressfitCrankset

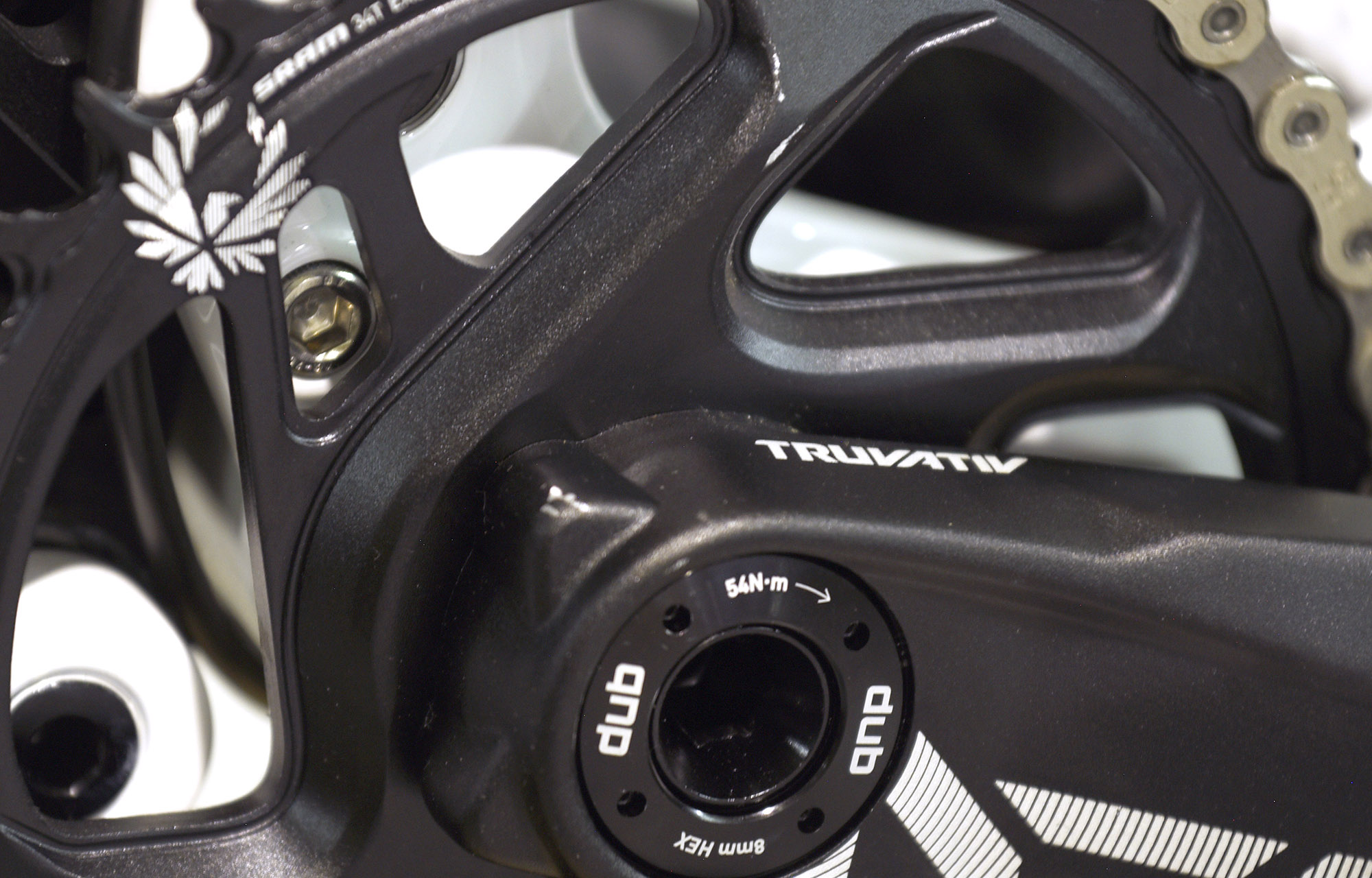

SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC 1130
11sCassette
SRAM PG-720 DH
7s, 11-25tRims
DT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm BoostSpokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
Ride Alpha
31.6 mm, 250 mmSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
18,1 kg / 39,9 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, fork fender
*Please note that bike specs are subject to change without prior notice.
