COMMENCAL META POWER TR BOSCH OHLINS FROZEN BROWN - L (22181803) 0km image number null

COMMENCAL META POWER TR BOSCH OHLINS FROZEN BROWN - L (22181803) 0km

Price reduced from € 6.666,66 excl. VAT to € 4.875,00 excl. VAT -27%
id/sku : AN3880
Availability: In stock null
BOSCH POWERMORE 250 RANGE EXTENDER

The new BOSCH PowerMore 250 Range Extender battery increases the range of our META POWER BOSCH by up to 10km in Turbo mode with some climbing and 25km in Tour+ mode on the flat (70kg rider).

Buy
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up in andorra
You can place your order online and have the COMMENCAL bike or frame of your choice ready to collect directly from our SHOWROOM in Andorra. You will benefit from an additional 10% OFF the total price on our website (including VAT). Just contact our SALES DEPARTMENT to place an order. Our team will contact you to set a collection date shortly after the request is processed.
c
- DESCRIPTION -

This bike is equipped with a new frame, new motor, but reassembled with used components.

- THE WORKSHOP NOTE -

-NEW Motor
-NEW
Frame
-NEW Headset
-NEW Grips
-NEW Tyres
-Brakes bleed, pads changed
-Revised shock absorber and fork

Please note that this bike is guaranteed as new!
Enjoy!

Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.

The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.

Don't hesitate to contact us for more details.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-BIKE TRAIL 29''

  • Frame material

    AL-6066 T4, T6

  • Frame weight

    - kg / - lb - With plastic accessories.

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm / NOTHING

  • Recommended/max. fork height

    566 mm / 576 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 mm - 622

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META POWER TR BOSCH, 140 mm
    29", Alloy 6066, triple butted tubes, T4, T6.

  • Motor

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    BOSCH Mini Remote currently not available in the USA

  • Shock

    OHLINS TTX22 Air
    210 x 55 mm, climb mode, LSC, 3 positions HSC, rebound

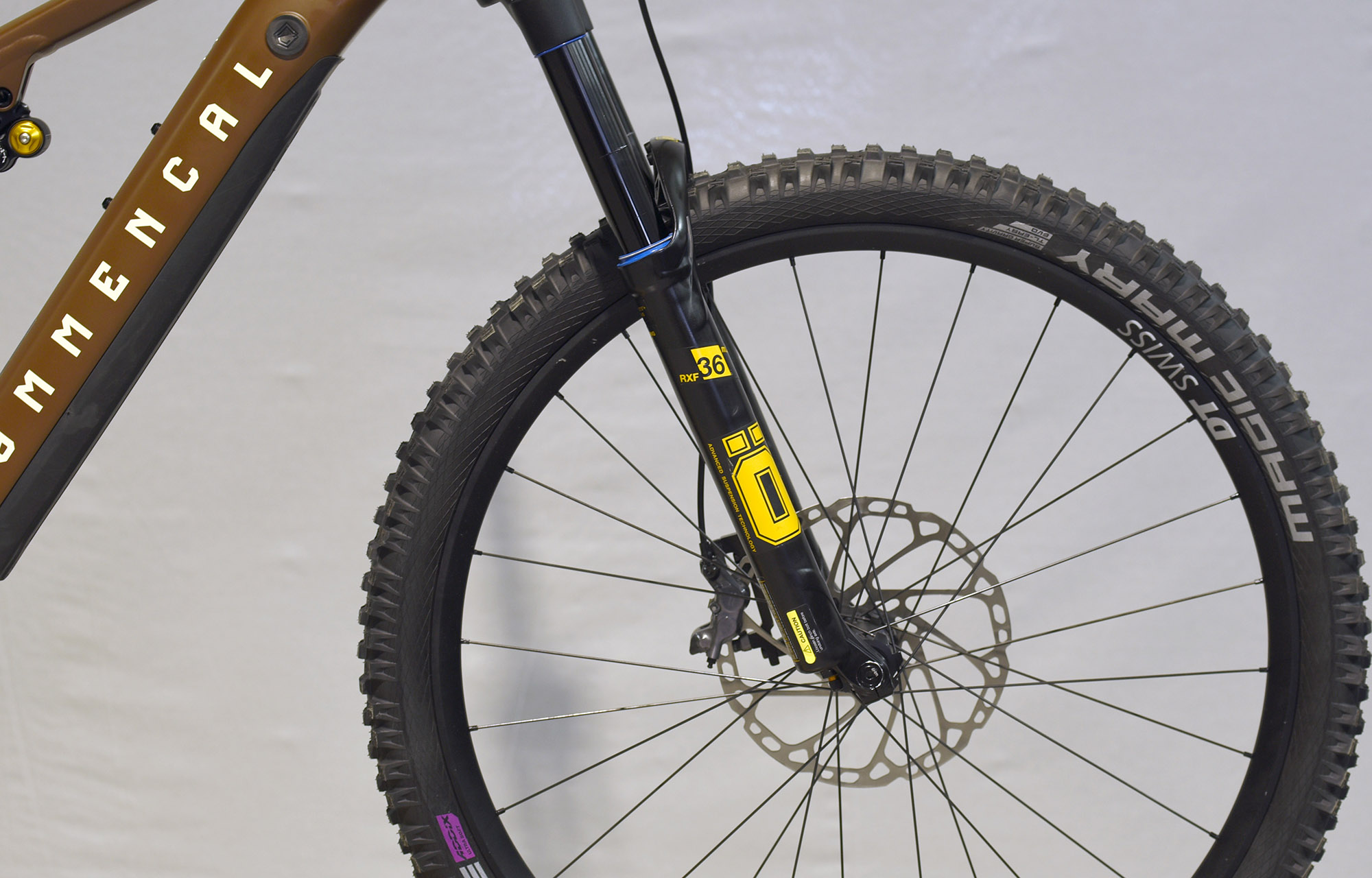

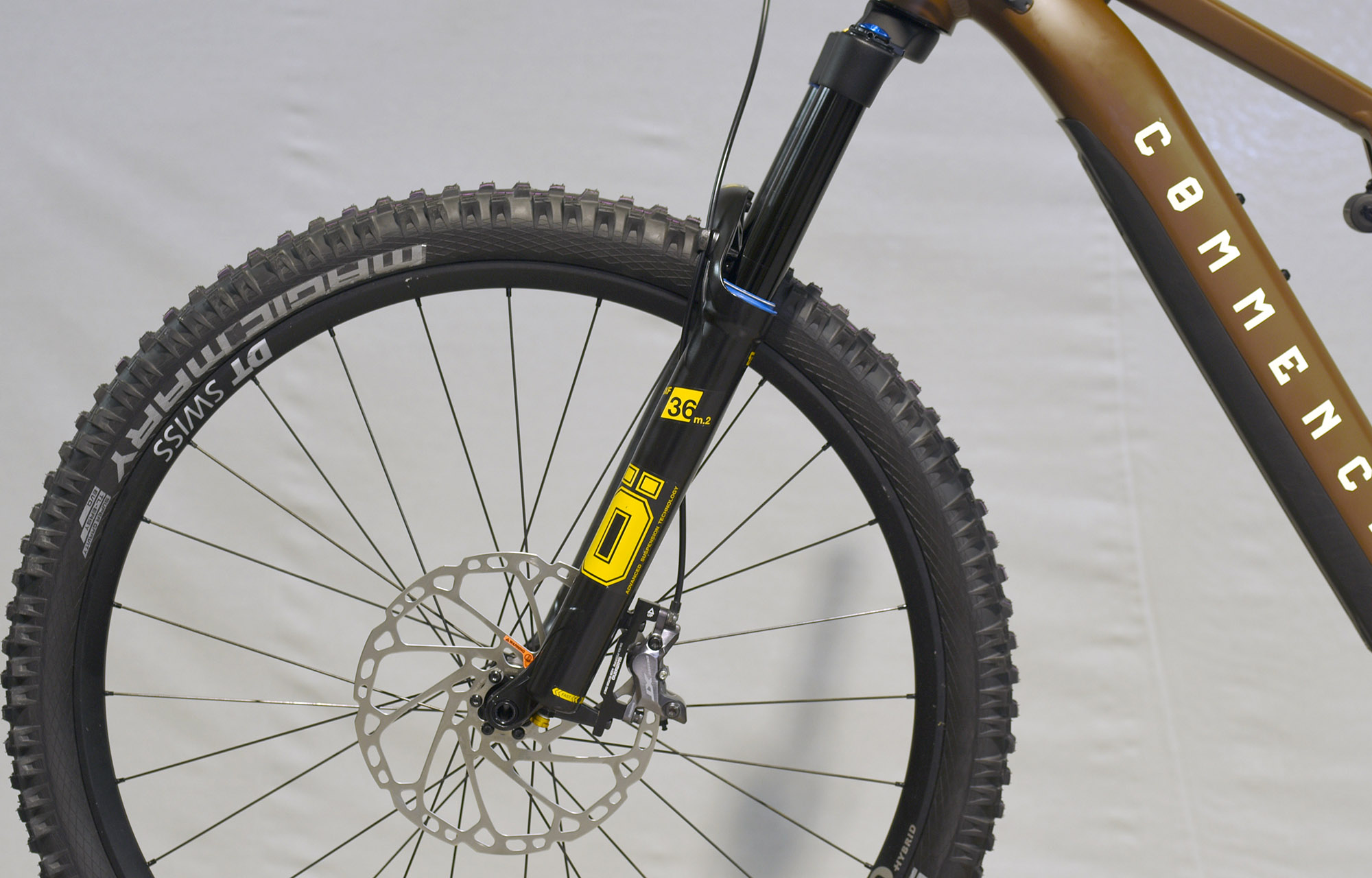

  • Fork

    OHLINS RXF36 m.2 Air, 150 mm travel
    29", TTX 18 damper, climb mode, LSC, 3 positions HSC, rebound, Boost (15 x 110 mm), 44 mm offset

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

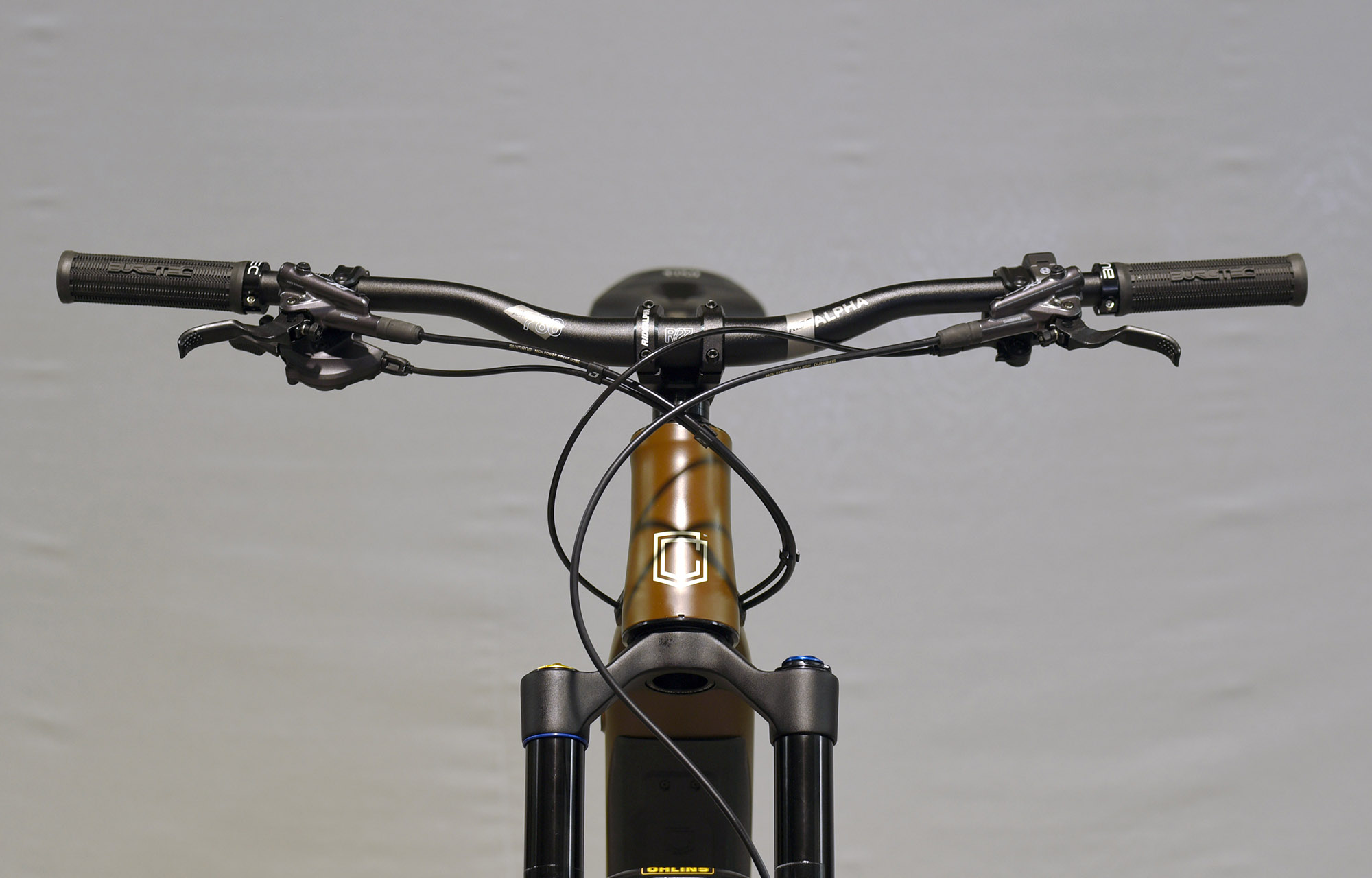

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    BURGTEC

  • Brakes

    SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 220 mm, 6-bolt

  • Shifters

    SHIMANO Deore XT
    12s

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

  • REAR DERAILLEUR

    SHIMANO Deore XT
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus Bosch CX, 160 mm crank arms
    Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO Deore XT
    12s, 10-51t

  • Rims

    Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, SRAM XD - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
    Rear: 29" x 2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

  • Seat post

    KS Lev Integra
    31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X3
    145 mm width, Kium Mobius rails

  • Weight

    23.8 kg / 52.47 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Frozen Brown
    Matte Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
    *Actual product may differ from pictures.
    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.

    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
