COMMENCAL META V5 CHALK [COMMENCAL TEAM] ALC - M (23100051)

Price reduced from € 5.416,66 excl. VAT to € 4.075,00 excl. VAT -25%
id/sku : AN3782
Availability: In stock null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up in andorra
You can place your order online and have the COMMENCAL bikes, frames, skis and snowboards of your choice ready to collect directly from our SHOWROOM in Andorra. You will benefit from an additional 10% OFF the total price on our website (including VAT). Just contact our SALES DEPARTMENT to place an order. Our team will contact you to set a collection date shortly after the request is processed.
- DESCRIPTION -

Our refurbished bikes come from a variety of fleets including:
Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage).
Each bike undergoes a thorough inspection and maintenance process:
Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced.
Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

- GENERAL -
Ridden bike, ready for a new start.
Unique A La Carte Mount !

- AESTHETIC -
Scratch and paint chips on the frame.
Scratches on derailleur, cranks arms, fork, handlebars, and brakes.

- MECHANICAL -
New Tires.
New Headset.
New Chain.
Revised shock absorber and fork.
Brakes bleed, pads changed.

For more information, feel free to get in touch.
*Please note that some components and accessories may vary from what is shown in the photos or specifications.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    ENDURO 29"

  • Frame material

    AL 6061 T4, T6, AL 6066 T4, T6

  • Frame weight

    3,25 kg / 7.16 lb, raw without accessories

  • Rear travel

    150 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    NOTHING ON SHAFT / 20 X 10 mm ON BODY

  • Recommended/max. fork height

    571 mm / 44 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    64 mm / diam. 753

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG 05

  • Chain Line

    55 mm

  • Rear hub compatibility

    L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META V5, 150 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6

  • Shock

    FOX Float X2 Factory
    210 x 55 mm, LSC, LSR, 2 position open/firm lever, 0.6 spacer

  • Fork

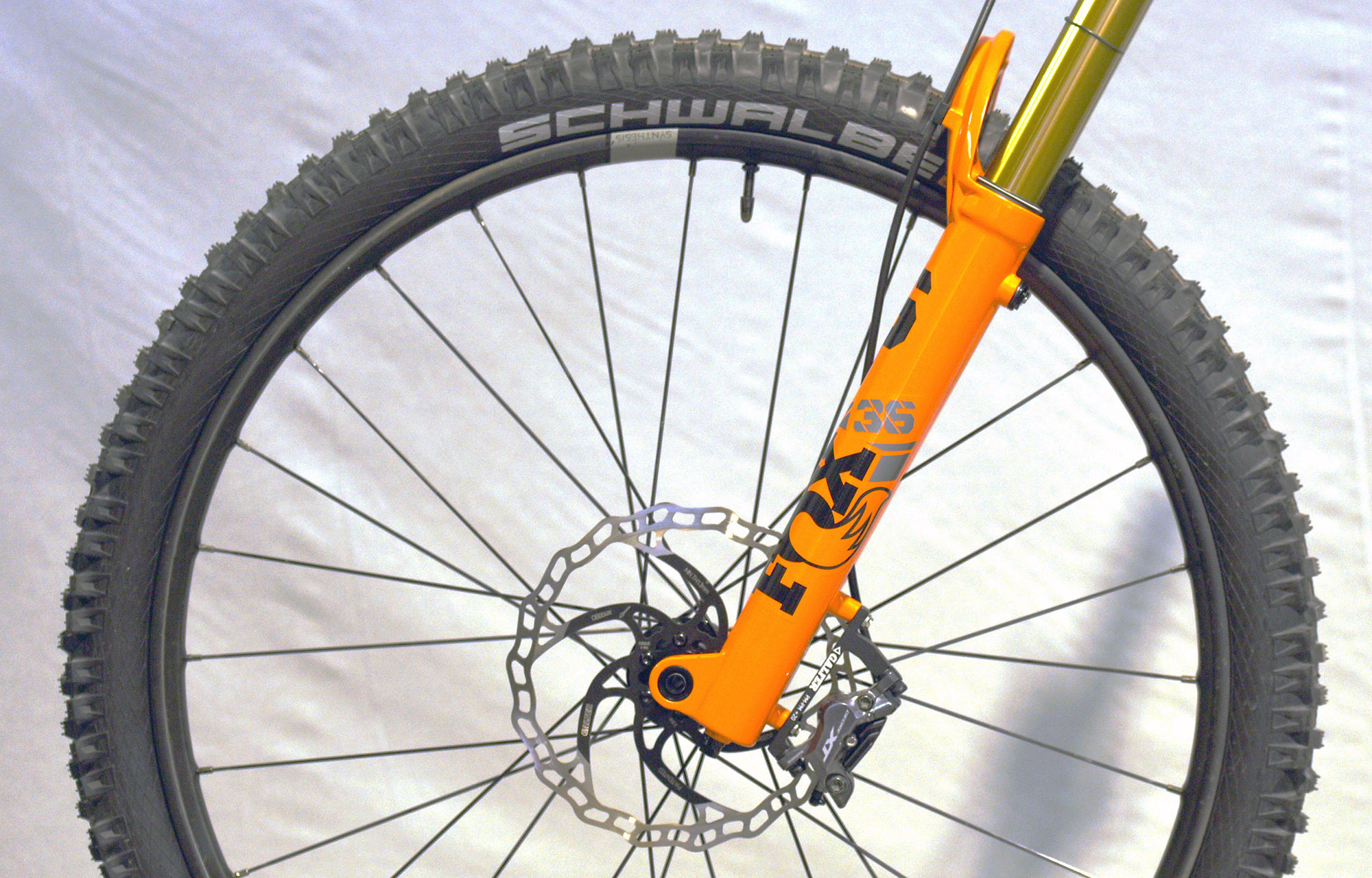

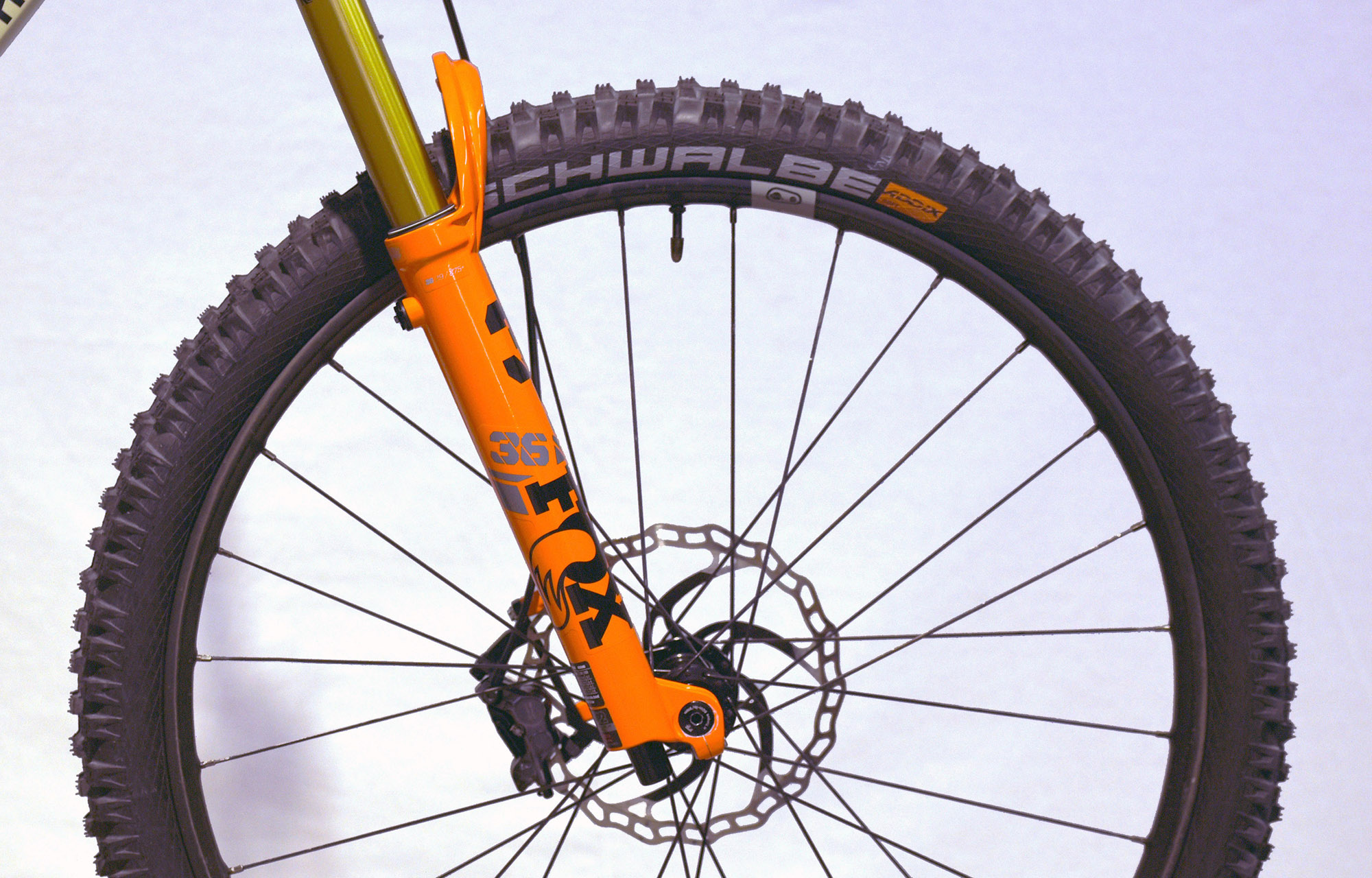

    FOX 36 Factory, 160 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 spacer

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA

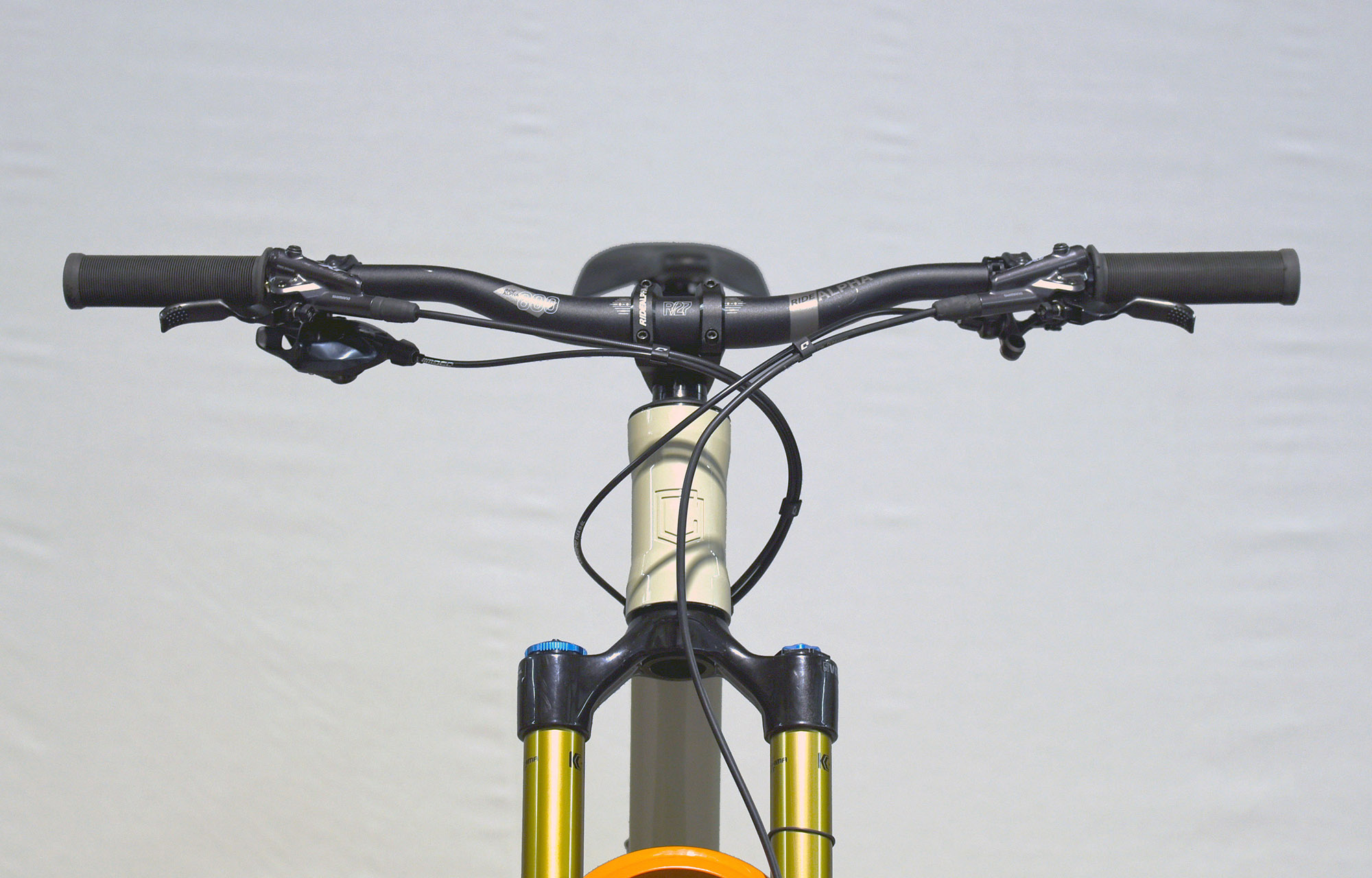

  • Handlebar

    RIDE ALPHA
    800 mm width, 27 mm rise

  • Grips

    ODI Longneck
    Soft compound, single clamp, black

  • Brakes

    SHIMANO XT M8120
    Rotors: WAVE 203 6h

  • Shifters

    SRAM GX EAGLE 12V

  • Chain guide

    RIDE ALPHA
    32t-34t

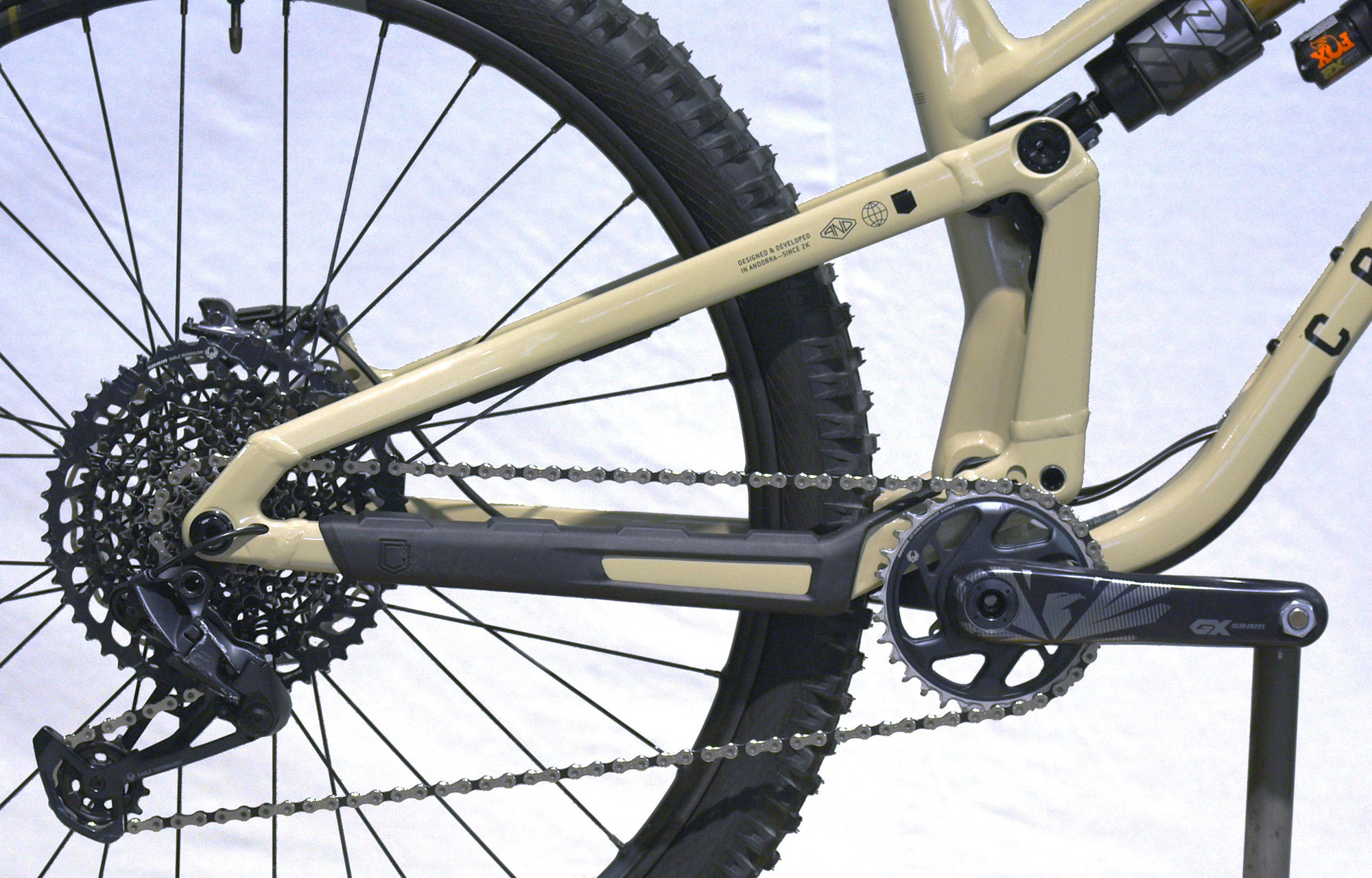

  • REAR DERAILLEUR

    SRAM GX EAGLE 12V

  • Bottom bracket

    SRAM DUB BB92

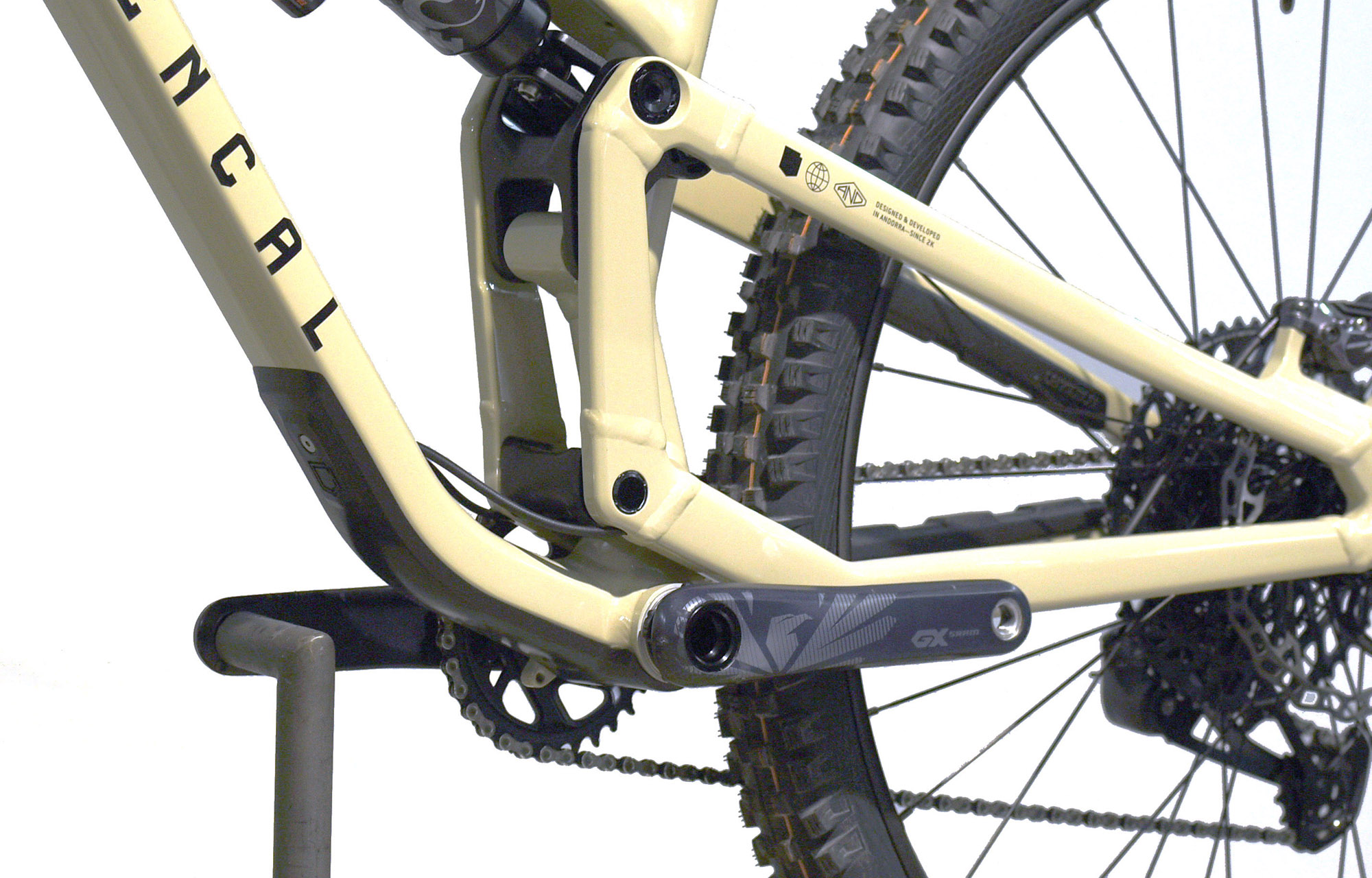

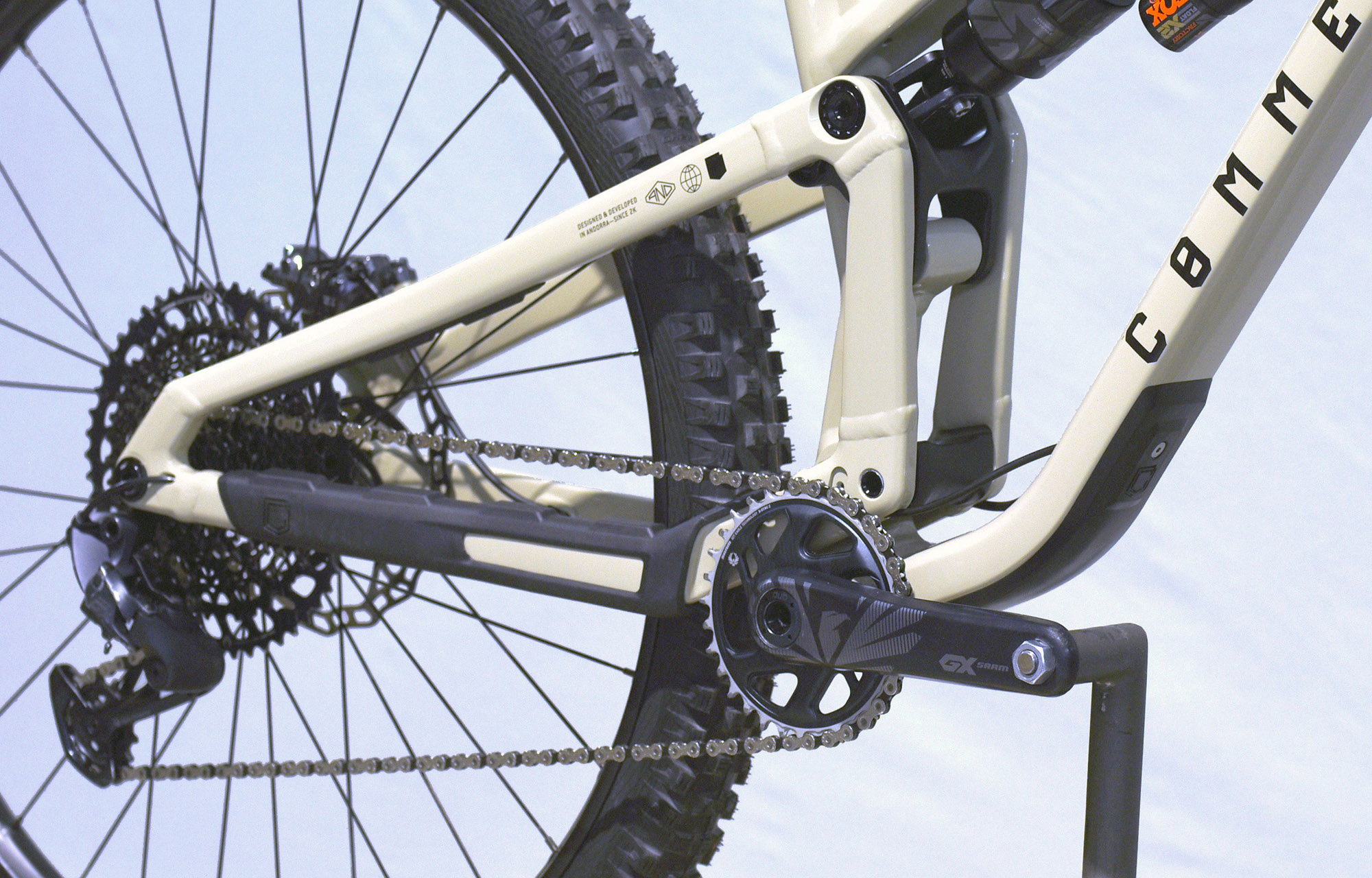

  • Crankset

    PEDALIER SRAM GX EAGLE CARBONE
    DUB, 32D 170M

  • Chain

    KMC 12V

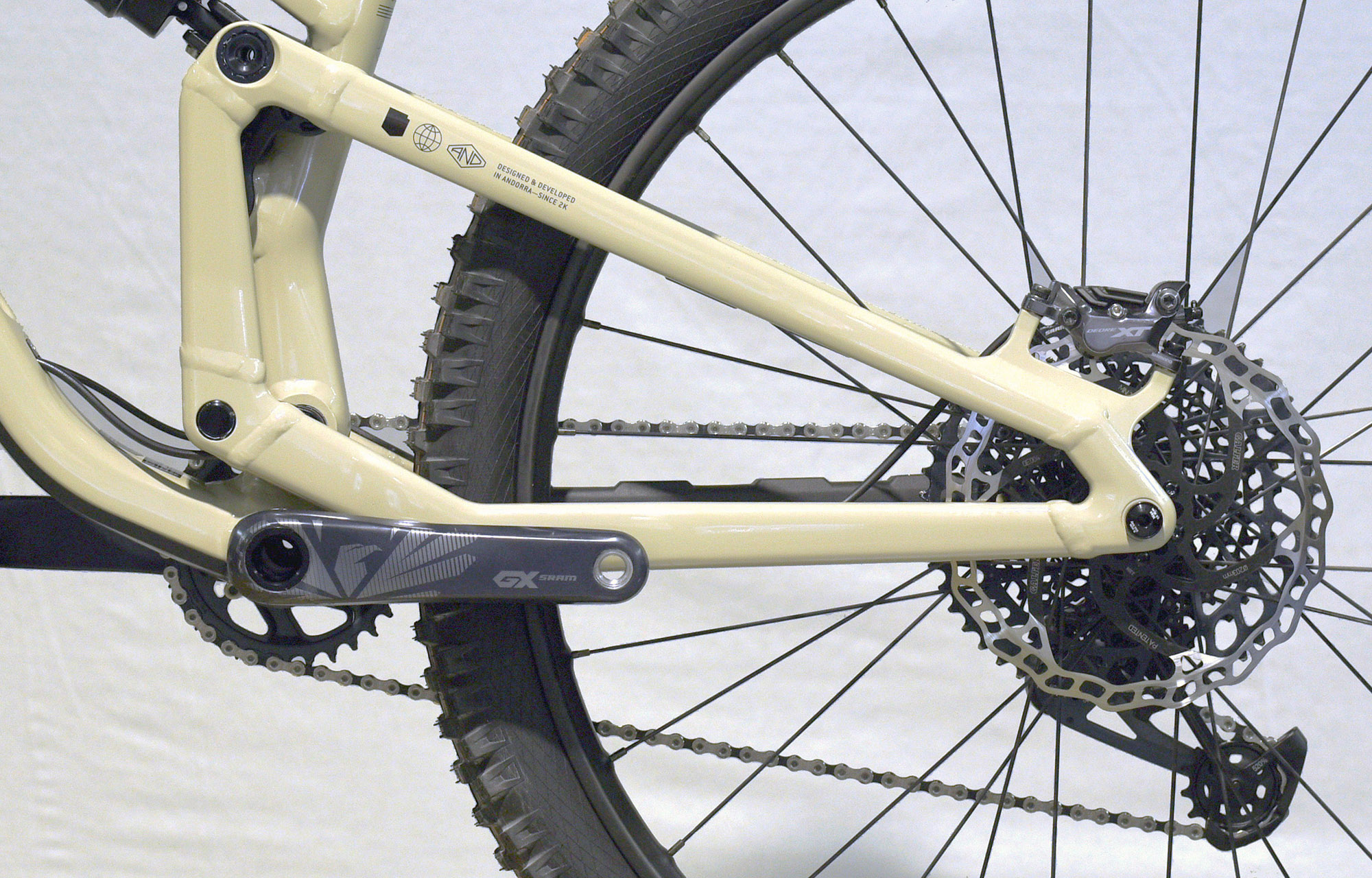

  • Cassette

    SRAM GX EAGLE 12V
    10-52 T

  • Rims

    CRANKBROTHERS SYNTHESIS CARBON ENDURO 11 I9 WHEELSET
    29 XD BOOST

  • Tyres

    SCHWALBE MAGIC MARY First Ride 65A
    Hard

  • Seat post

    CRANKBROTHERS HIGHLINE 7 Dropper
    170mm 31.6Ø

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    15,7 kg / 34.6 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Chalk
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, Sram Powerpack

    *Please note that bike specs are subject to change without prior notice
