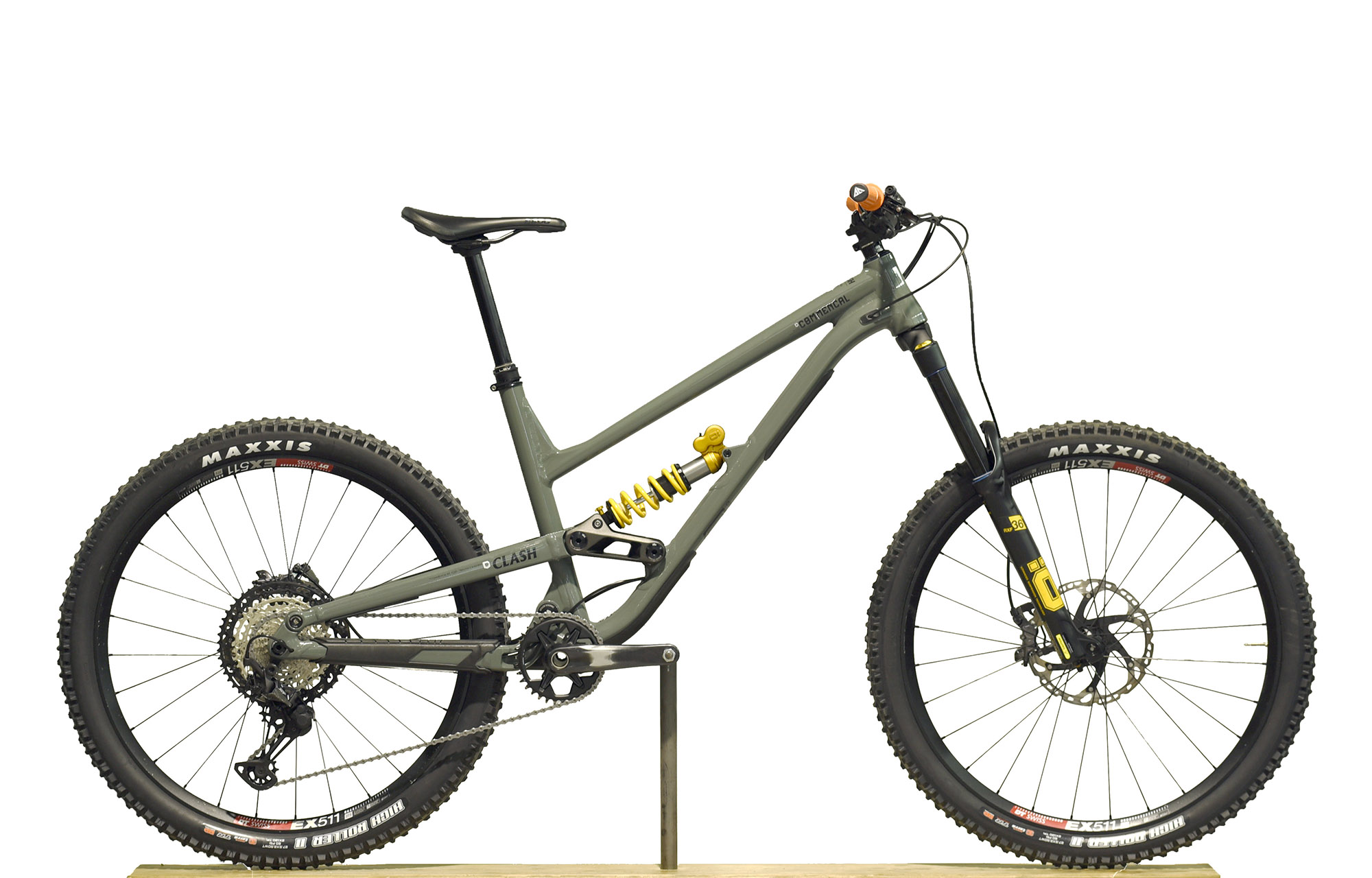

COMMENCAL CLASH OHLINS EDITION KESWICK GREEN - L (22131603)

Price reduced from € 4.666,66 excl. VAT to € 3.125,00 excl. VAT -33%
id/sku : AN4033
Availability: This Item is currently not available. null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

10% off for pick-up at the COMMENCAL Village

To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.

- DESCRIPTION -

The bike has been ridden and shows signs of wear, scratches and paint chips, mainly on the chainstay, top tube.
However, it should be noted that these cosmetic defects do not in any way affect its performance or smooth running.

- THE WORKSHOP NOTE -

-NEW Headset
-NEW Grips
-NEW Tyres
-Brakes bleed, pads changed
-Revised shock absorber and fork

Please note that this bike is guaranteed as new!
Enjoy!

Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.

Don't hesitate to contact us for more details.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO / FREERIDE

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    4 kg / 8.81 lb

  • Rear travel

    Adjustable via flip chip: 170 mm on Sensitive position / 155 mm on Responsive position

  • Shock length/stroke

    230 mm x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm on body - 30 x 10 mm on shaft

  • Recommended/max. fork height

    572 mm / 586 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27,5" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - moyeu 148 x 12 mm standard maxle

- SPECIFICATIONS -
  • Frame

    CLASH, 170 mm travel
    27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

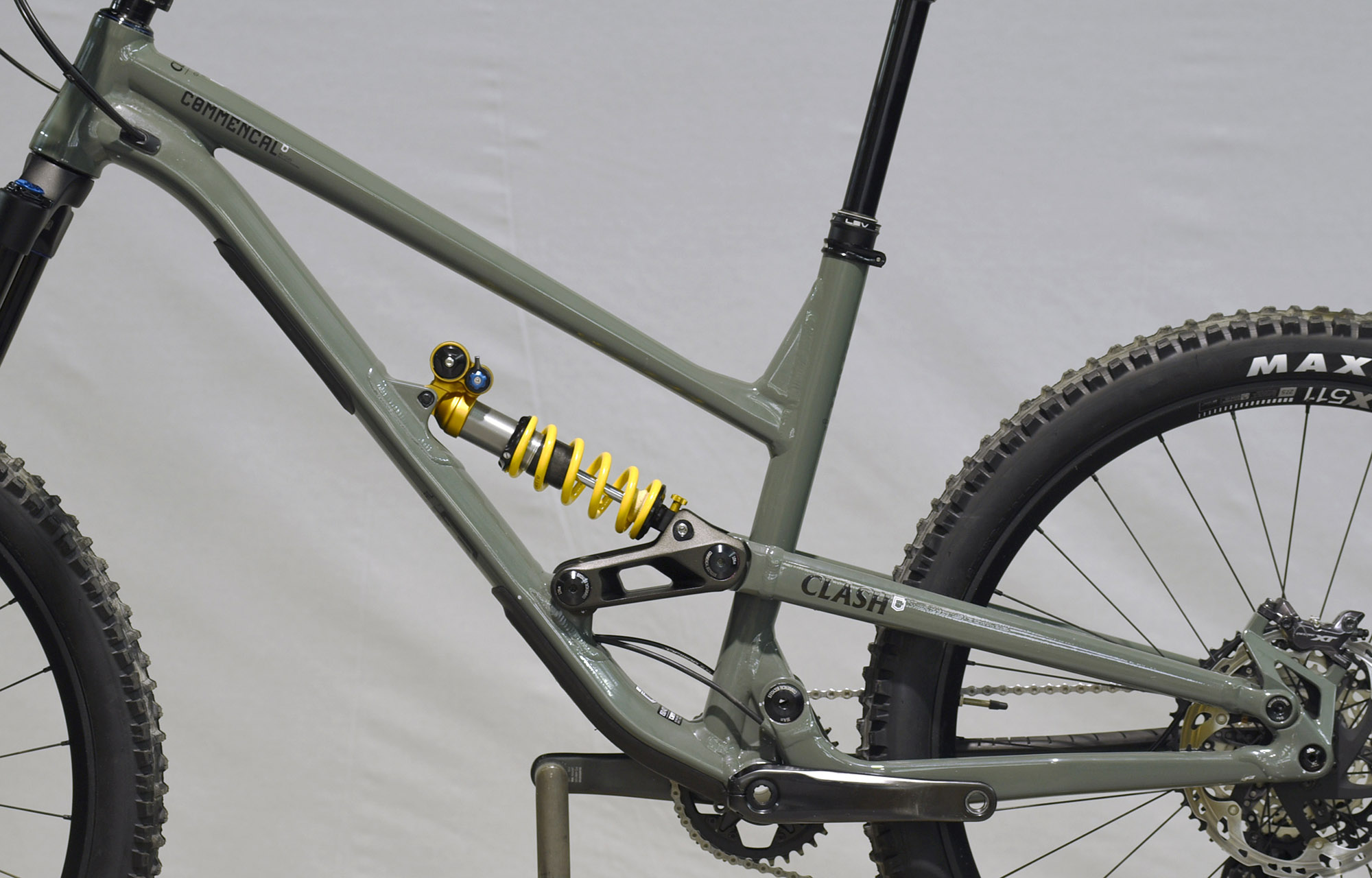

  • Shock

    OHLINS TTX22 M.2 Coil
    230 x 65 mm, HSC, LSC, rebound, climb mode. Spring rates: 320lbs on S, 343lbs on M, 411lbs on L, 457lbs on XL

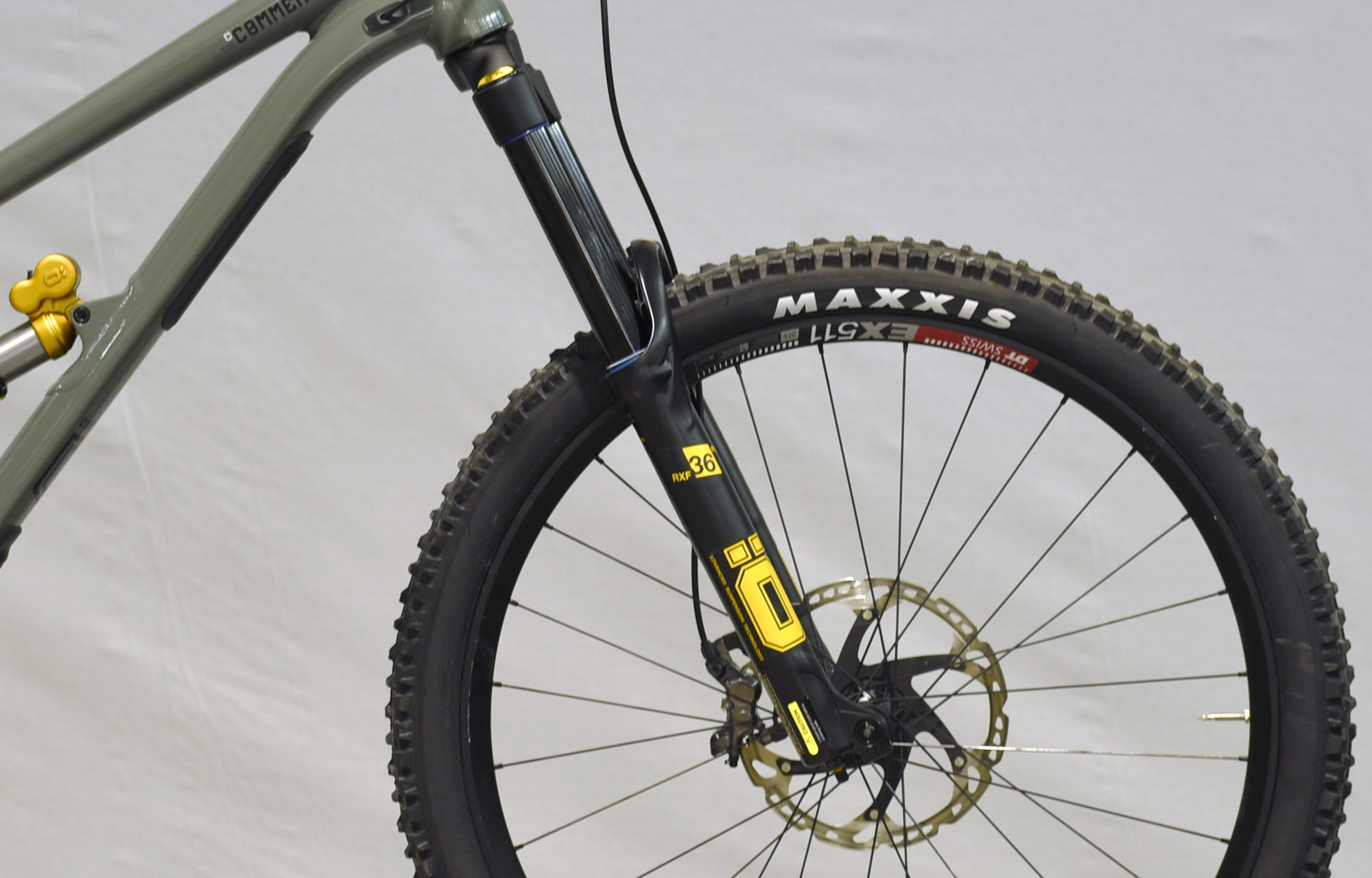

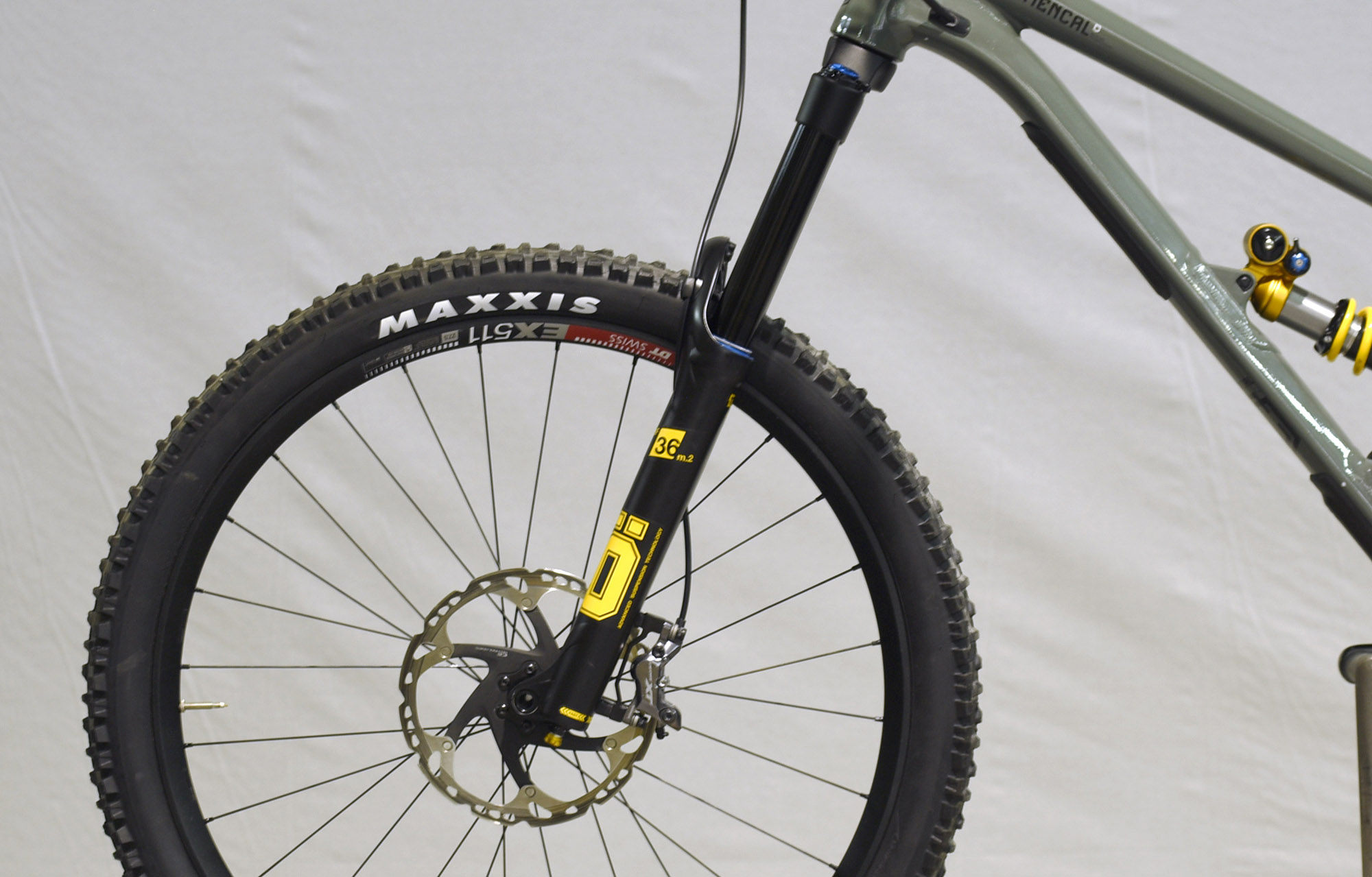

  • Fork

    OHLINS RXF36 m.2 Air, 180 mm travel
    27.5", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 38 mm offset

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31.8 mm

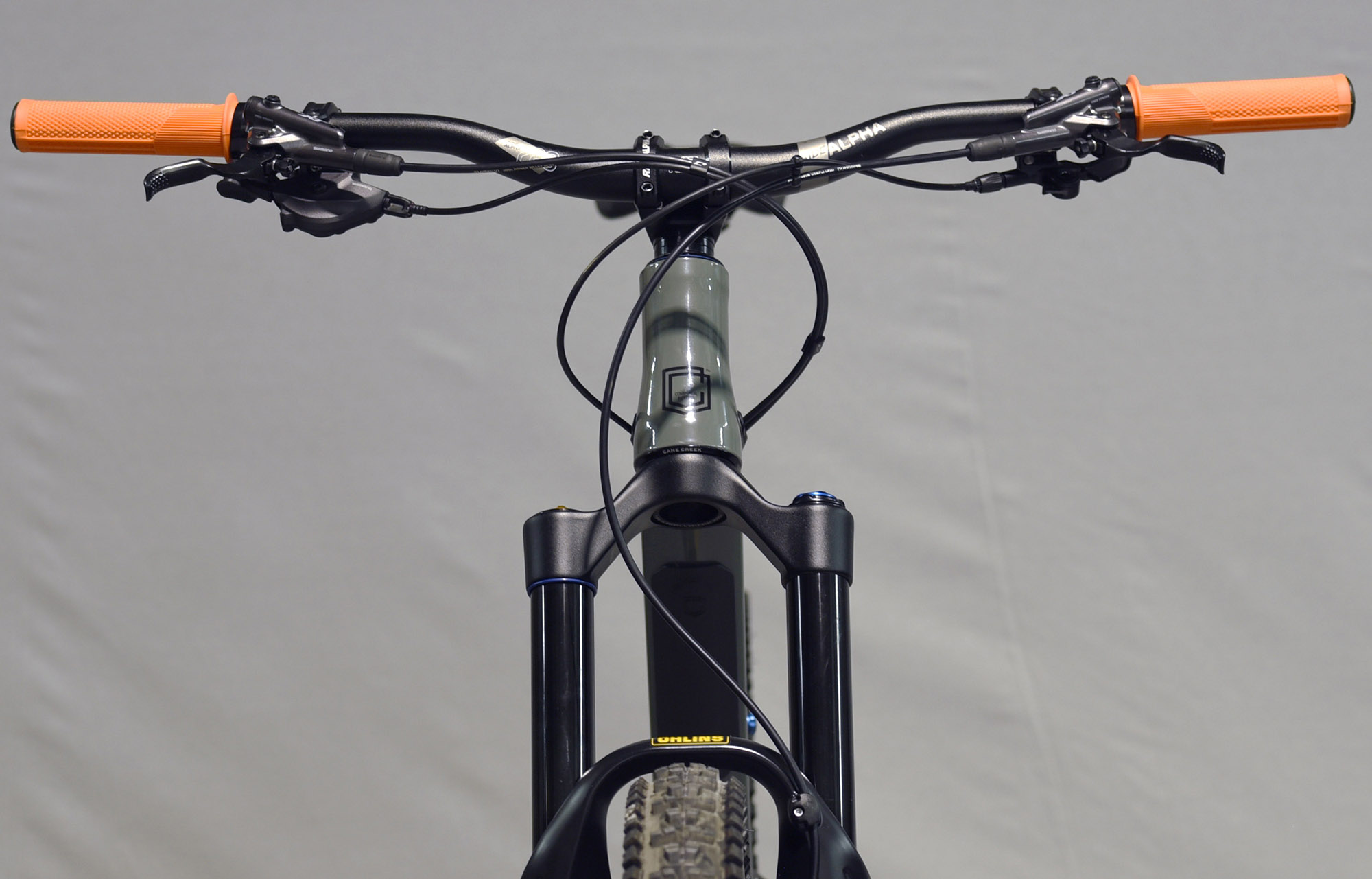

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotors: Delivered with Shimano or Galfer discs, 203 mm, 6 bolts

  • Shifters

    SHIMANO XT
    12s

  • REAR DERAILLEUR

    SHIMANO XT
    12s

  • Bottom bracket

    SHIMANO BBMT800
    Pressfit

  • Crankset

    SHIMANO XT, 170 mm crank arms, Boost
    Chainring: SHIMANO XT, 34t, Dynamic Chain Engagement + Technology

  • Chain

    SHIMANO XT
    12s

  • Cassette

    SHIMANO XT
    12s, 10 - 51t

  • Rims

    DT SWISS EX511
    27.5'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, Microspline Driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 27.5" x 2.4", Super Trail, Addix Soft - Front: 27.5" x 2.4", Super Trail, Addix Soft

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3 Atmos
    140 mm width, Lux-Alloy Rails

  • Weight

    15,5 kg / 34.17 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Keswick Green
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad

- SIZES -
- GEOMETRY -
SIZES
